How to Configure the Router

Connecting to the Router (RUTX10)​

To modify the router settings, first connect to the router by accessing its web interface. Open a browser and navigate to http://10.10.0.1. Use the credentials provided below to log in:

  • username: admin
  • password: Fictionlab1

Modifying the settings​

Change the SSID and password​

Go to Network → Wireless → SSIDs tab.

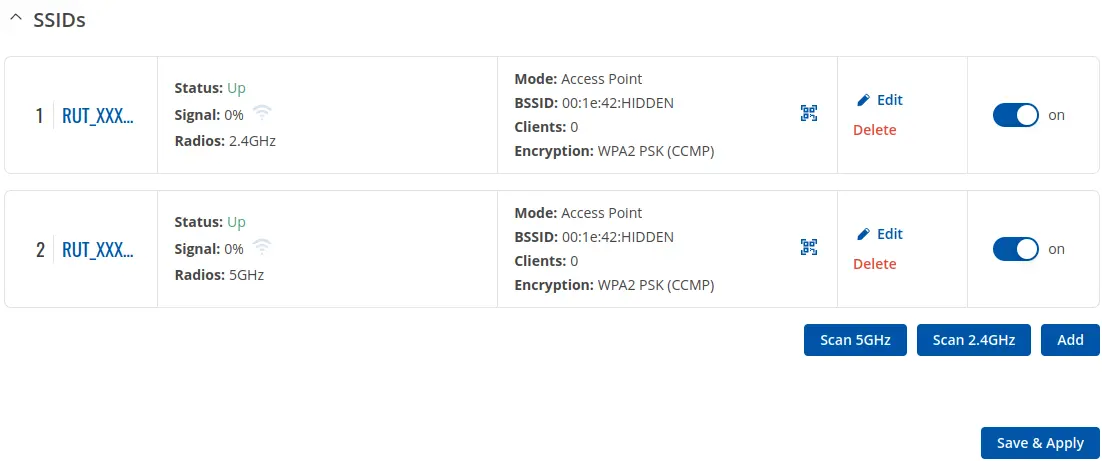

List of SSIDs in the RUTX10 WebUI

Click edit on the SSID you want to change.

note

You need to edit both SSIDs (2.4 GHz and 5 GHz) separately.

In the General Setup tab, modify the ssid and password fields and click Save & Apply. The router will take a few seconds to apply the changes.

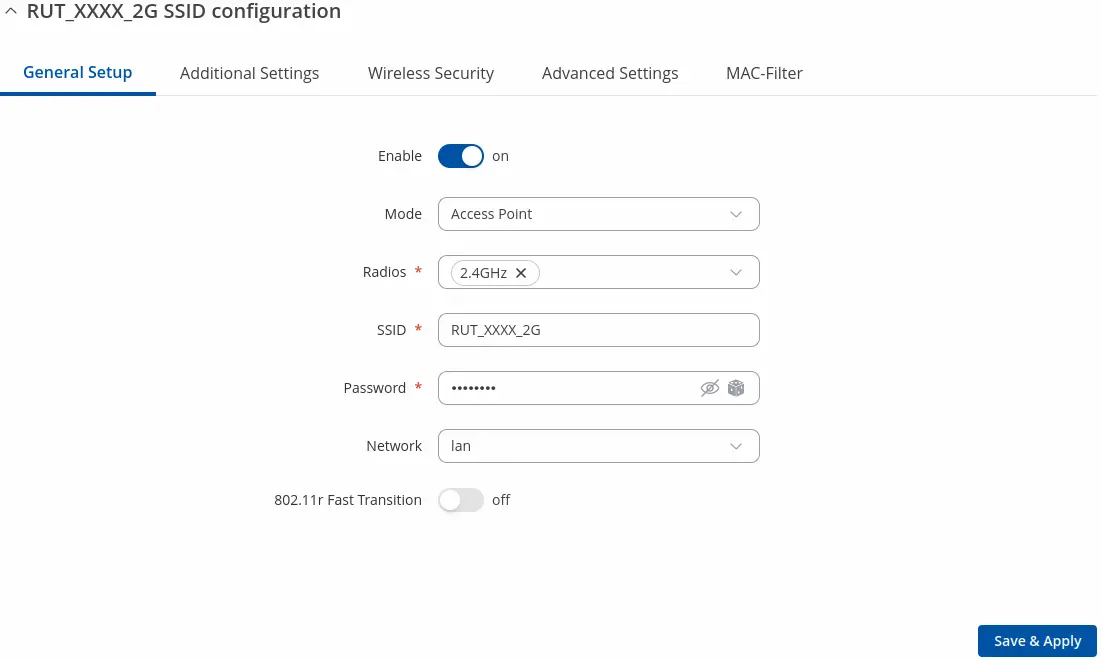

SSID edit window in the RUTX10 WebUI
warning

Changing the SSID or password will disconnect you from the network. You will need to reconnect using the new credentials.

Set the country code​

Go to Network → Wireless → Radio tab and choose your country code from the dropdown list in the Global settings section.

Country code setting tab in the RUTX10 WebUI

To apply the changes, click Save & Apply on the bottom right of the screen.

warning

Setting the country code can limit the number of available channels to use.

Change the access point channel​

tip

Changing the channel may be useful if you notice the network interference in crowded areas or you want to use multiple Raph Rovers at once.

Go to Network → Wireless → Radio tab and click edit on the radio interface you wish to modify.

Radio list in the RUTX10 WebUI

In the General Setup tab, modify the mode, channel and width fields.

Channel and country code edit window in the RUTX10 WebUI

Then click Save & Apply to apply the changes.

Router manual​

You can find more information about the router settings in the RUTX10 WebUI manual.
