Task 4: Battery and Covers

Assembly time ≈ 20 minutes

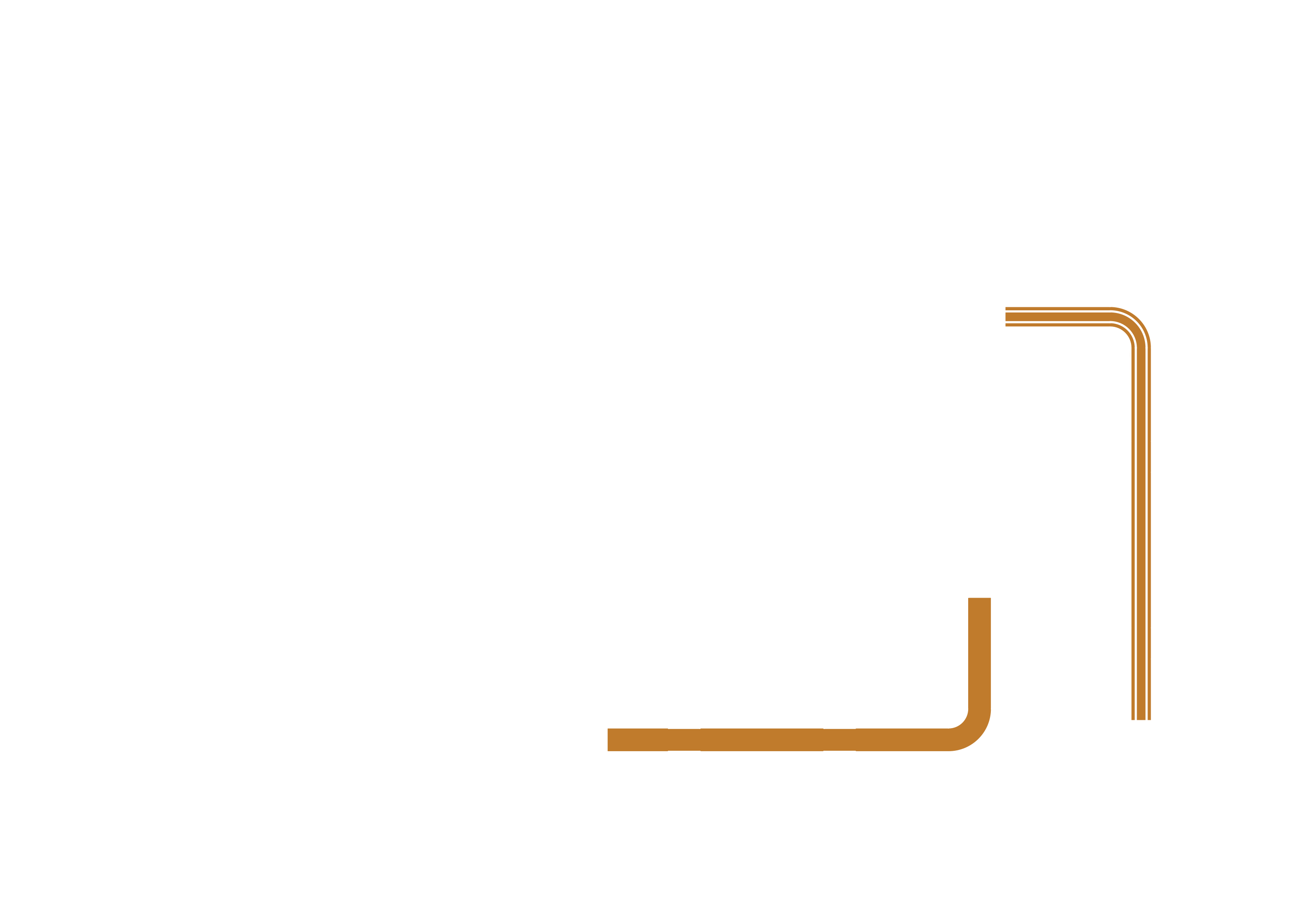

Flat Screwdriver

Flat Screwdriver

---

Battery Quarter:

Step 1

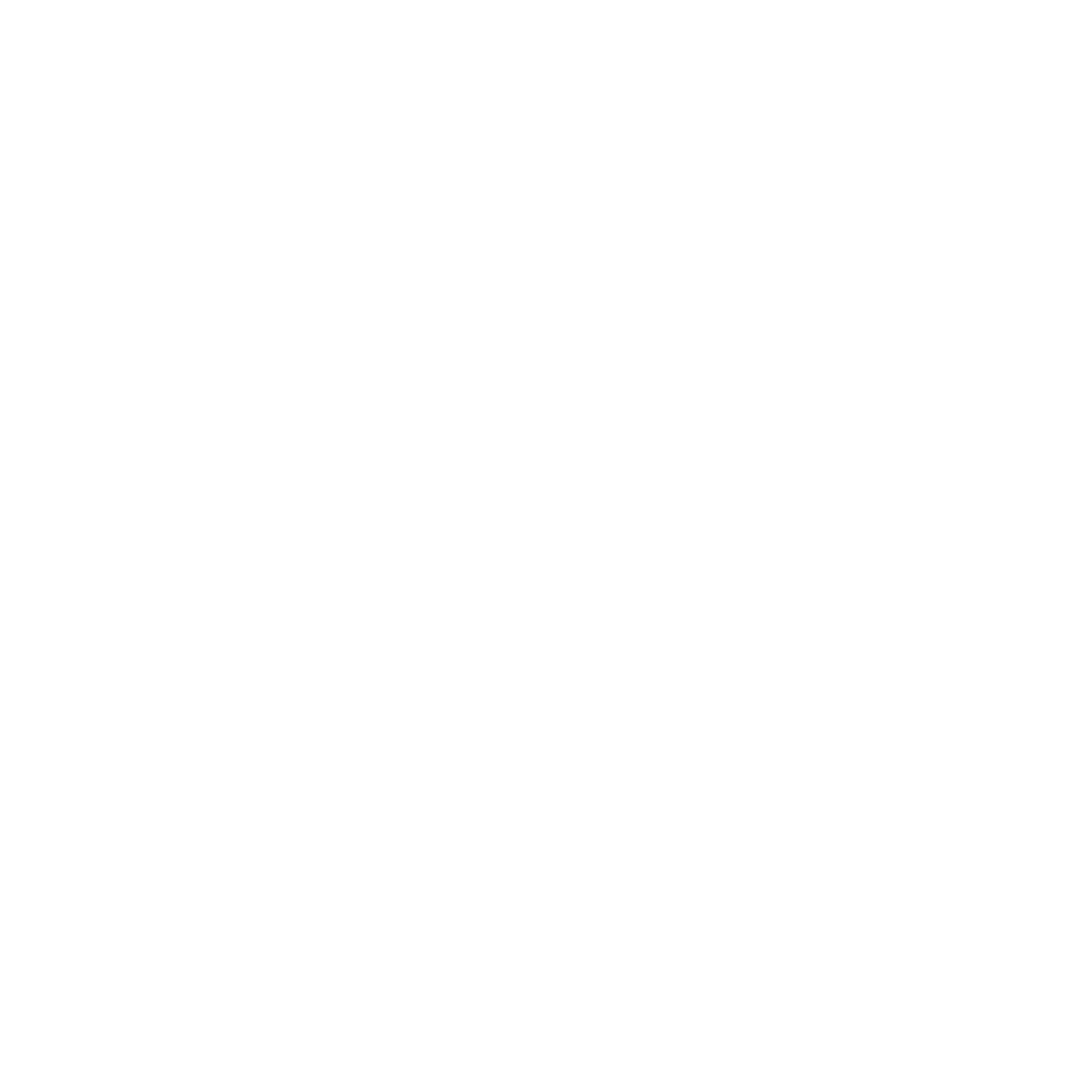

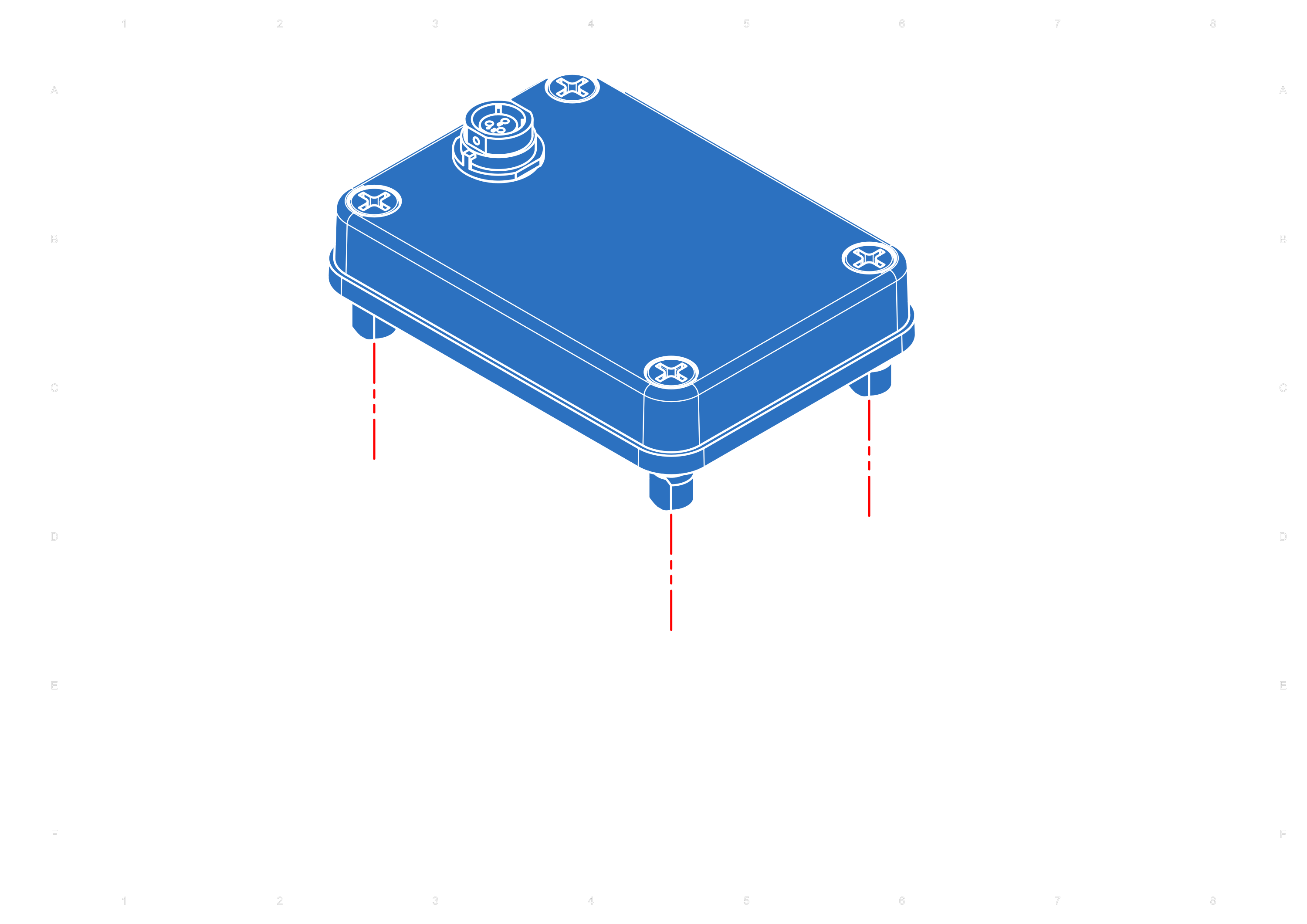

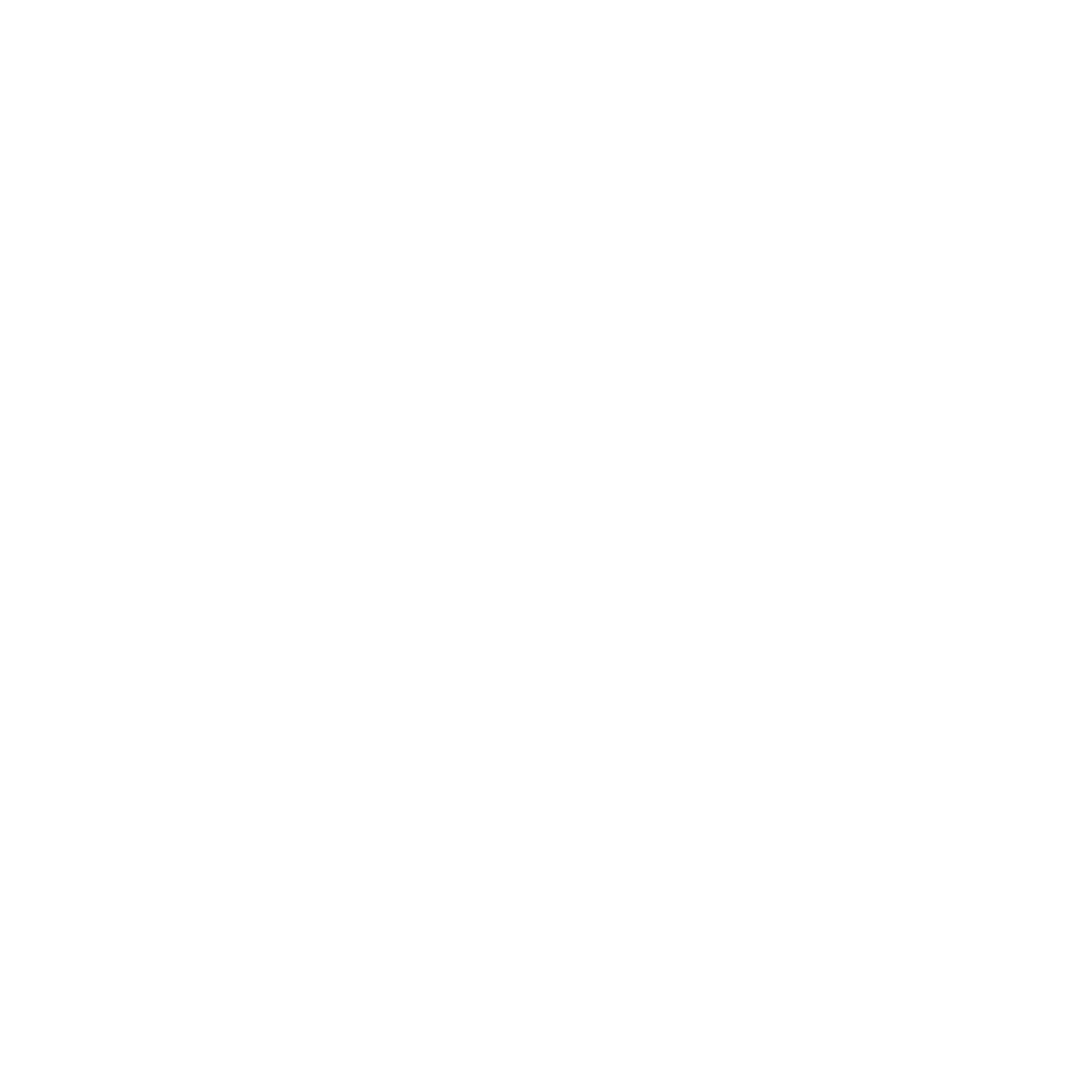

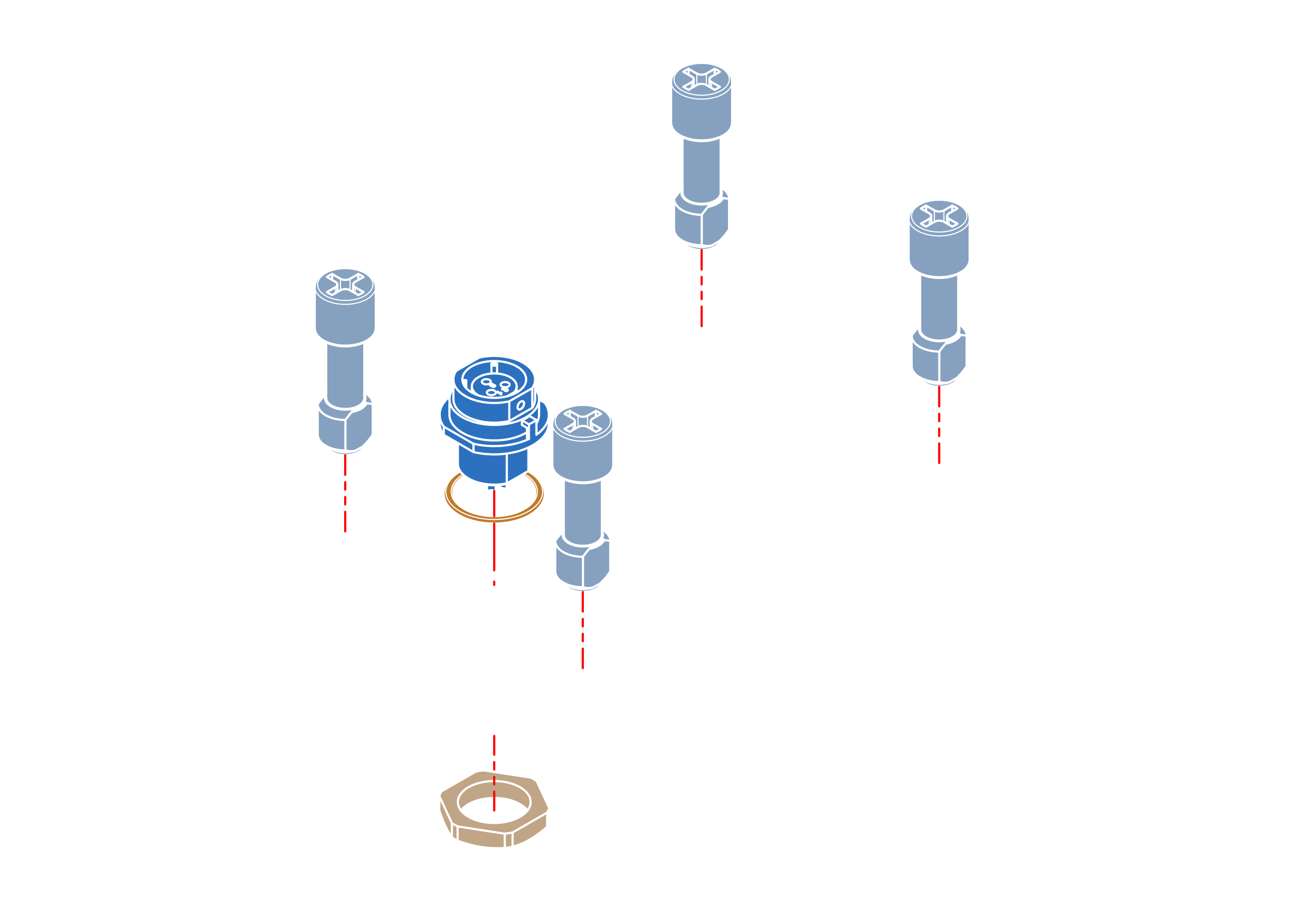

Battery box cover

Battery box cover

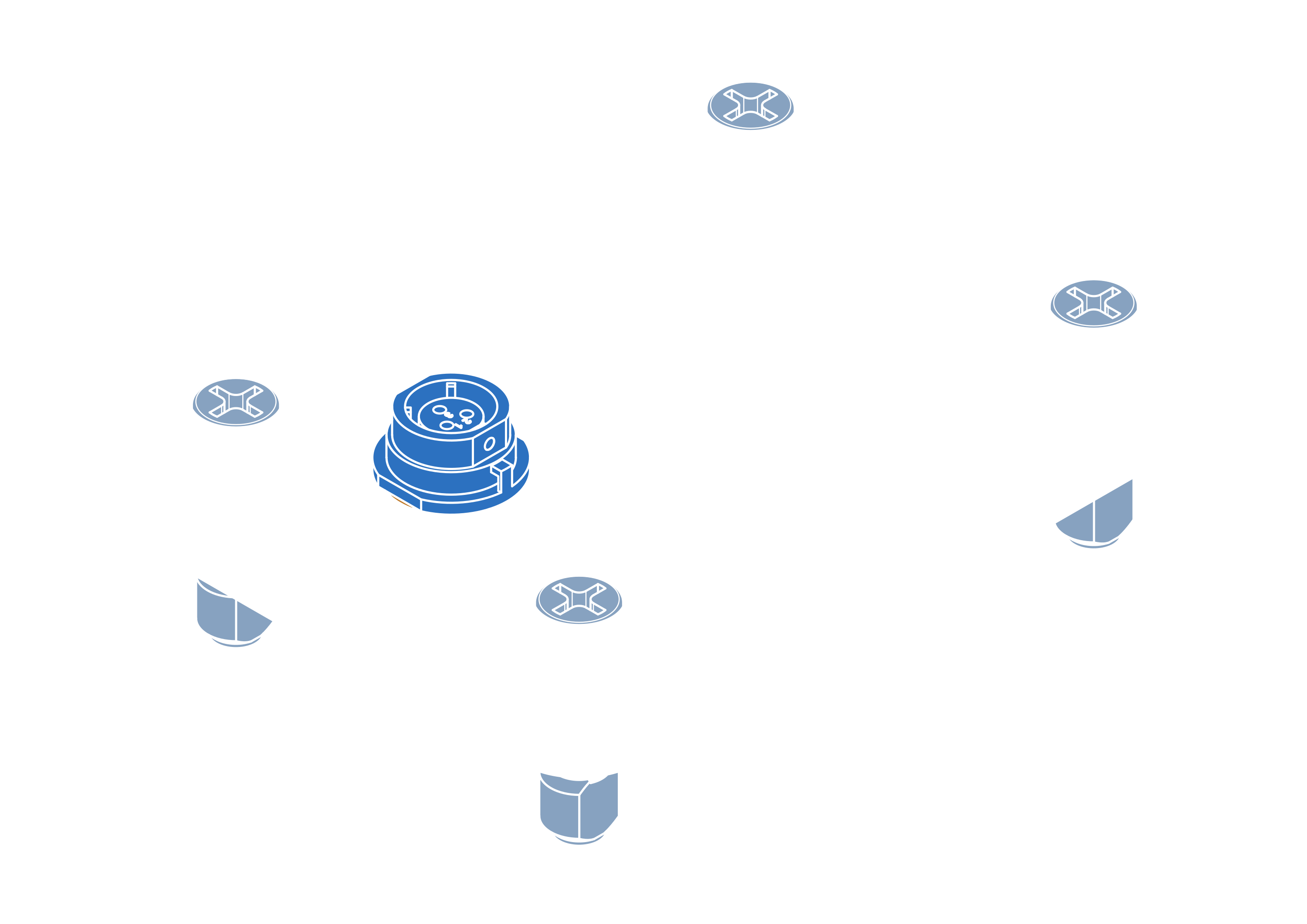

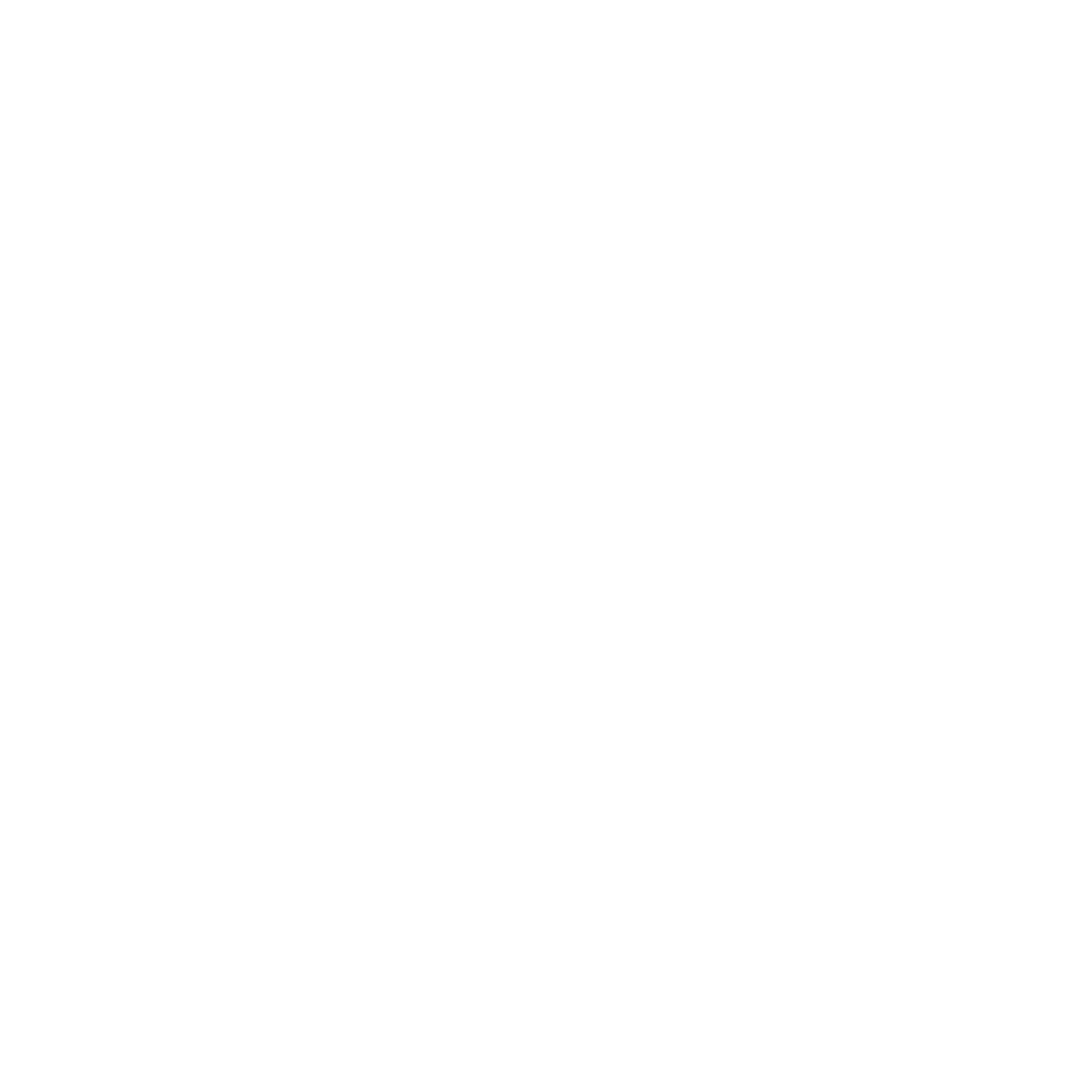

4x Battery box plastic screw

4x Battery box plastic screw

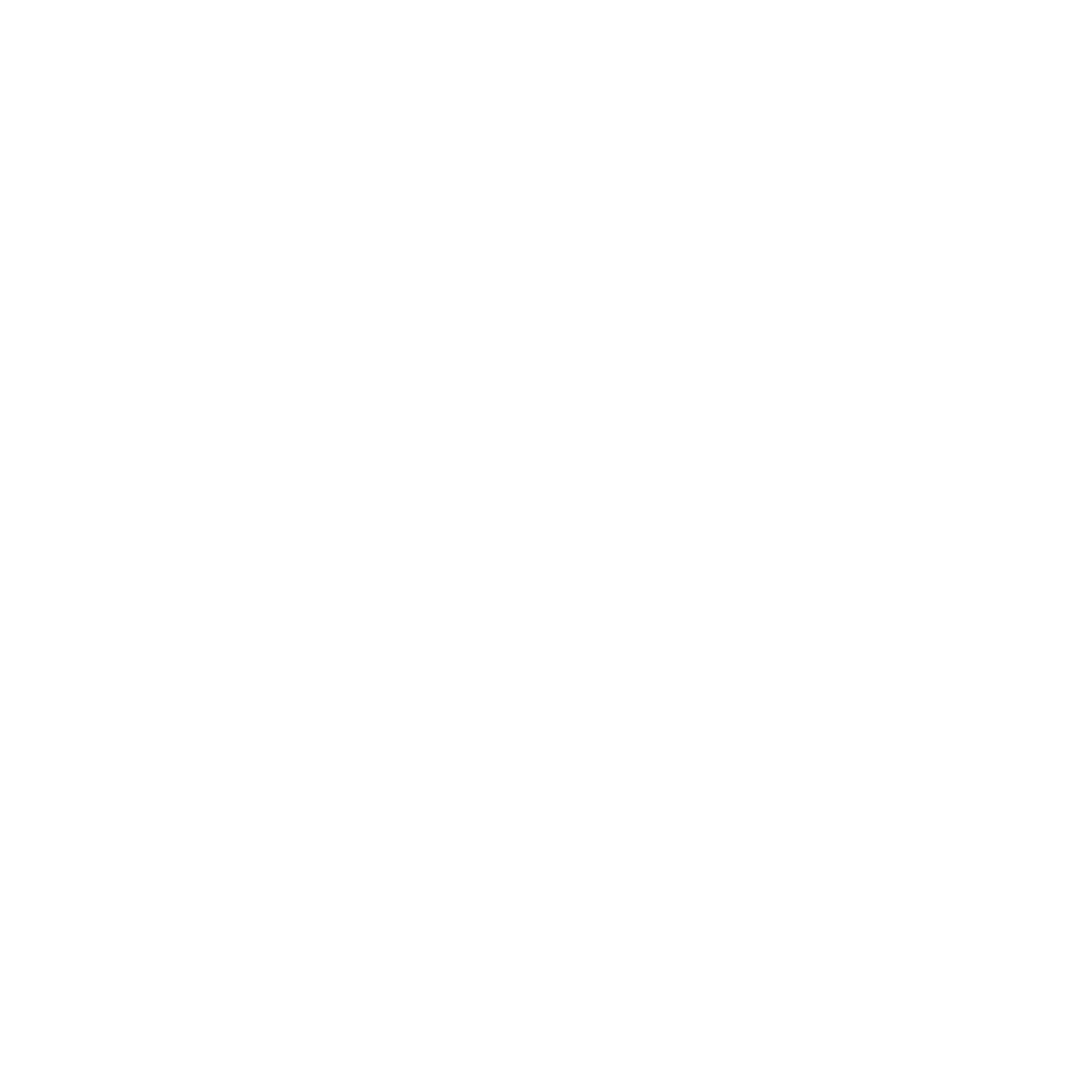

Battery cable

Battery cable

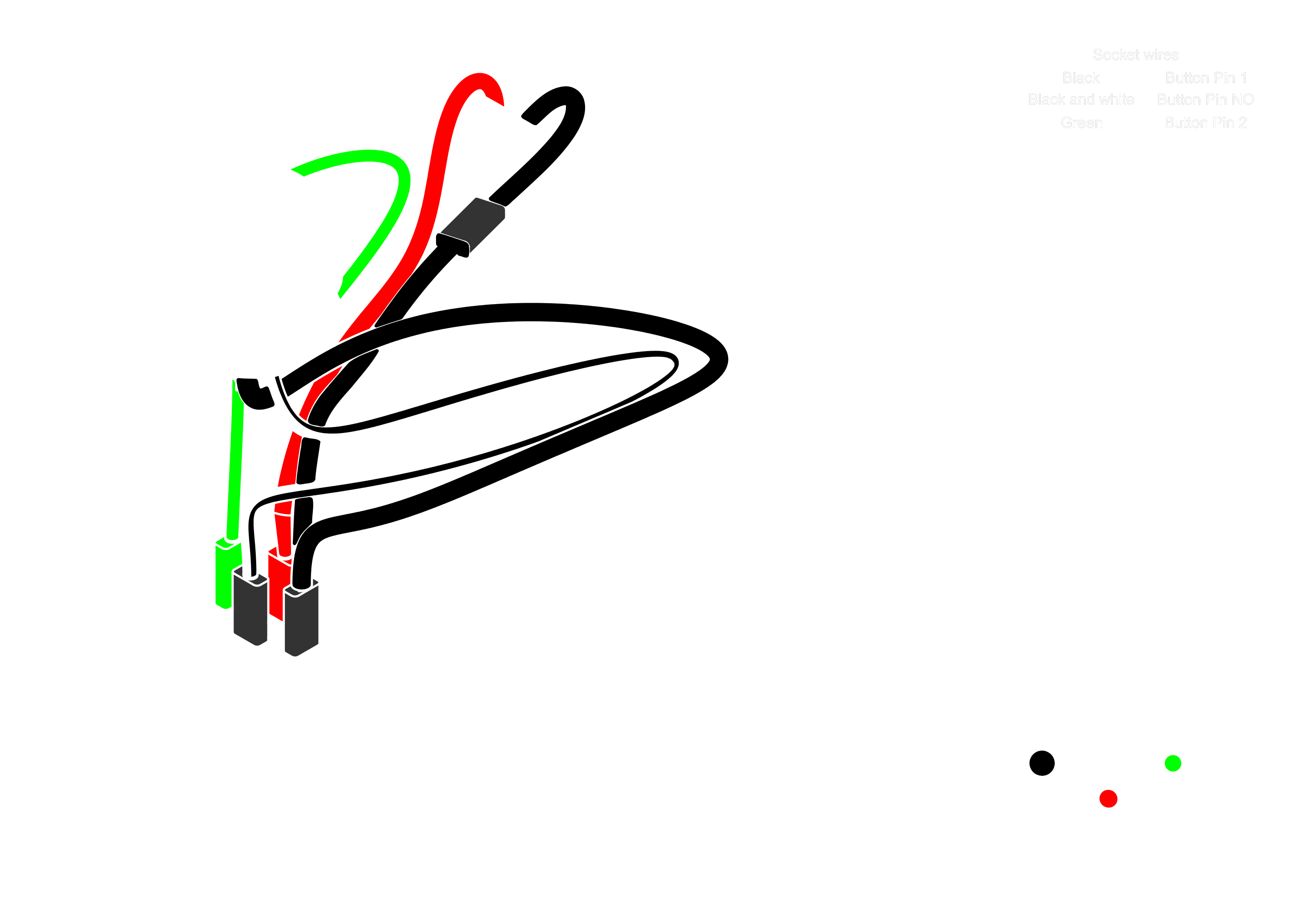

Step 2

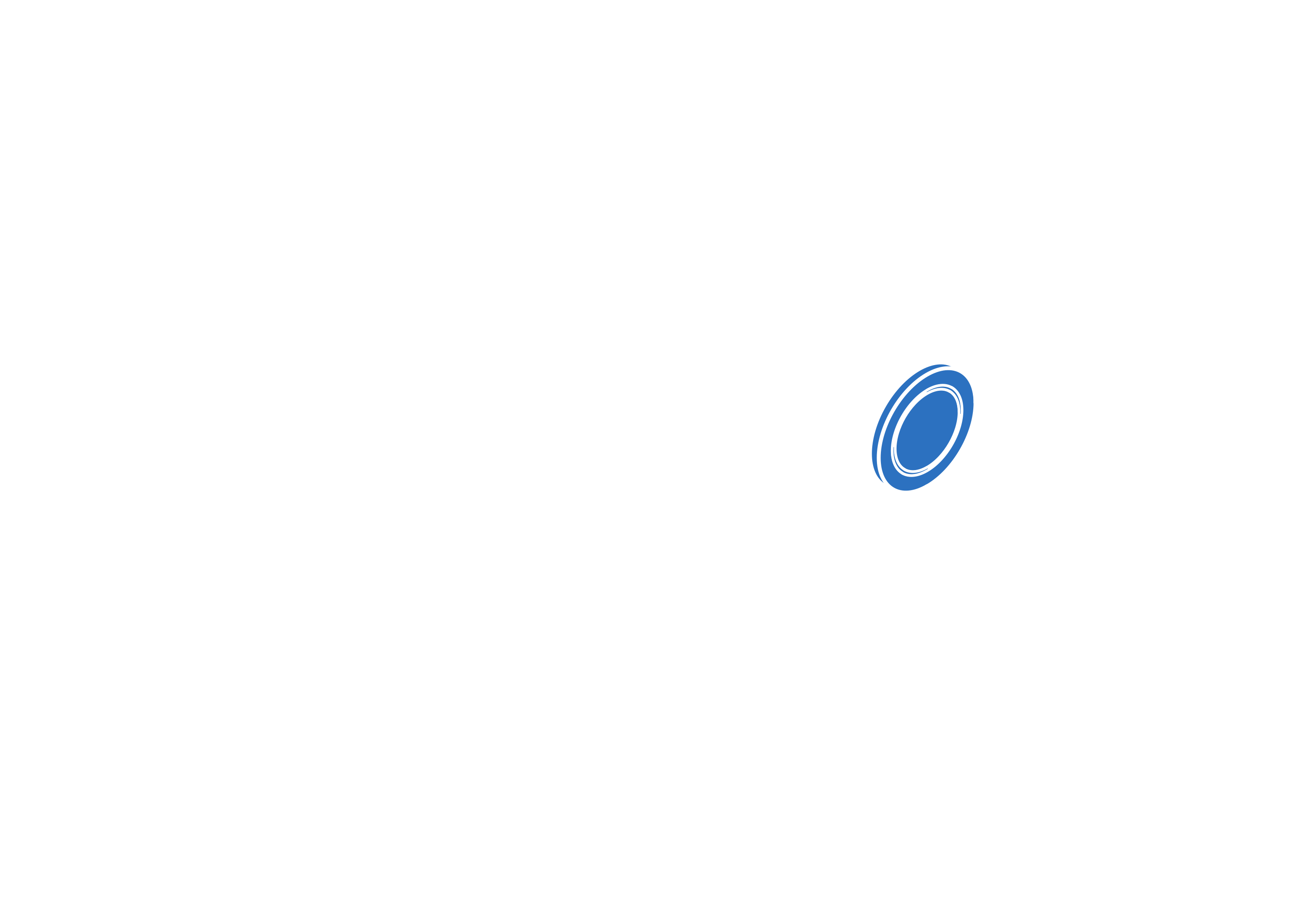

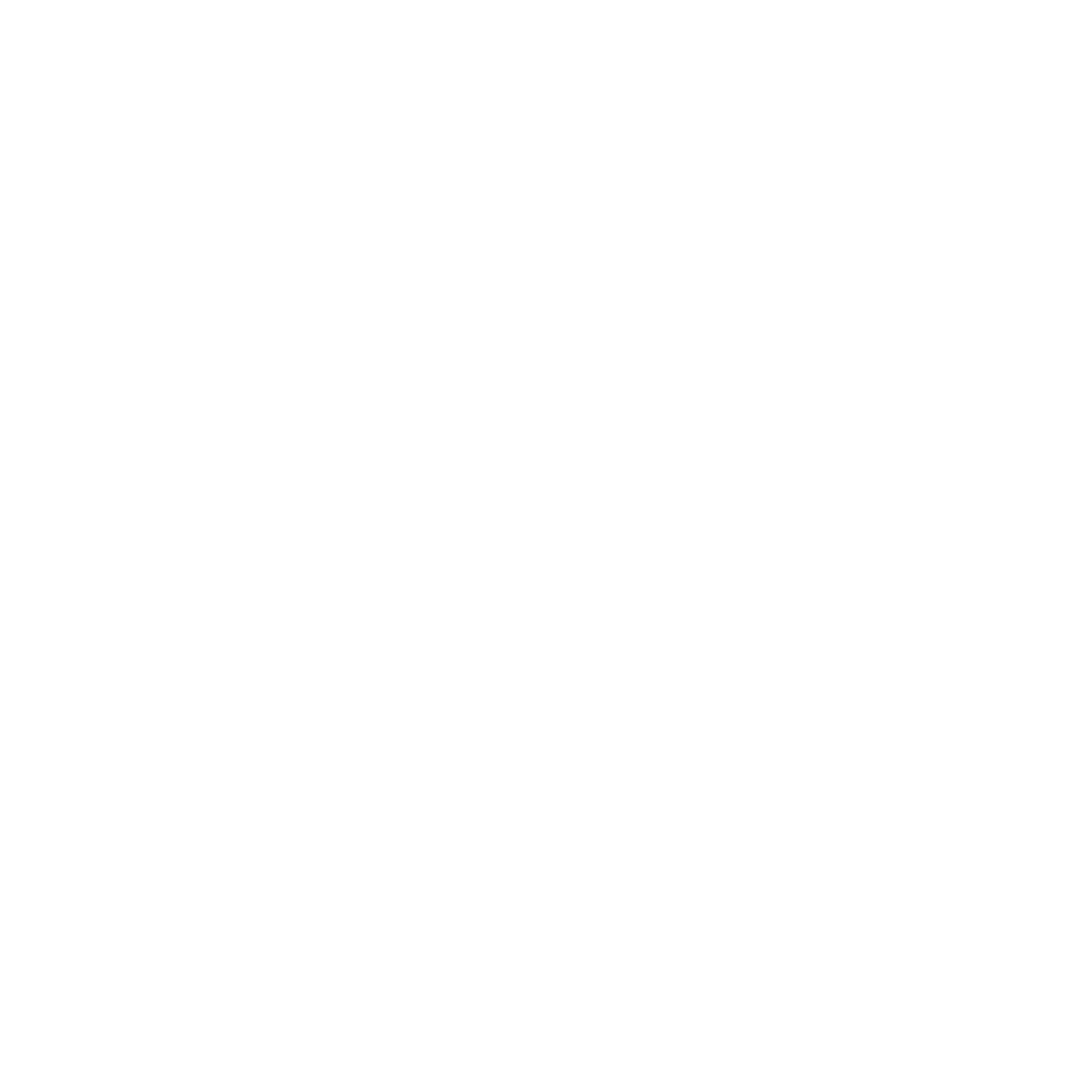

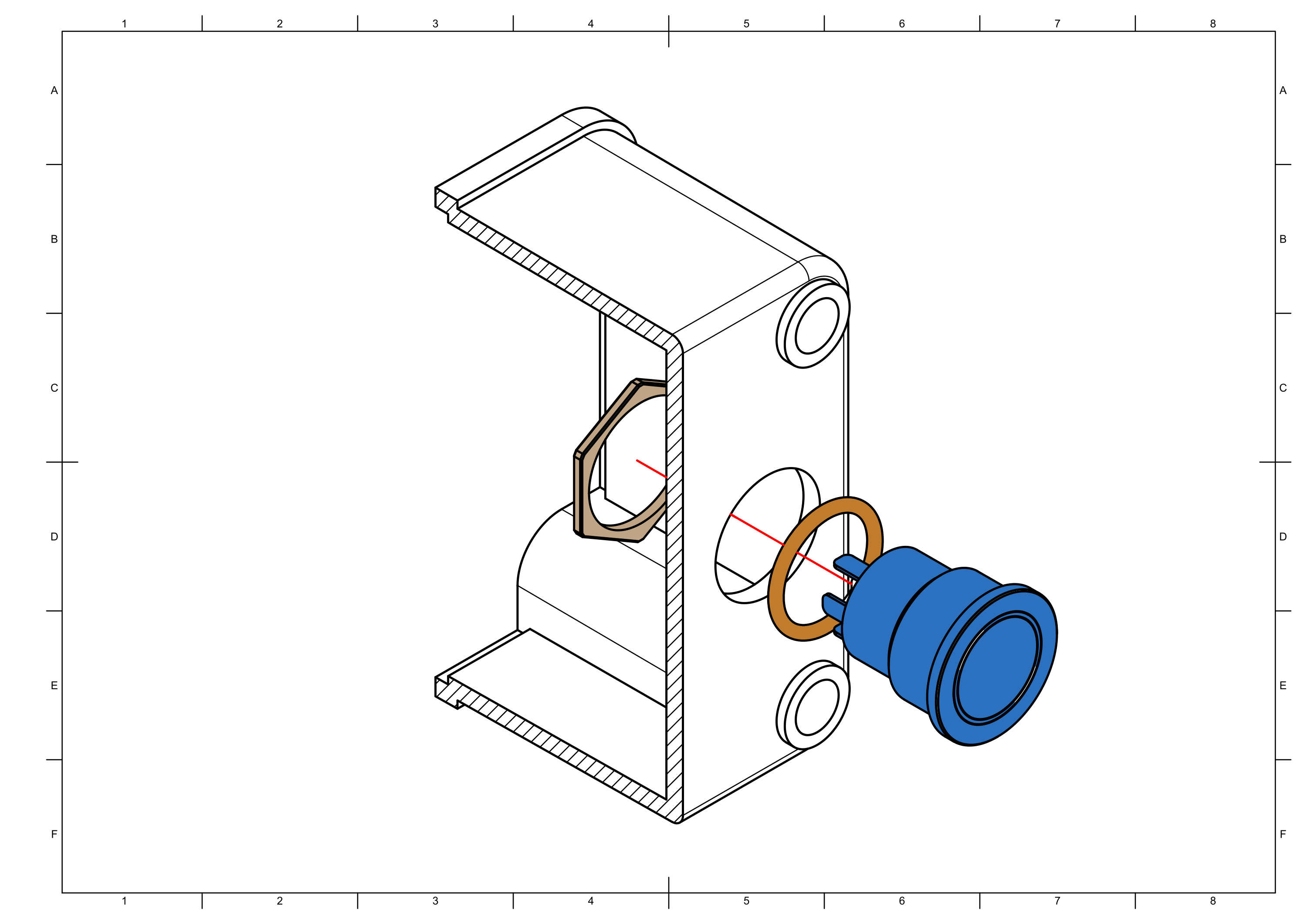

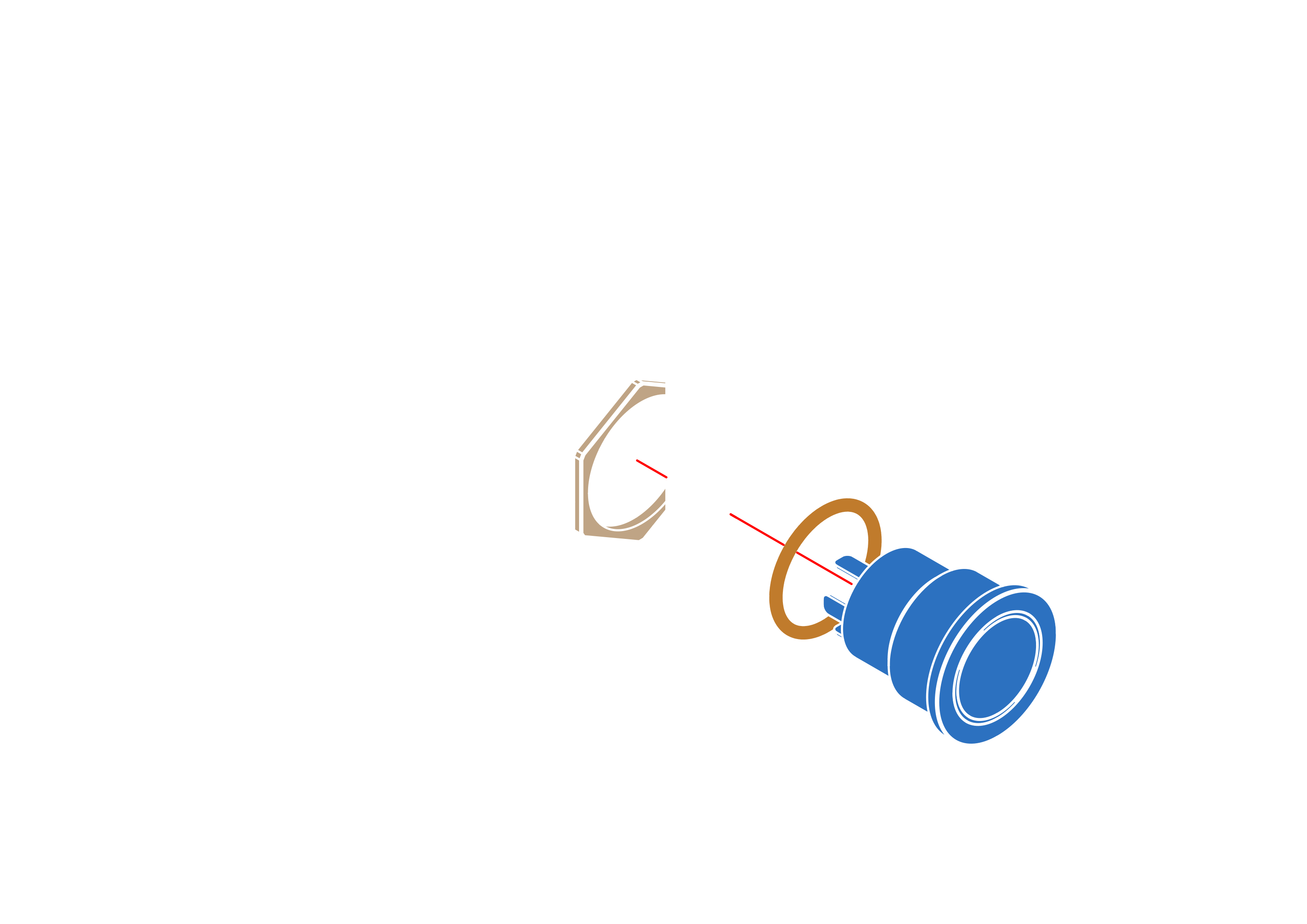

Button

Button

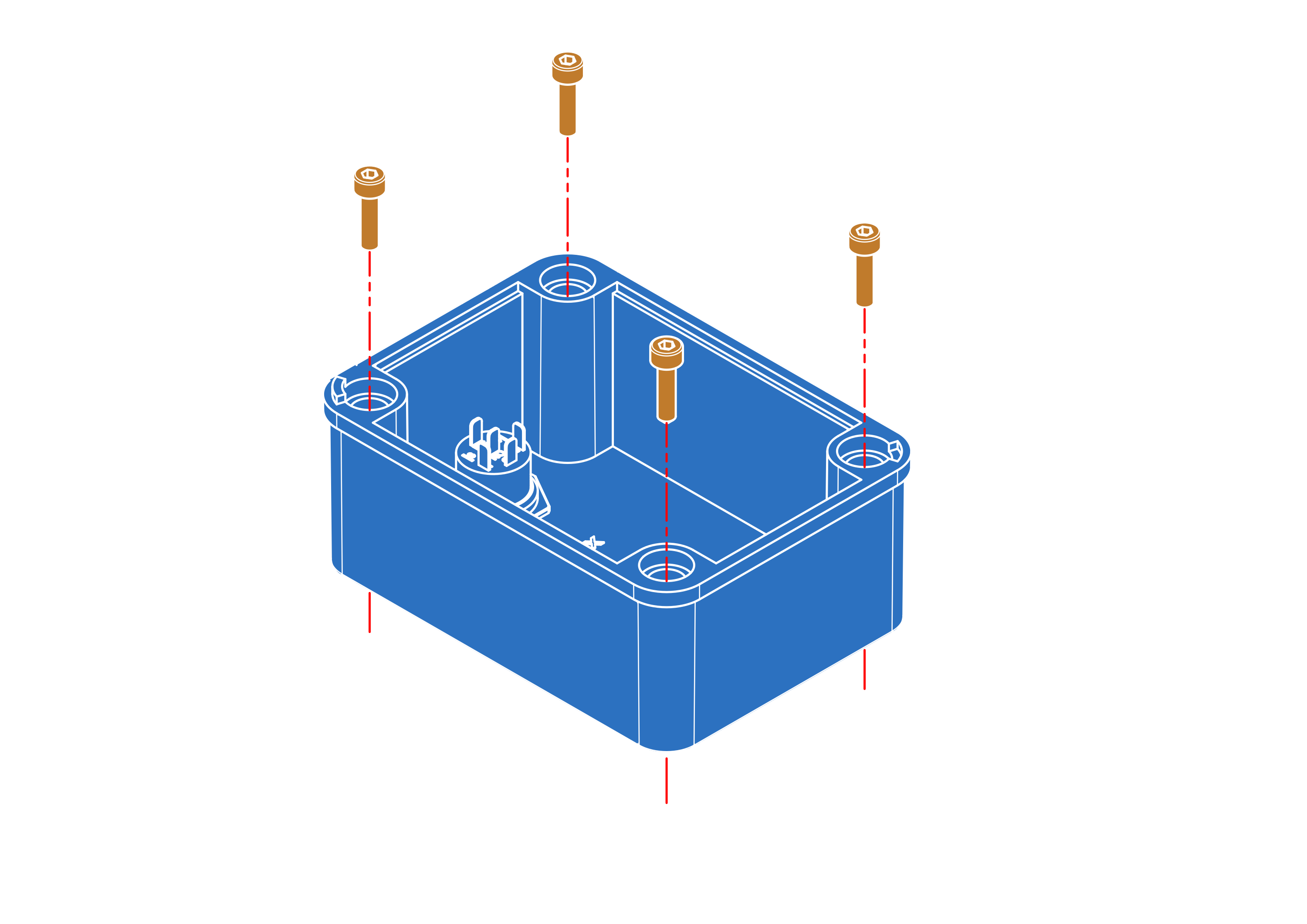

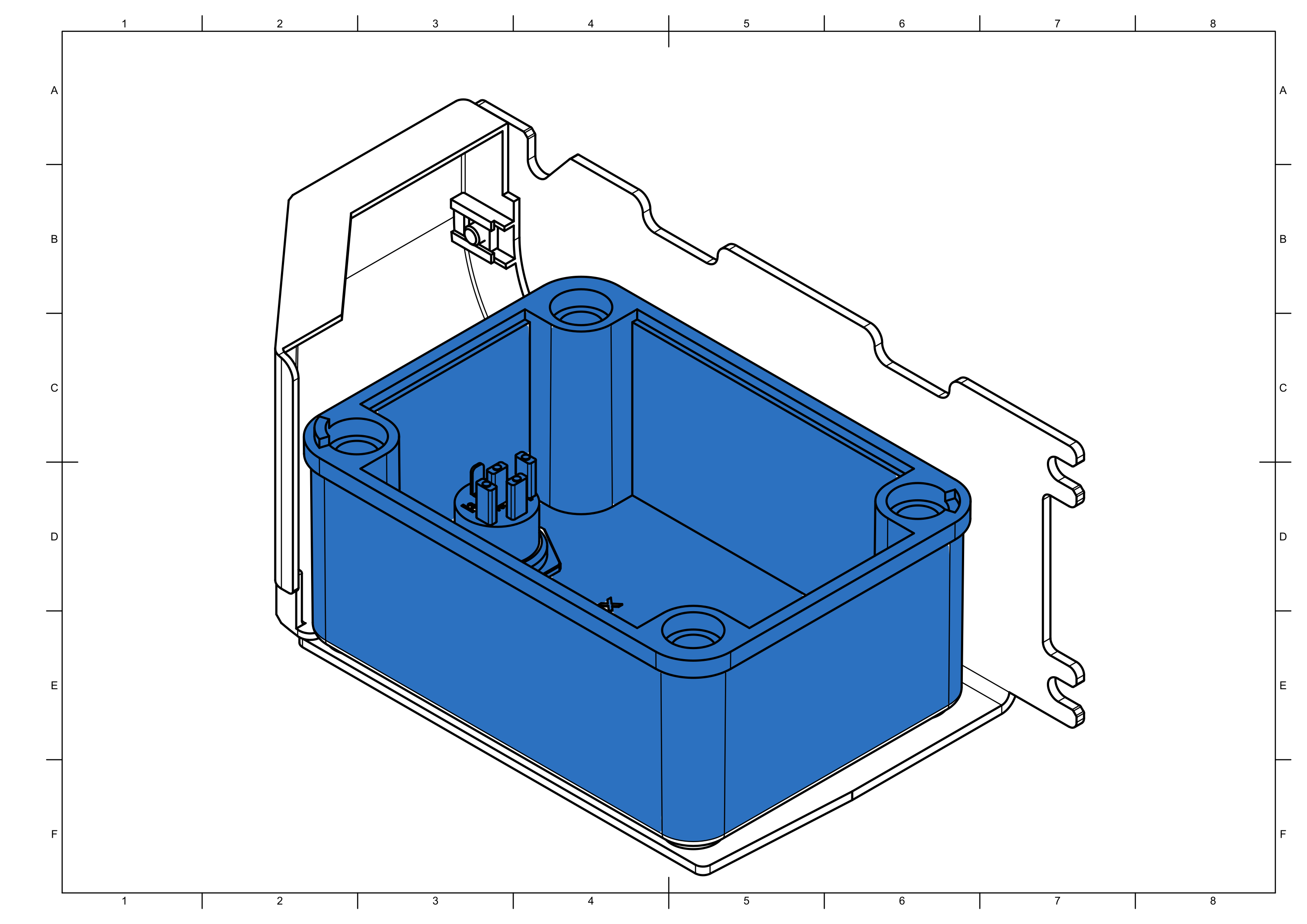

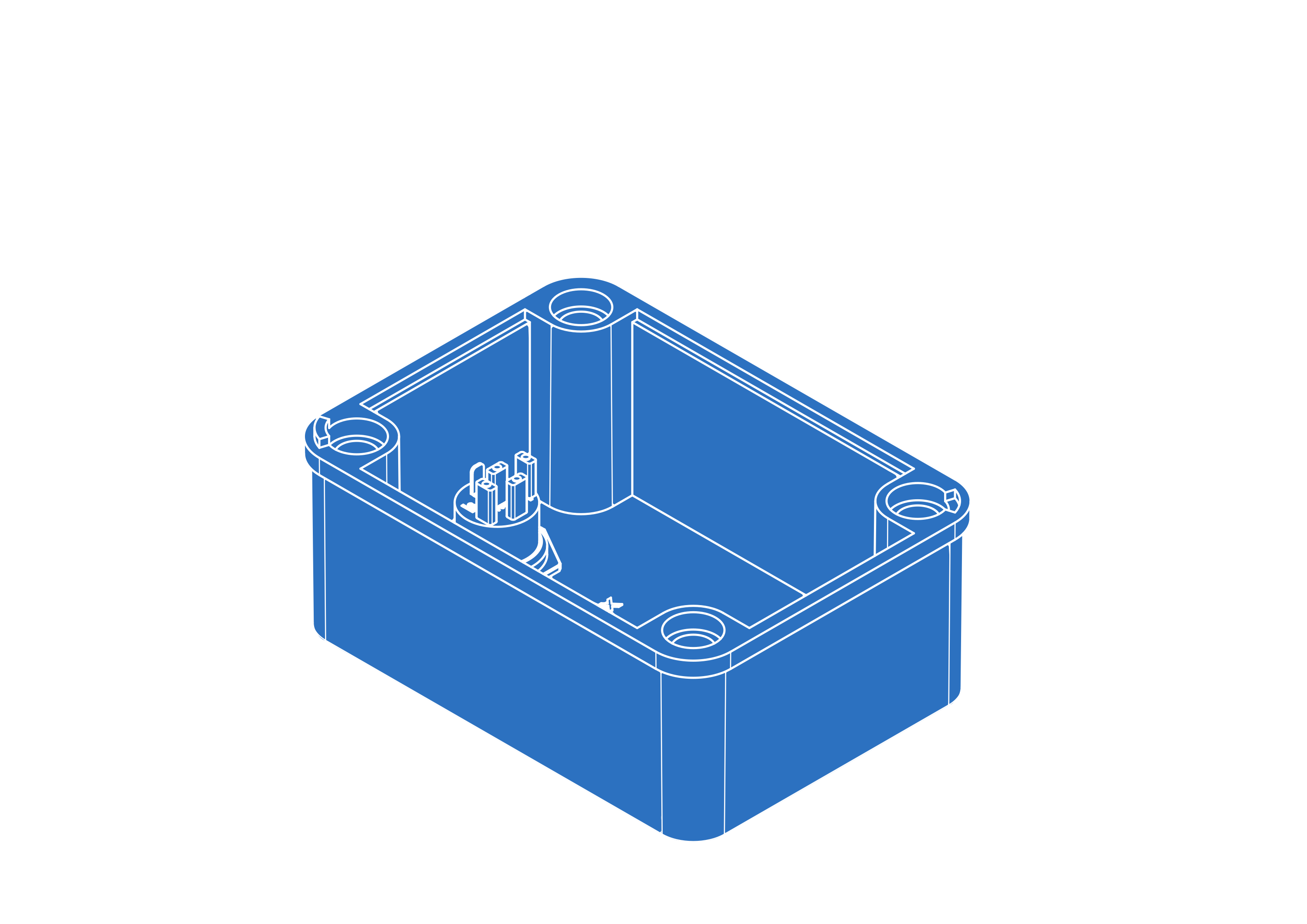

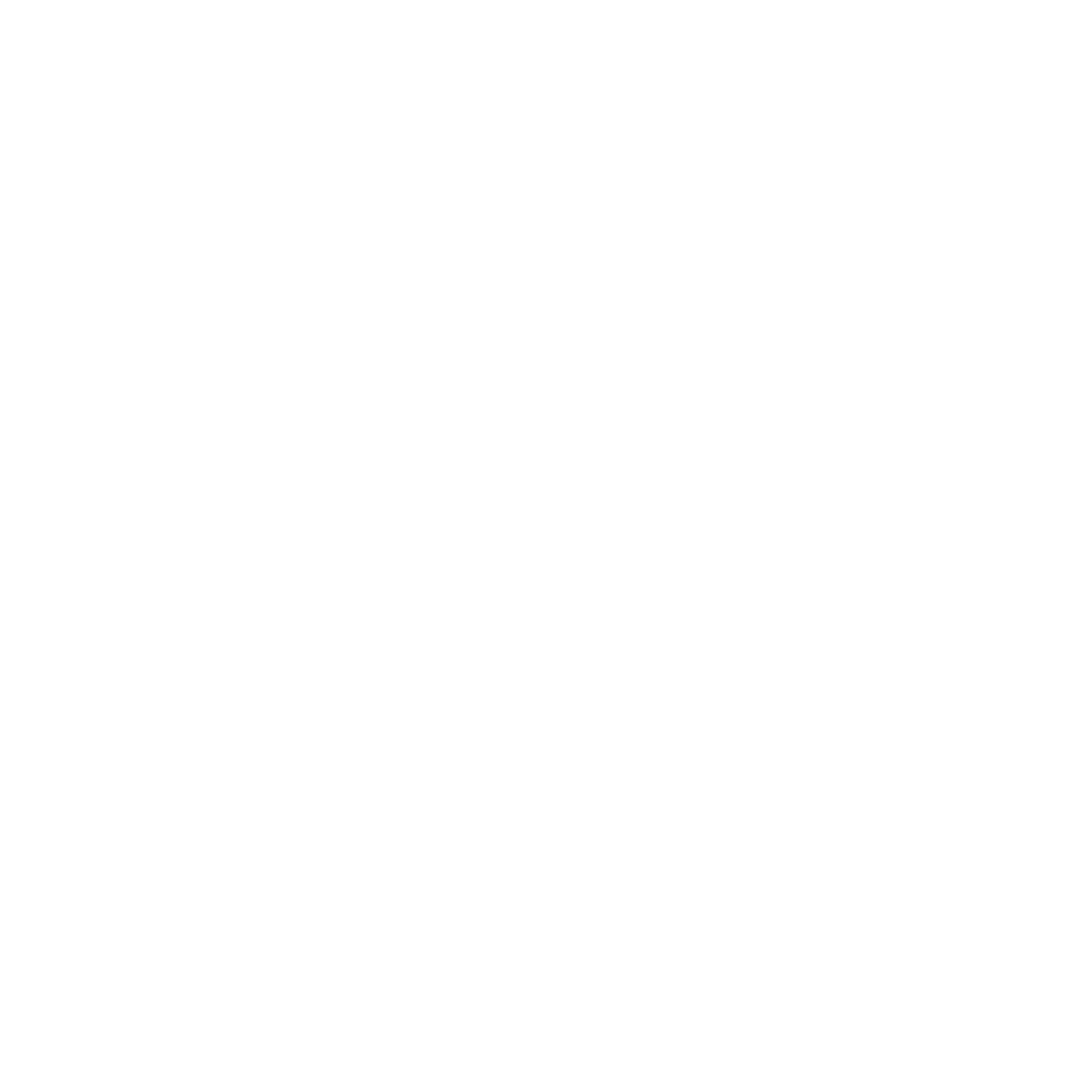

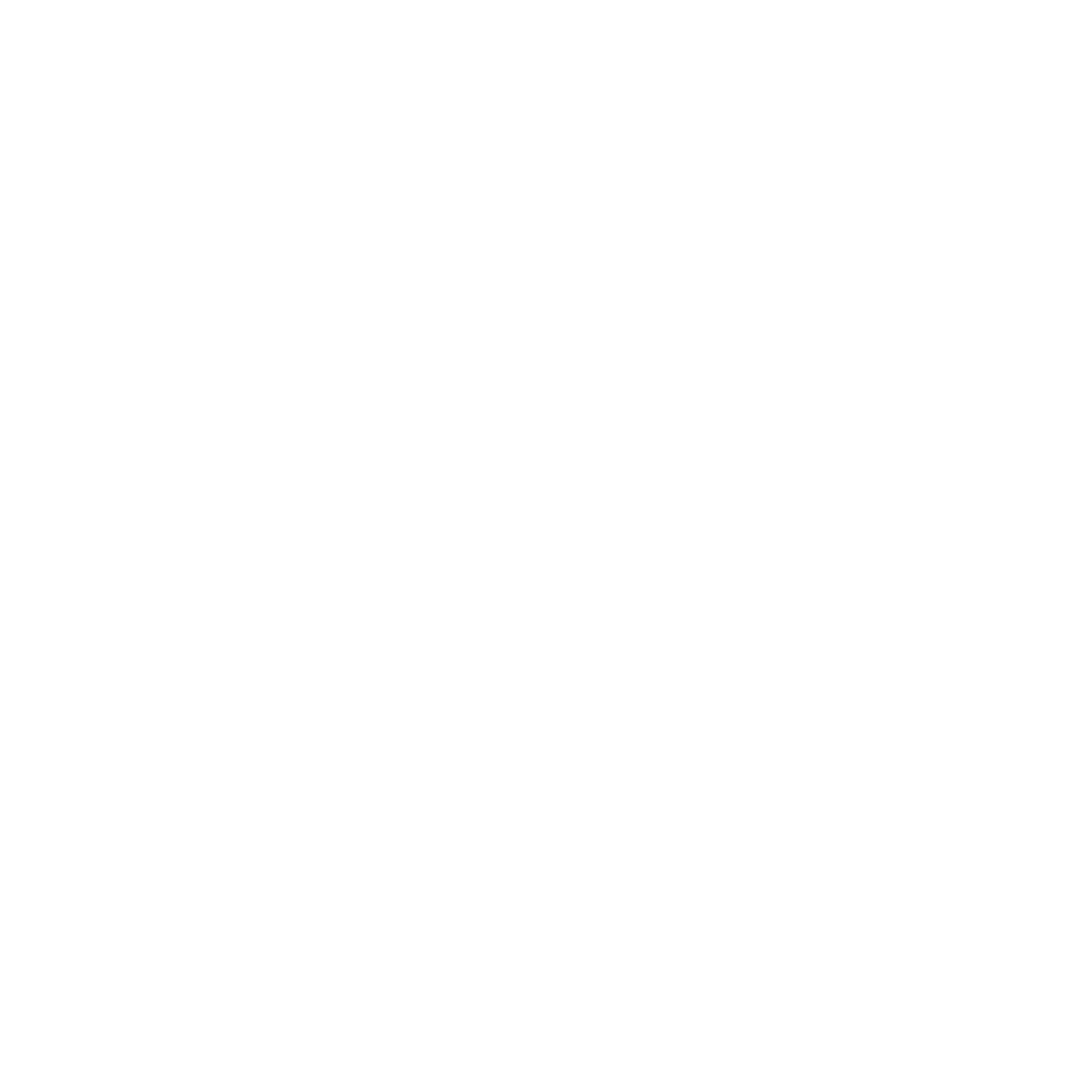

Battery box

Battery box

Step 3

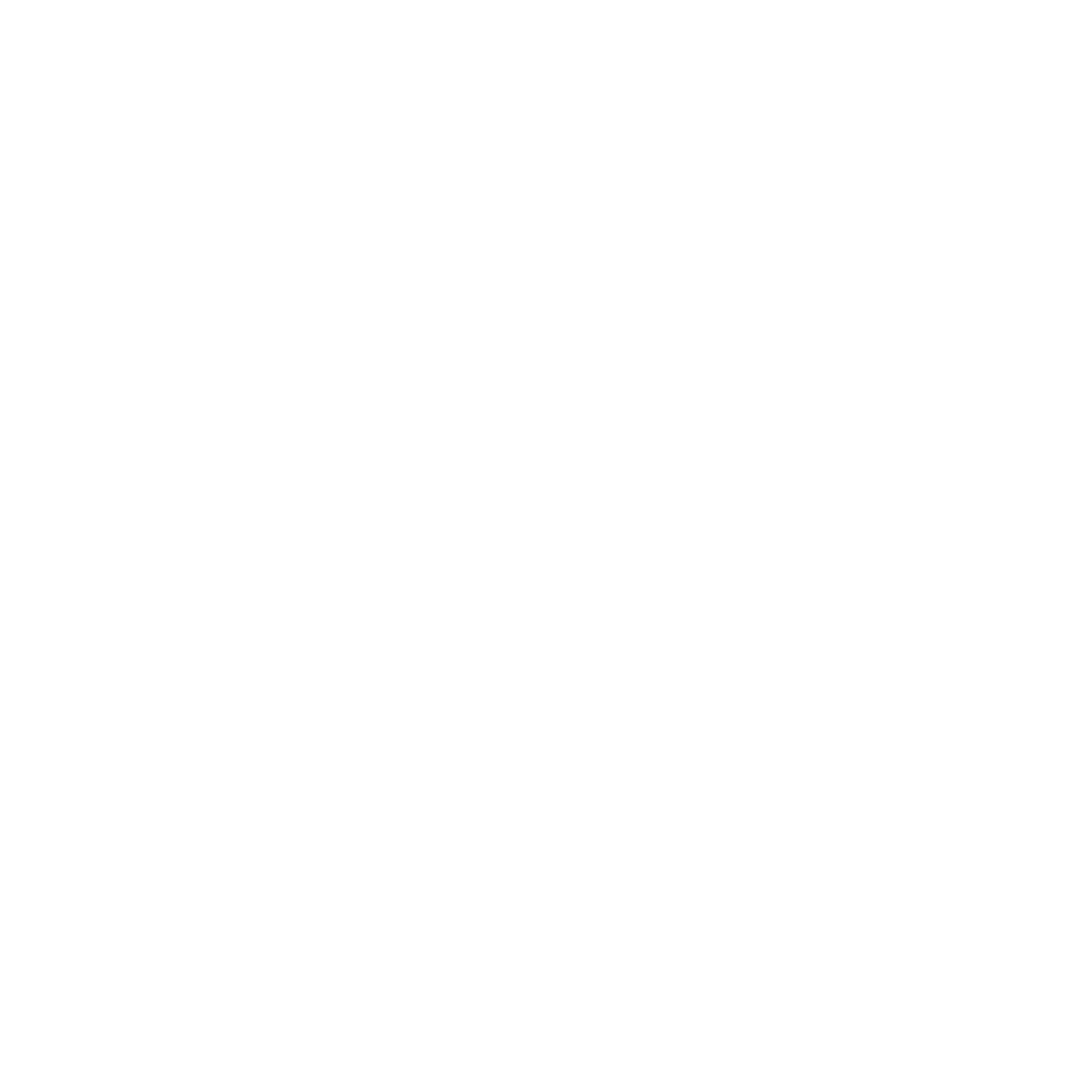

Battery metal plate

Battery metal plate

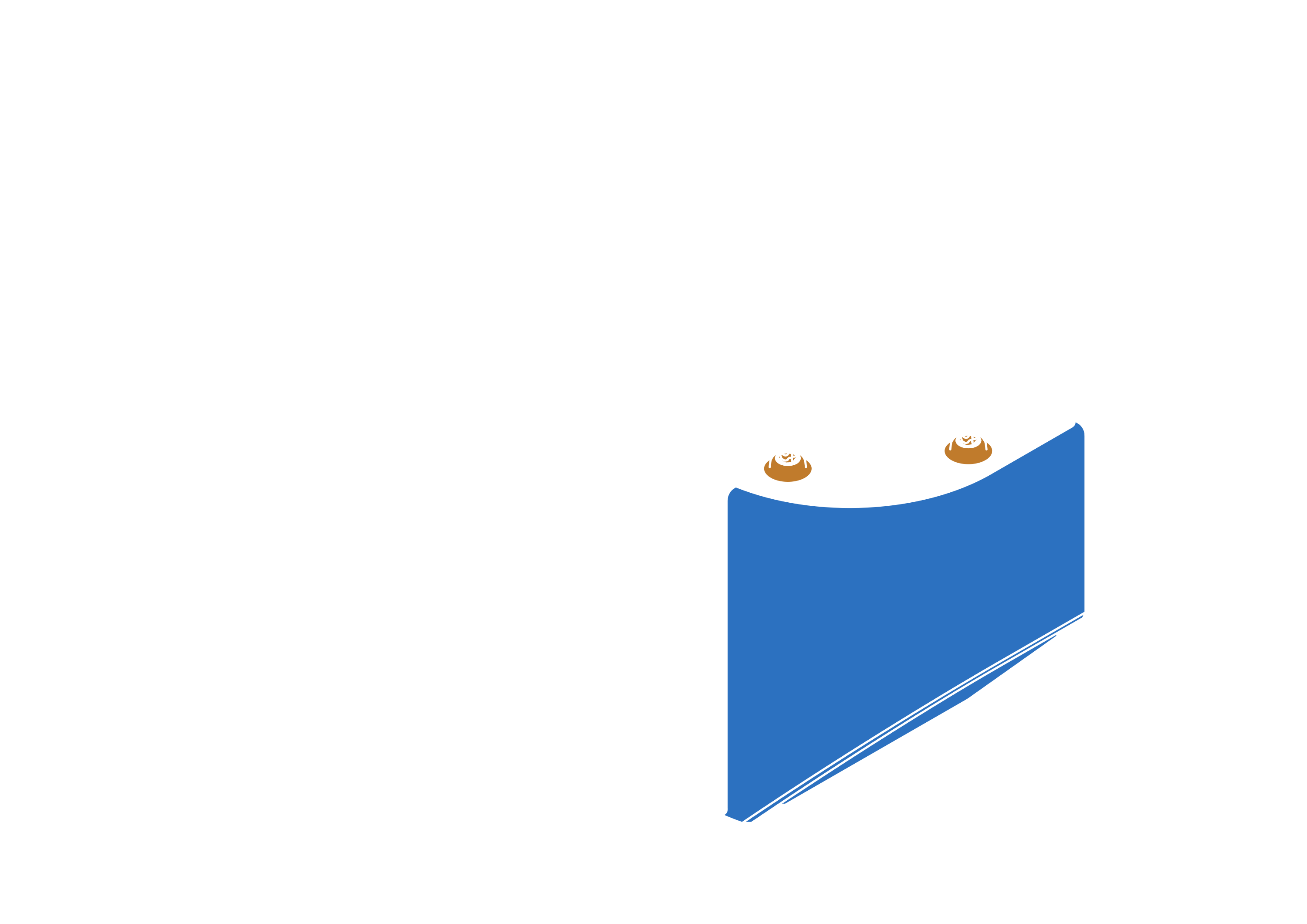

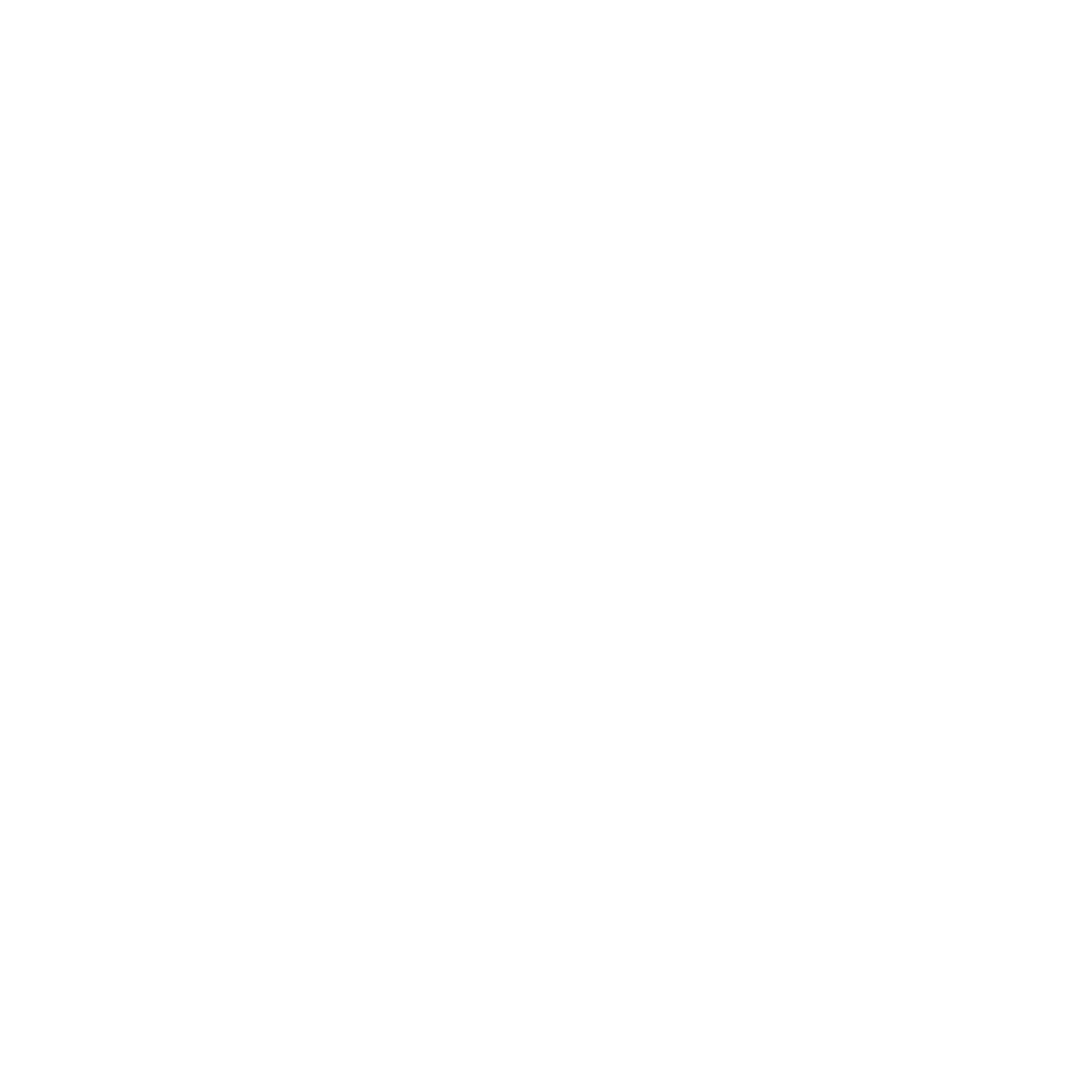

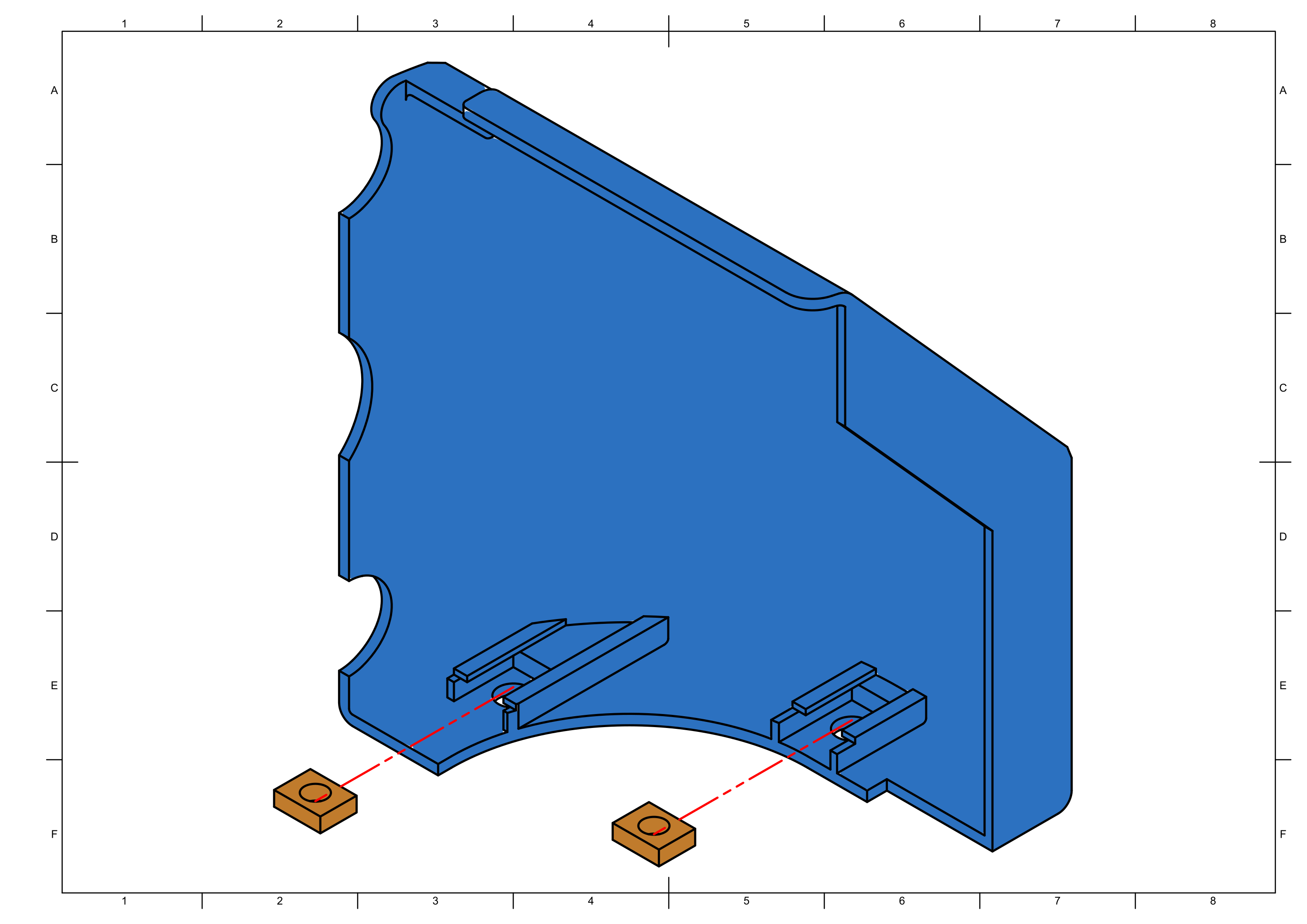

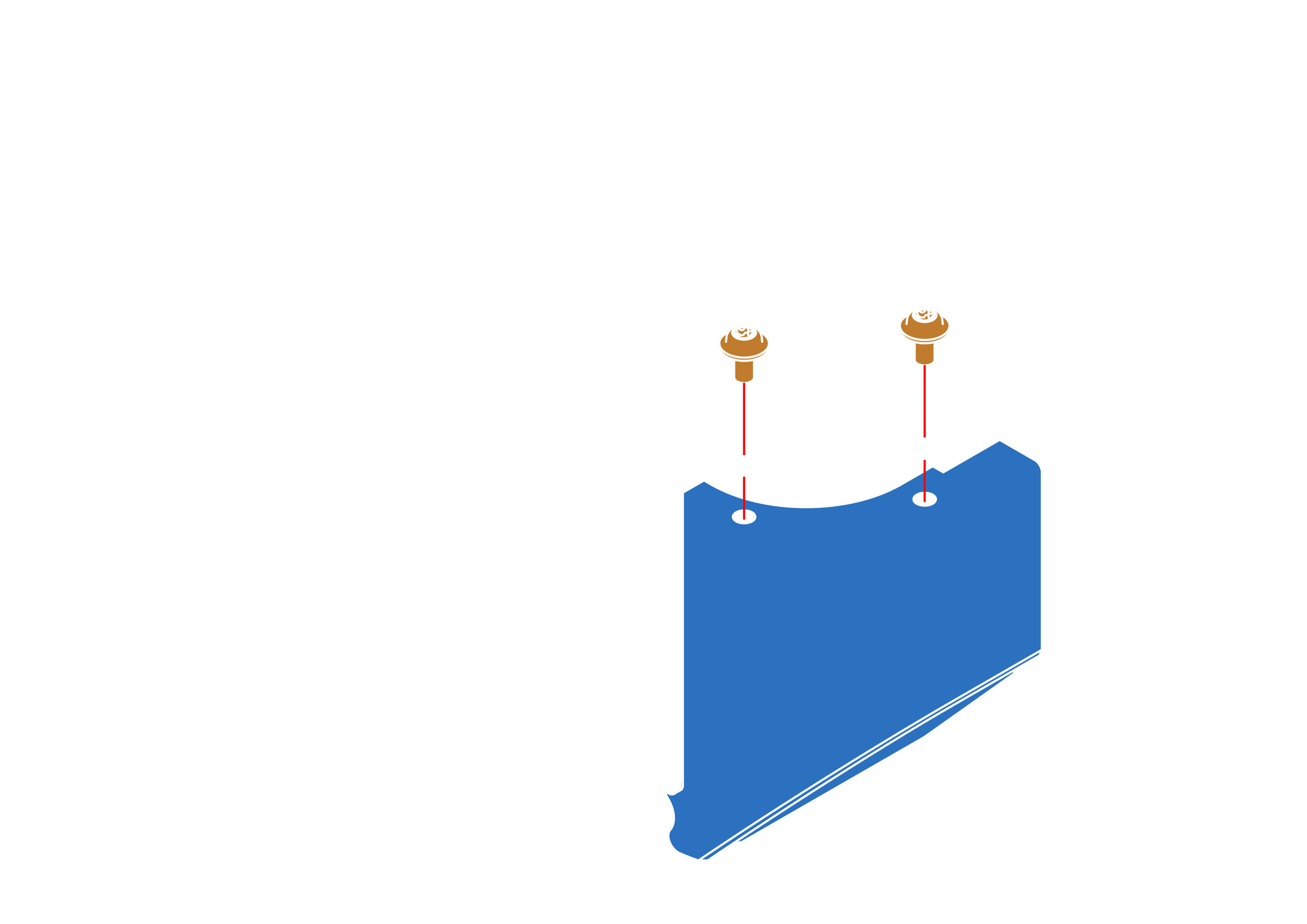

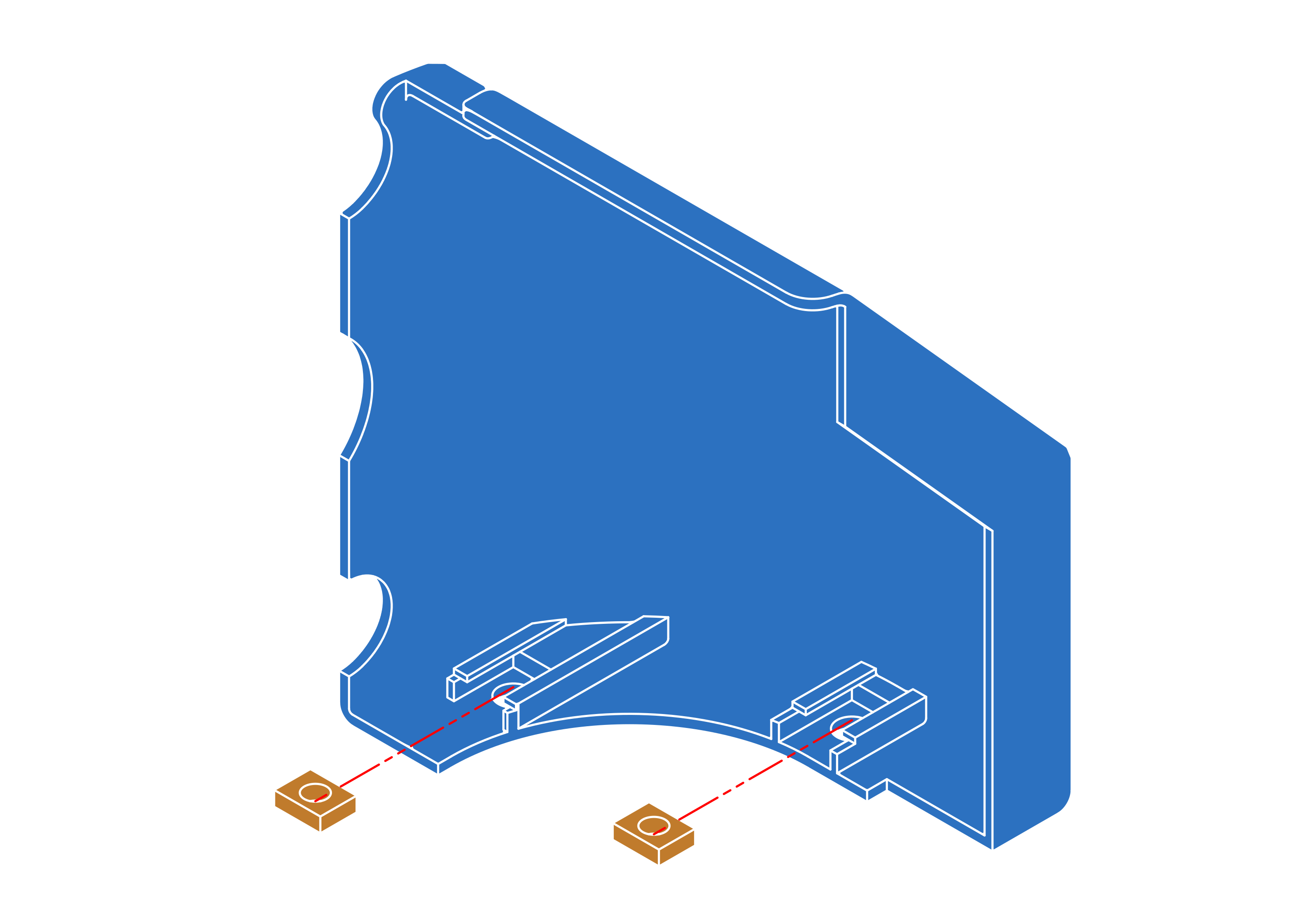

Battery cover

Battery cover

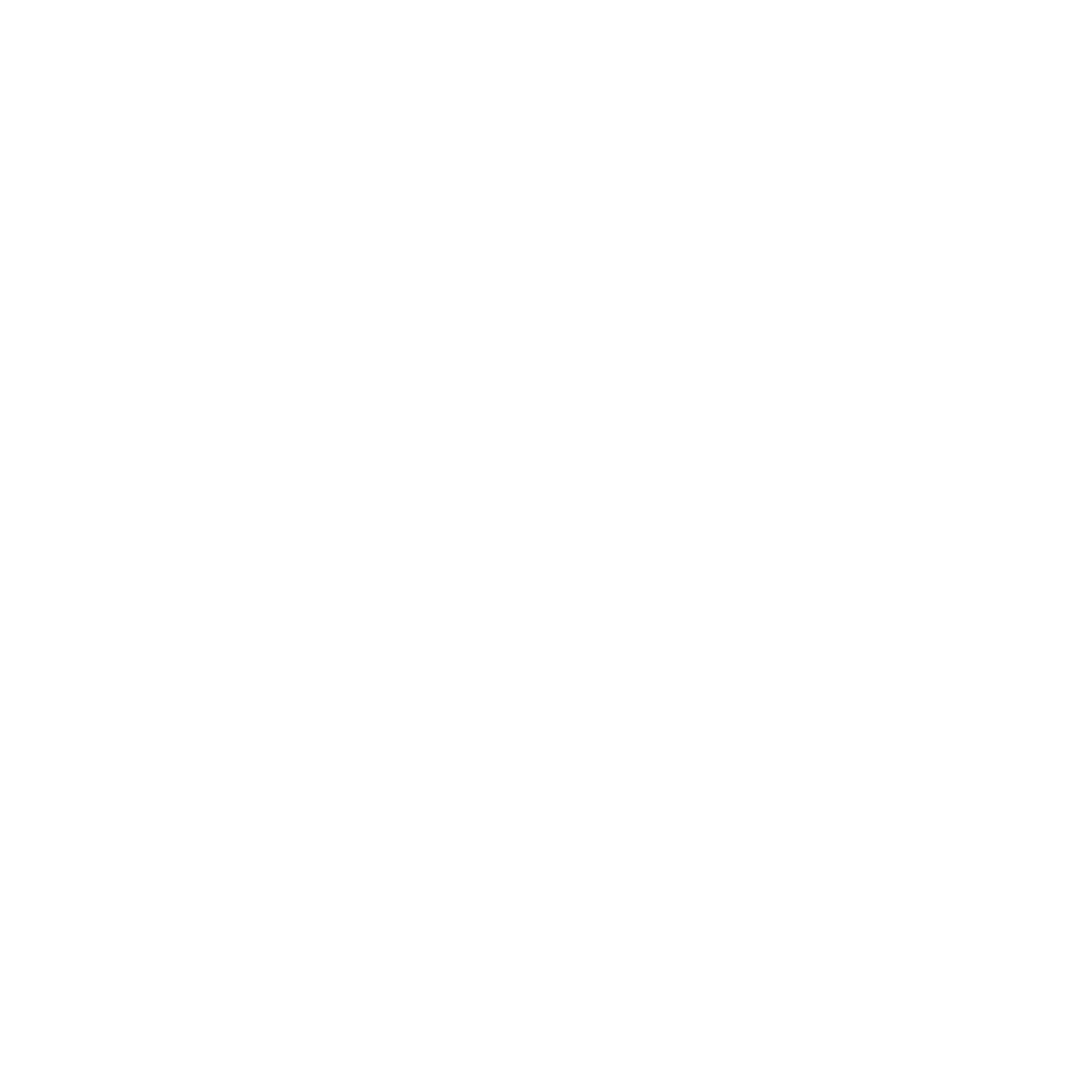

2x Square nut M4

2x Square nut M4

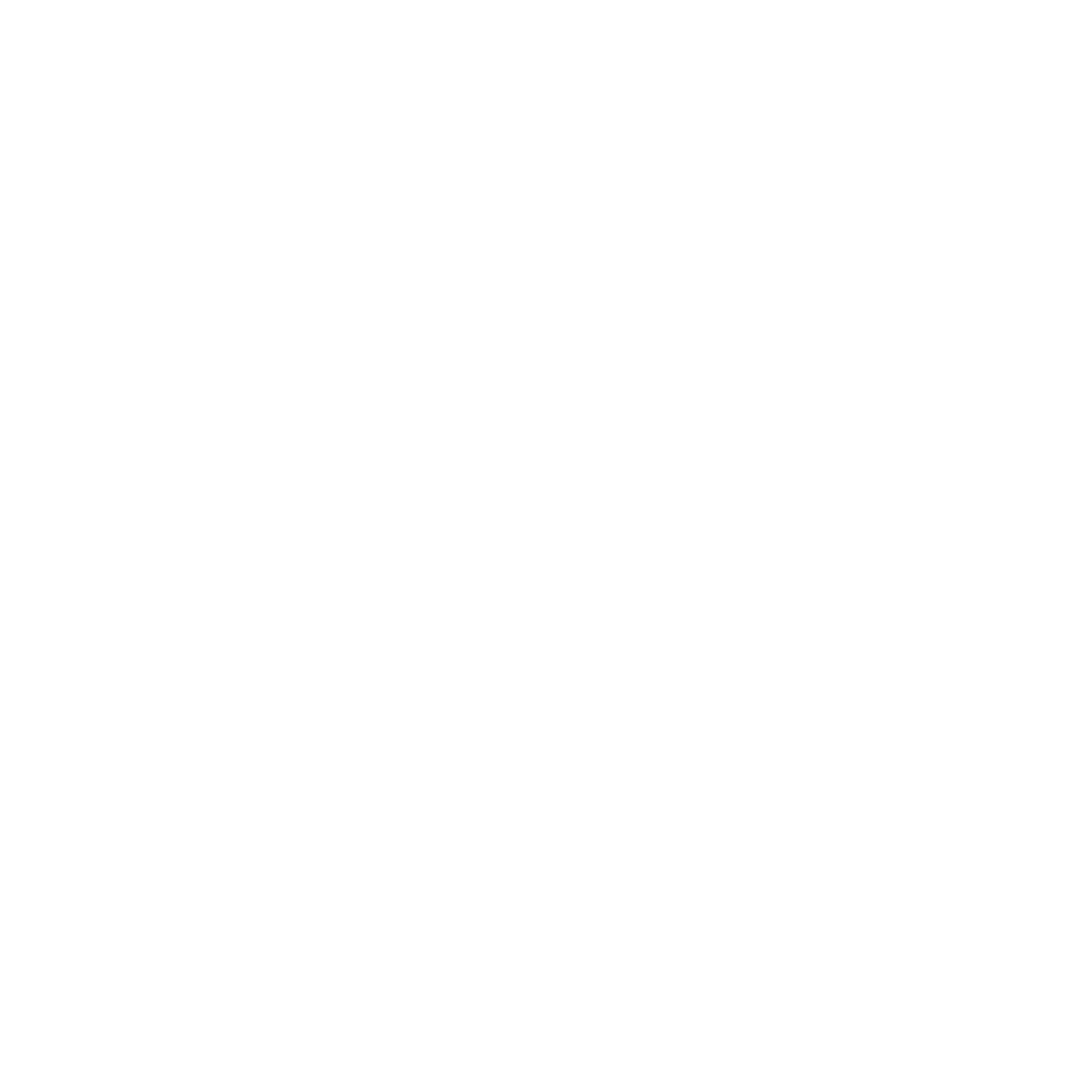

2x M4x8 FBHTS

2x M4x8 FBHTS

---

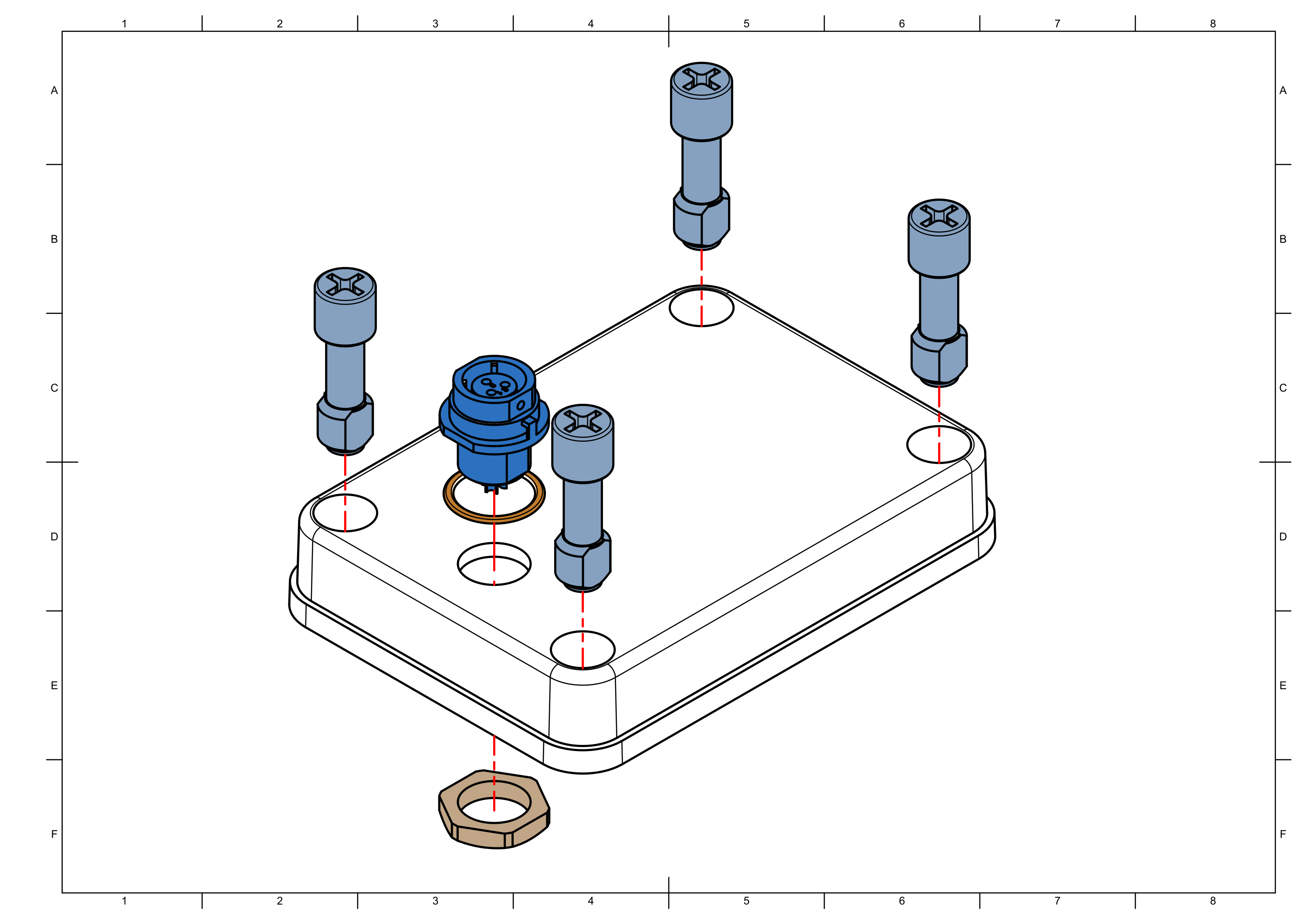

Step 4

Step 3 assembly

Step 3 assembly

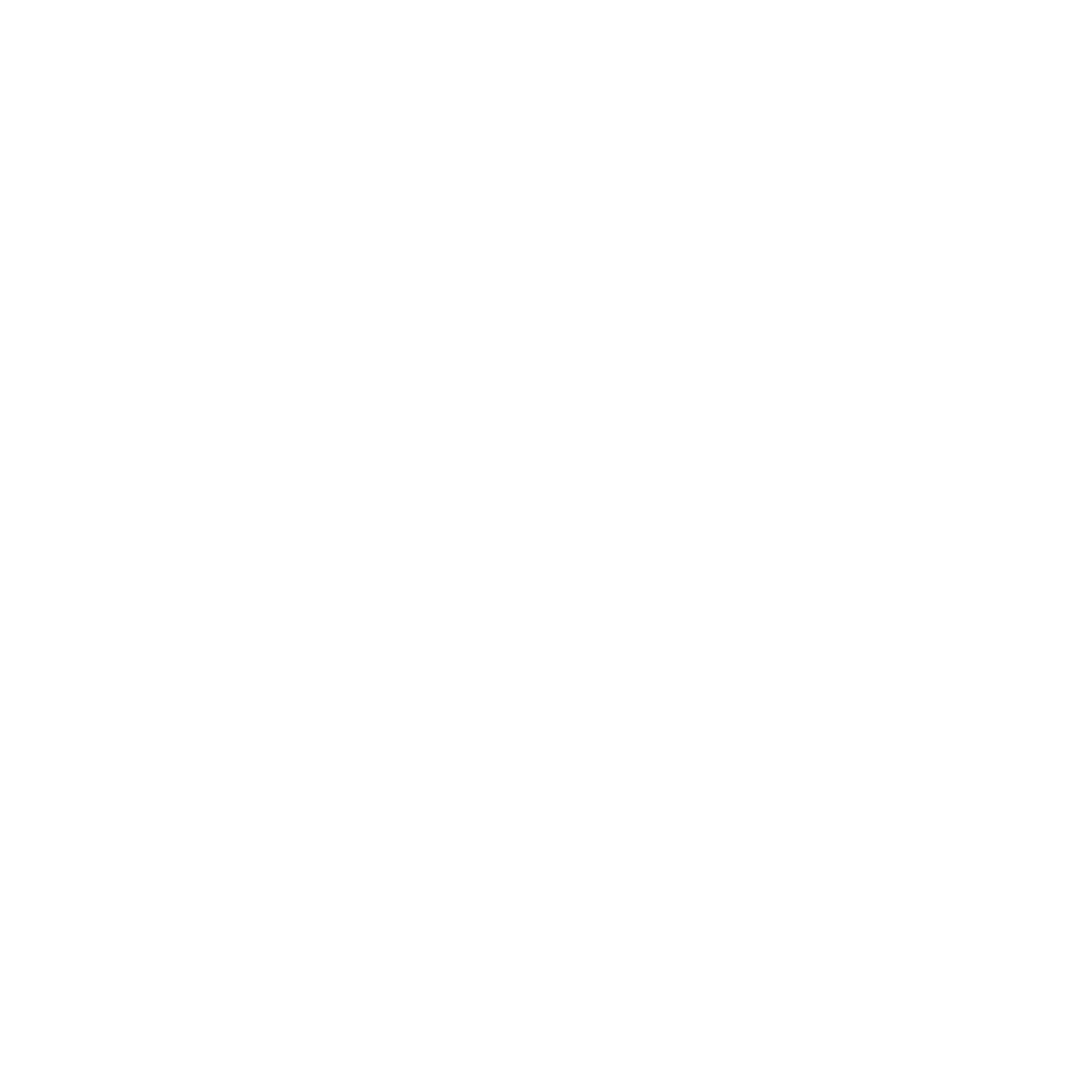

4x M4x16 SHCS

4x M4x16 SHCS

Step 5

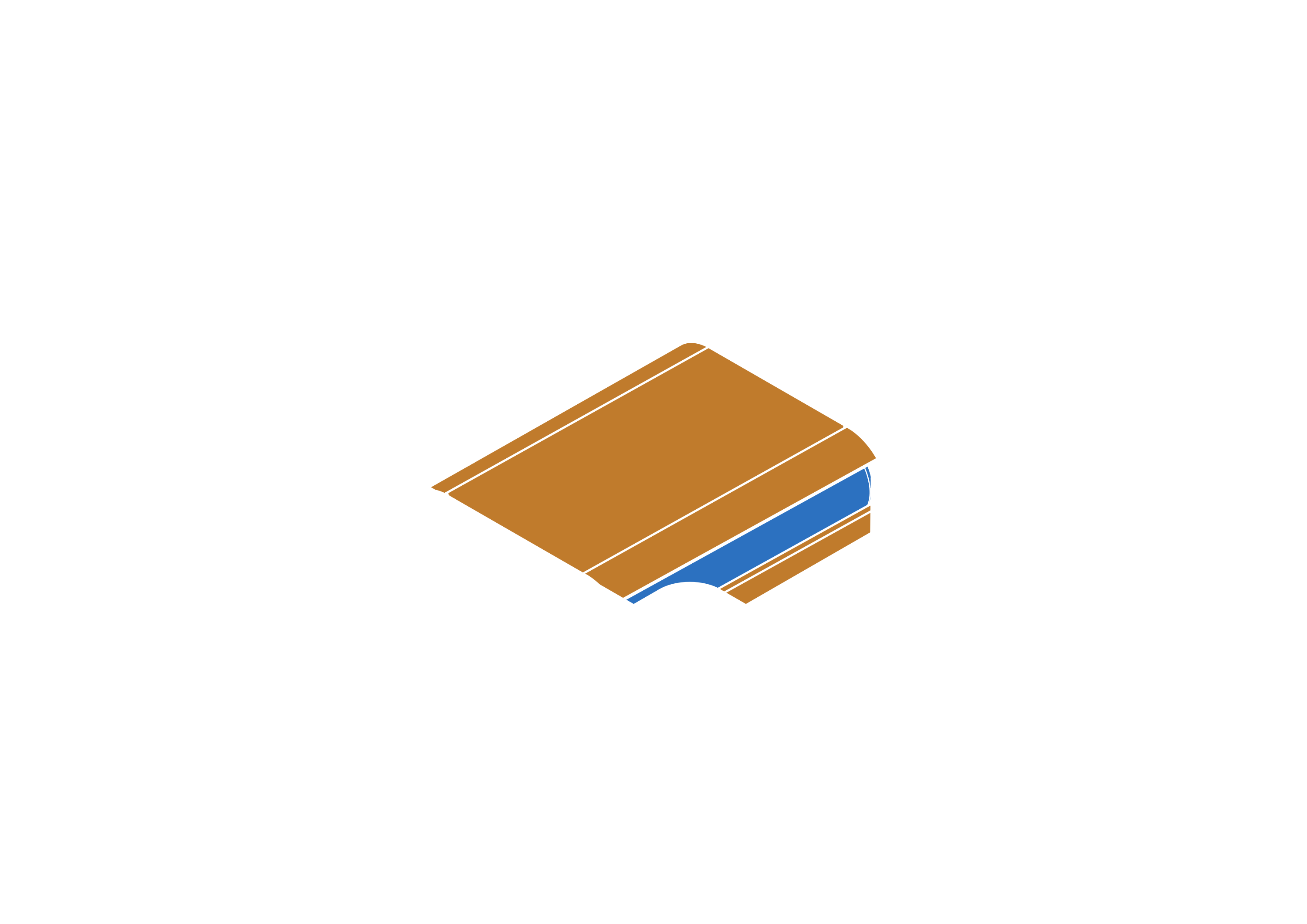

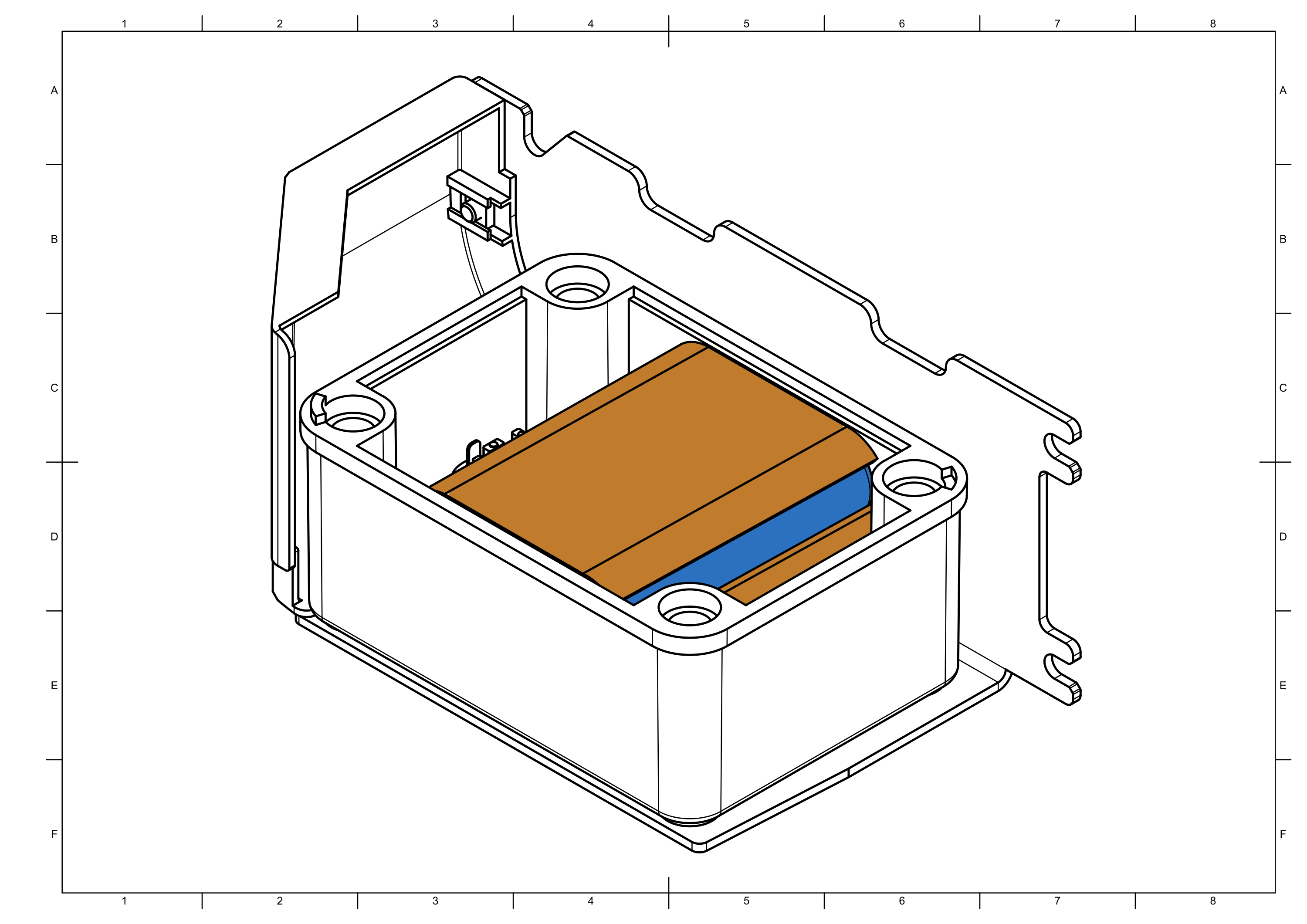

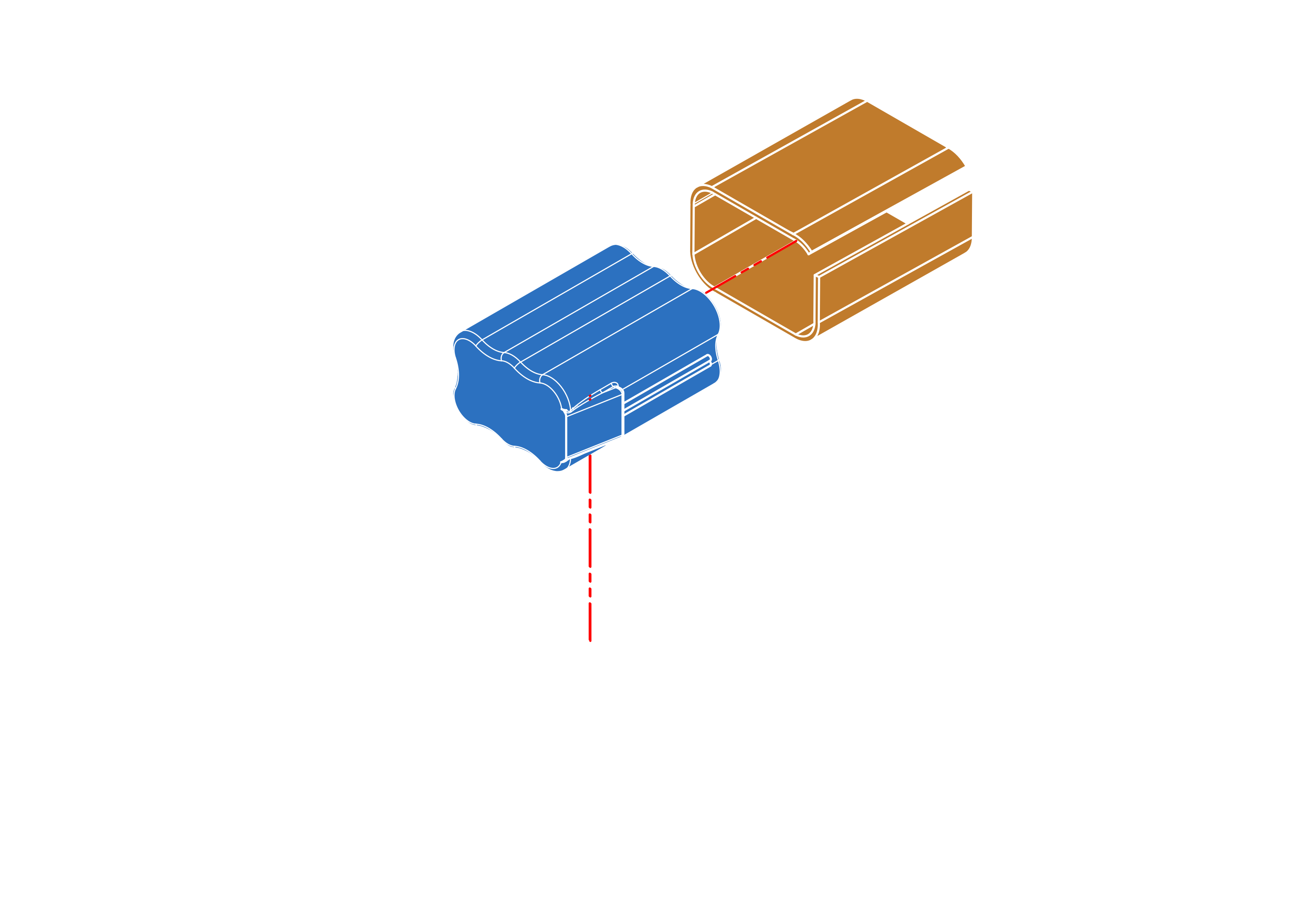

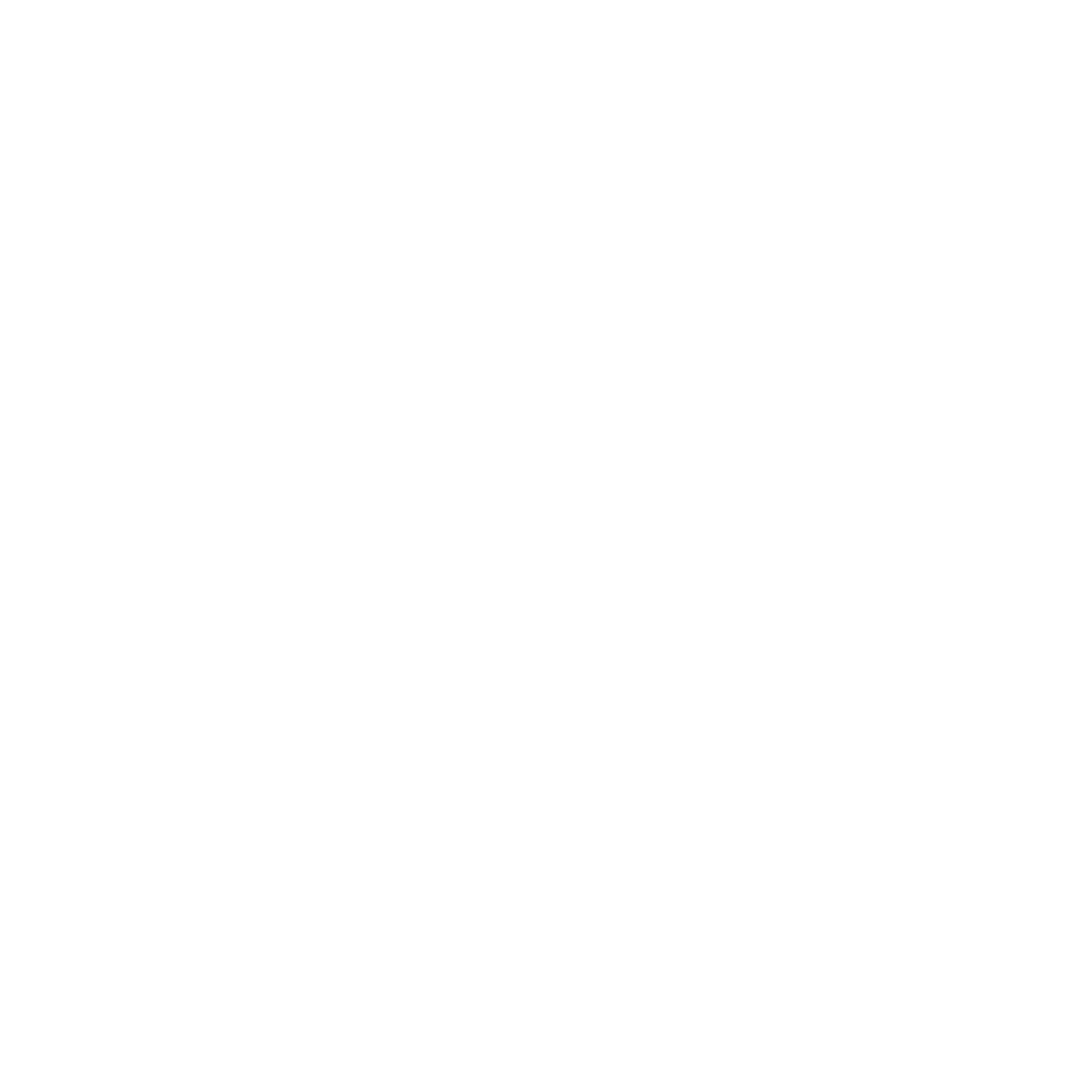

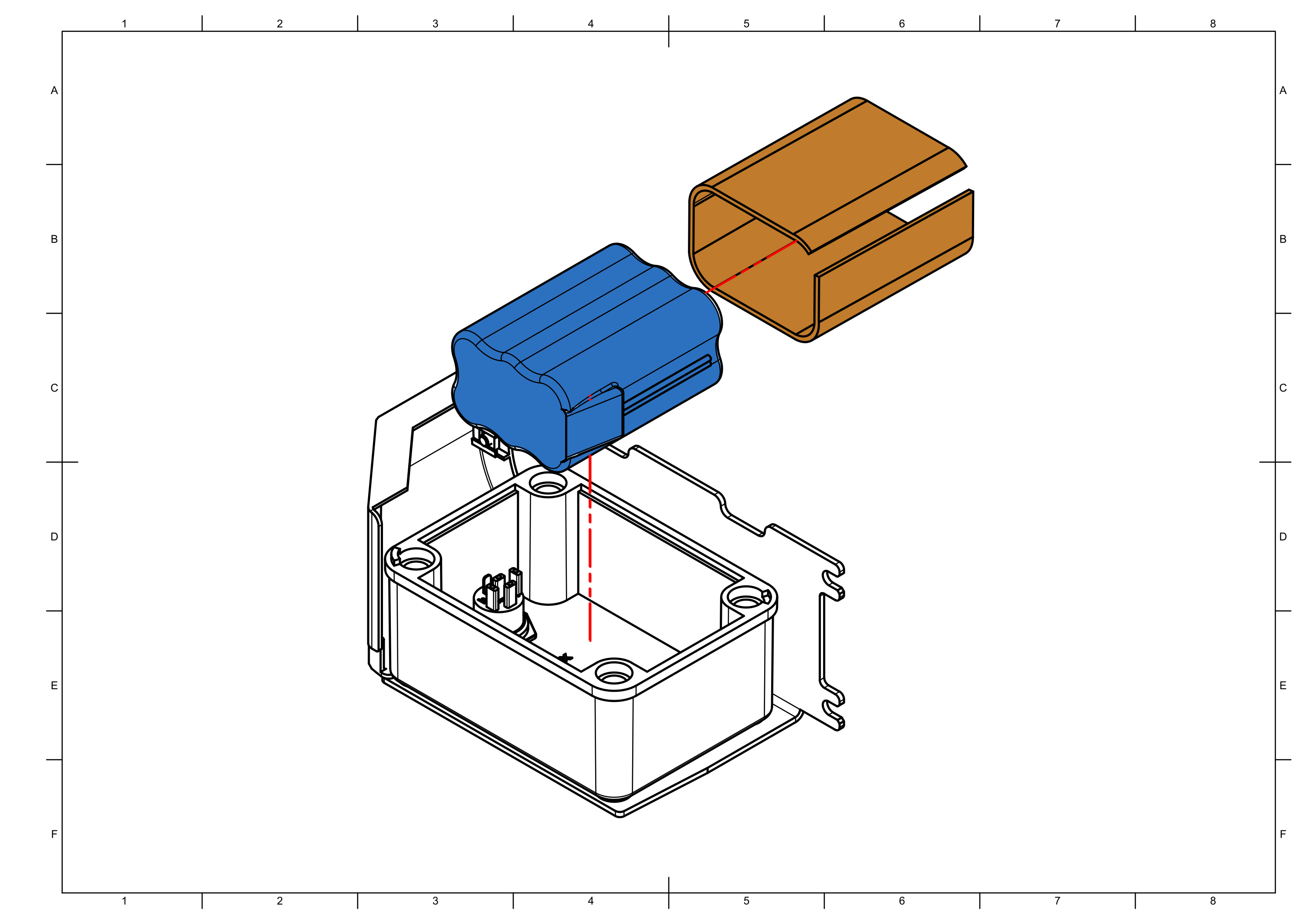

Battery pack

Battery pack

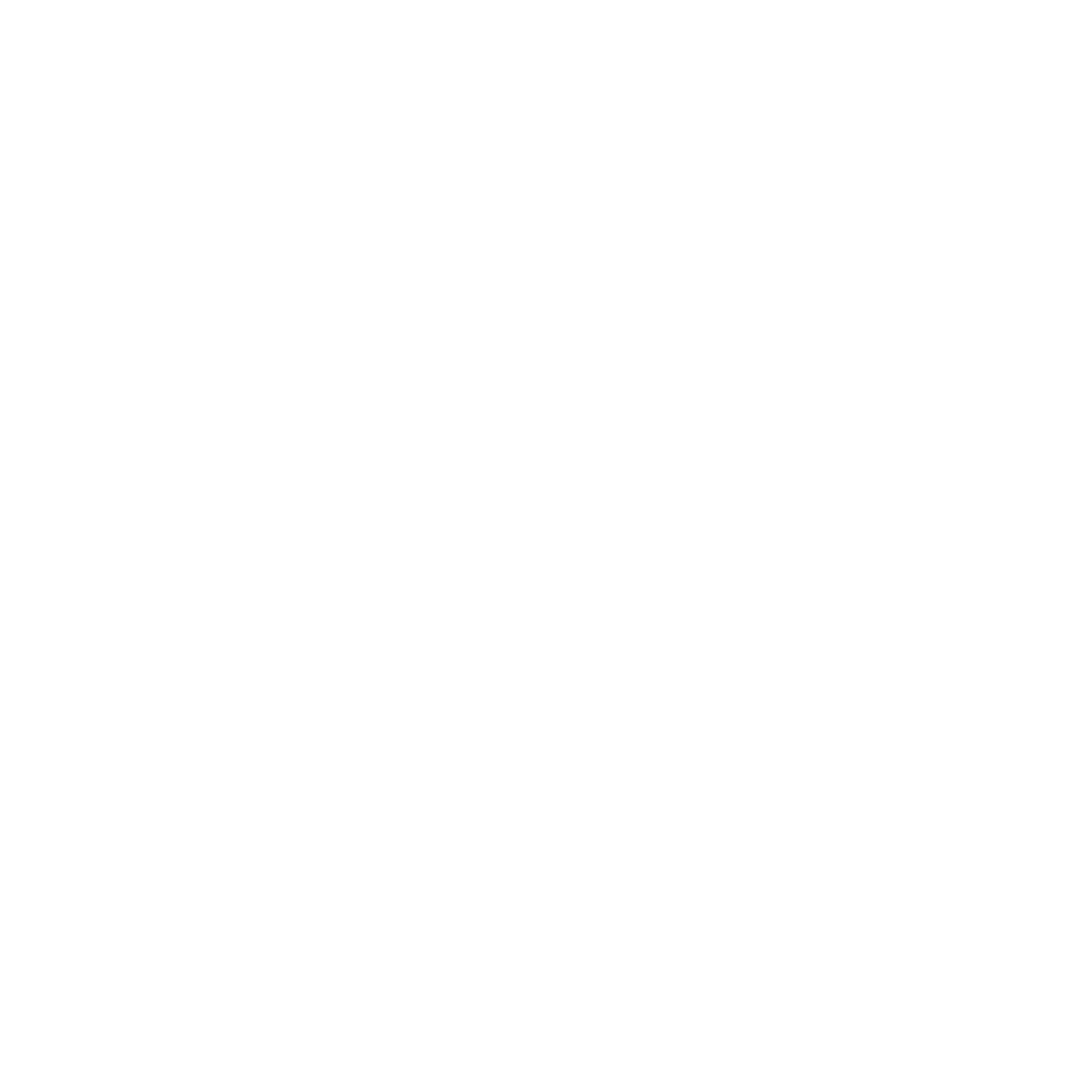

Battery foam

Battery foam

---

Step 6

Step 7

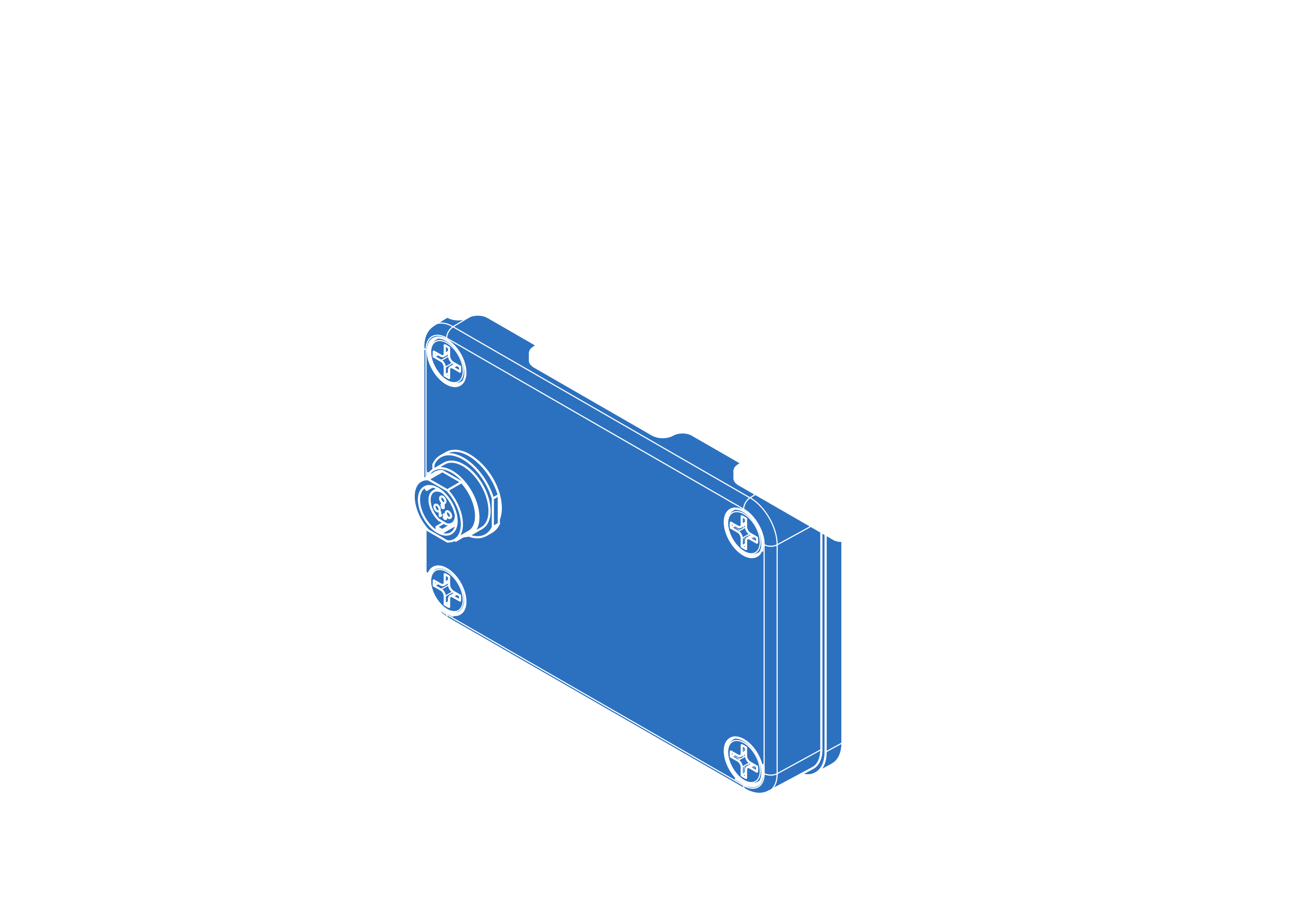

Step 1 assembly

Step 1 assembly

---

Addon Quarter:

Step 1

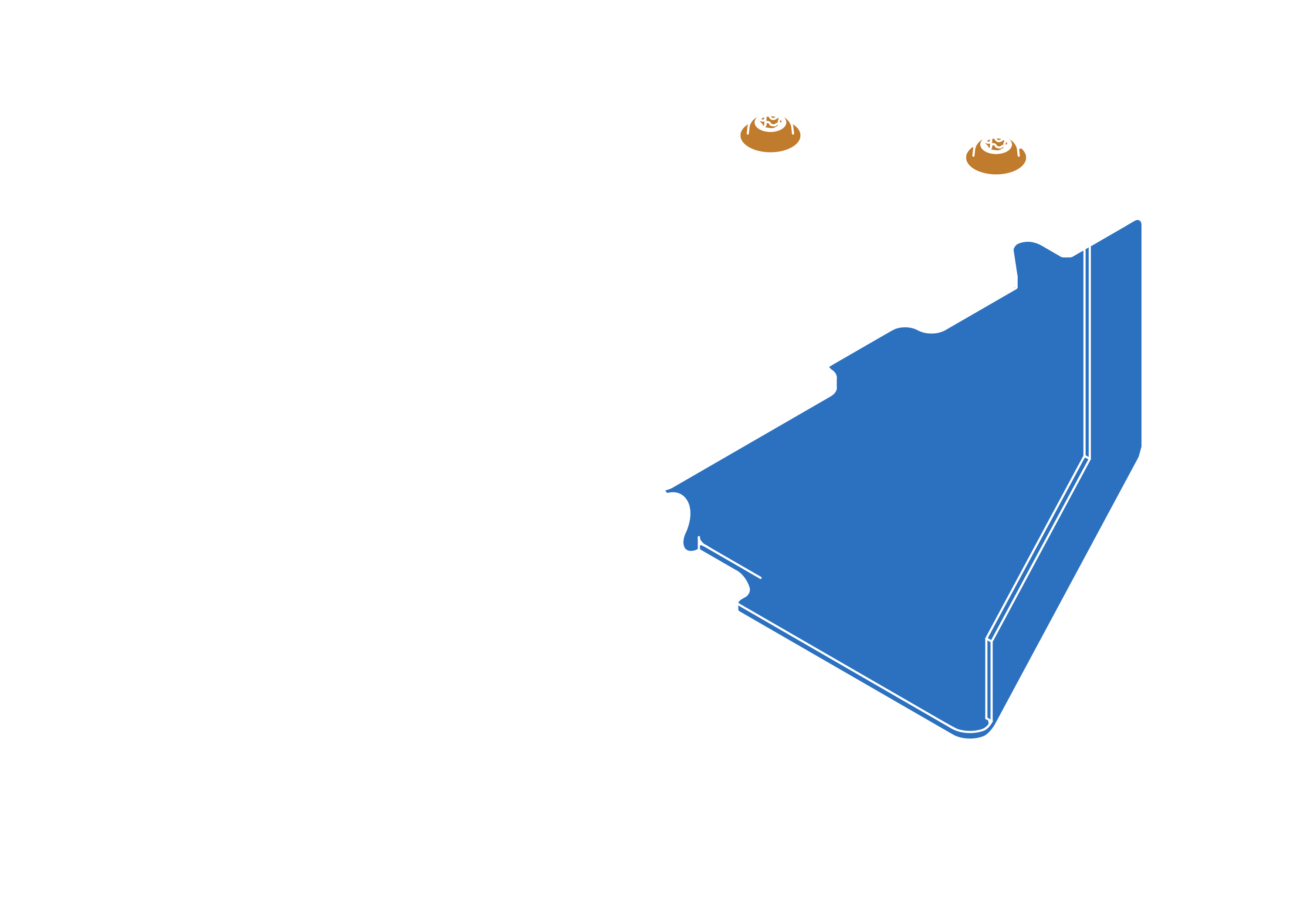

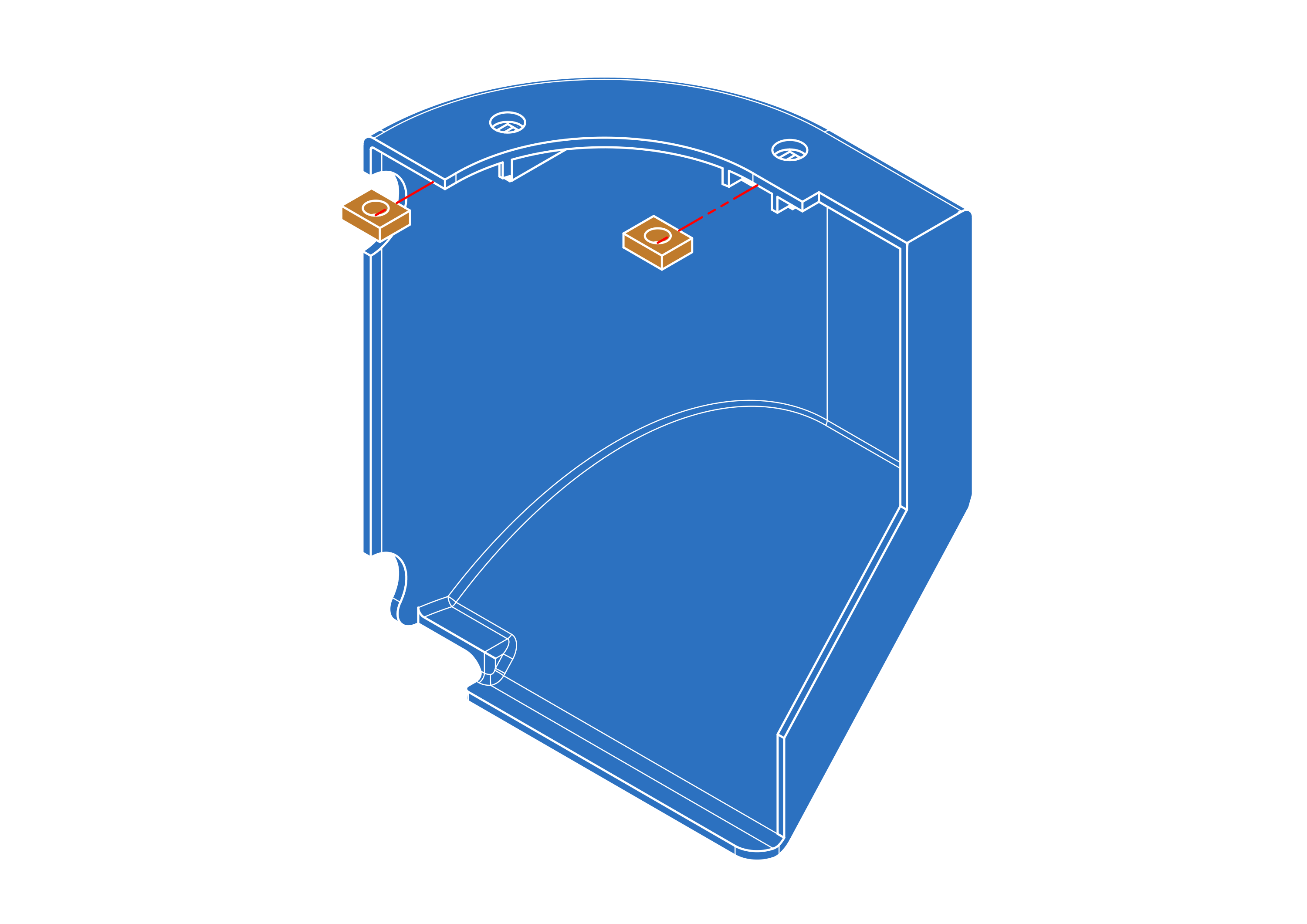

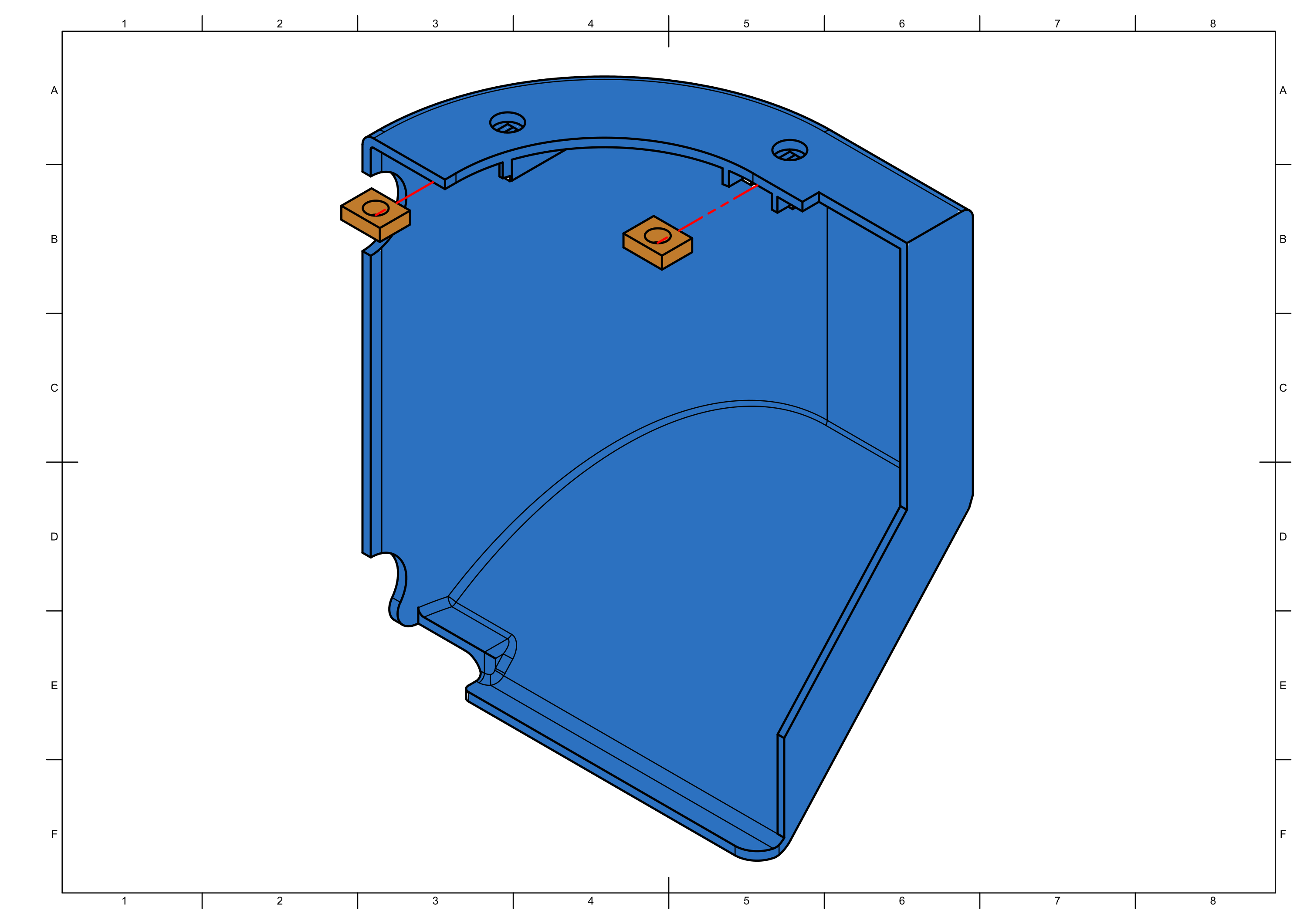

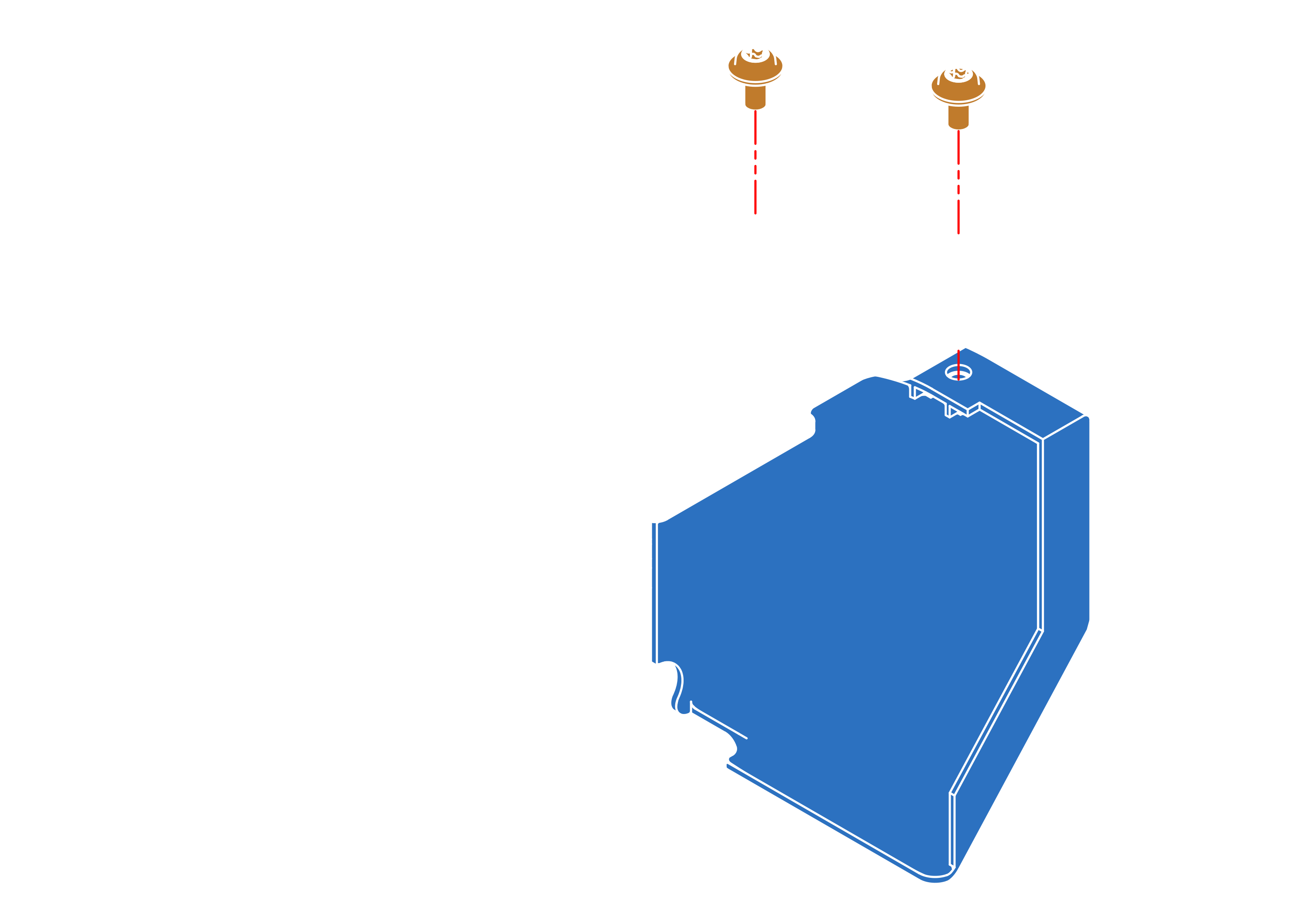

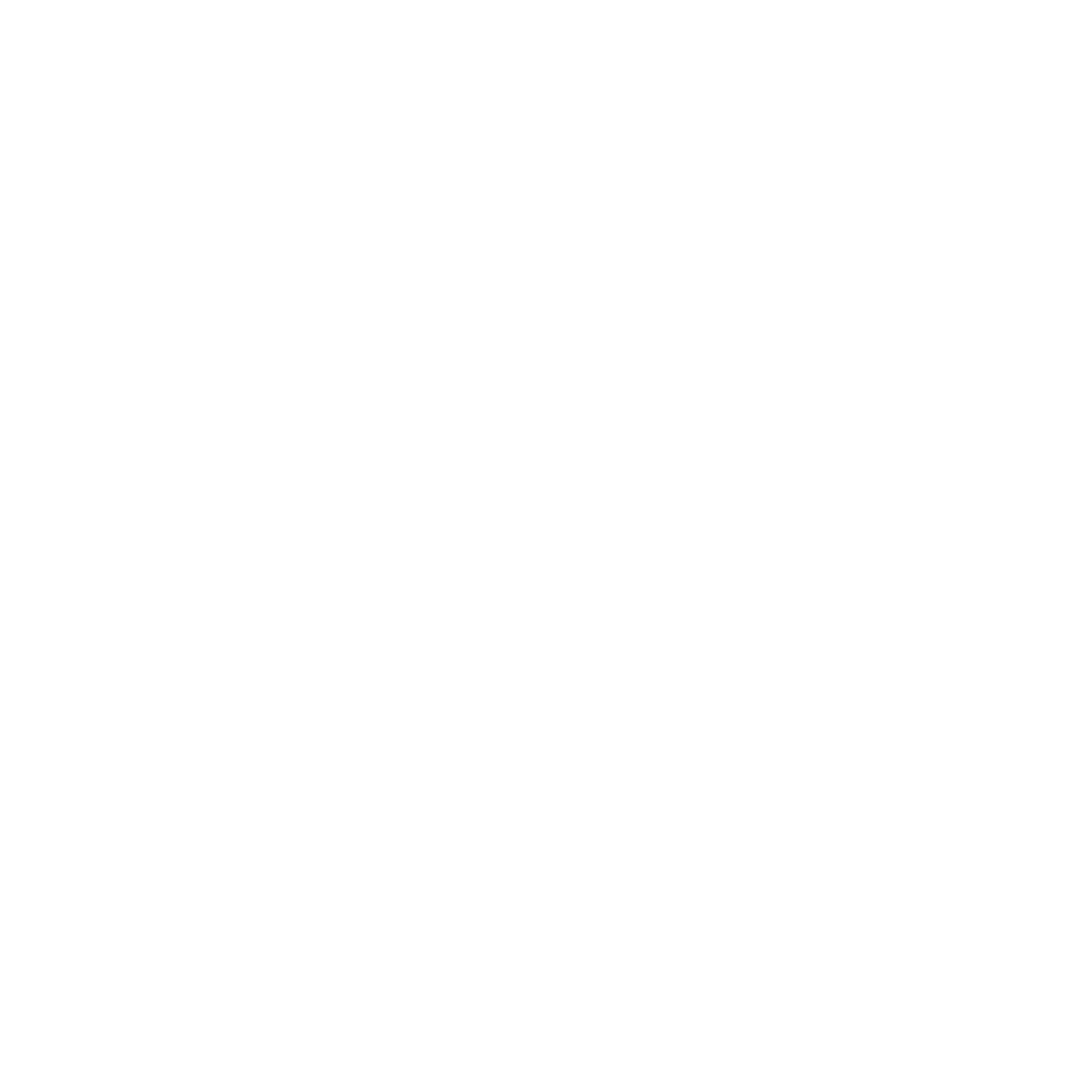

Addon cover

Addon cover

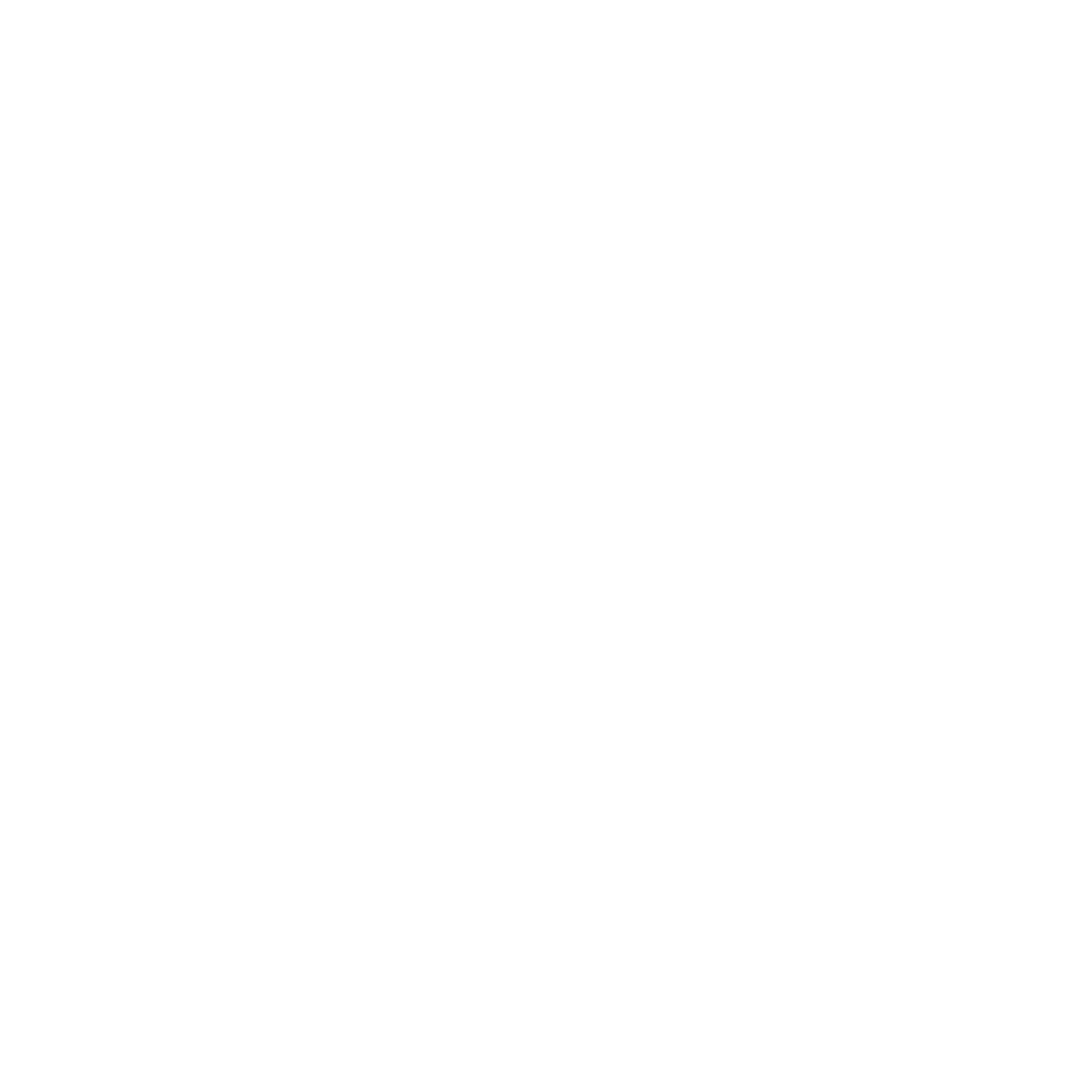

Addon metal plate

Addon metal plate

2x M4x8 FBHTS

2x M4x8 FBHTS

2x Square nut M4

2x Square nut M4

---

Front Cover:

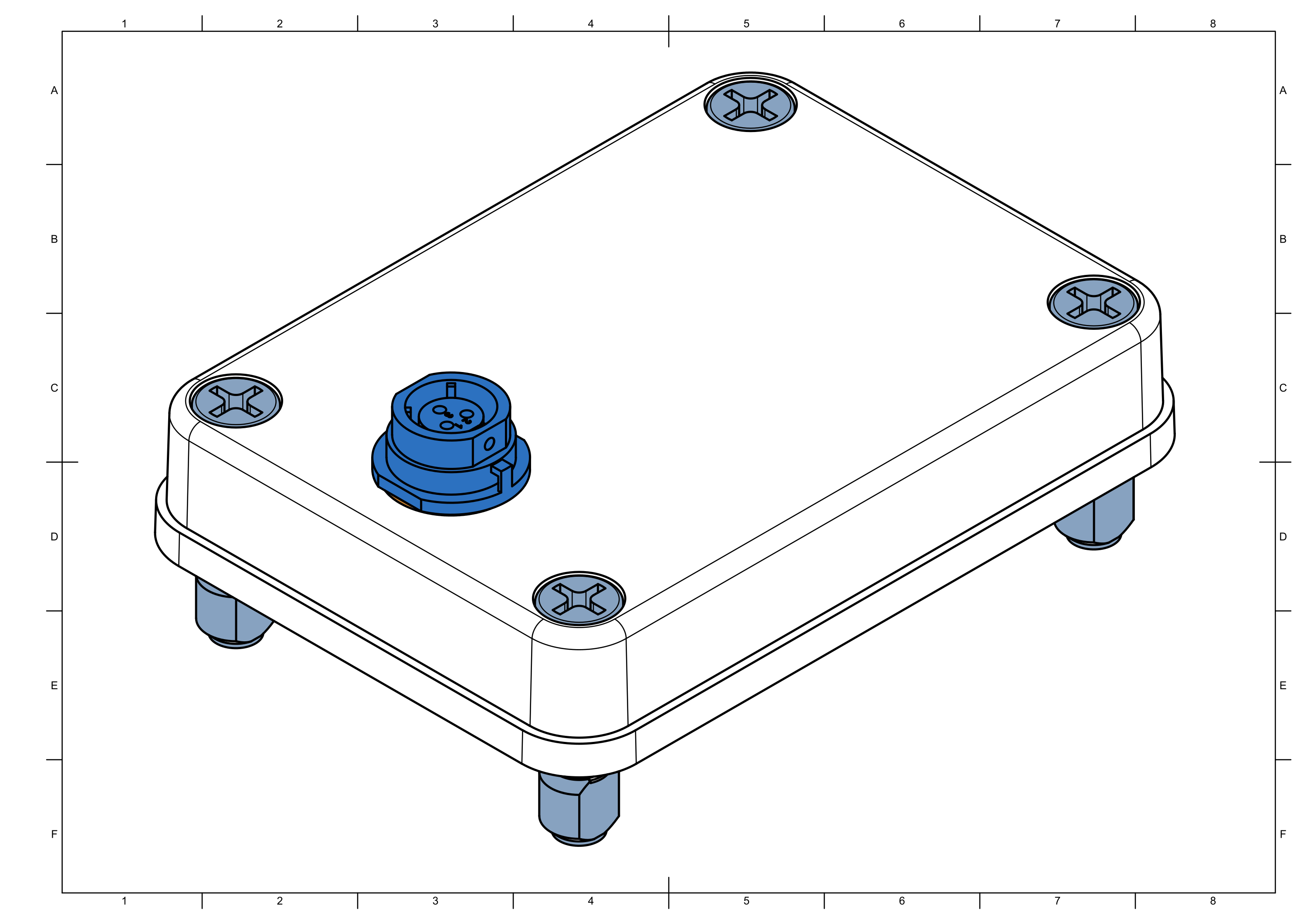

Step 1

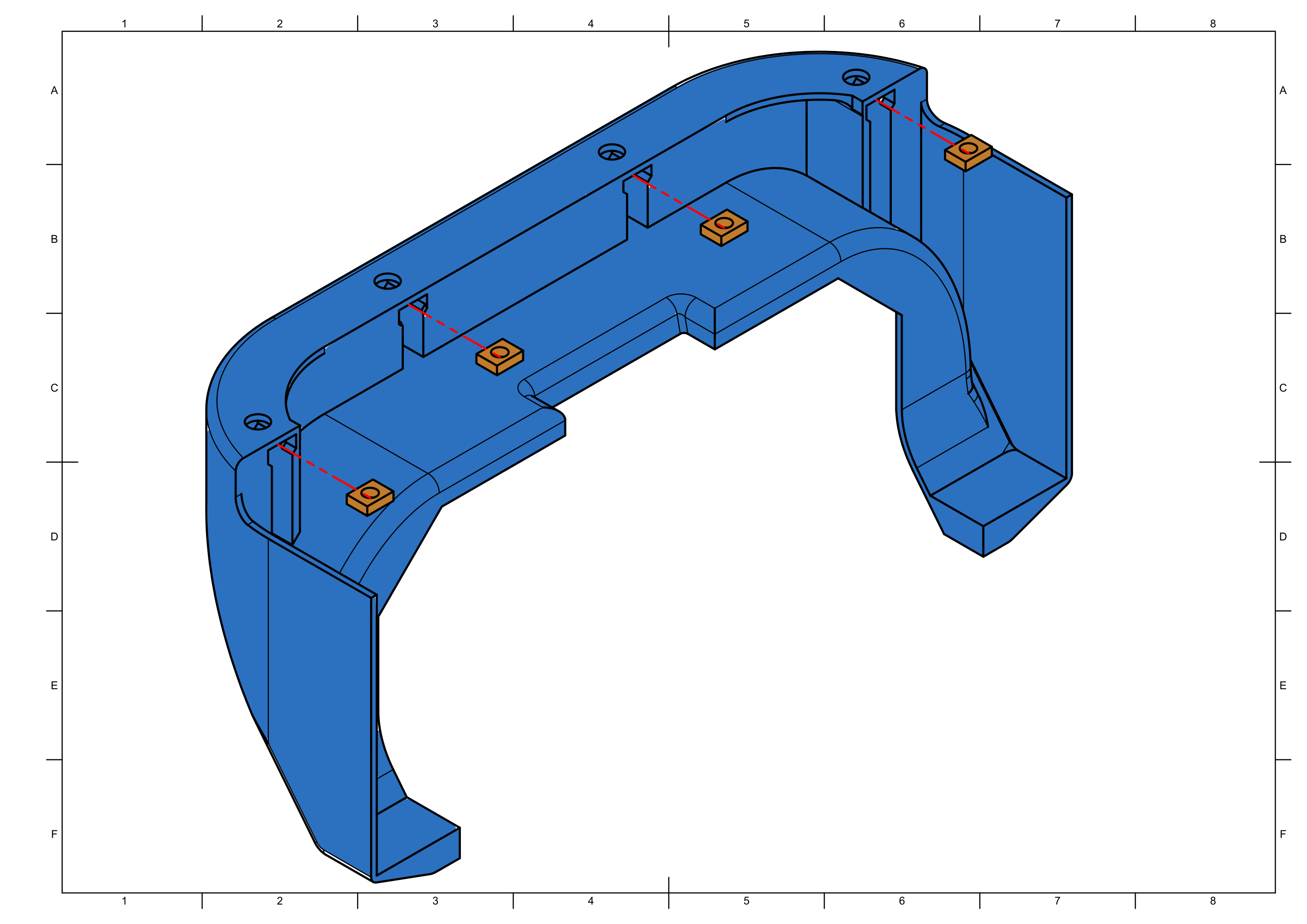

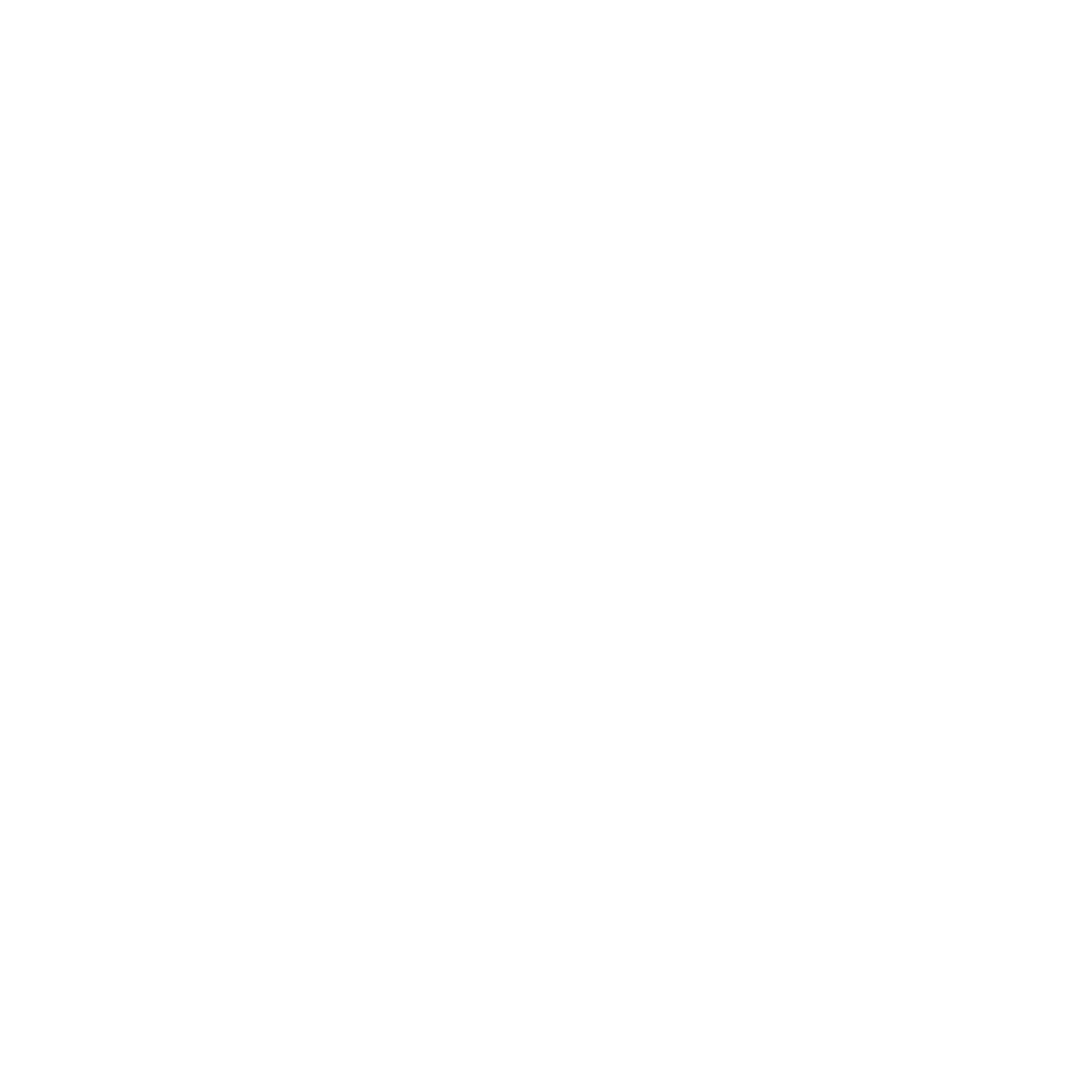

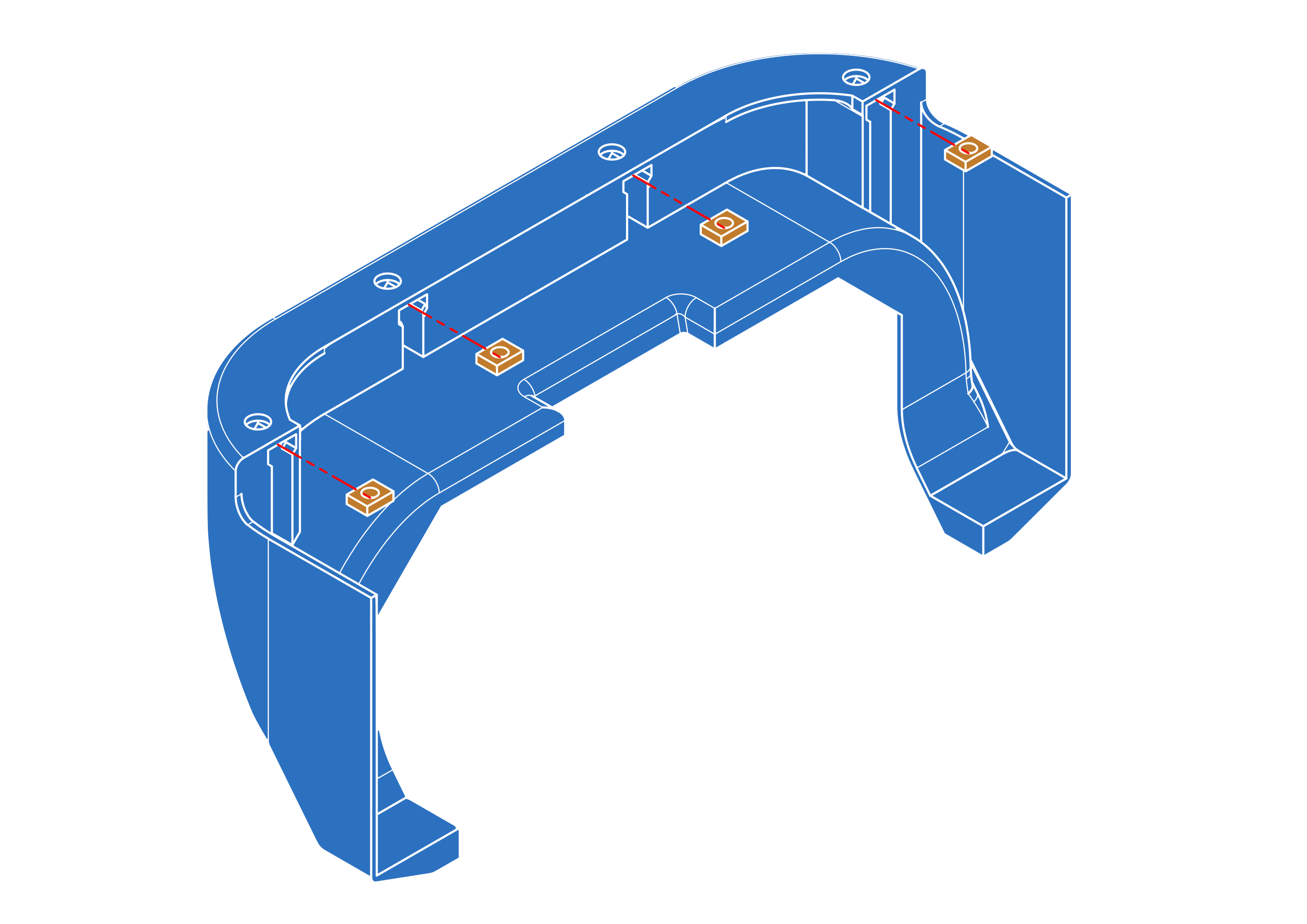

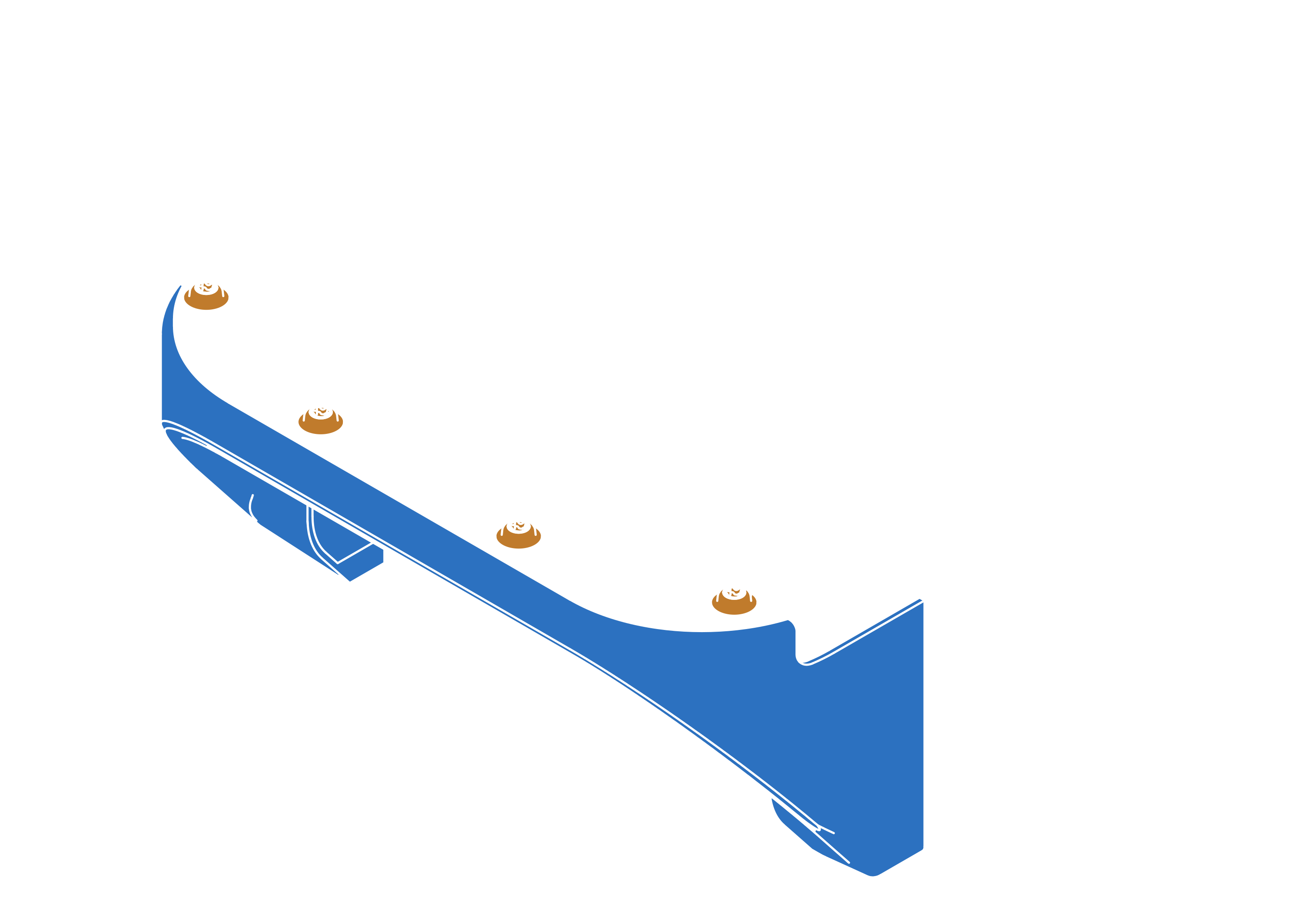

Front cover

Front cover

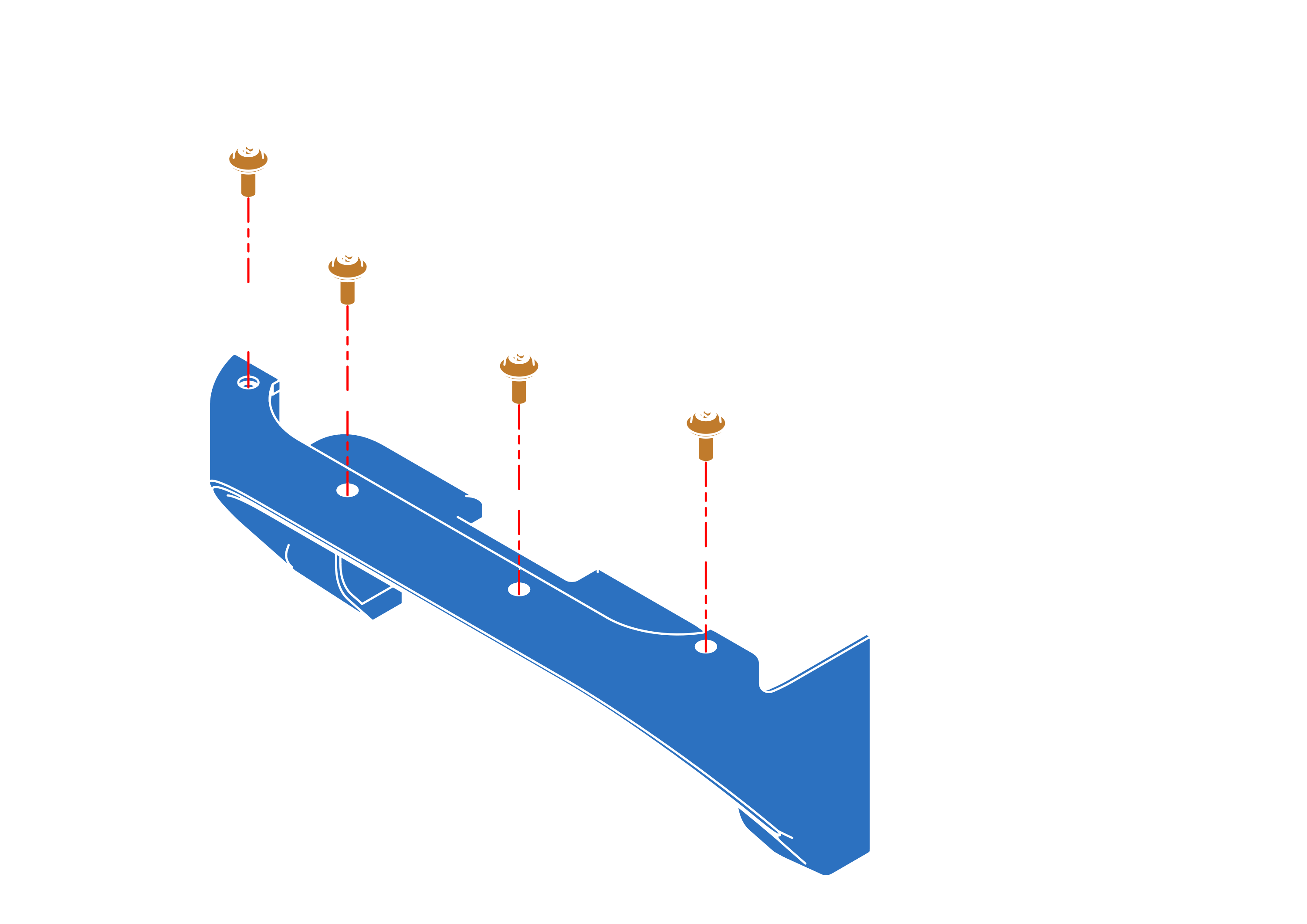

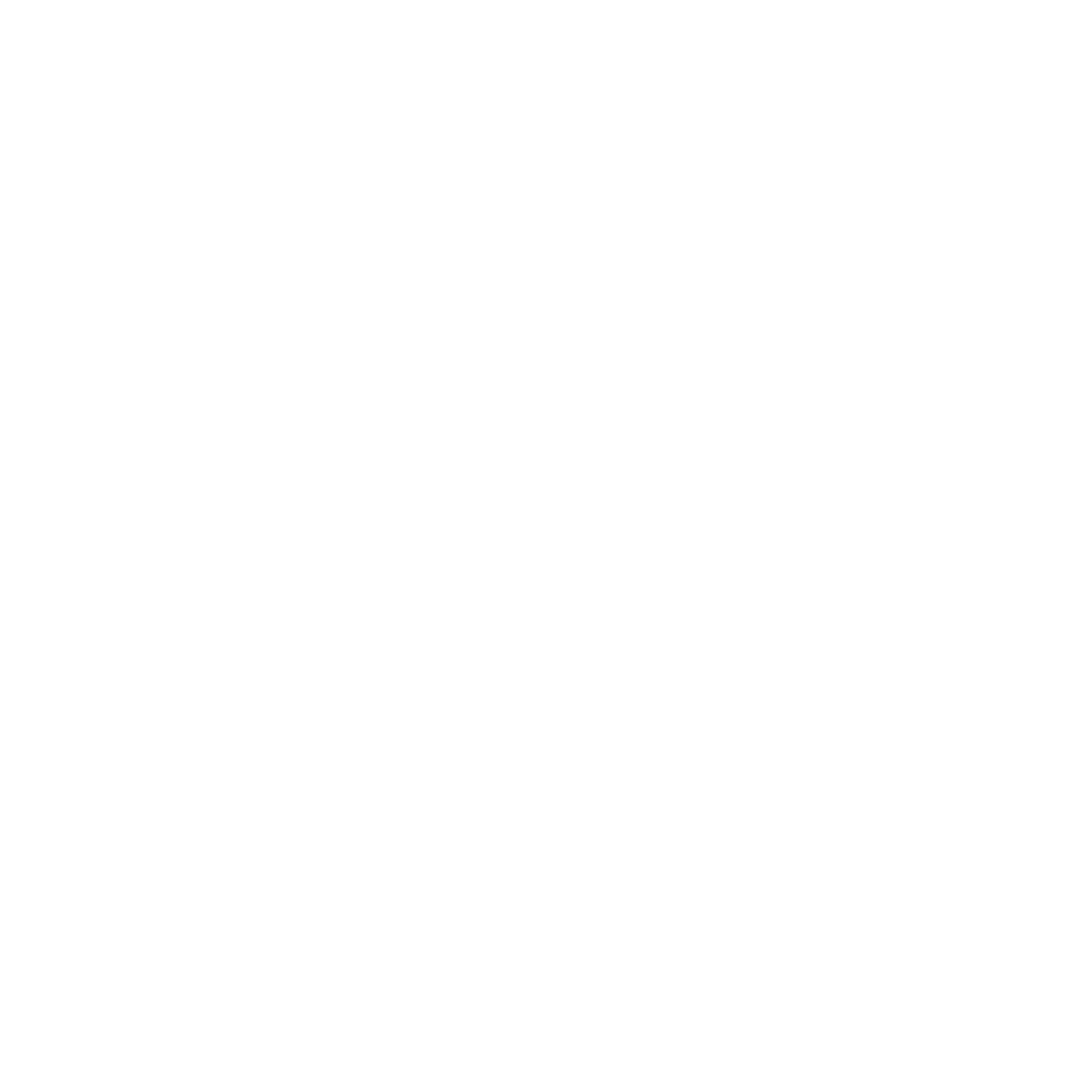

Mounting plate

Mounting plate

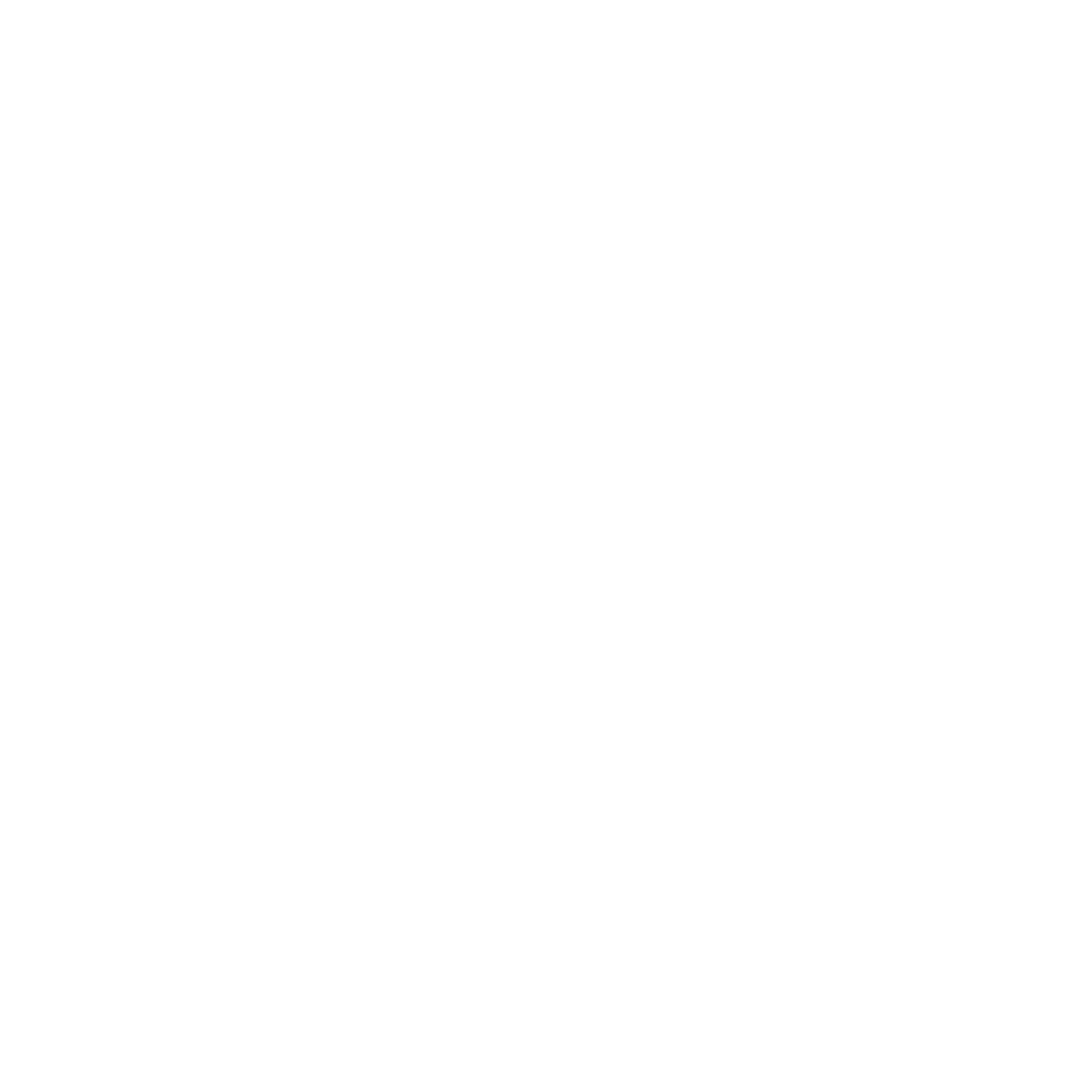

4x M4x10 FBHTS

4x M4x10 FBHTS

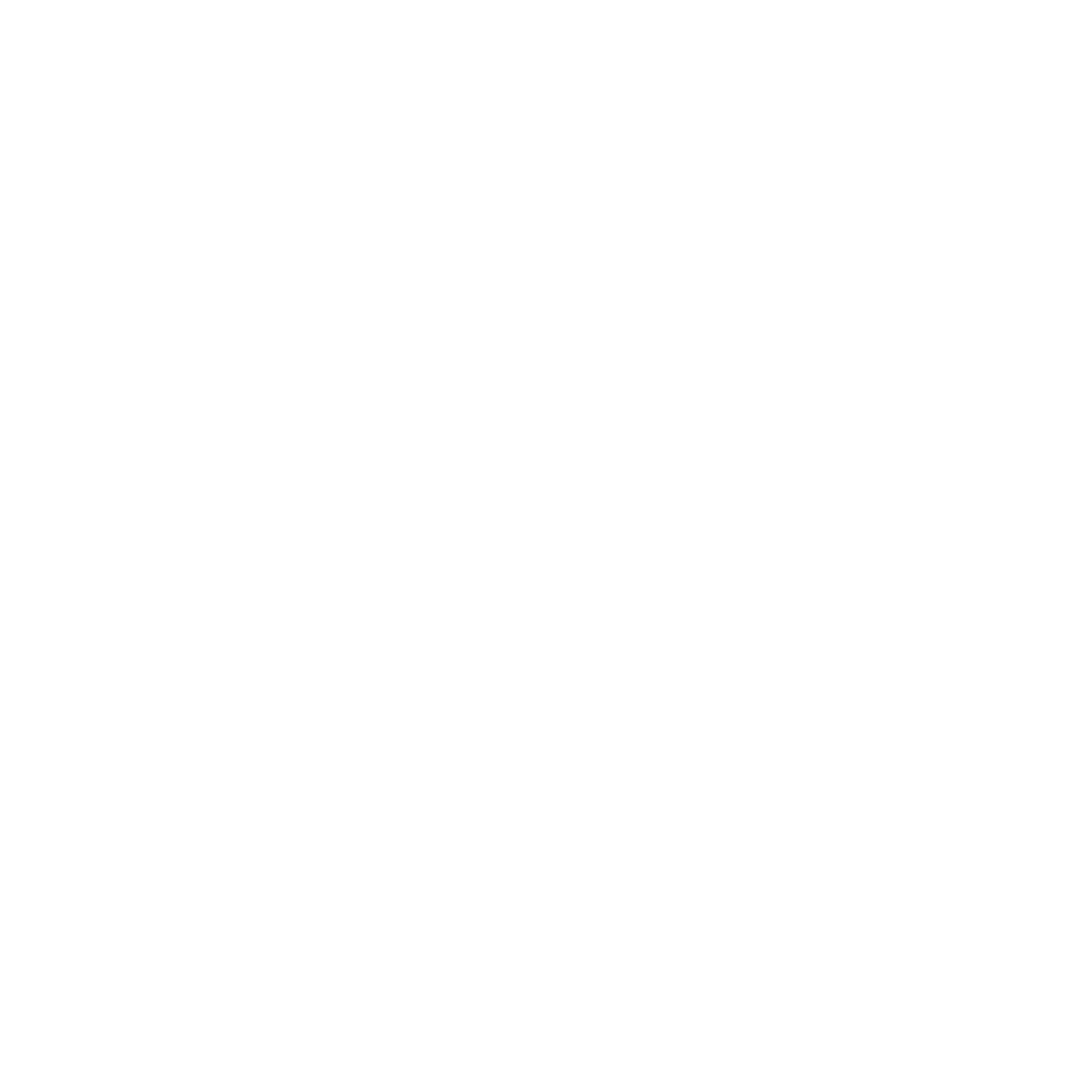

4x Square nut M4

4x Square nut M4

note

Do not tighten the screws . Leave them loosely attached to allow for assembly in further steps.

---
