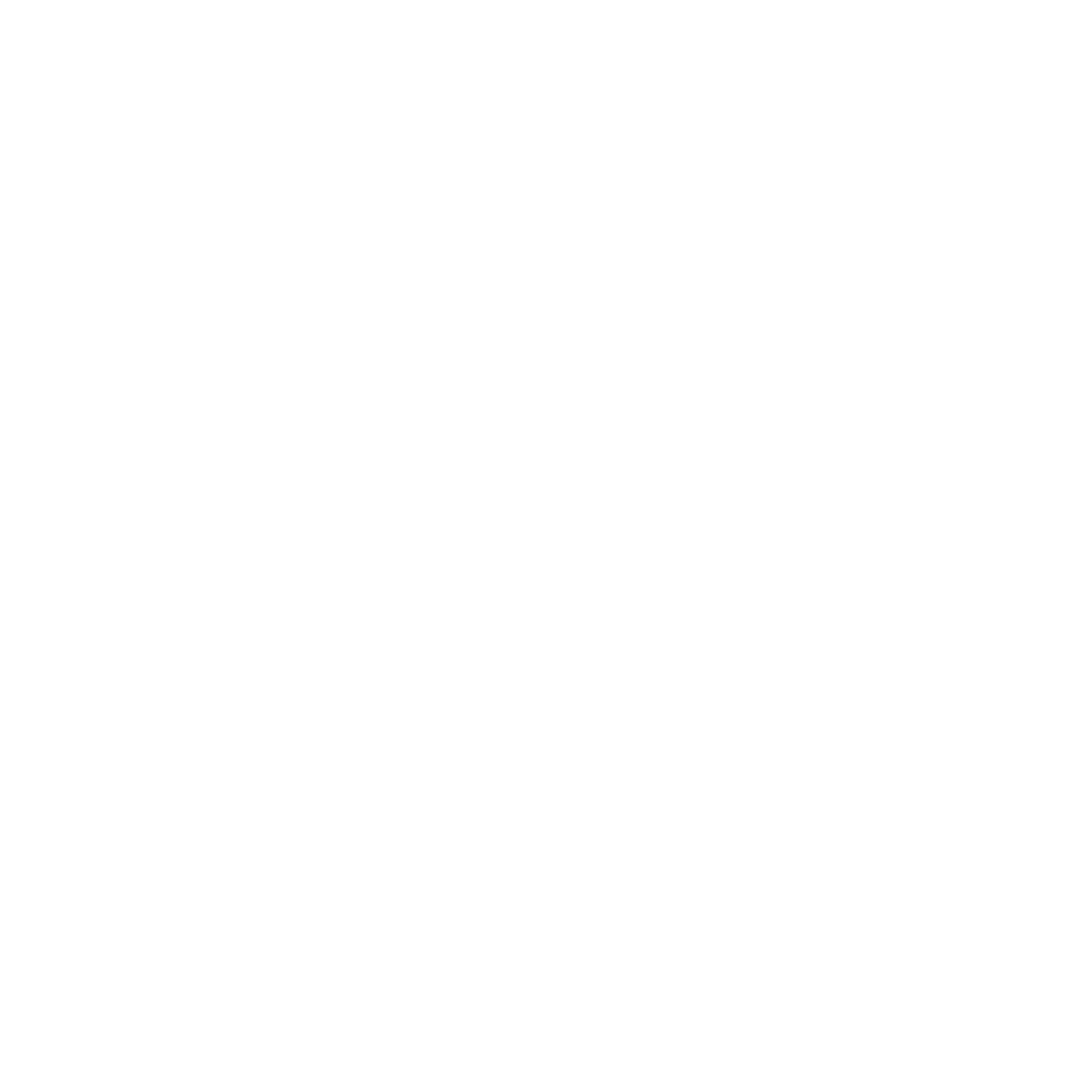

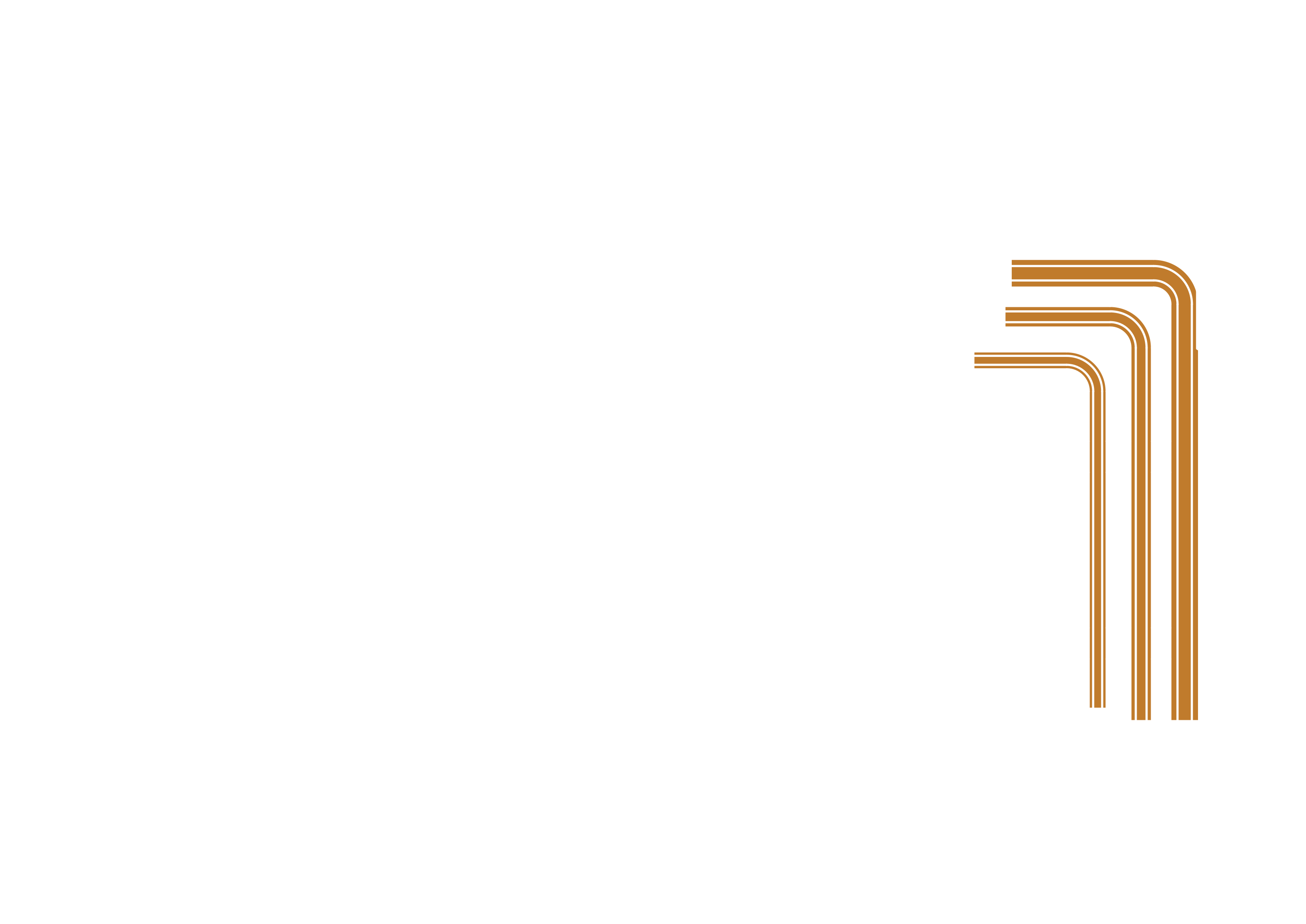

Task 1: Wheel Assembly

Assembly time ≈ 15 minutes per wheel

Lithium grease

Lithium grease

Loctite 243

Loctite 243

---

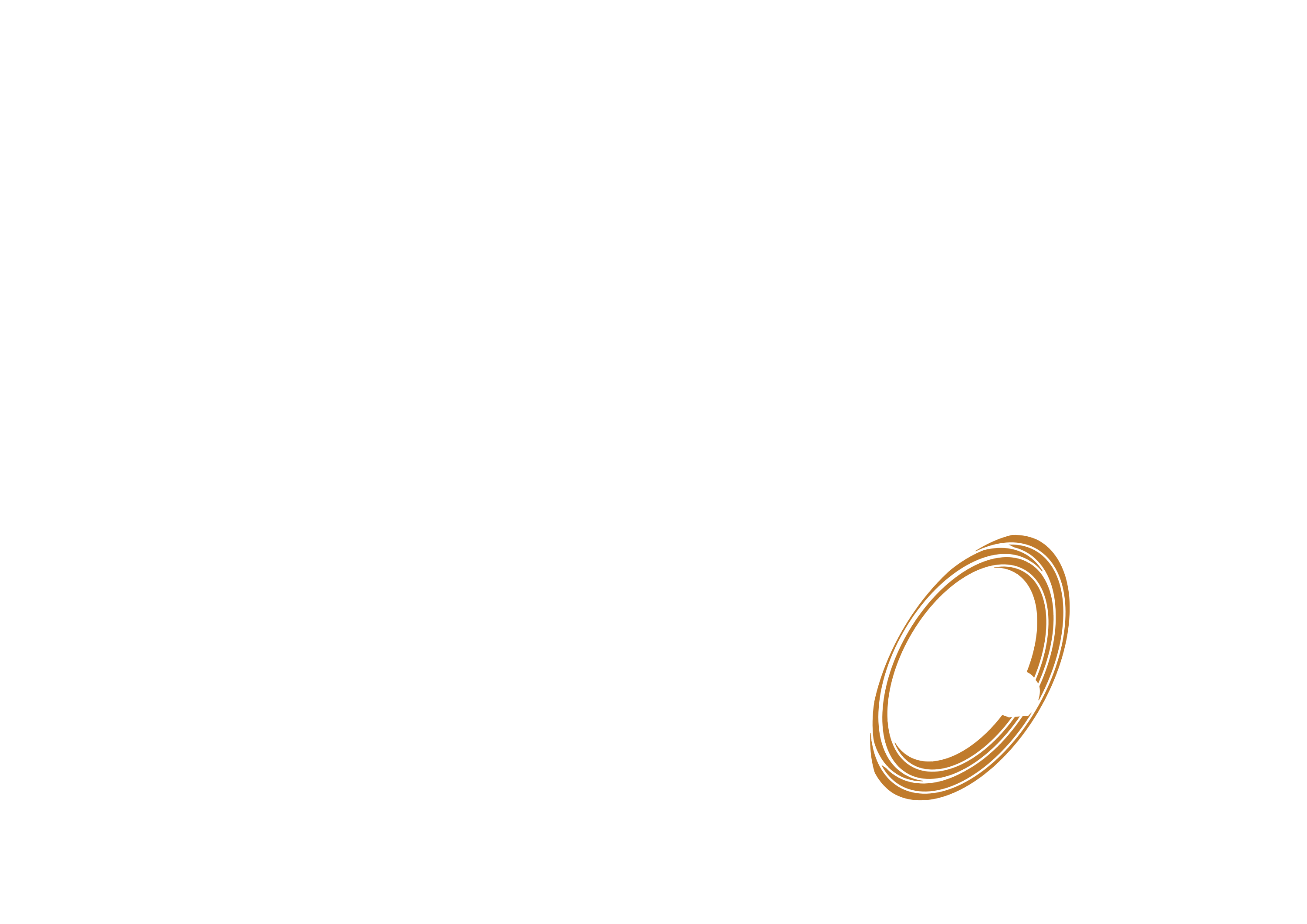

Step 1

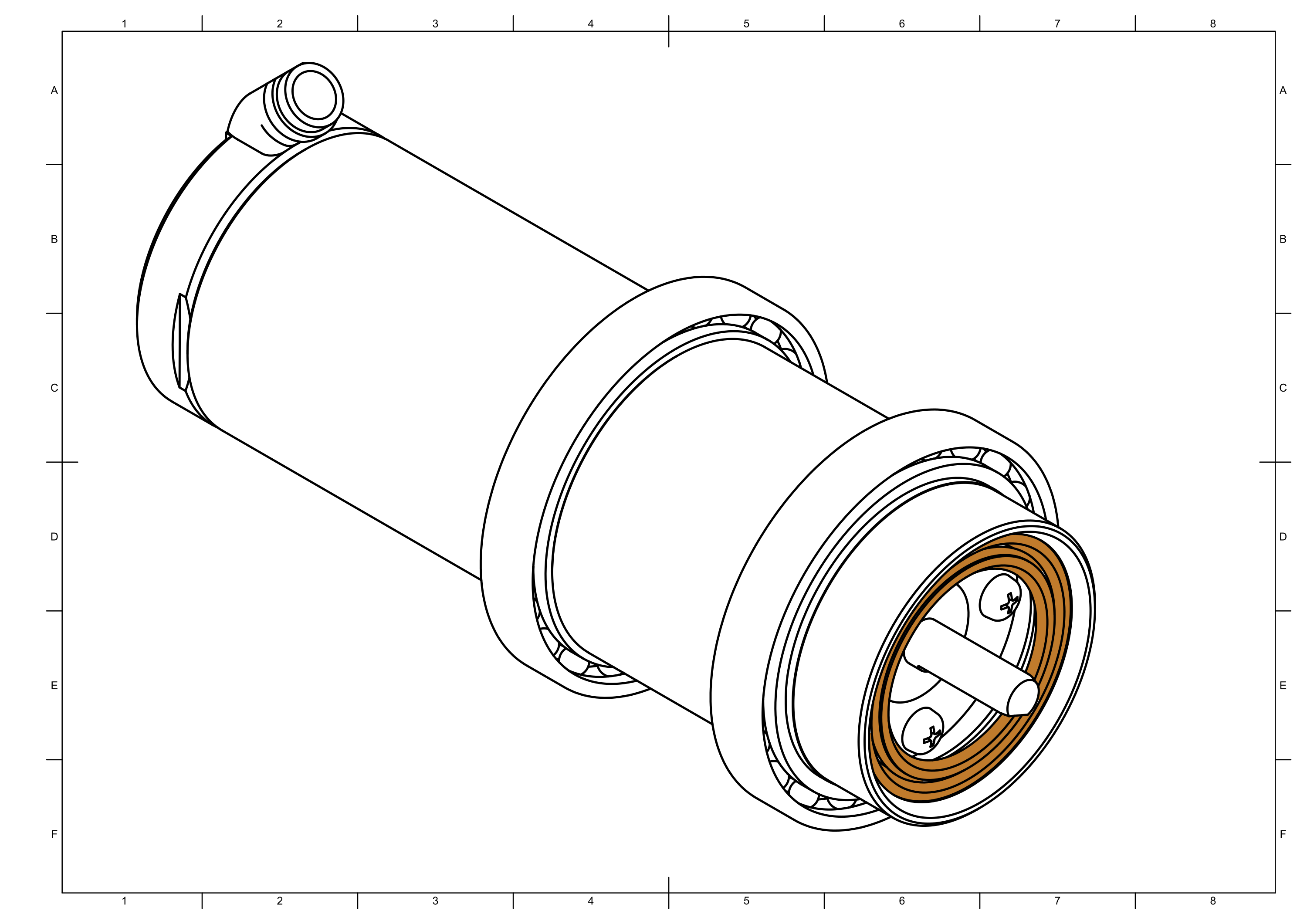

Lithium grease

Lithium grease

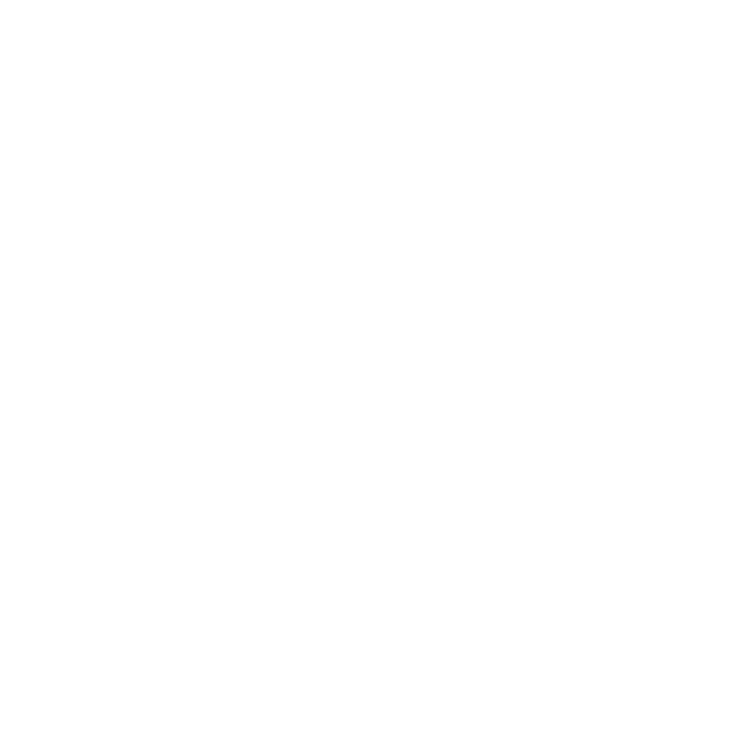

Leo Rover Motor

Leo Rover Motor

note

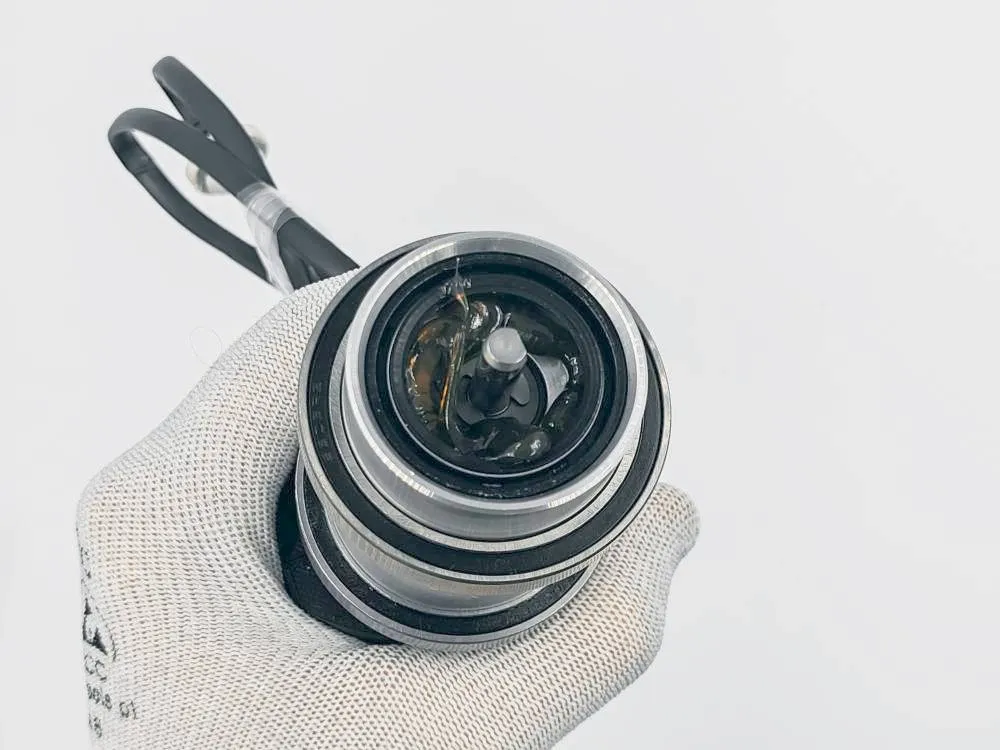

Press a decent amount of lithium grease between the shaft seal and the motor housing.

---

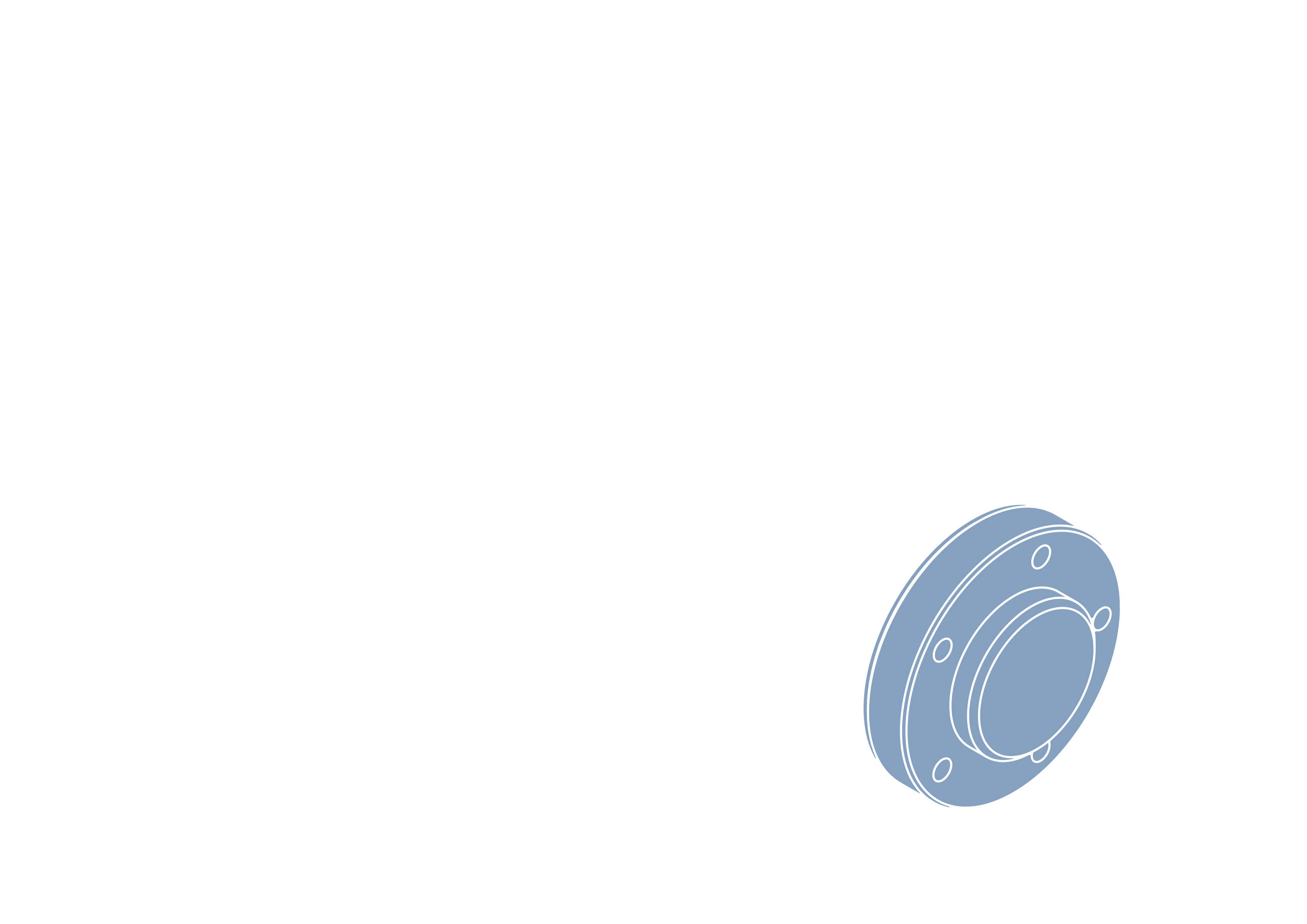

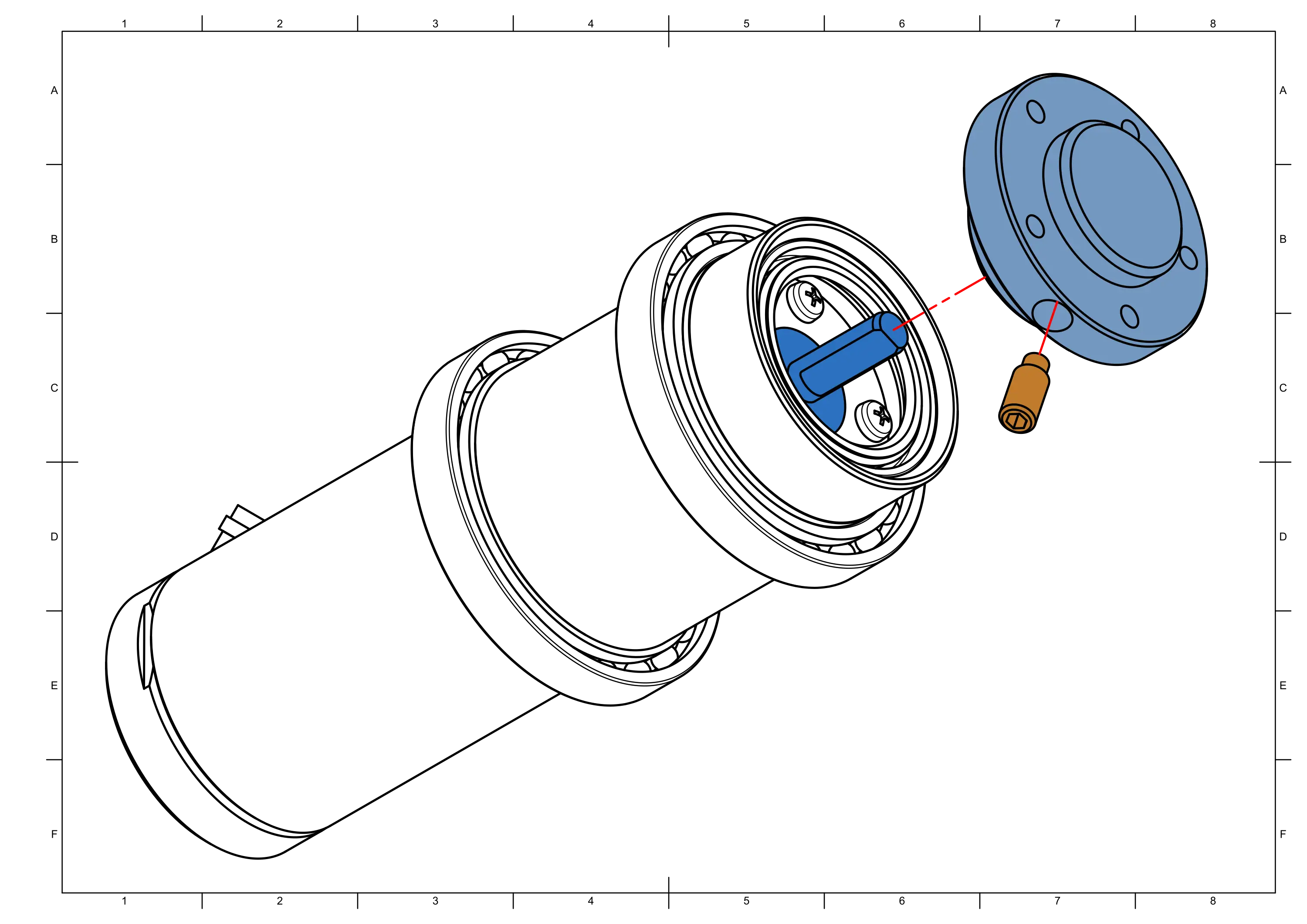

Step 2

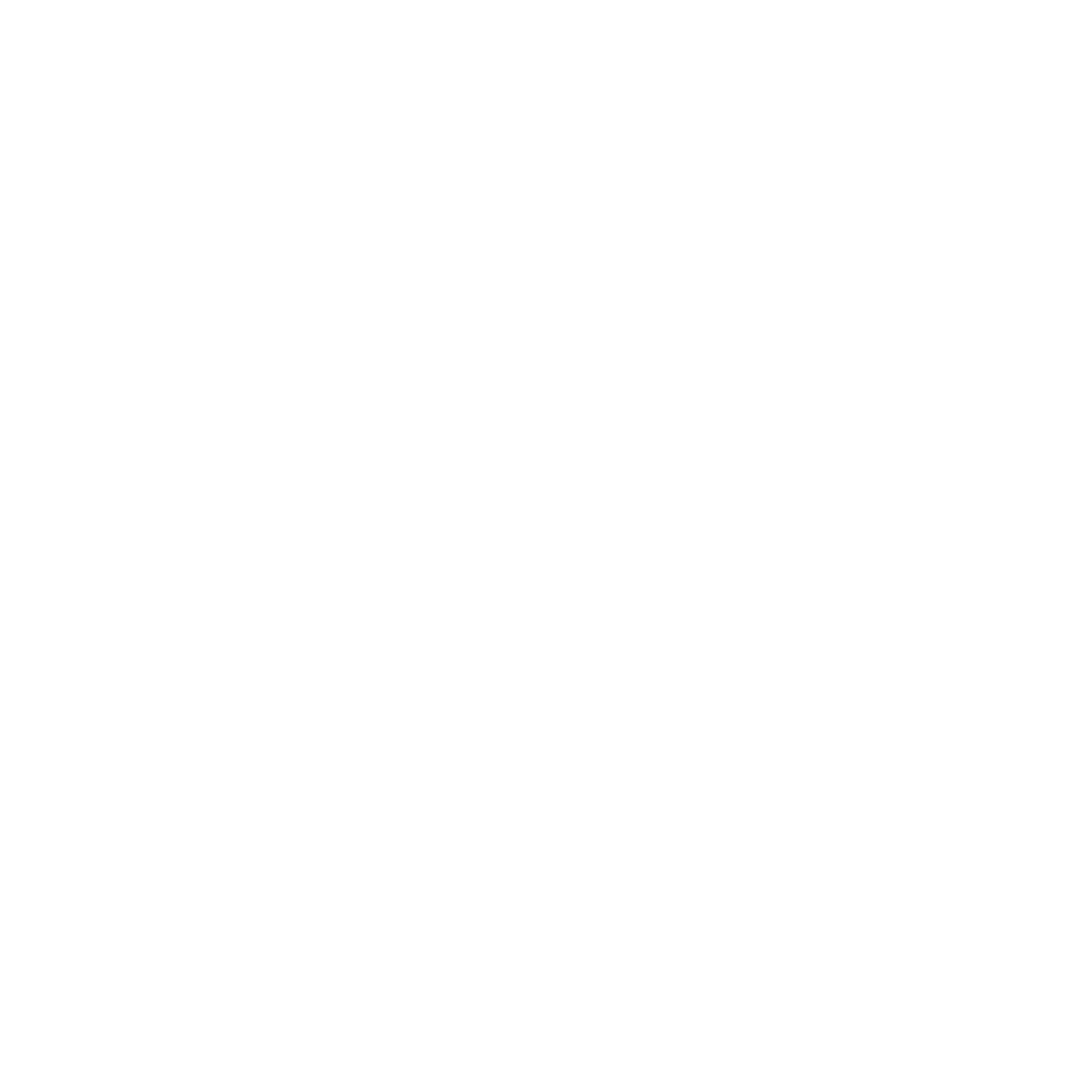

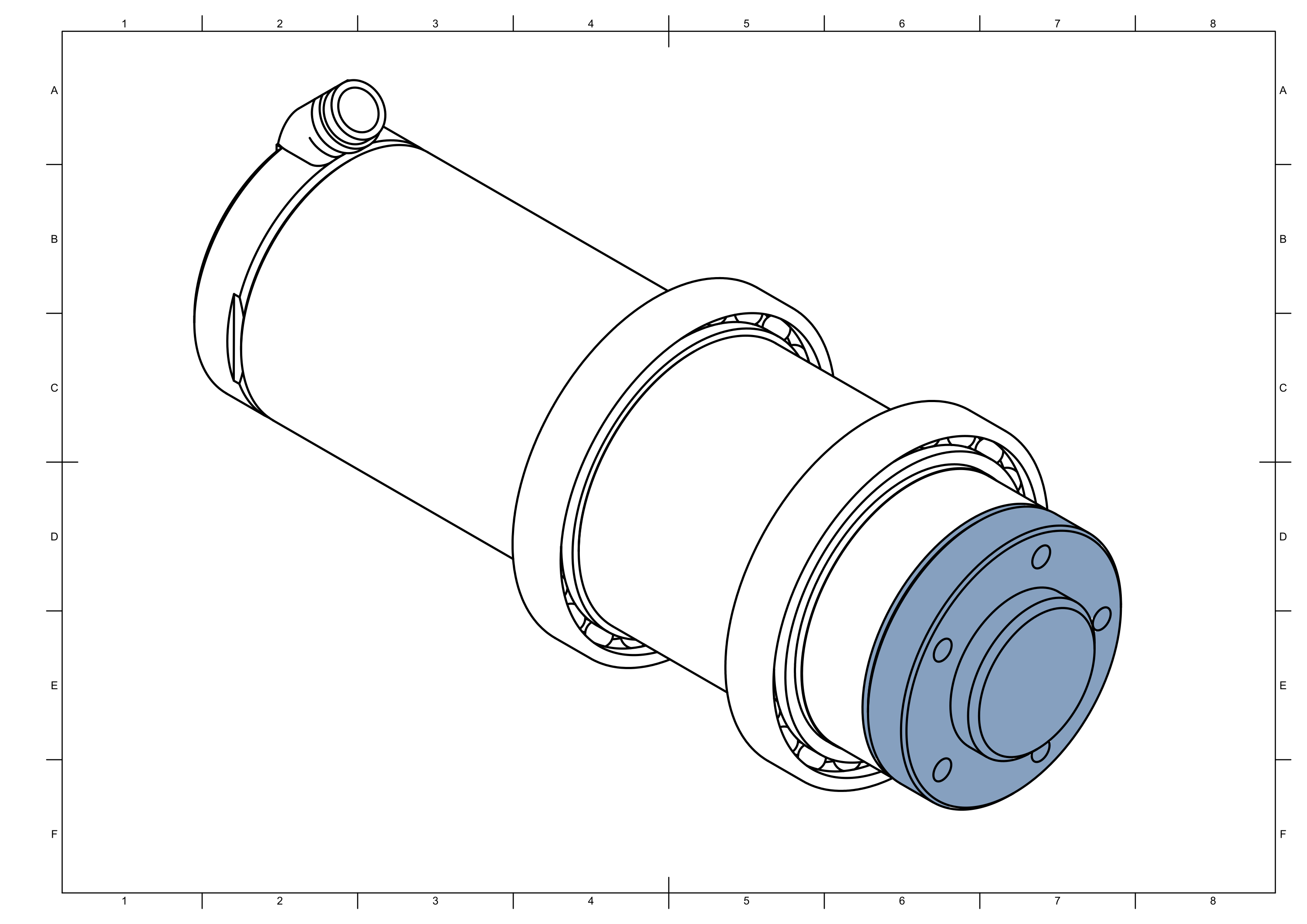

Shaft adapter

Shaft adapter

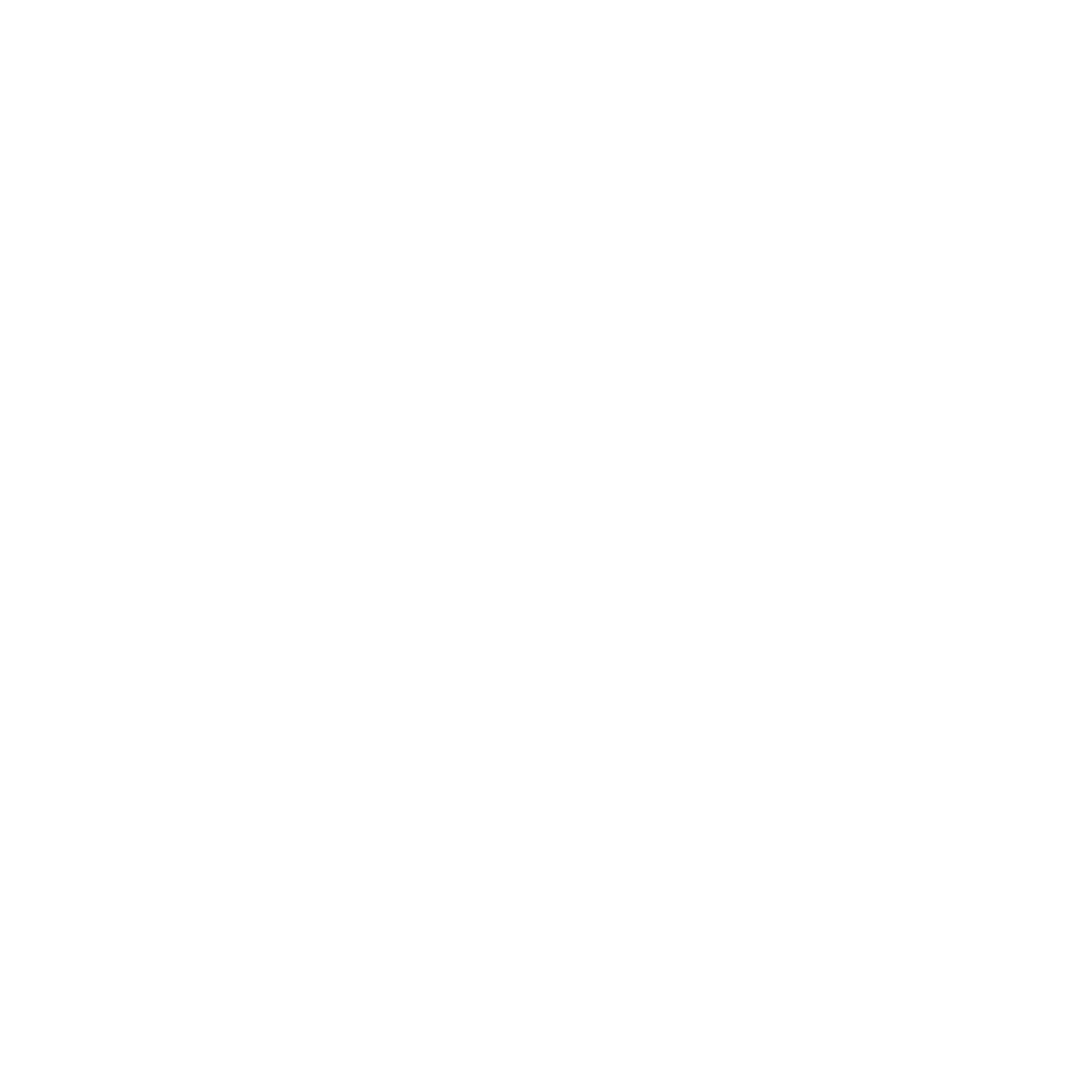

Set screw M5

Set screw M5

Loctite 243

Loctite 243

note

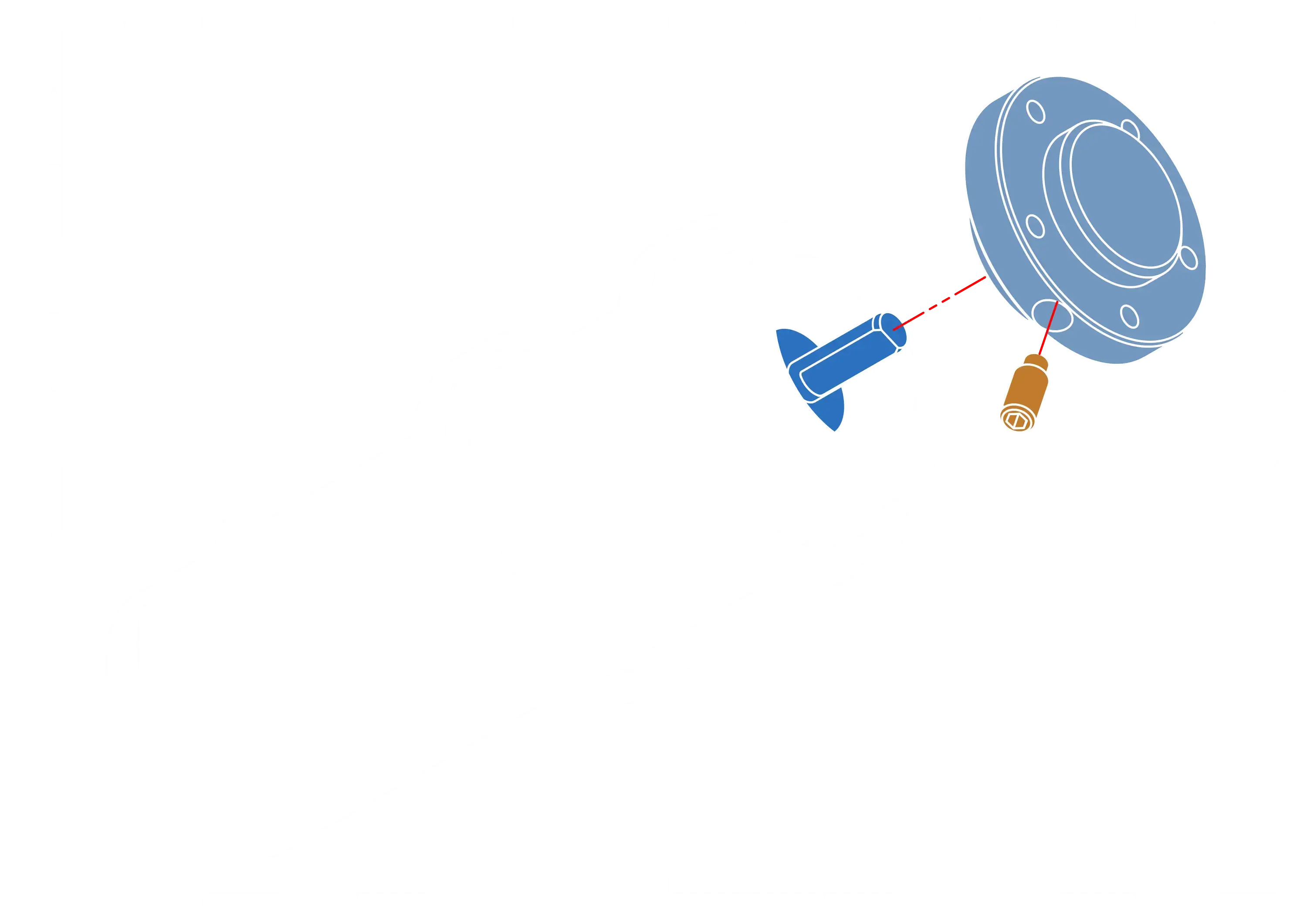

Align the flat segment of motor shaft with headless screw. Use a drop of loctite to make sure it stays in place.

Step 3

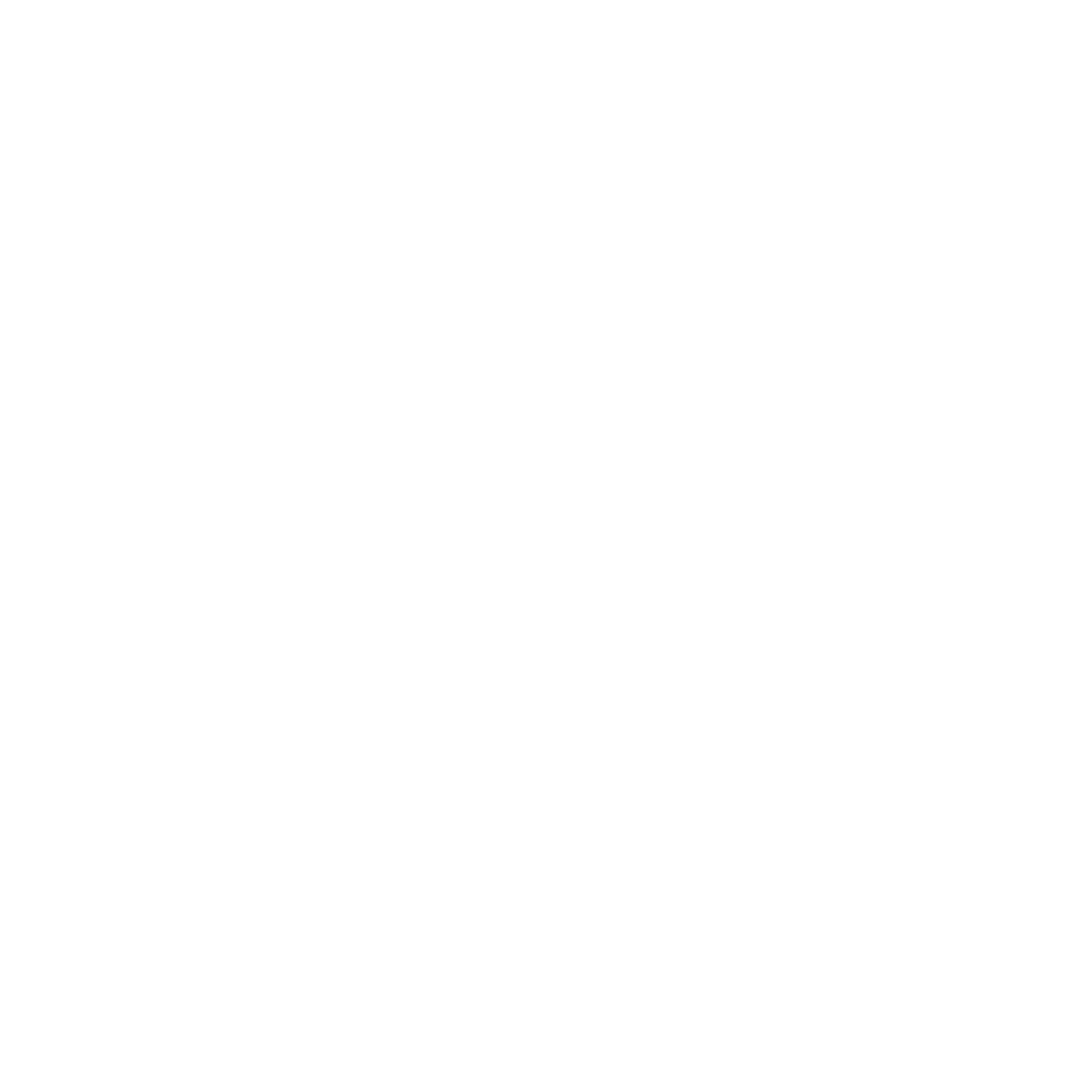

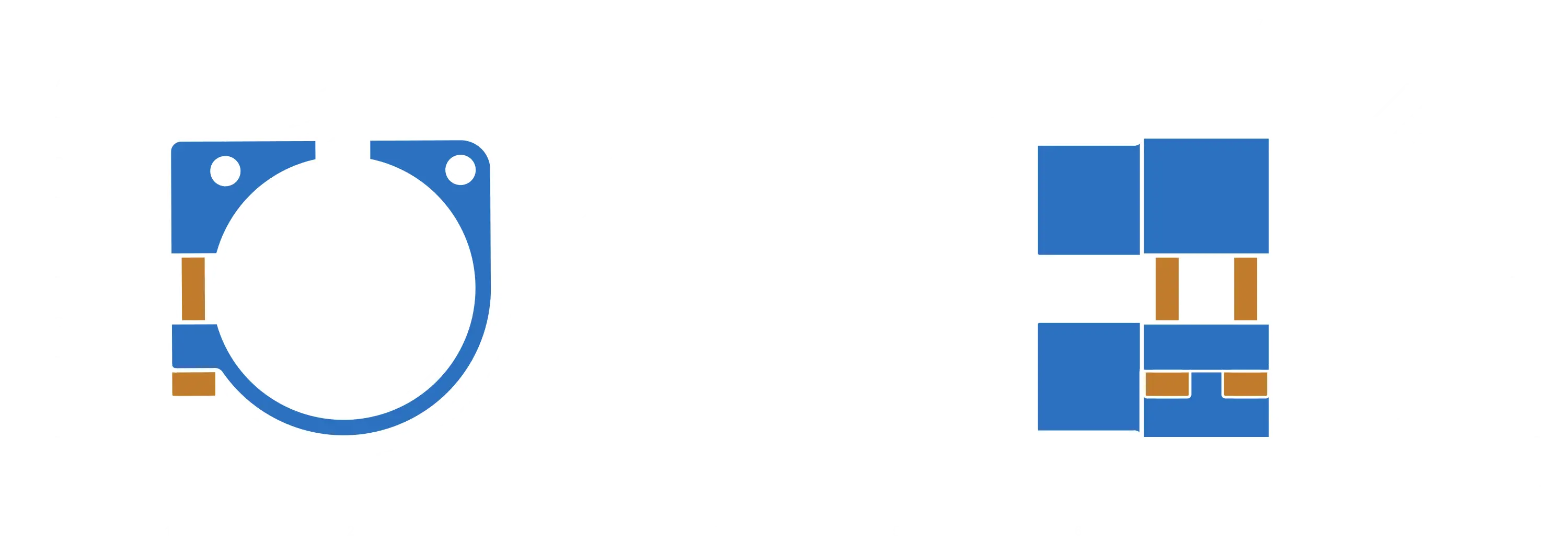

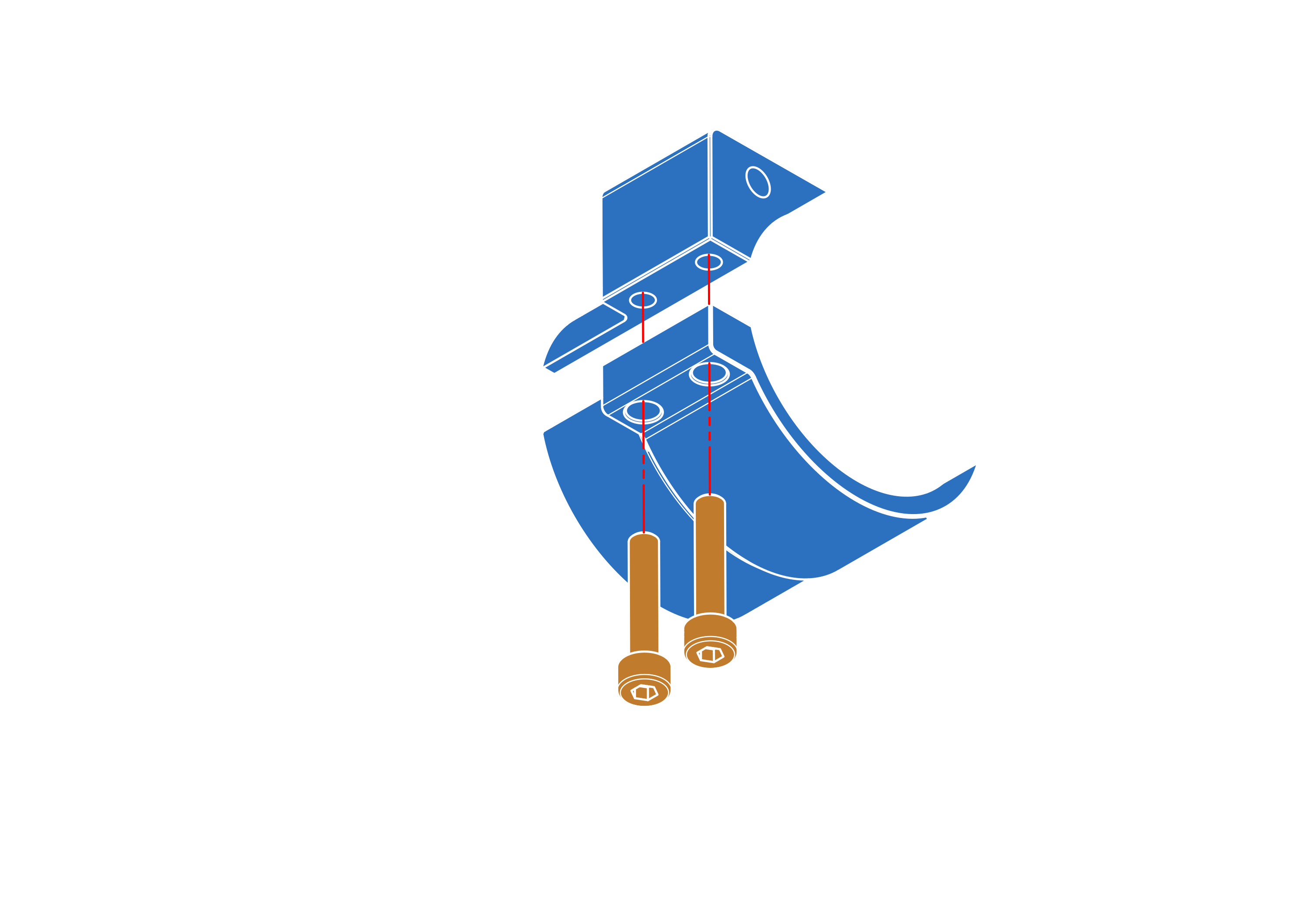

Motor mount

Motor mount

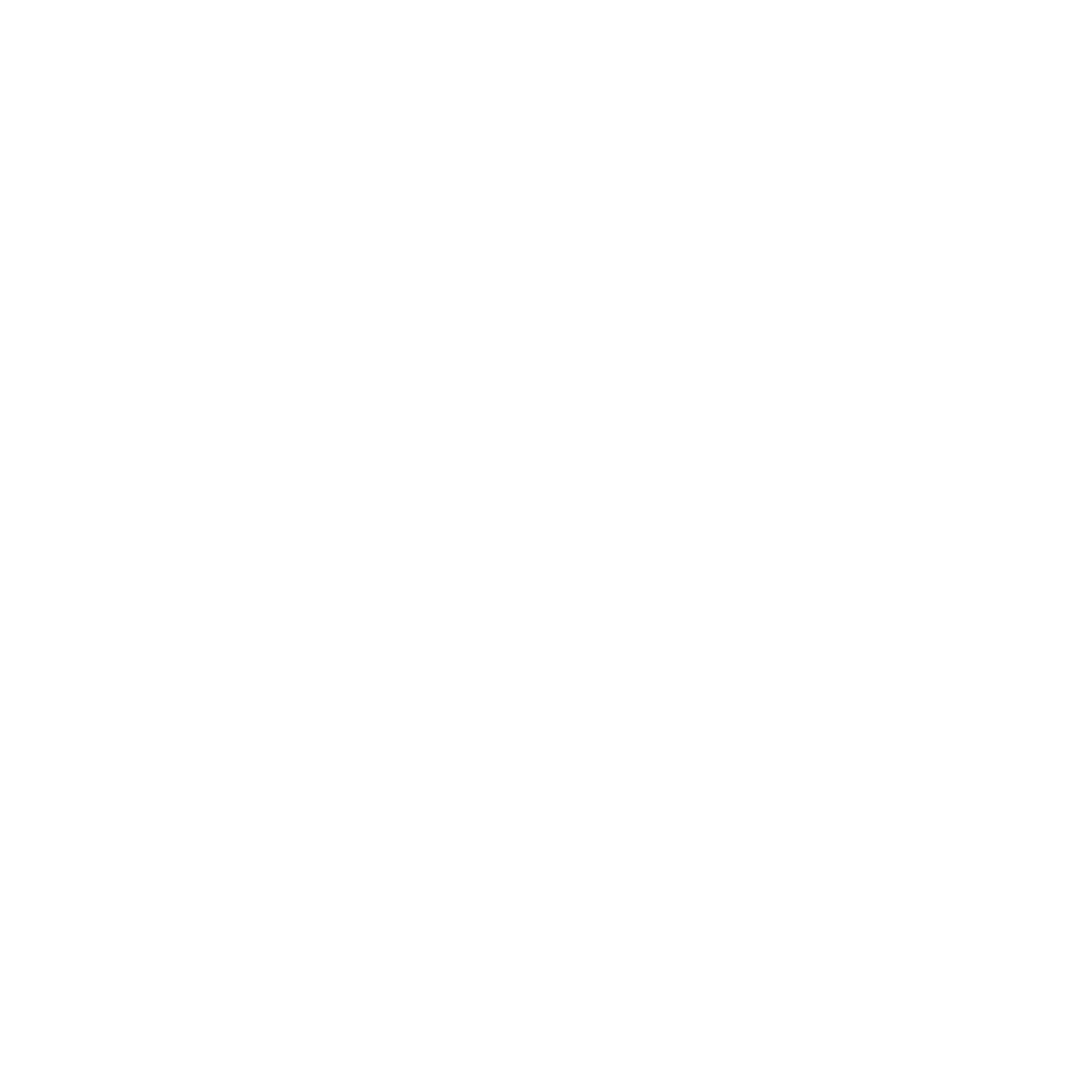

2x M4x20 SHCS

2x M4x20 SHCS

note

Slide the motor mount forward until it touches the base of the bearing before tightening.

---

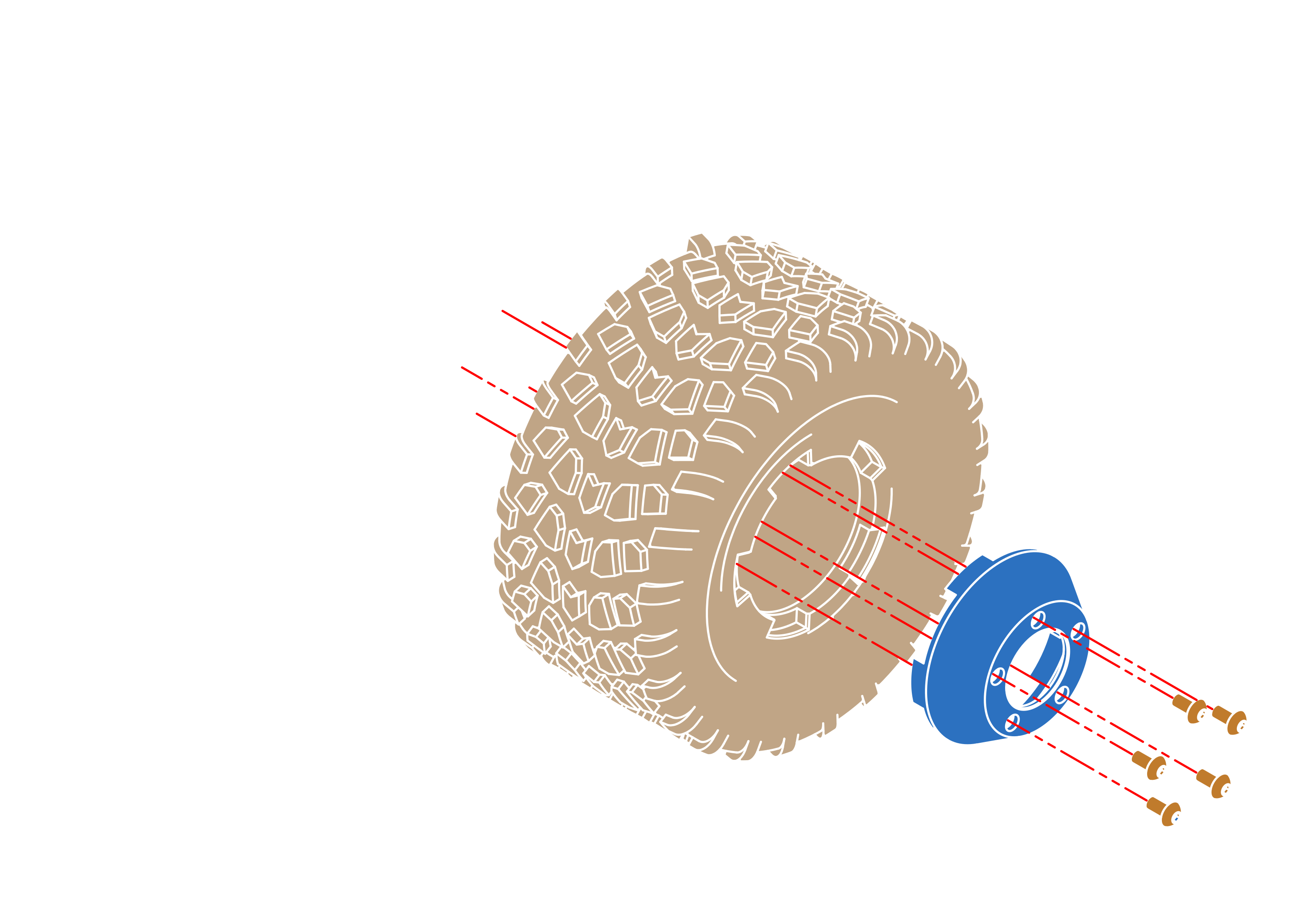

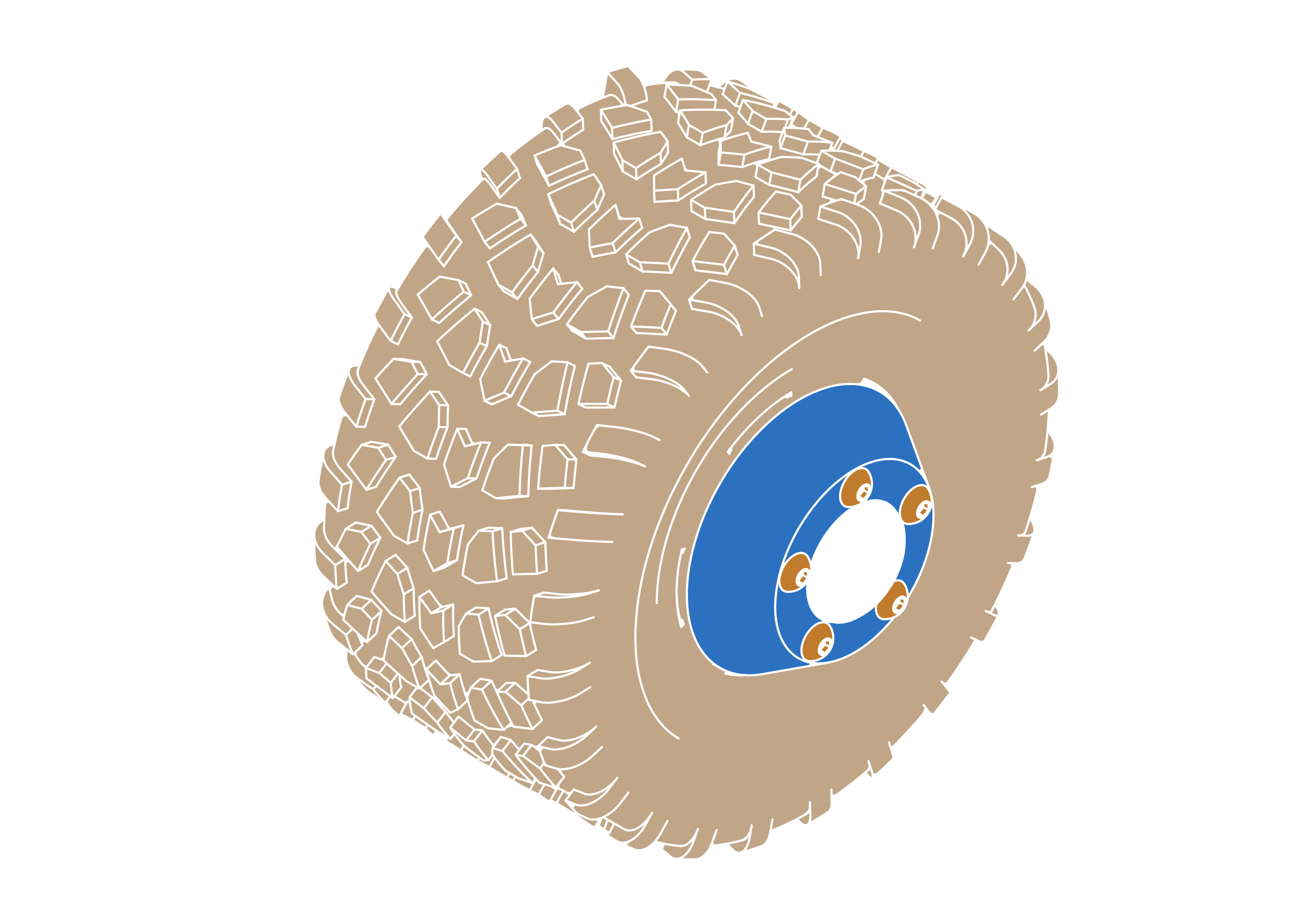

Step 4

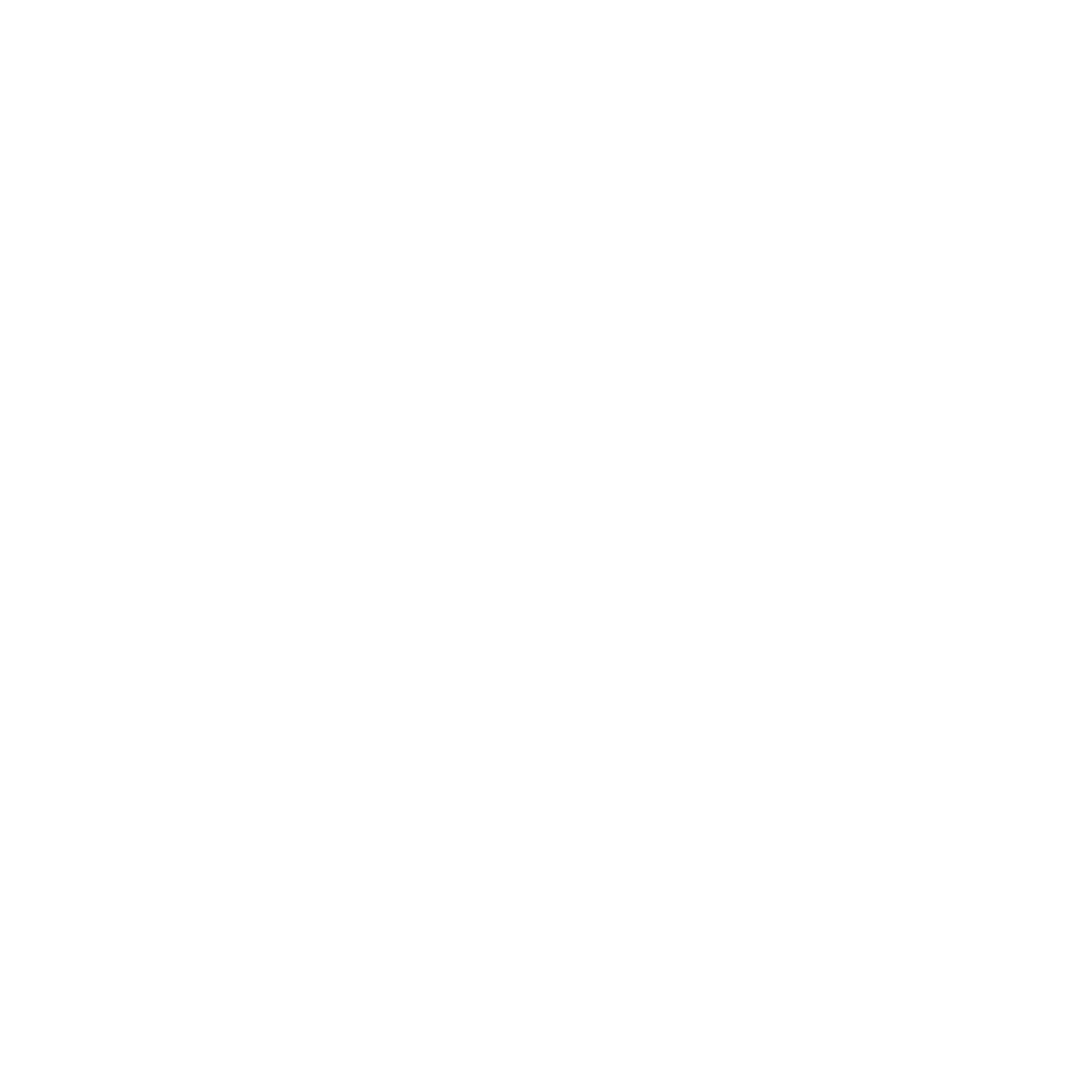

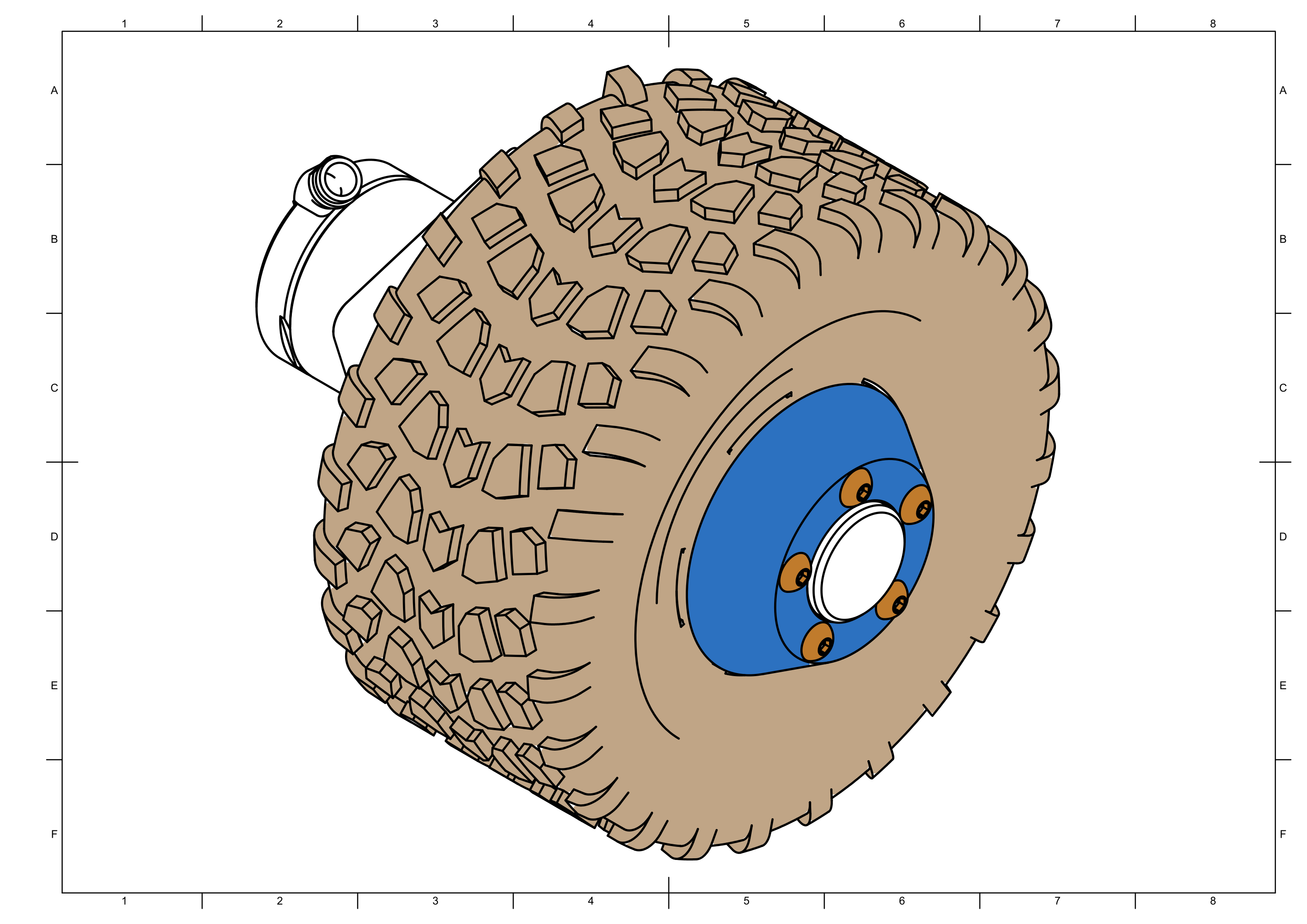

Tire with rim

Tire with rim

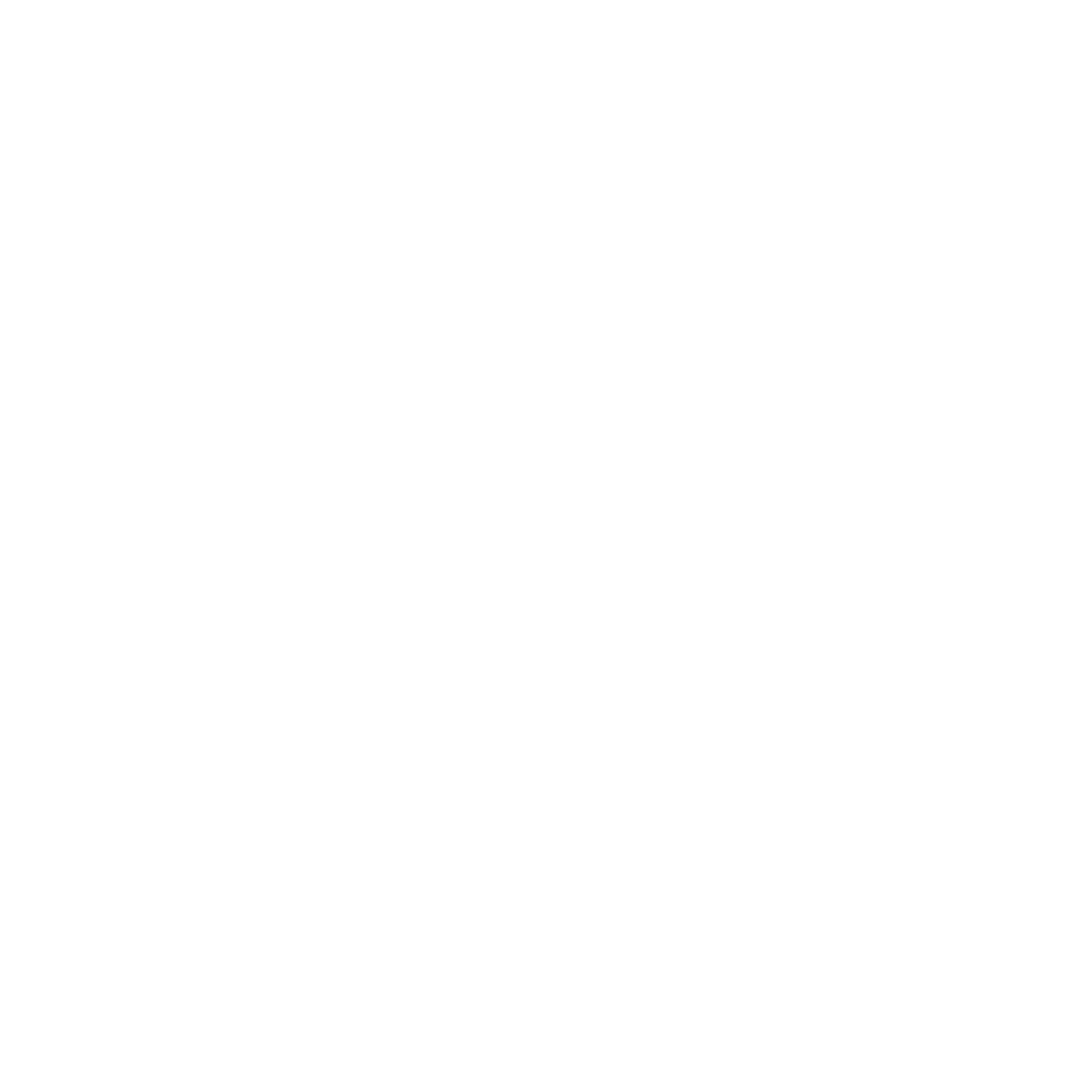

Torque plate

Torque plate

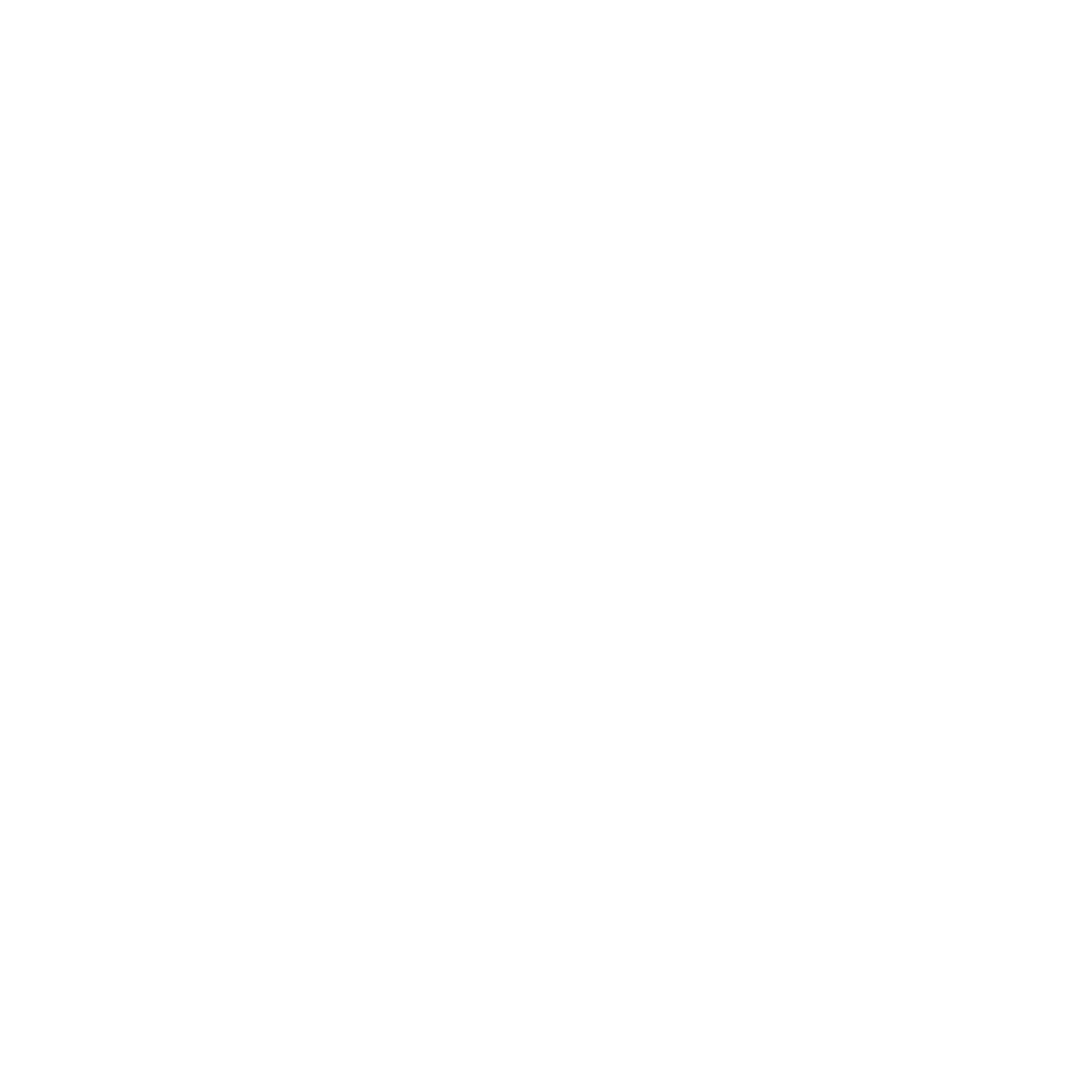

5x M4x8 BHCS

5x M4x8 BHCS

---

info

Repeat until you have a total of 4 wheels.
