Task 2: Main Electronics Box (MEB)
Assembly time ≈ 60 minutes

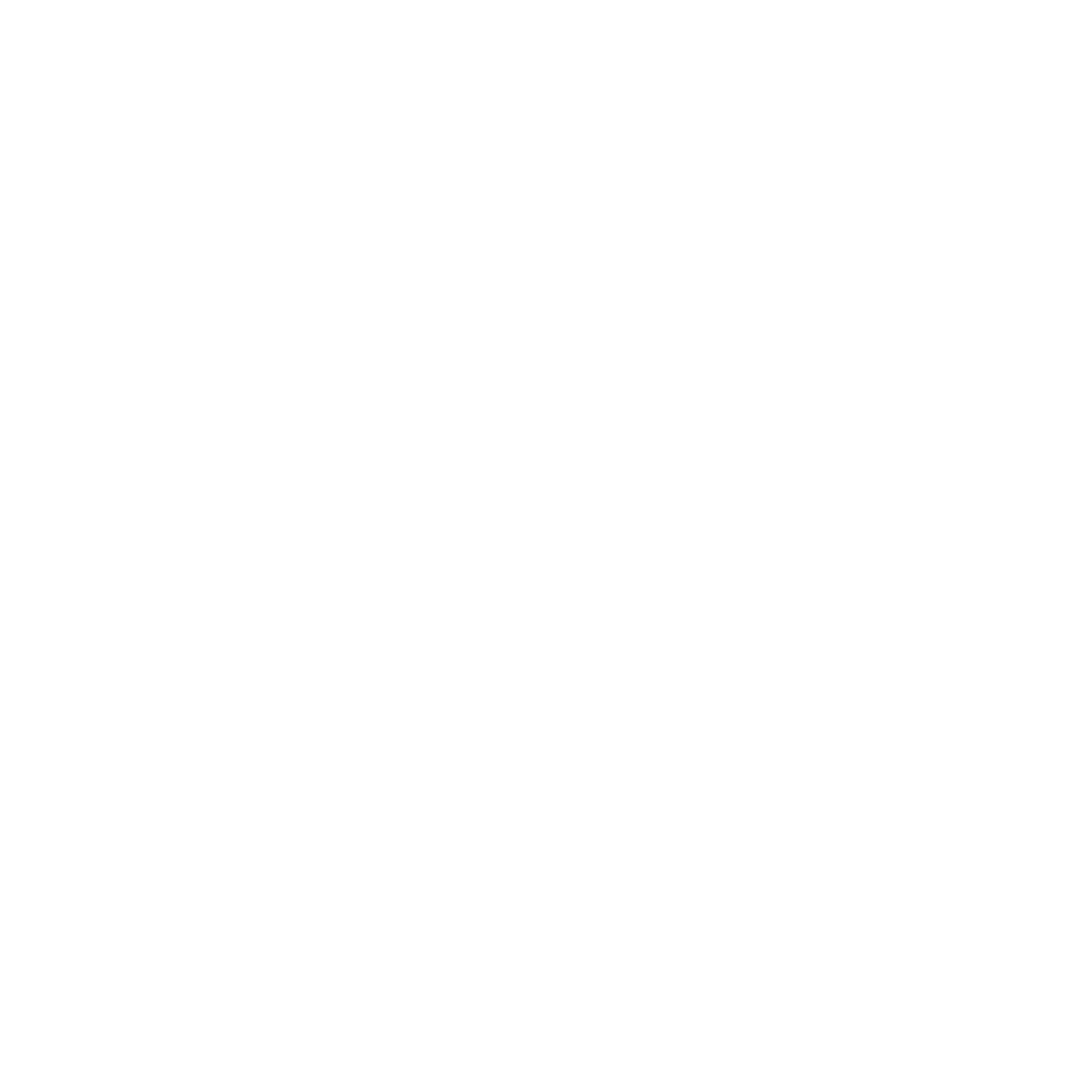

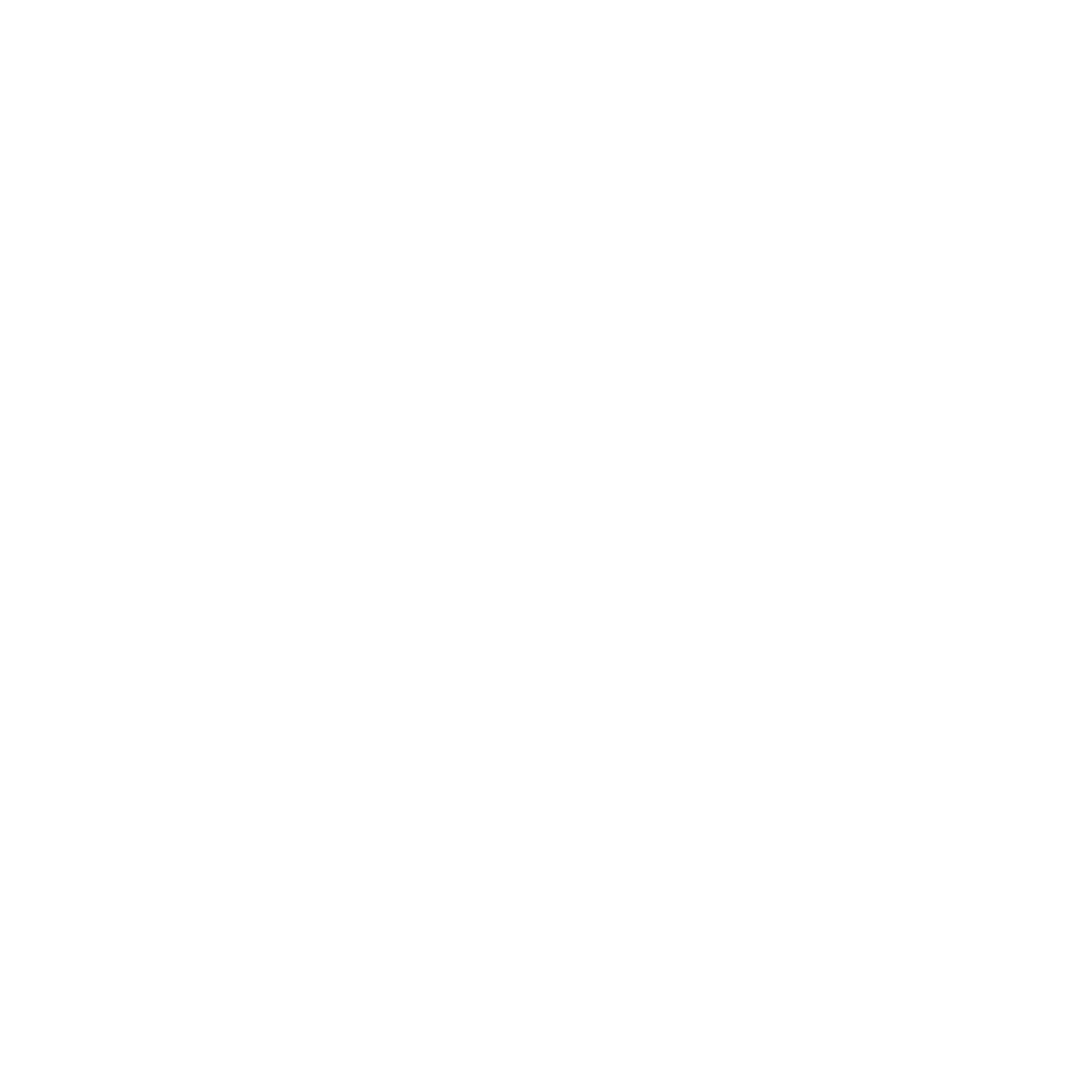

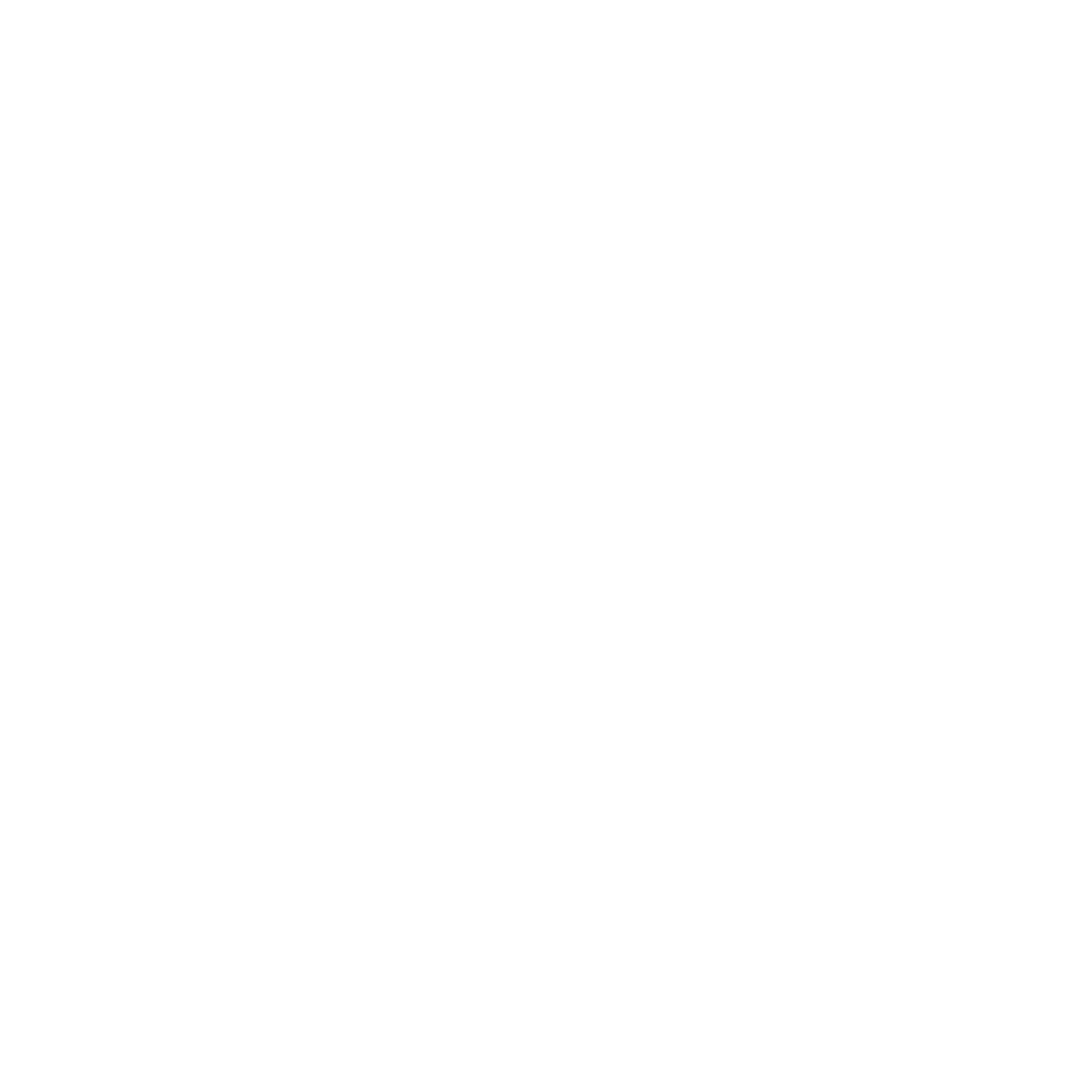

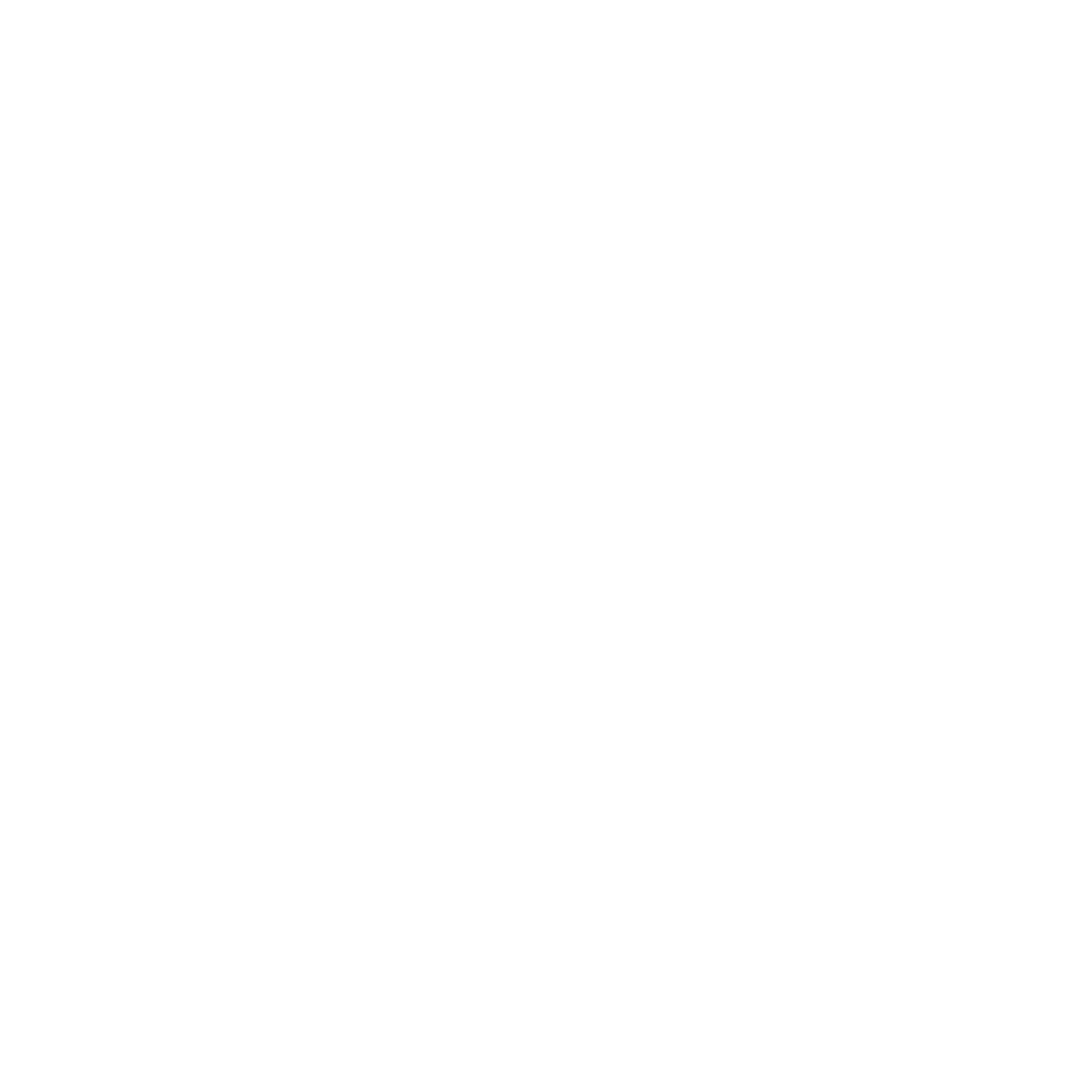

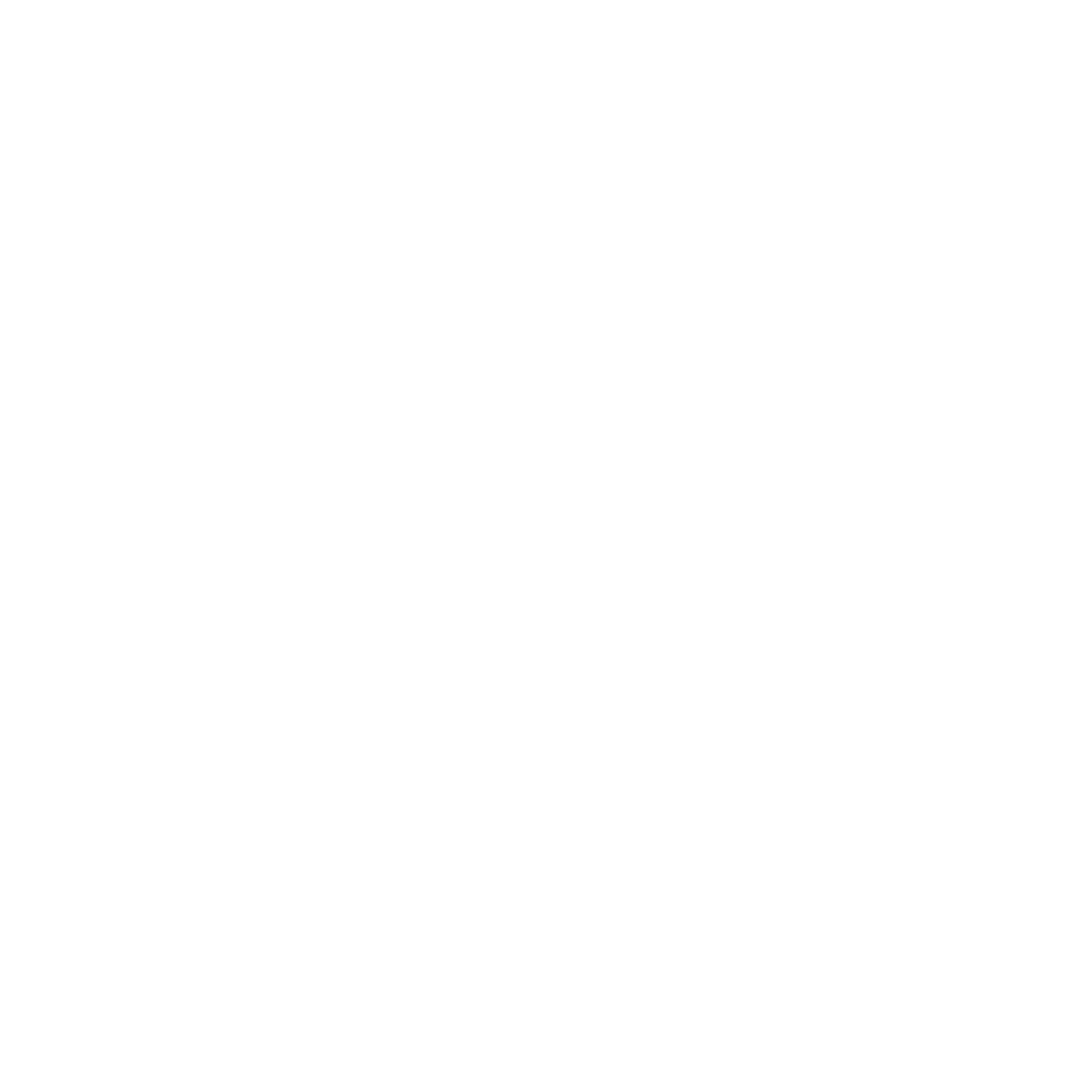

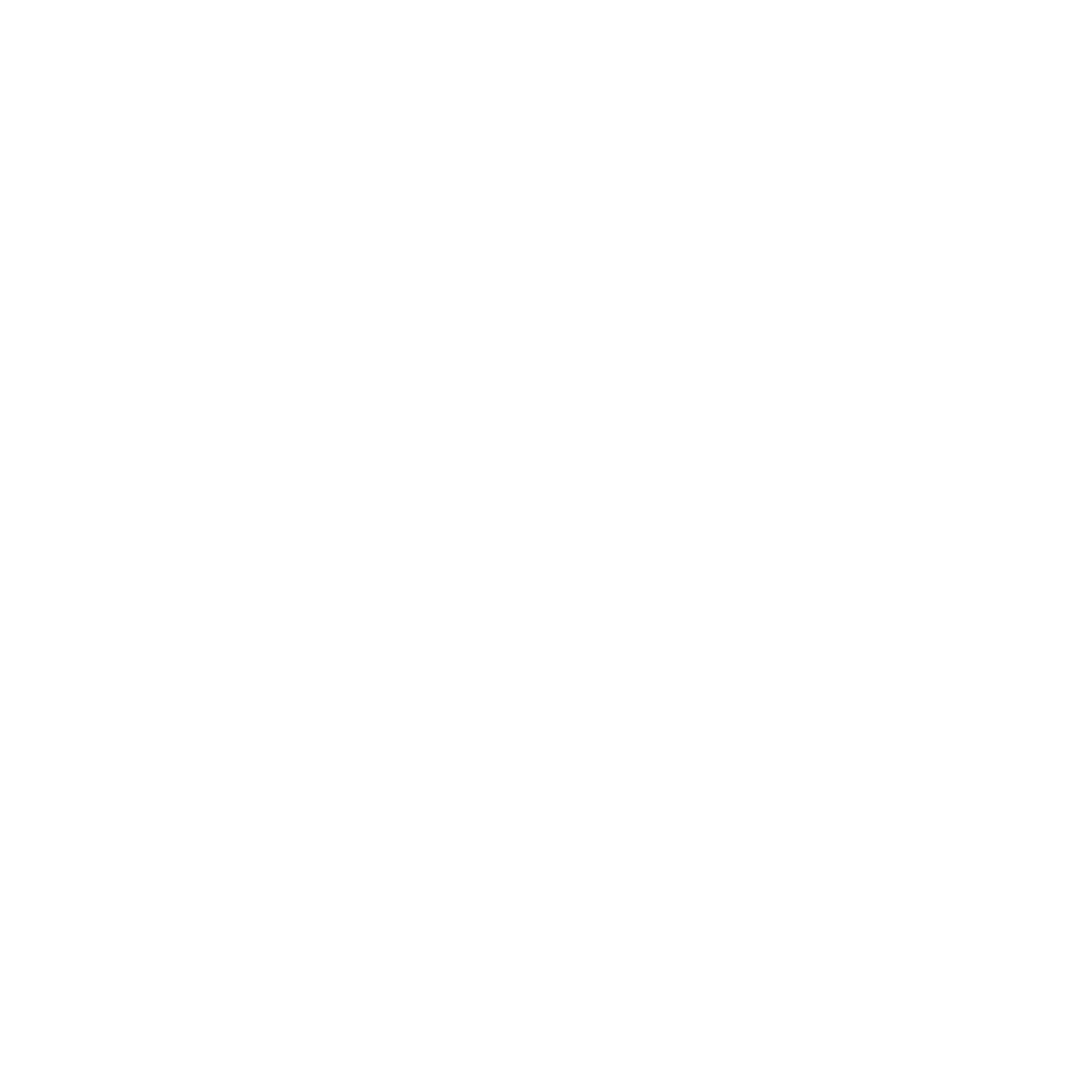

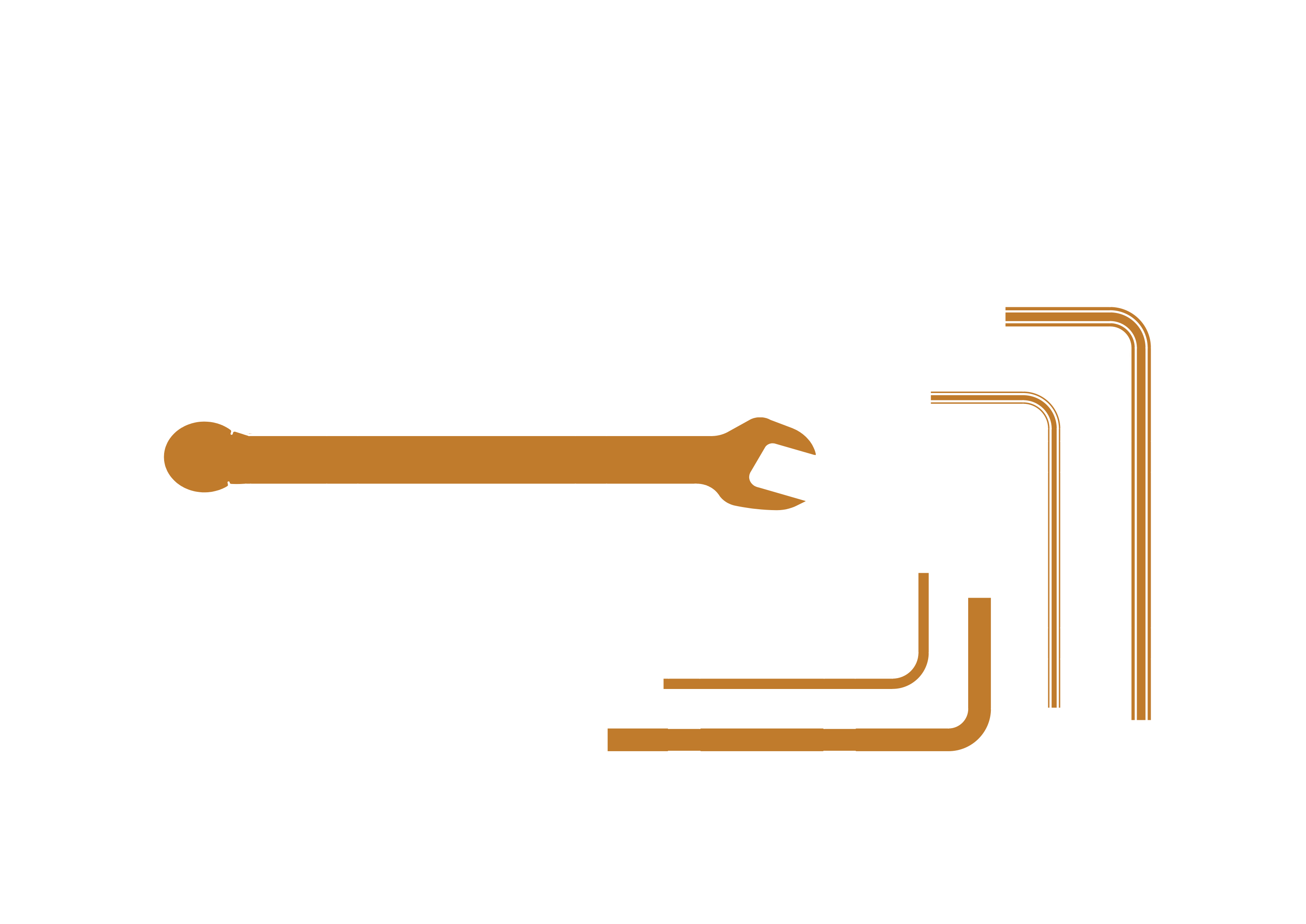

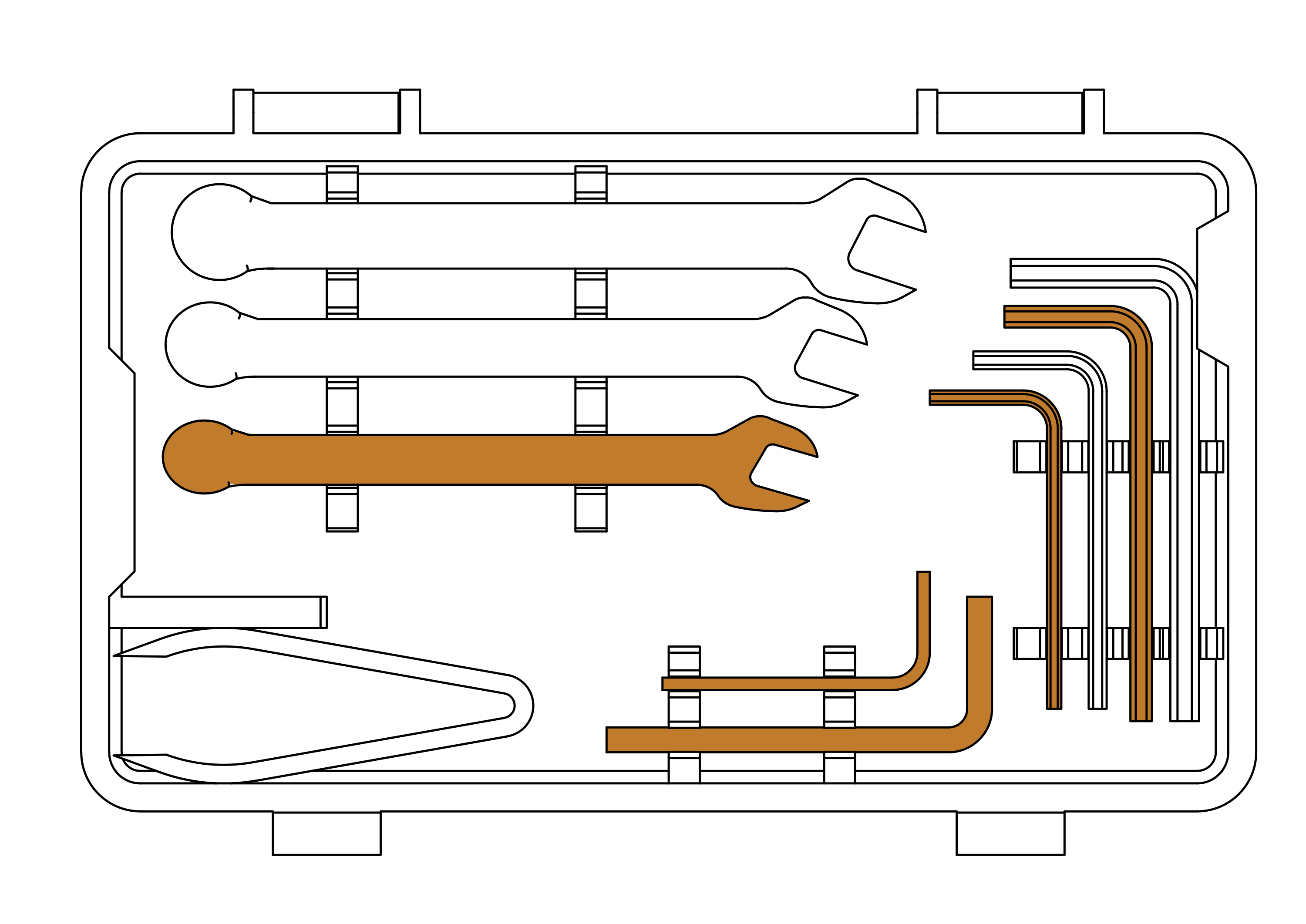

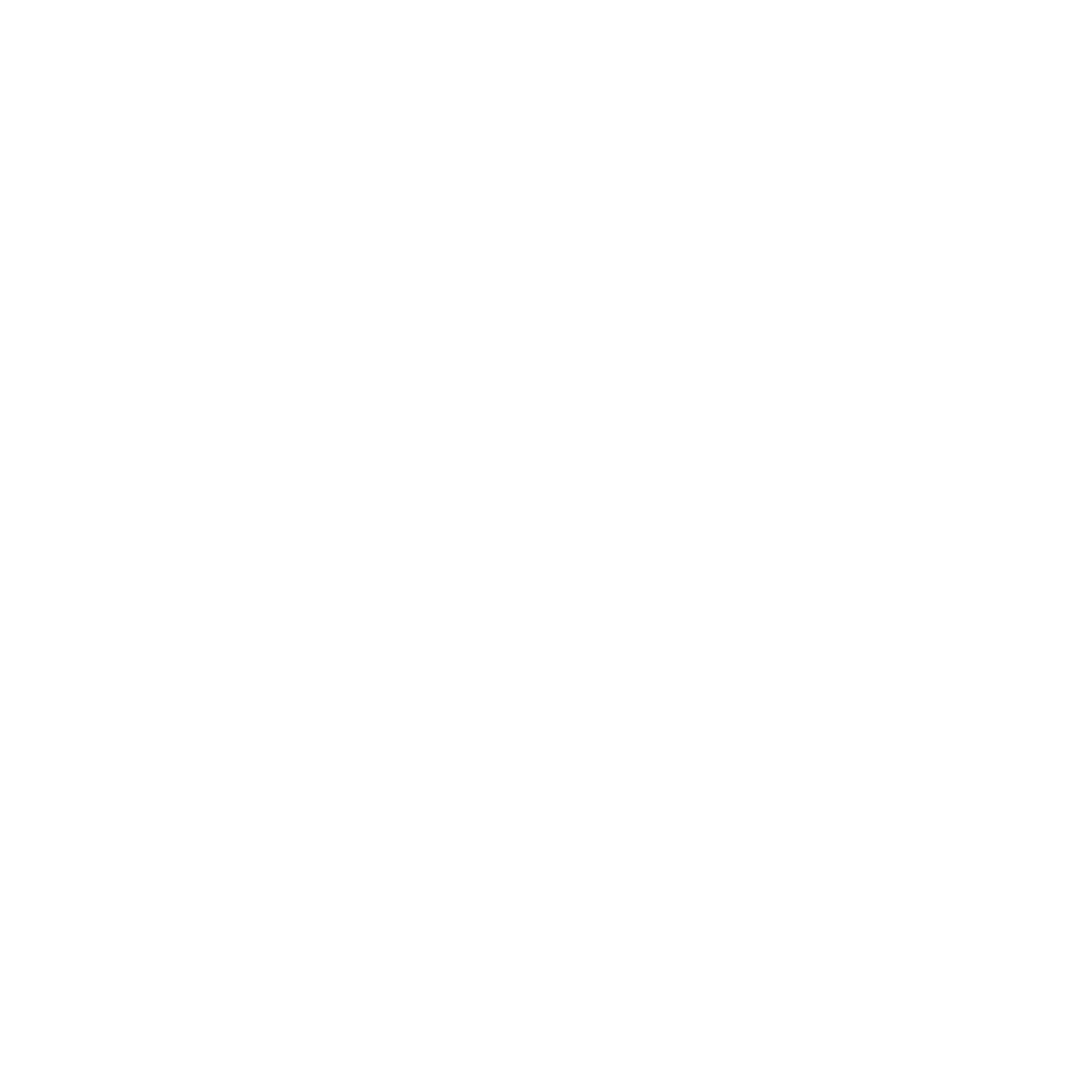

Step 0

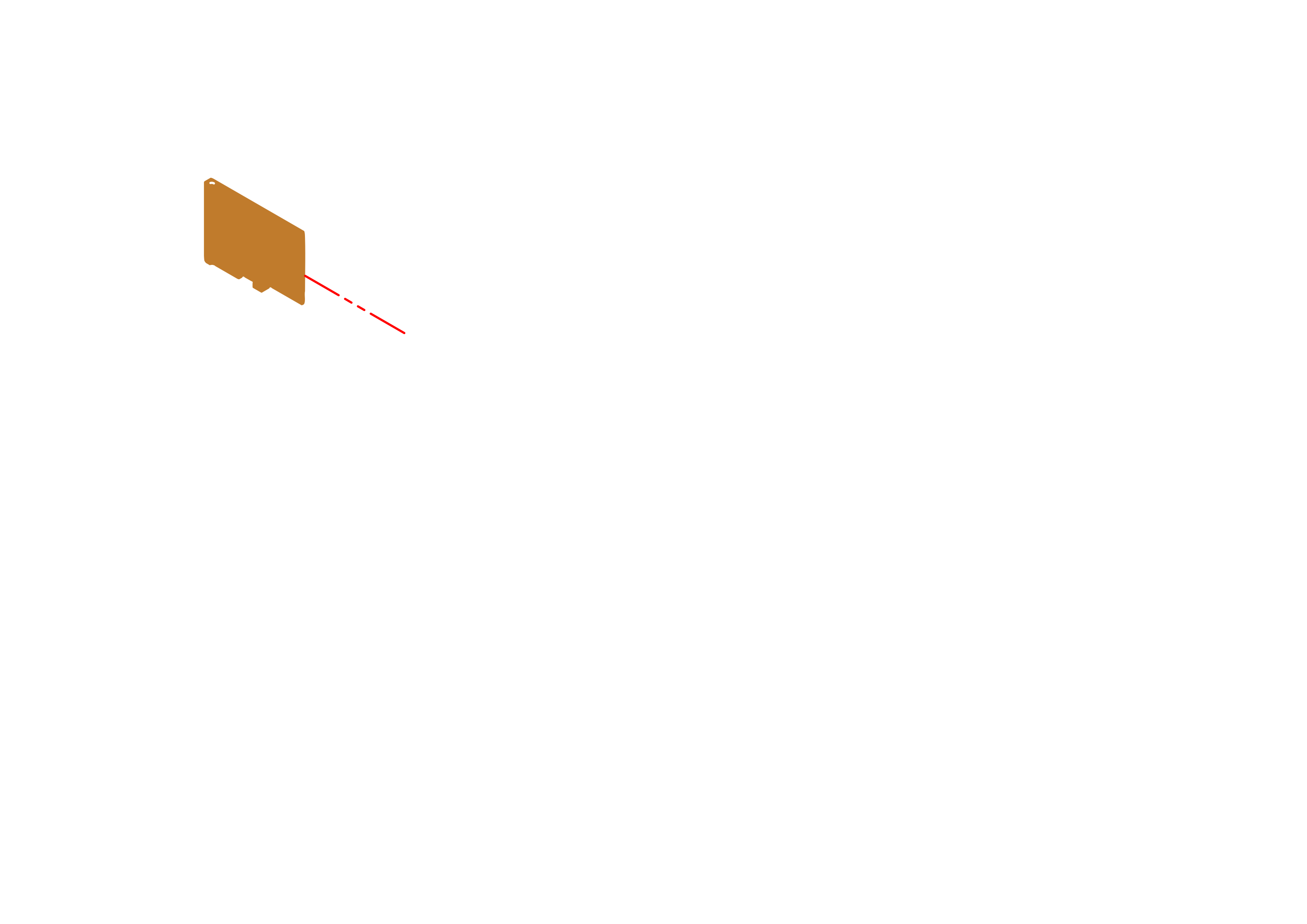

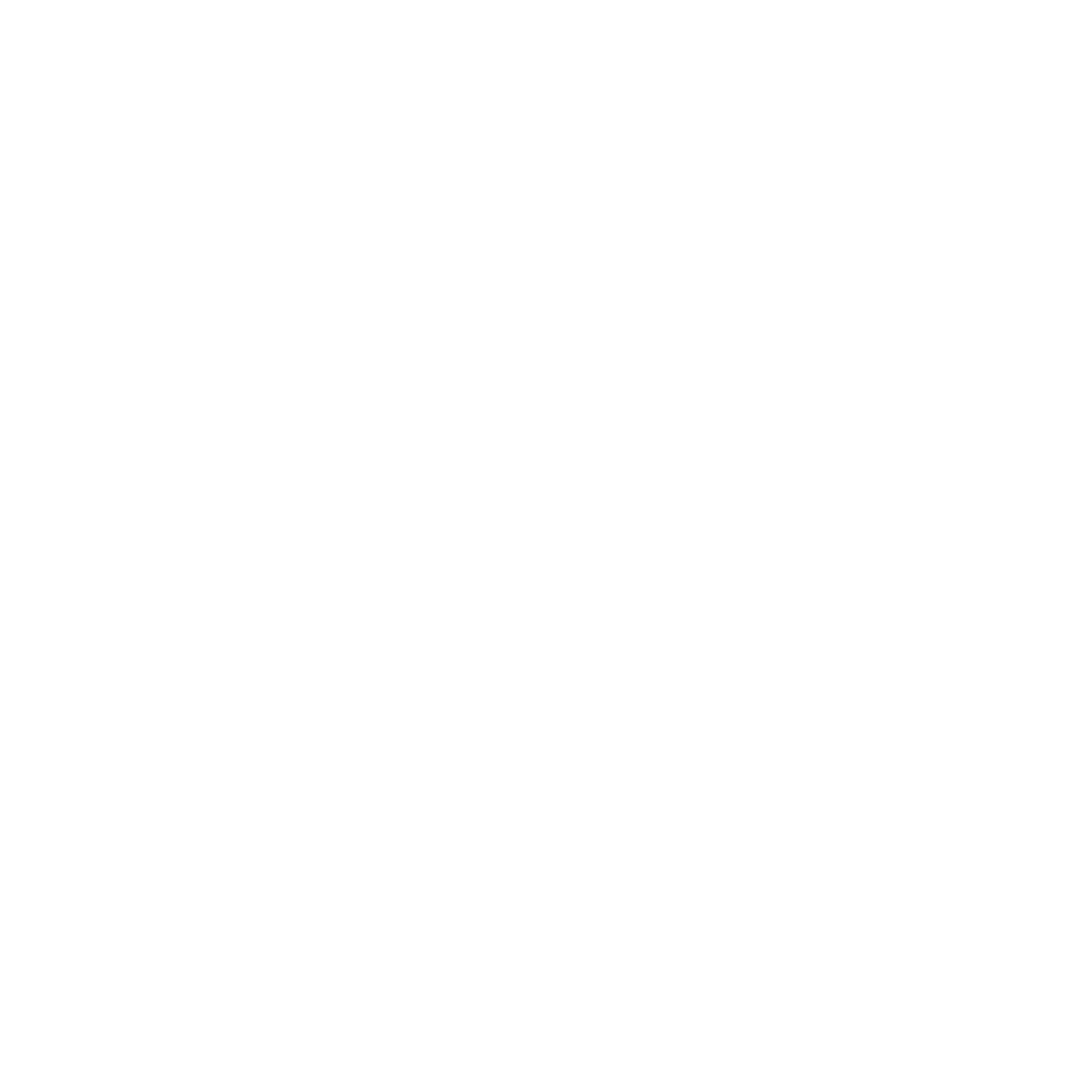

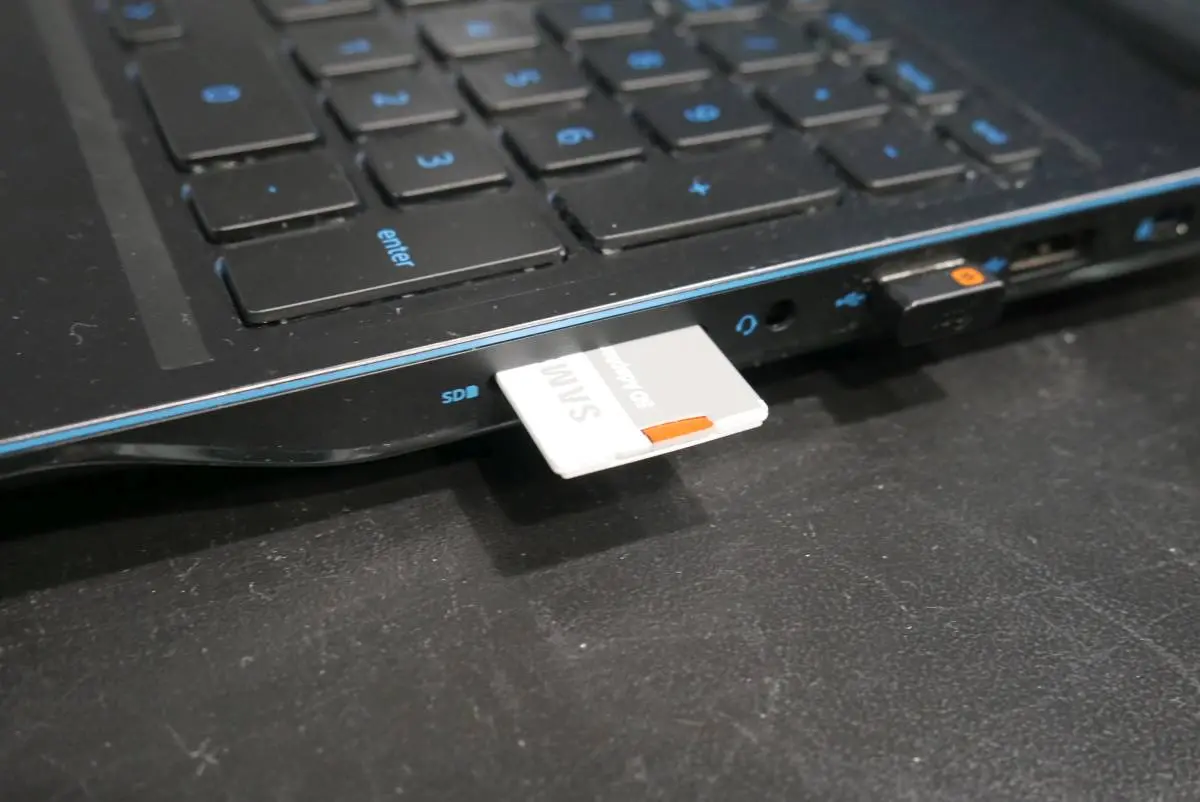

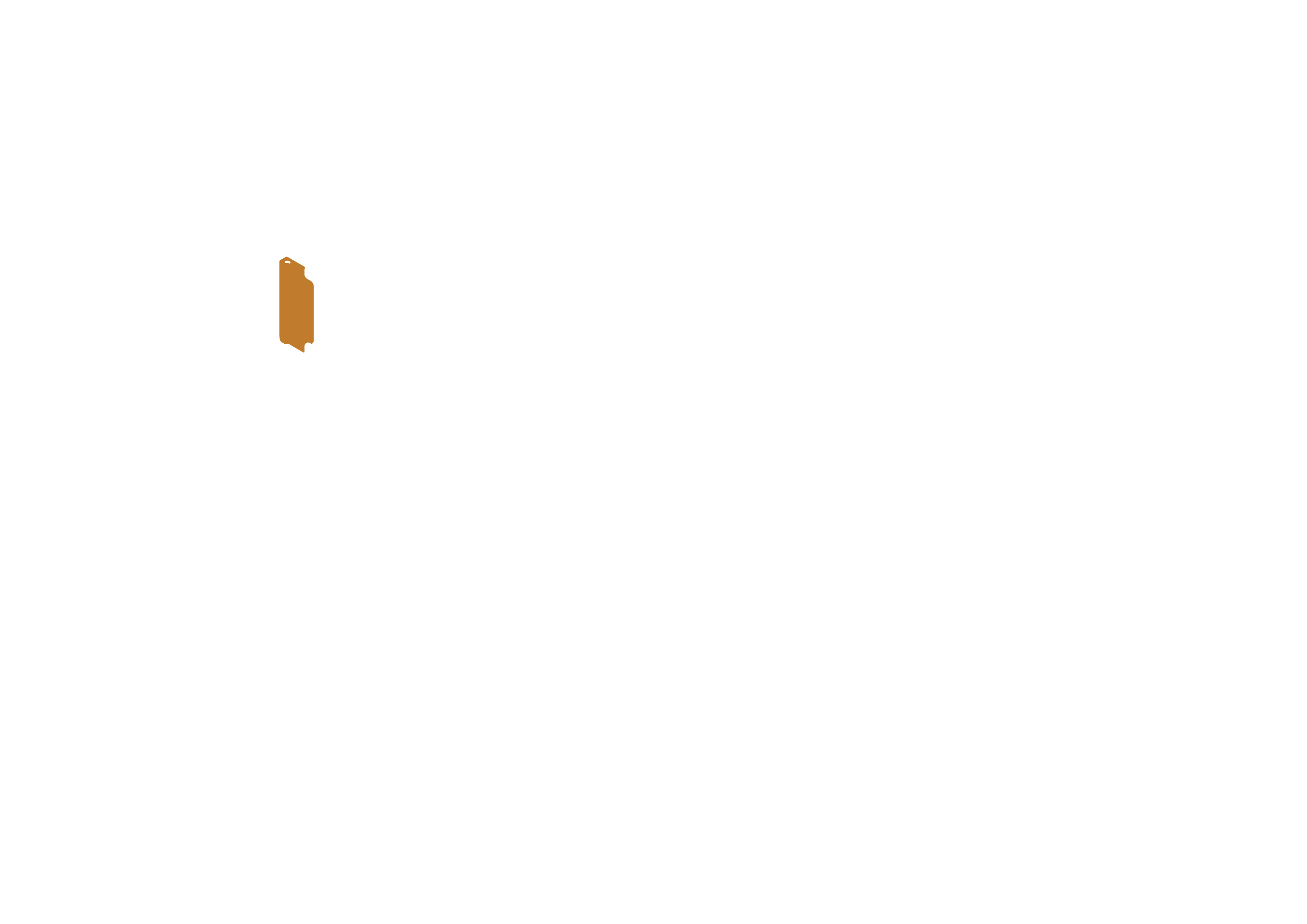

Burn LeoOs image to a microSD card using this tutorial:
📄Software update
A guide to updating your Leo Rover by flashing the latest LeoOS image to a microSD card using tools like Etcher or command-line utilities.

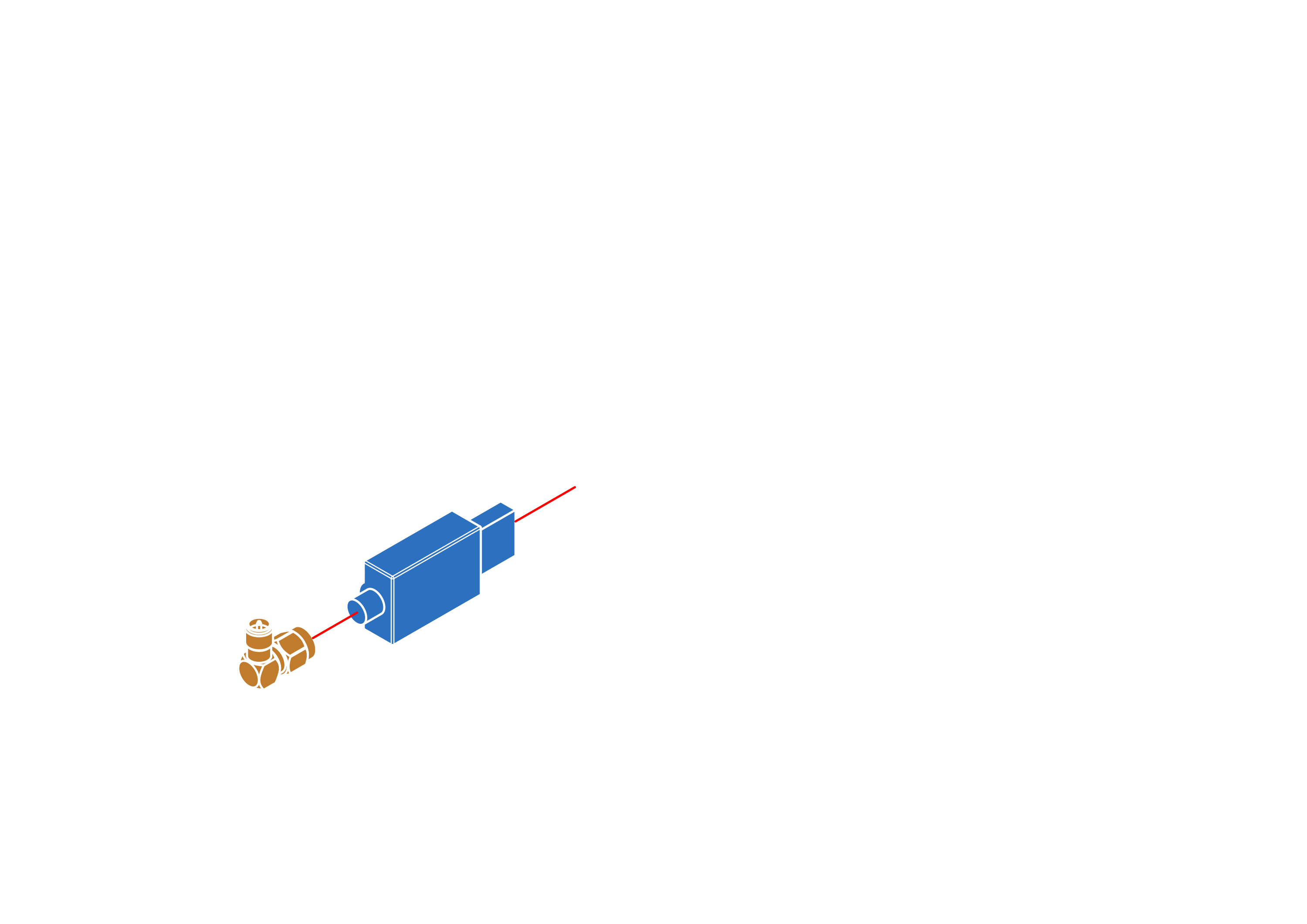

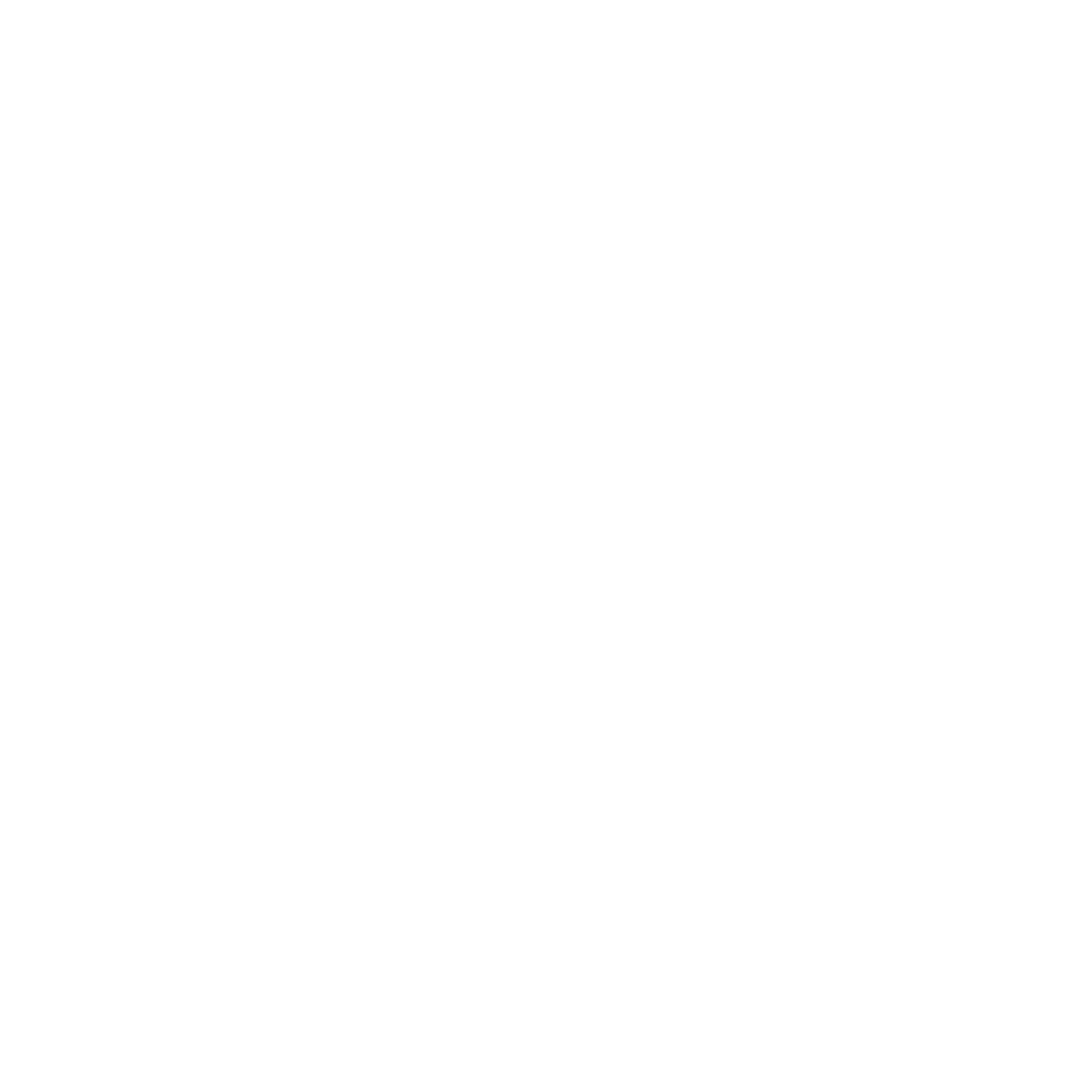

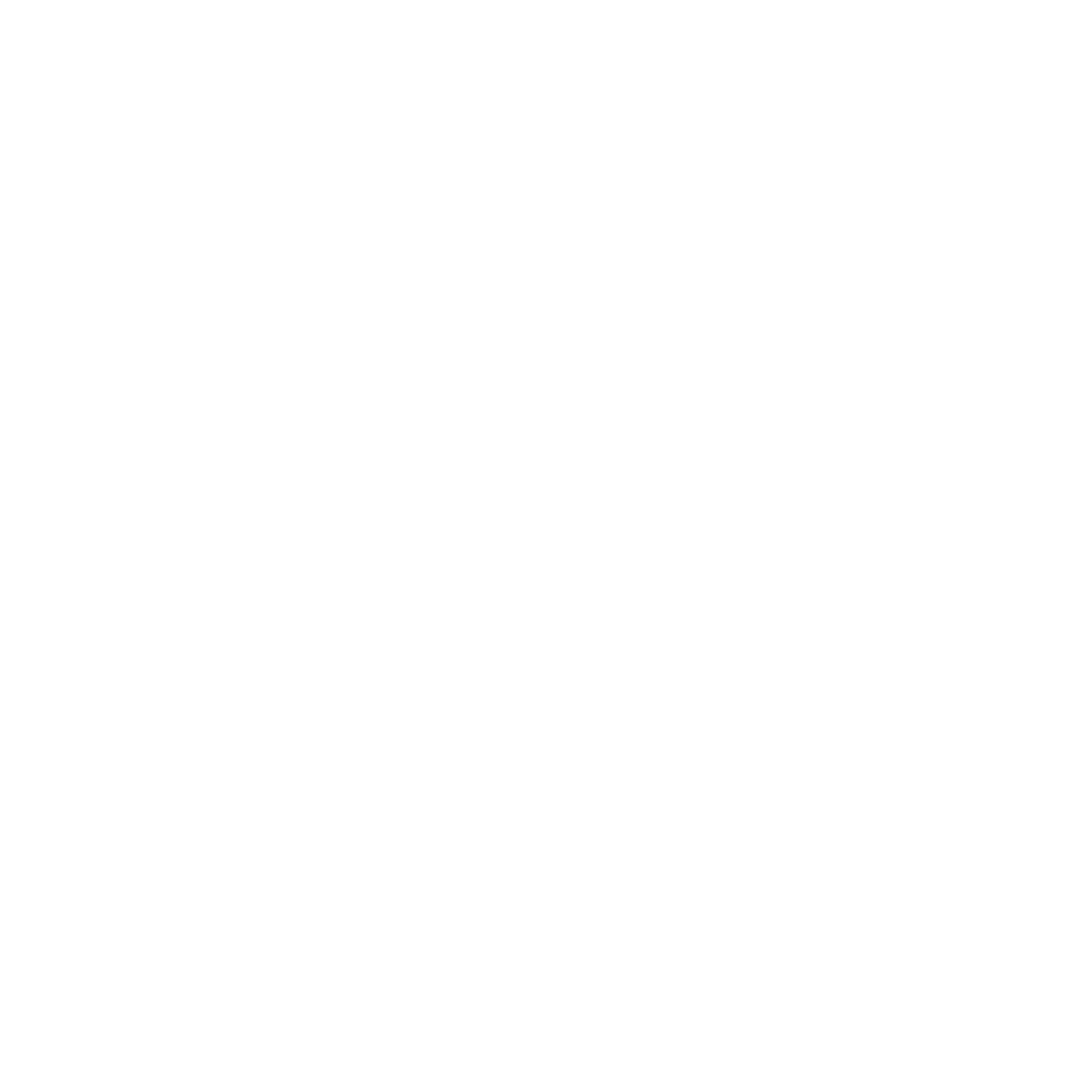

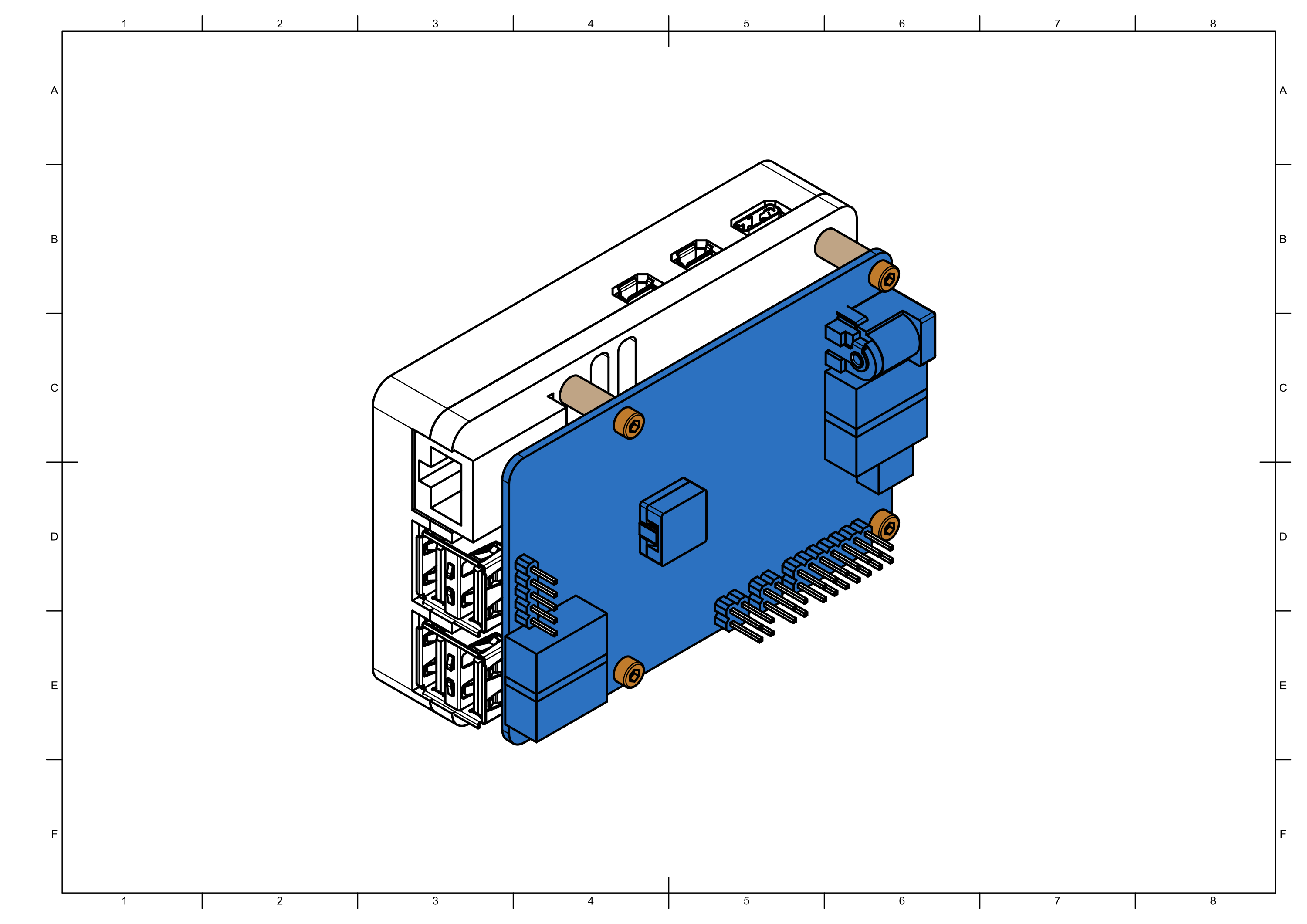

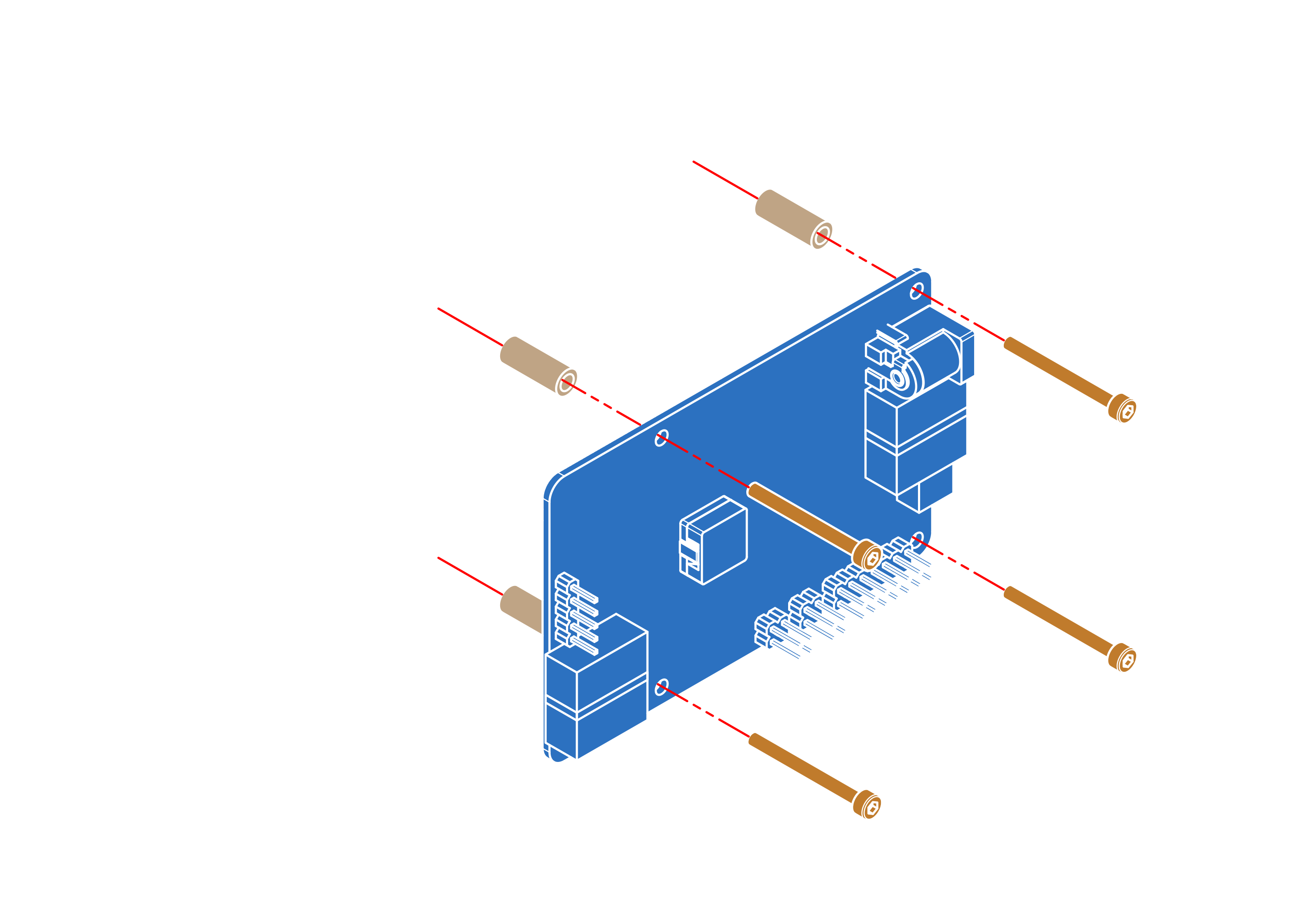

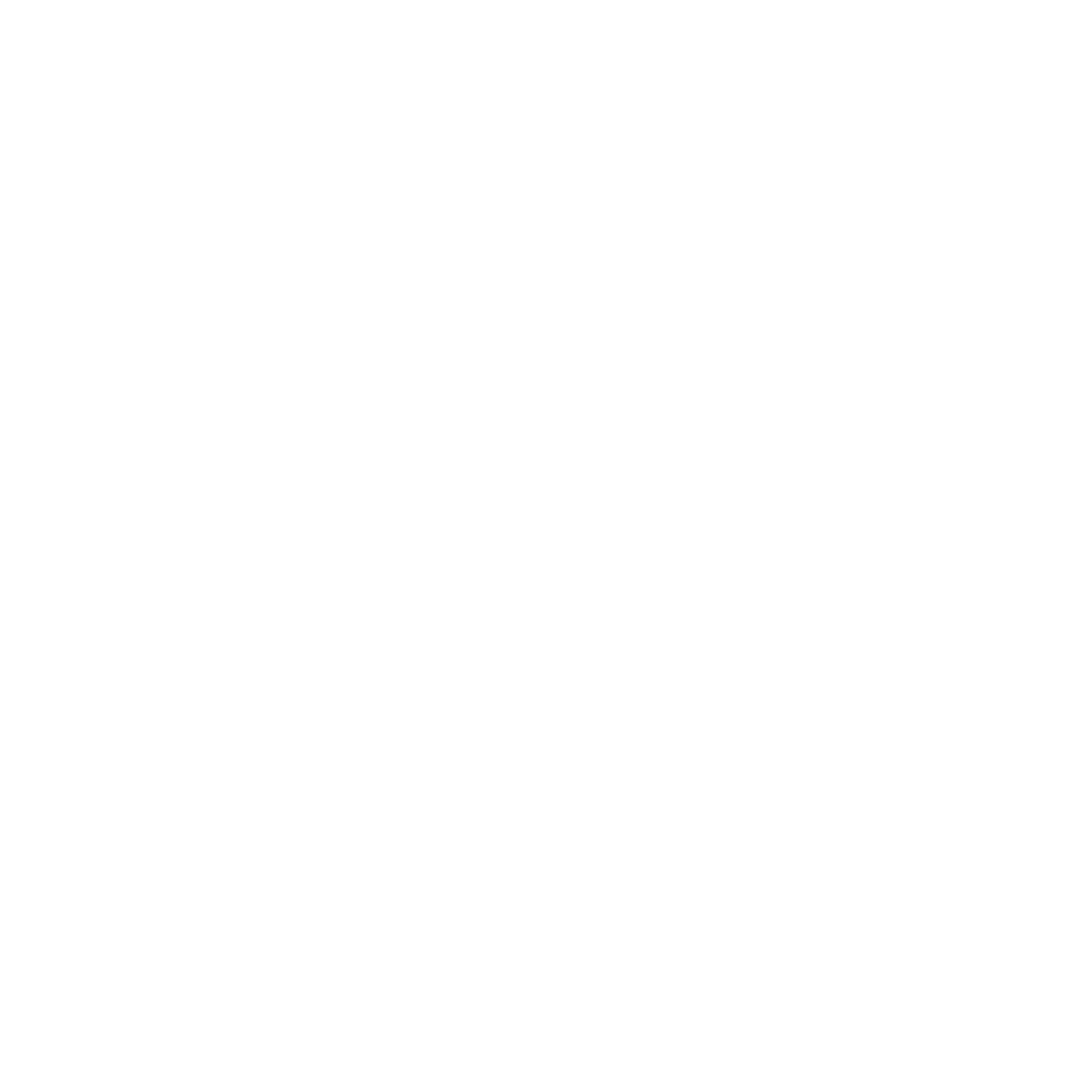

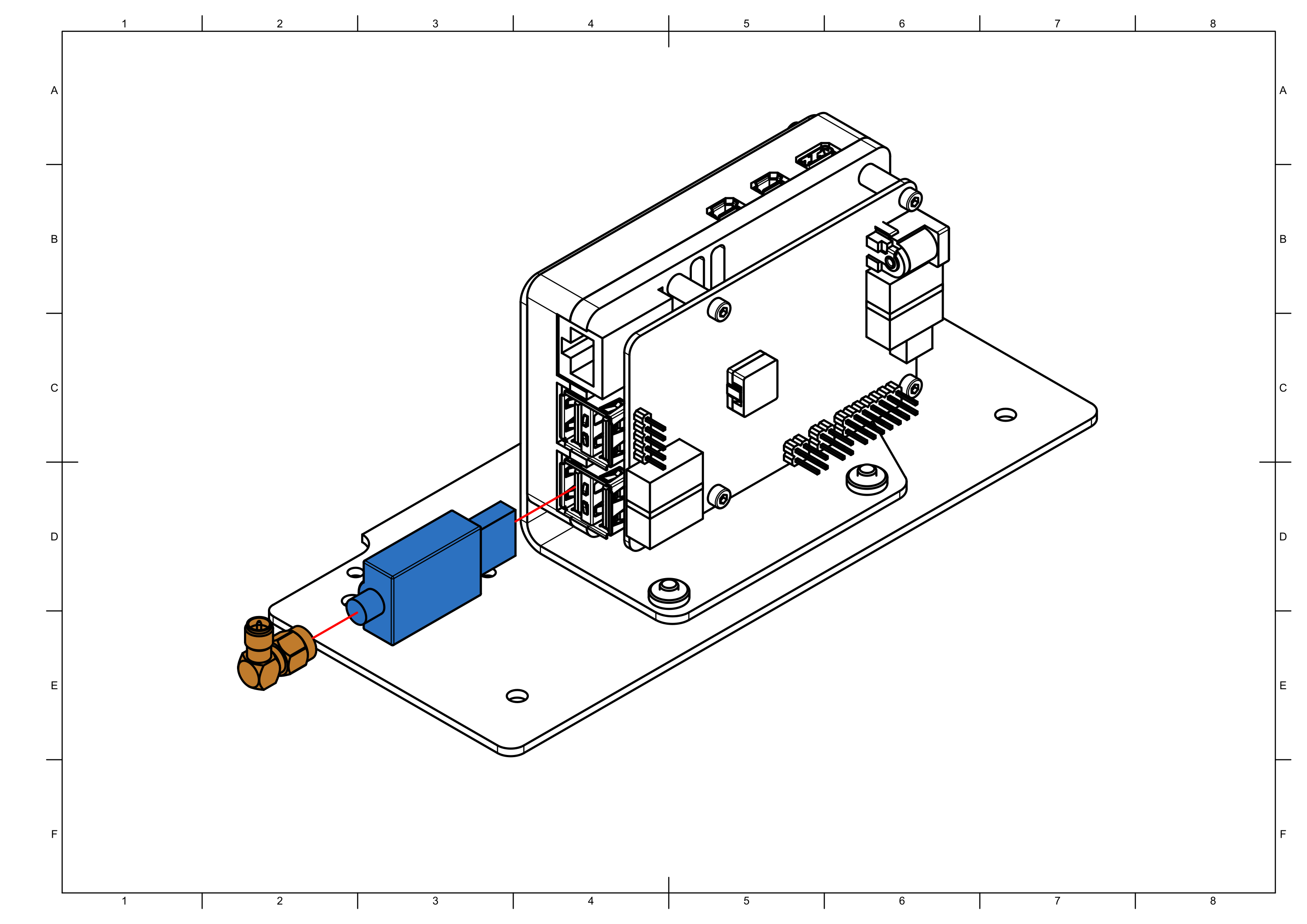

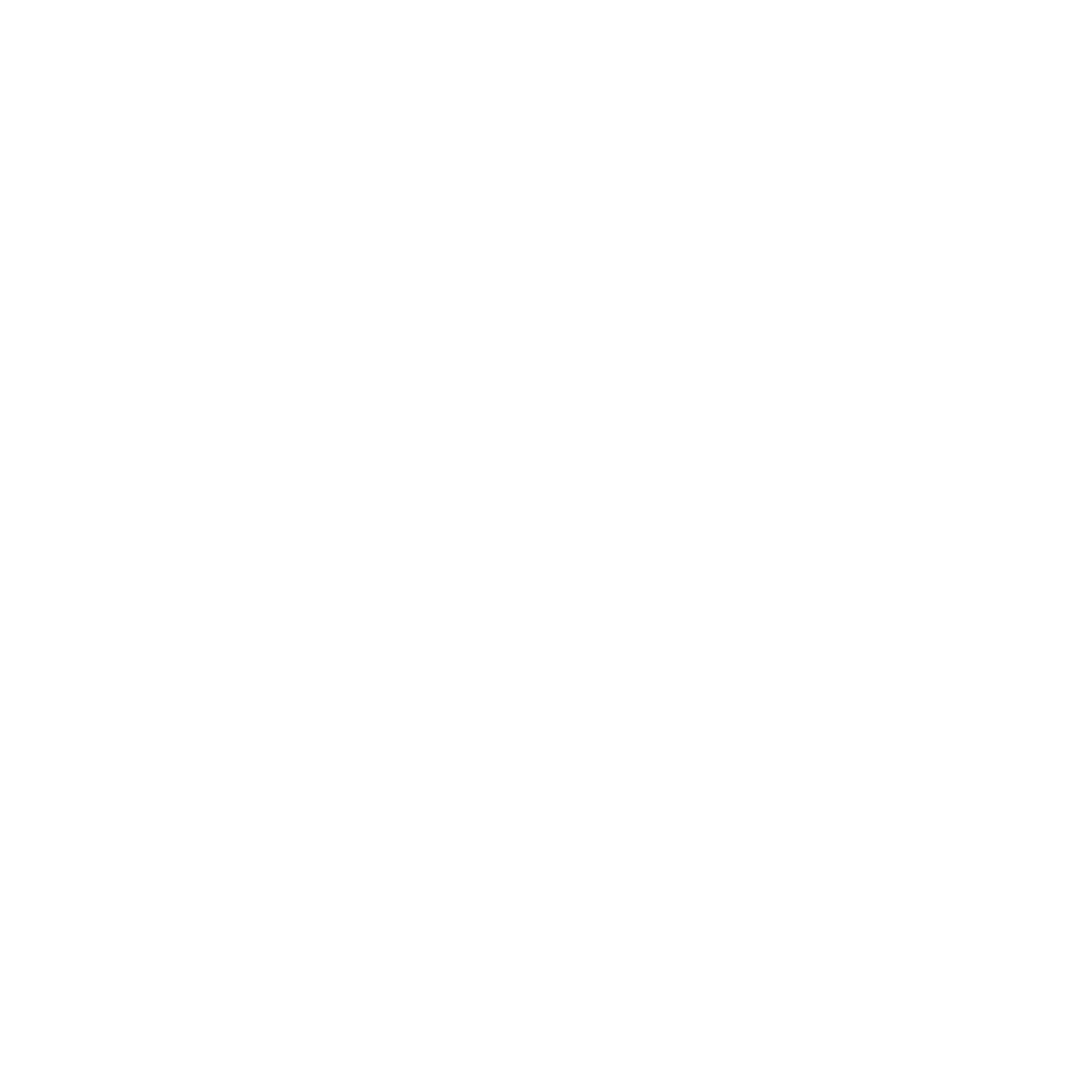

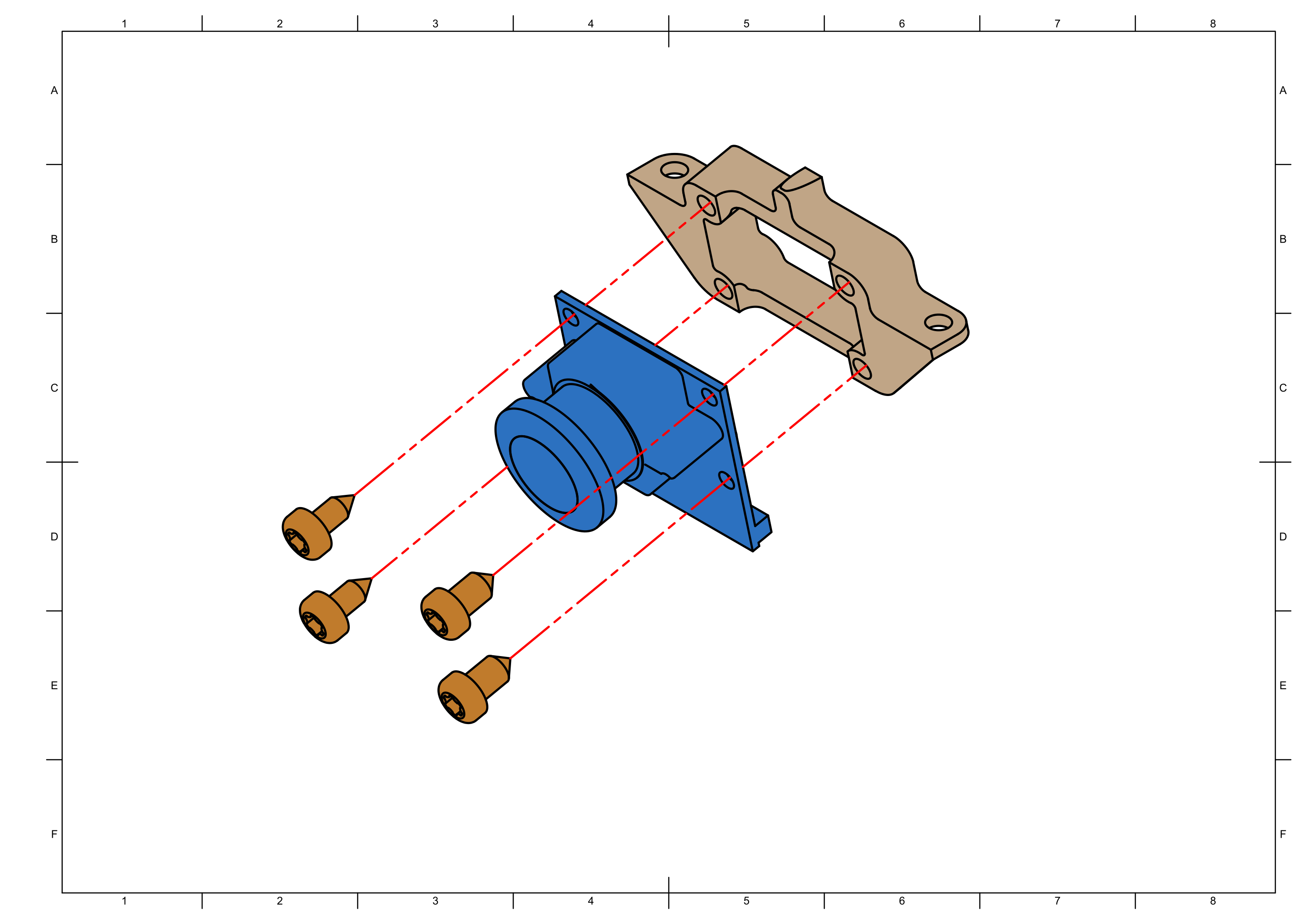

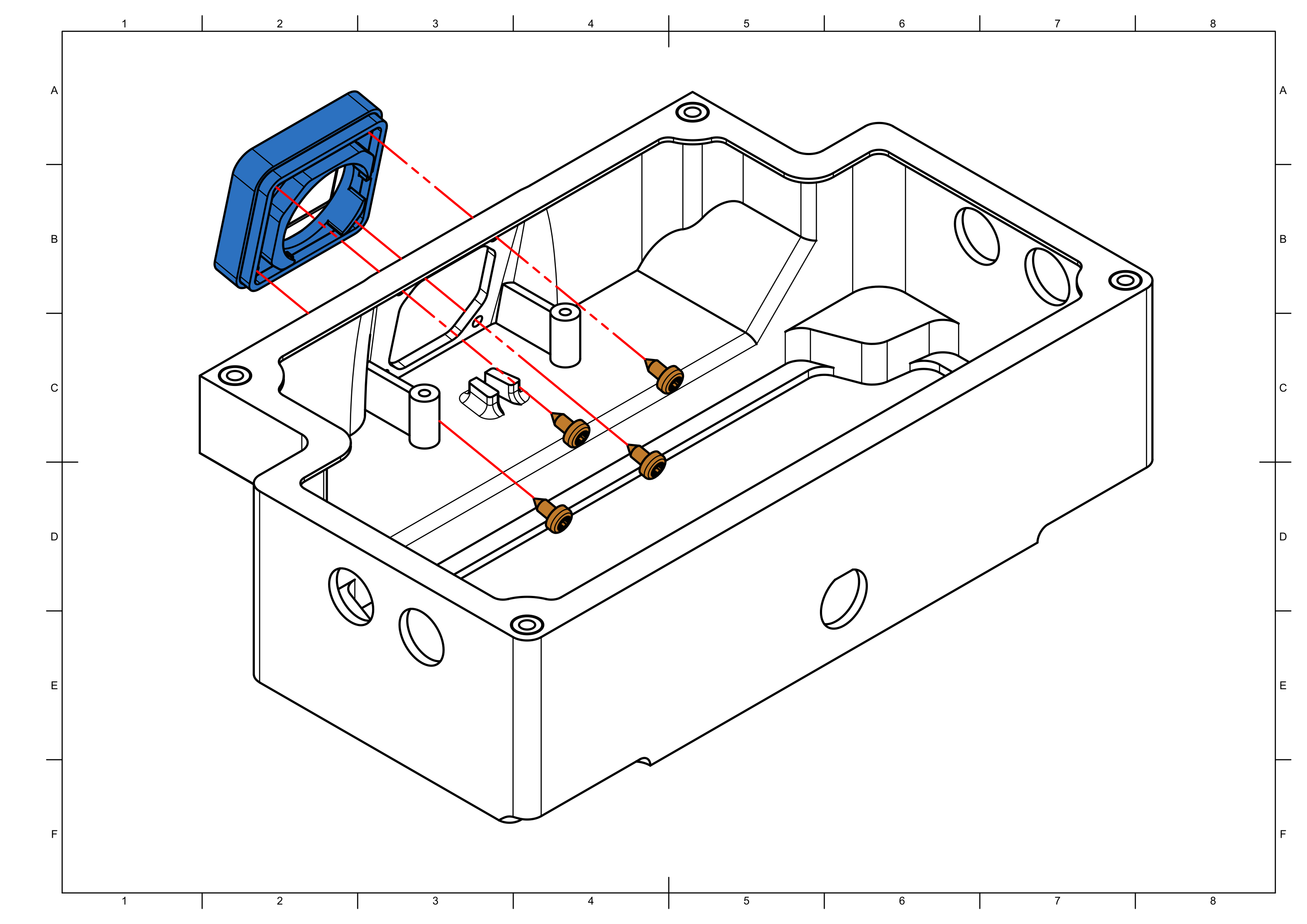

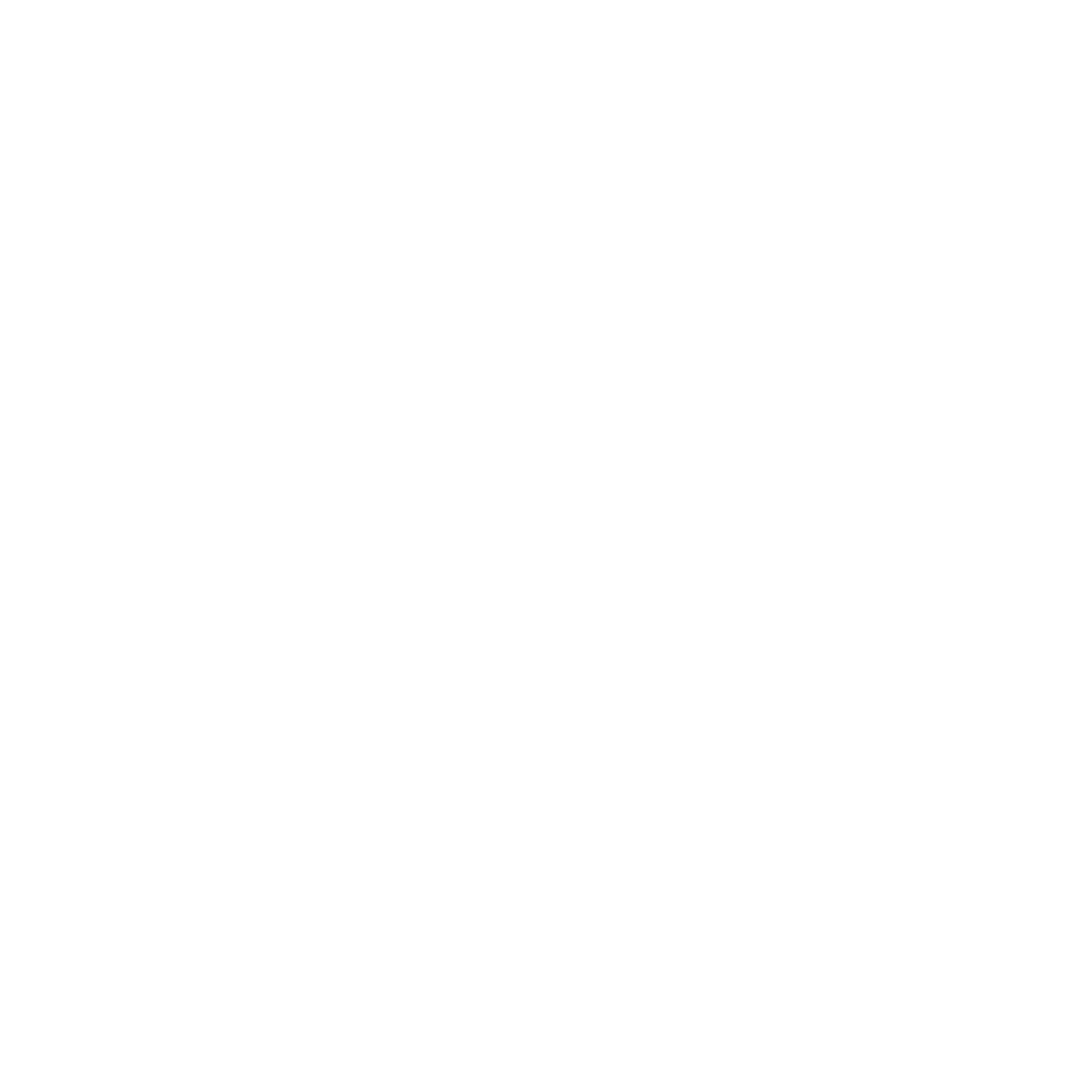

Step 1

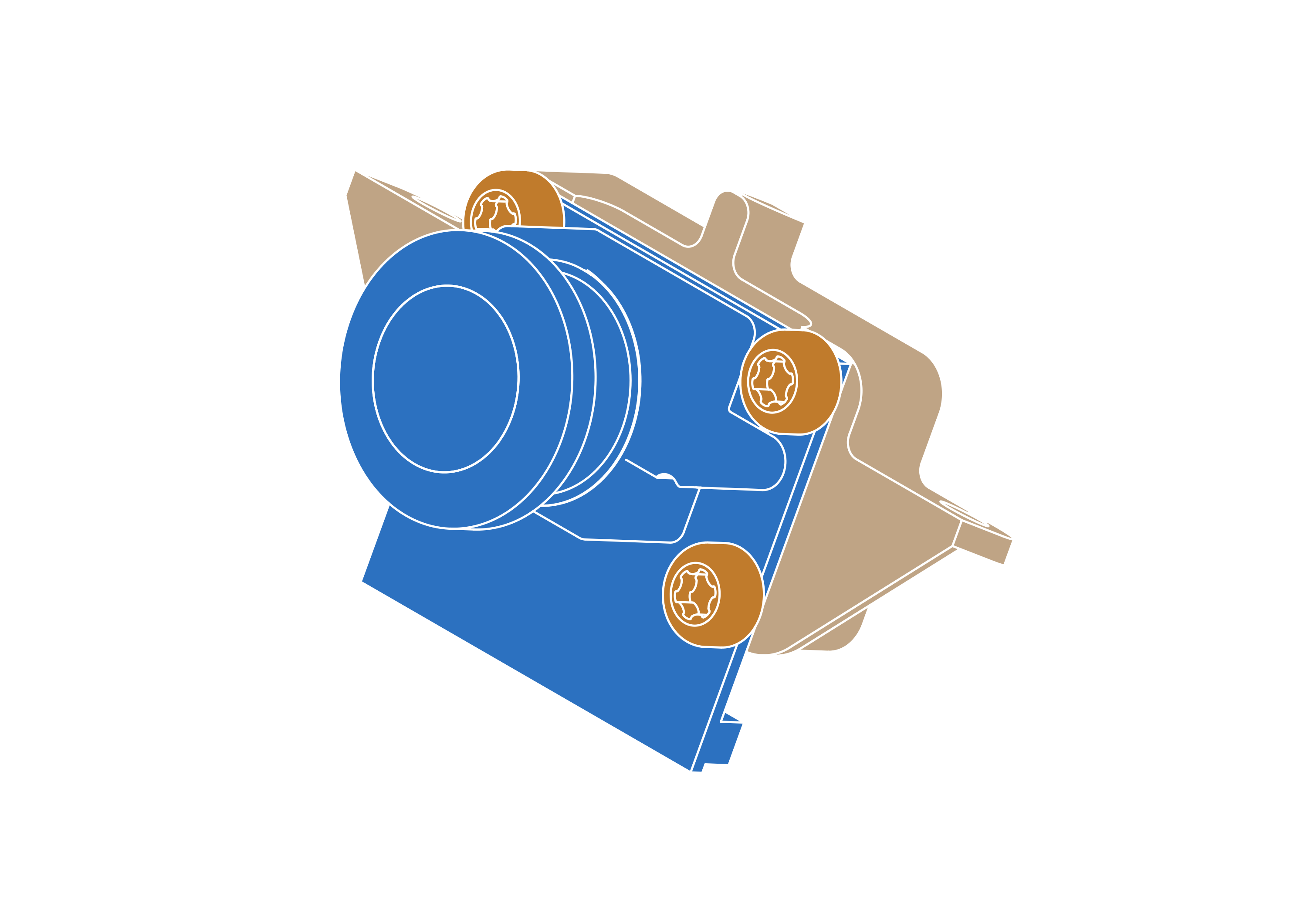

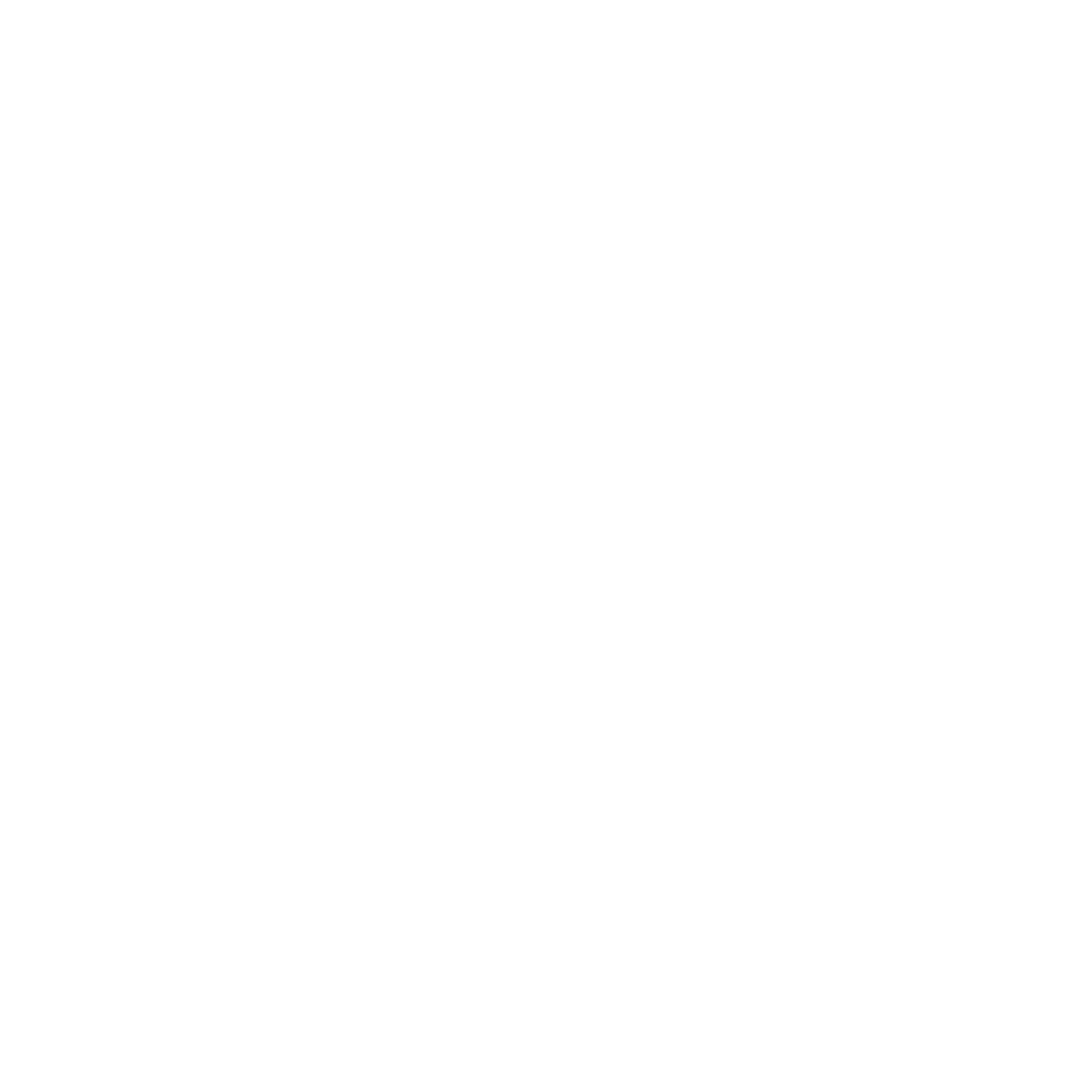

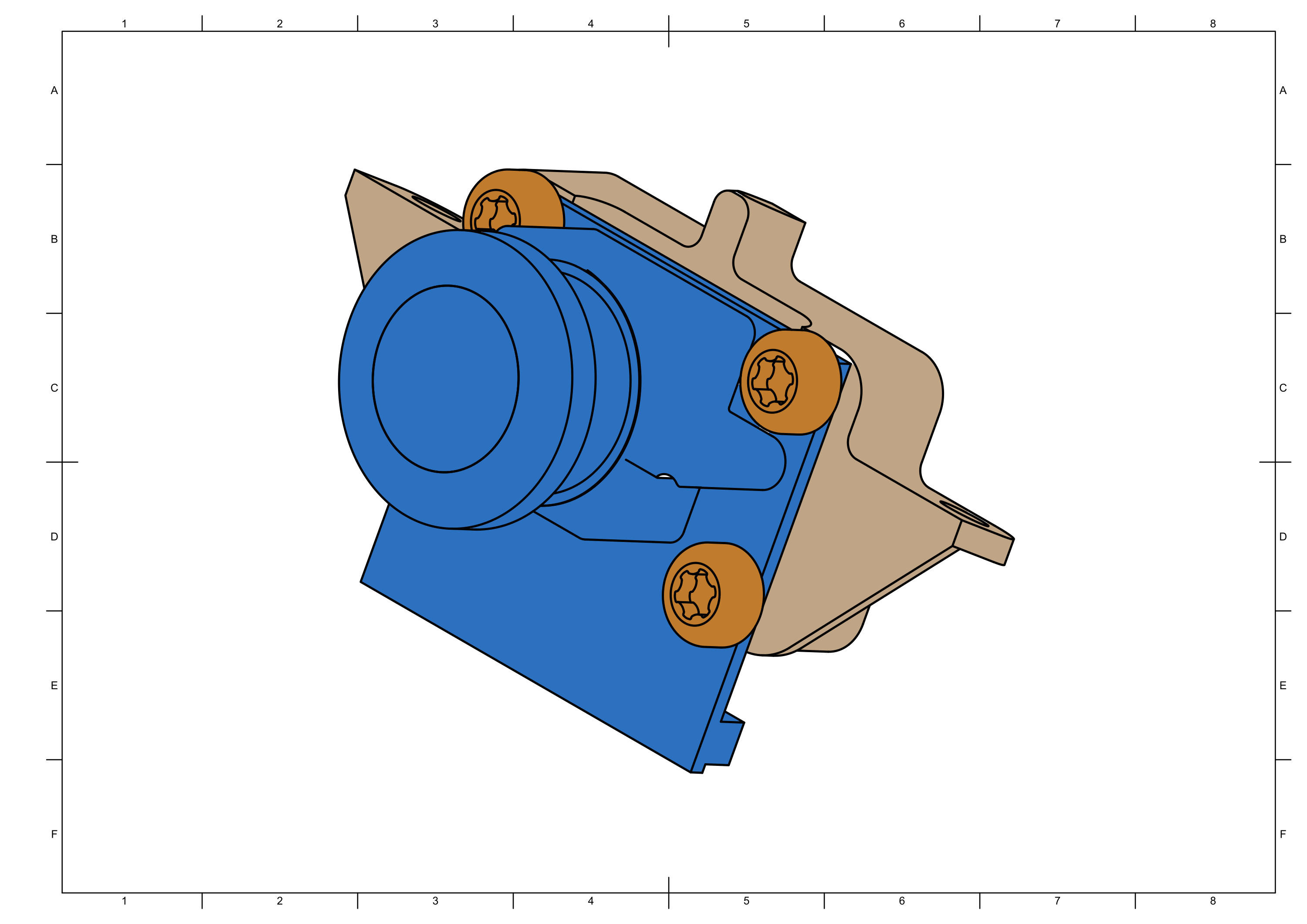

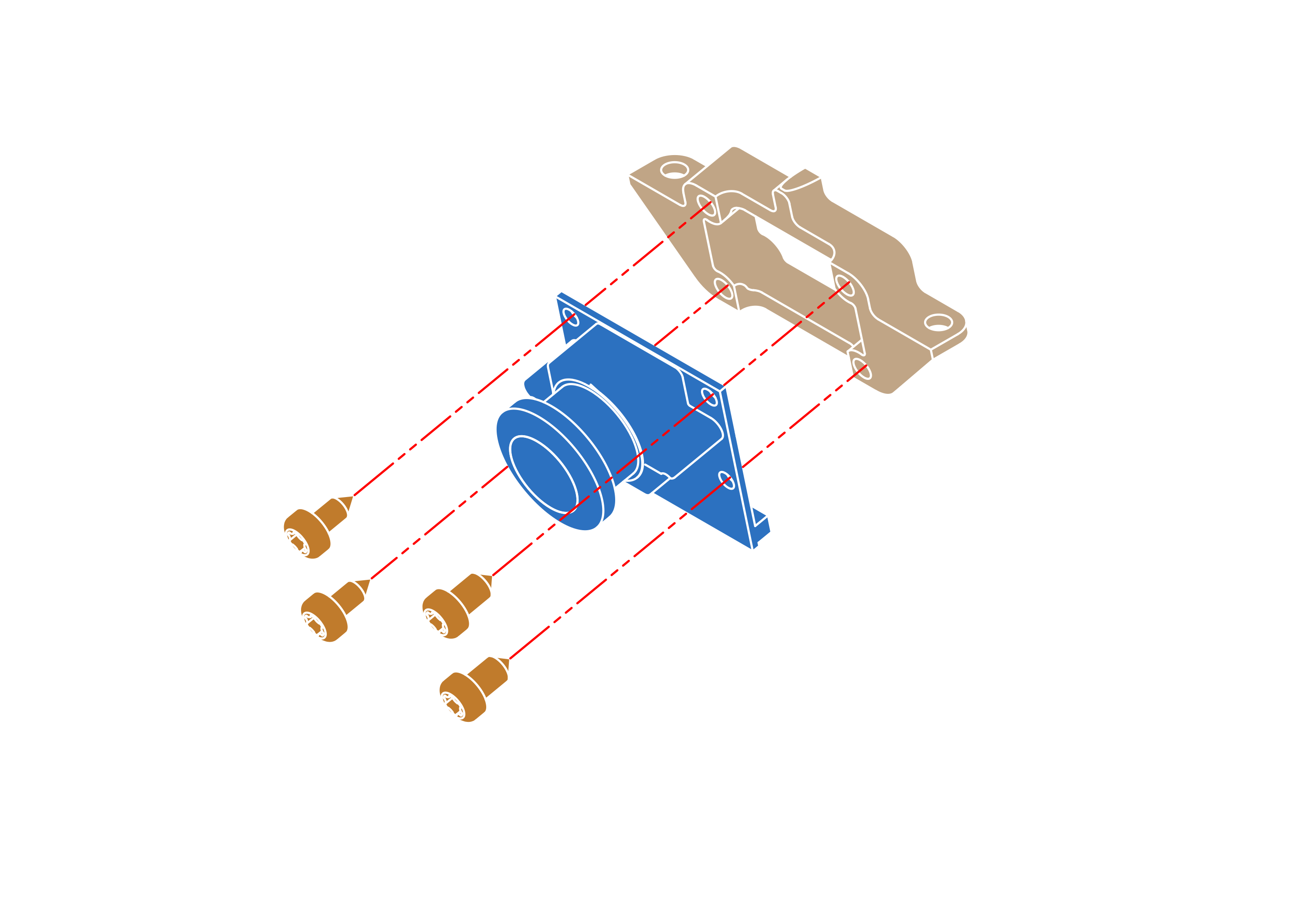

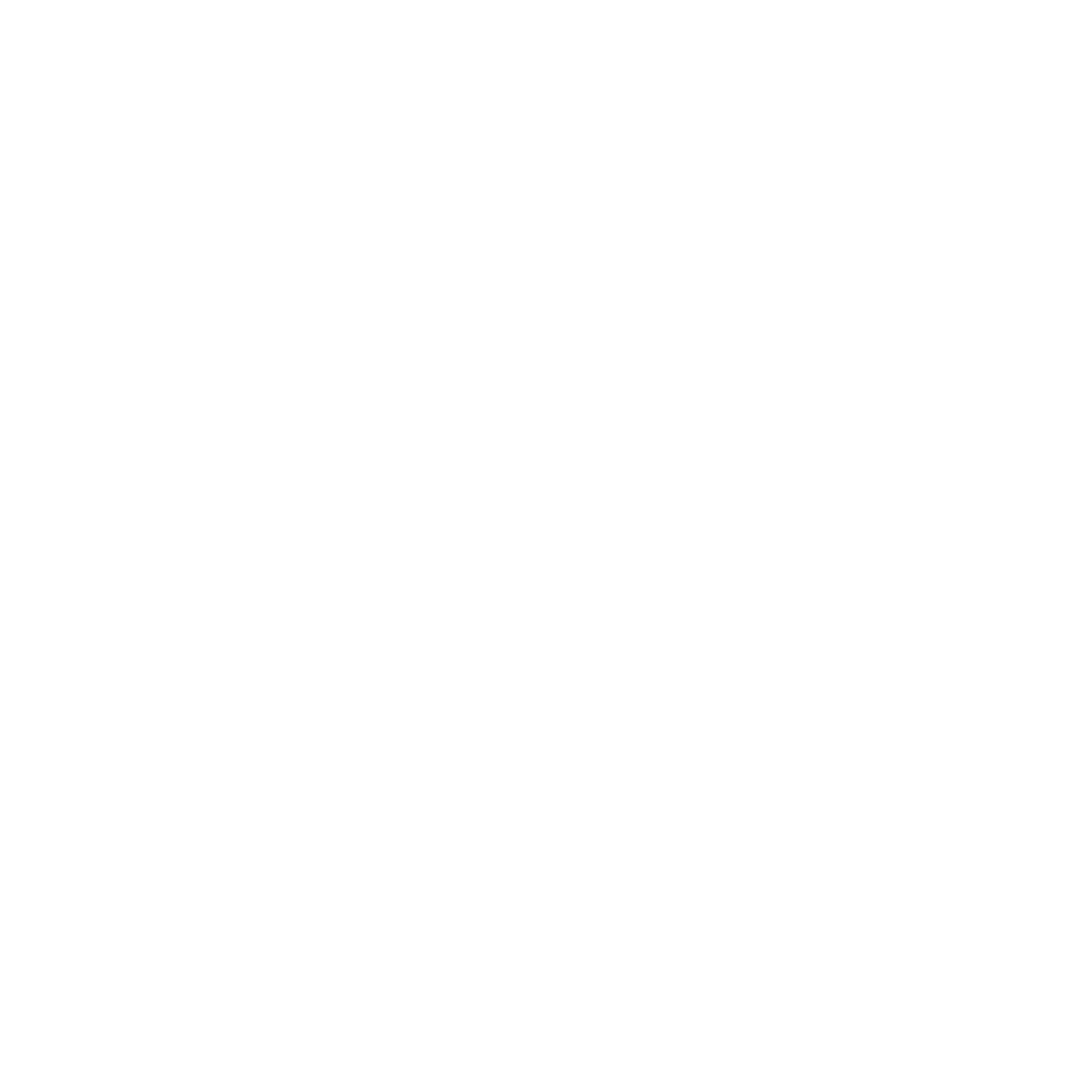

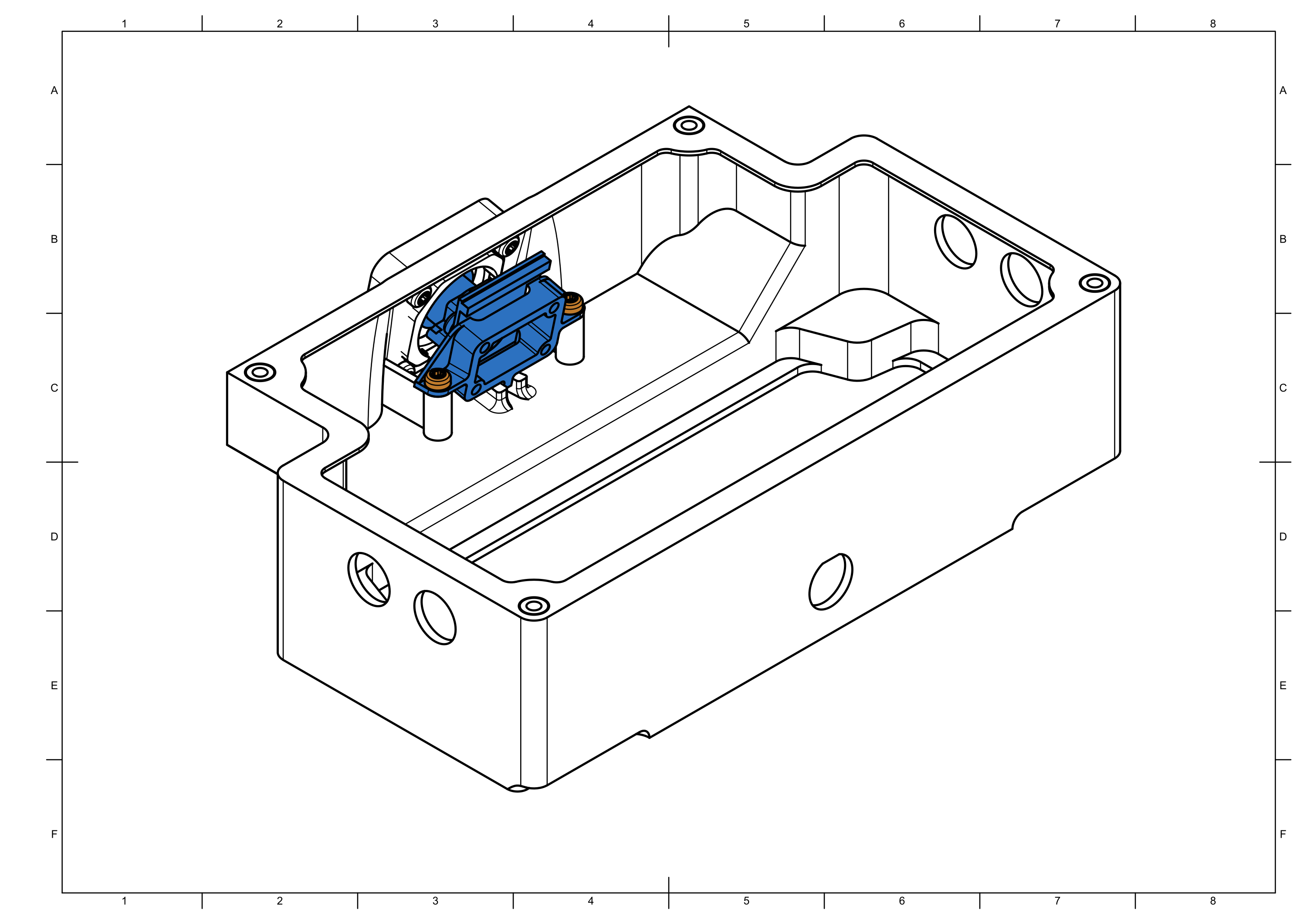

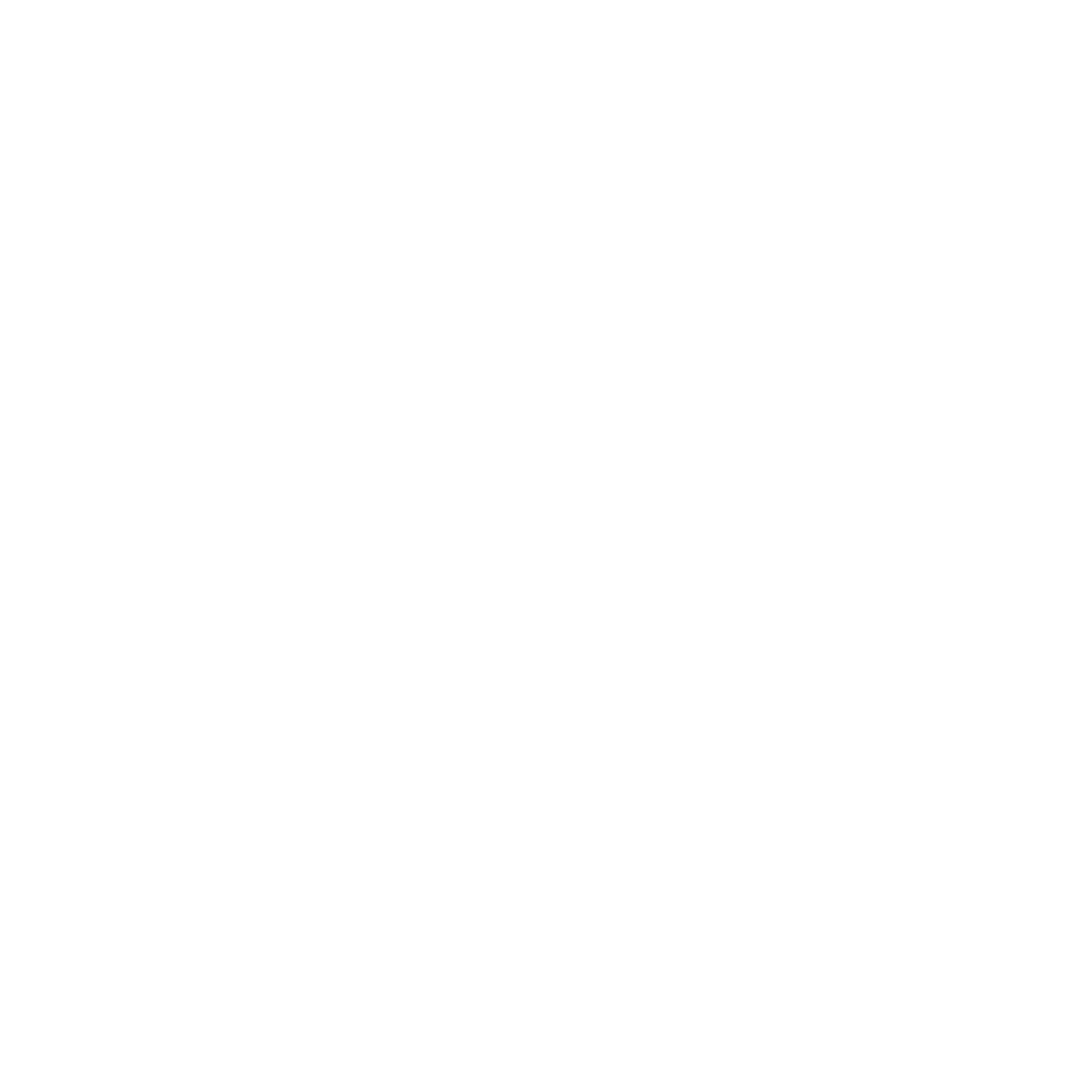

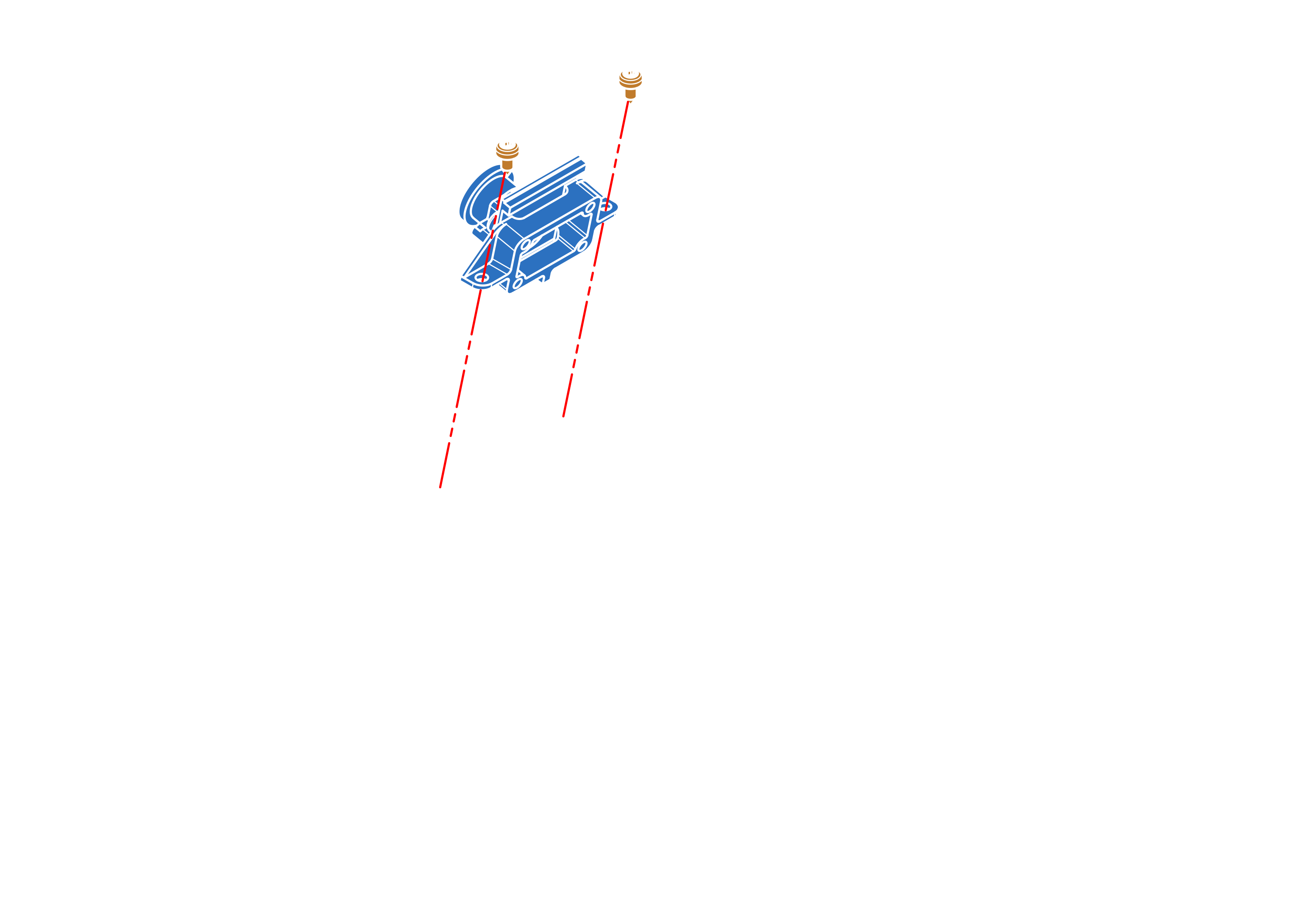

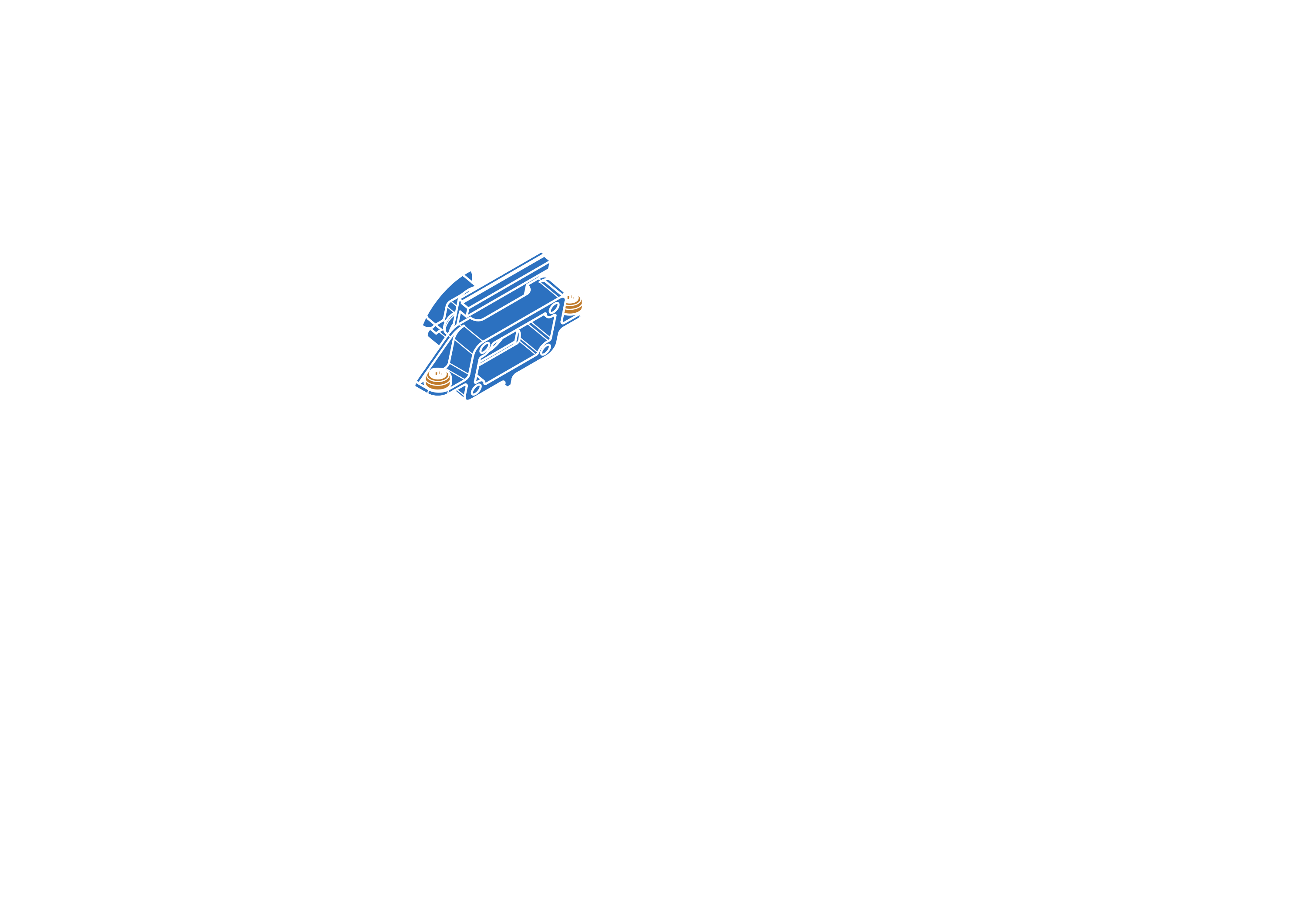

Step 2
note

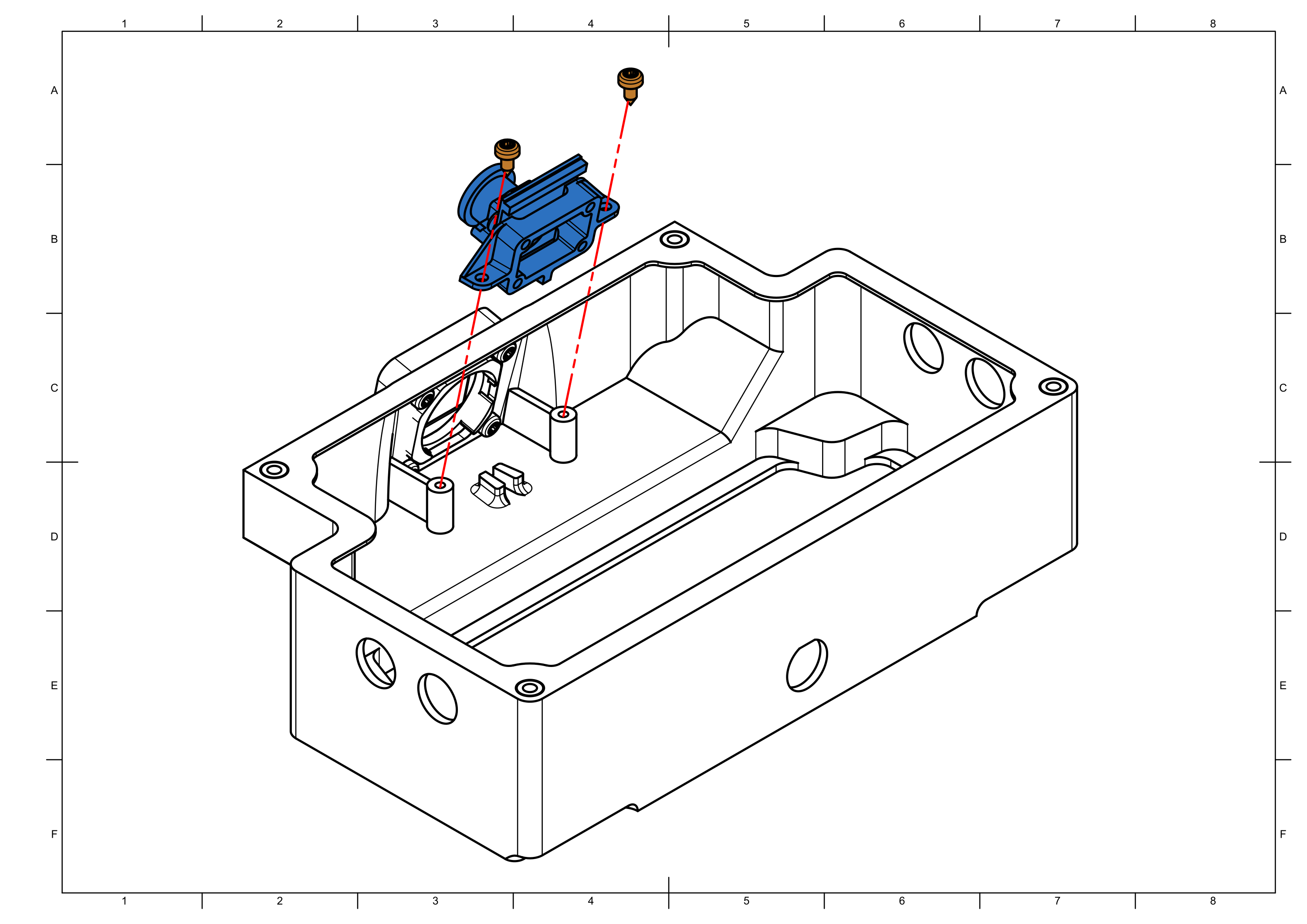

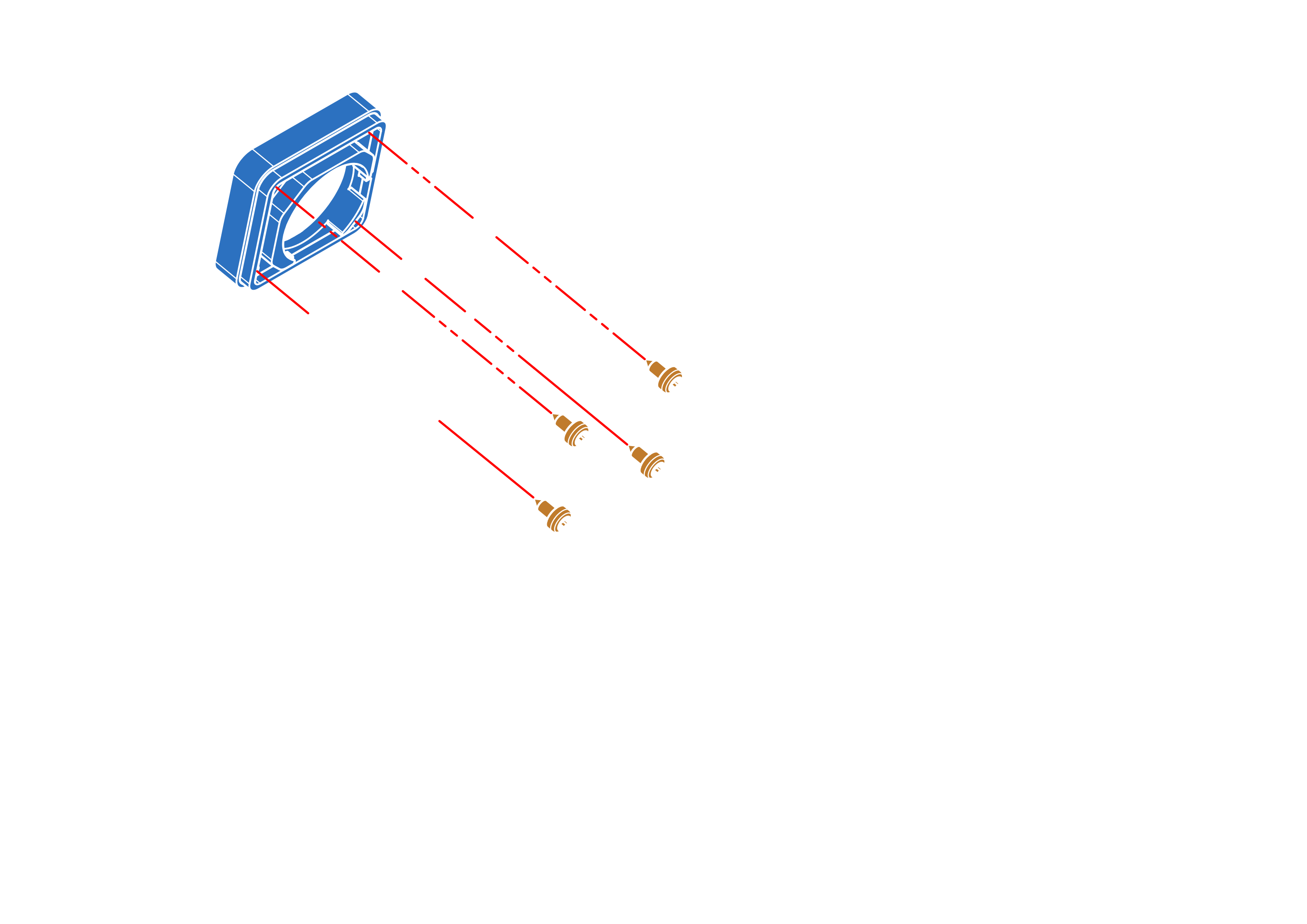

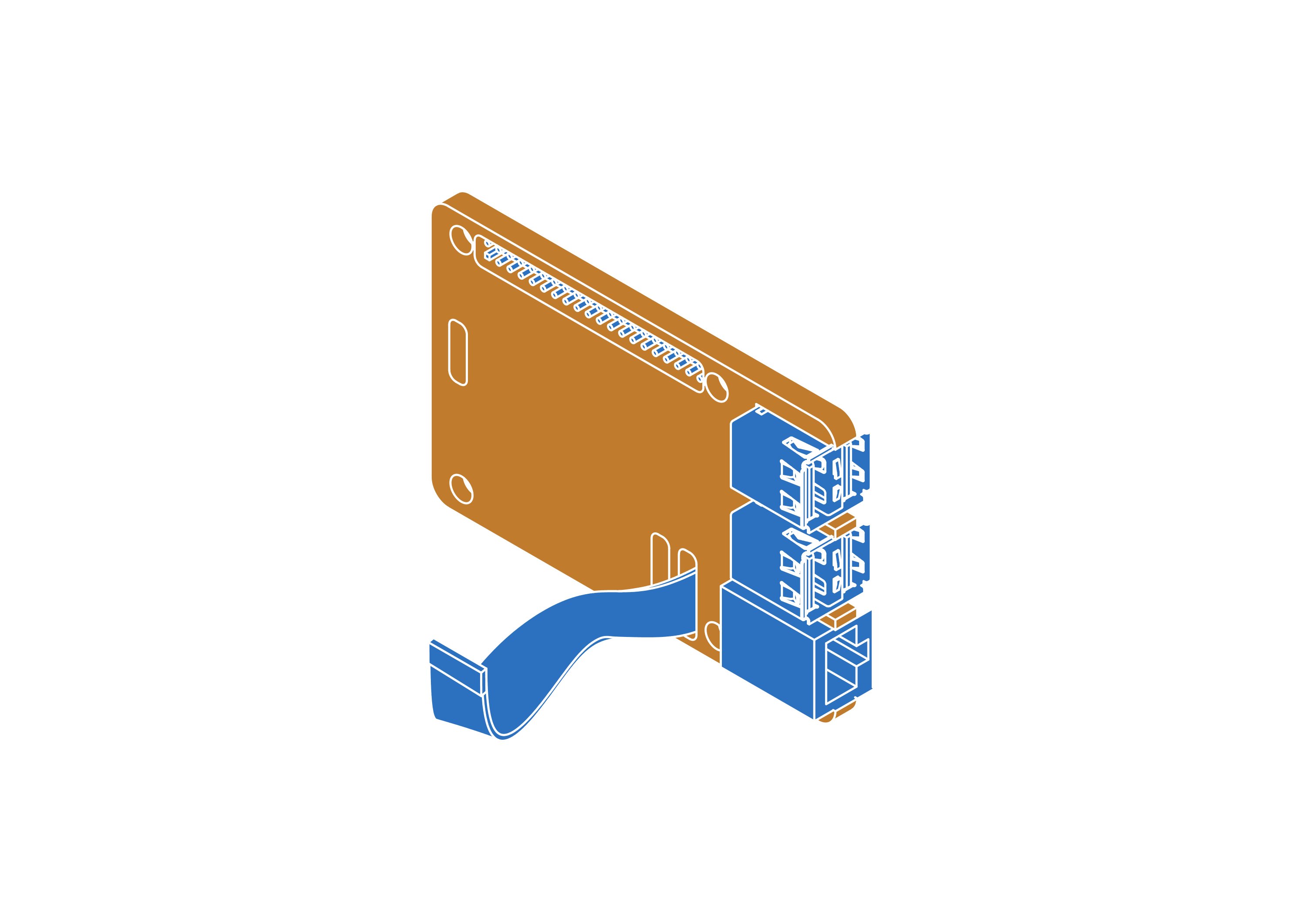

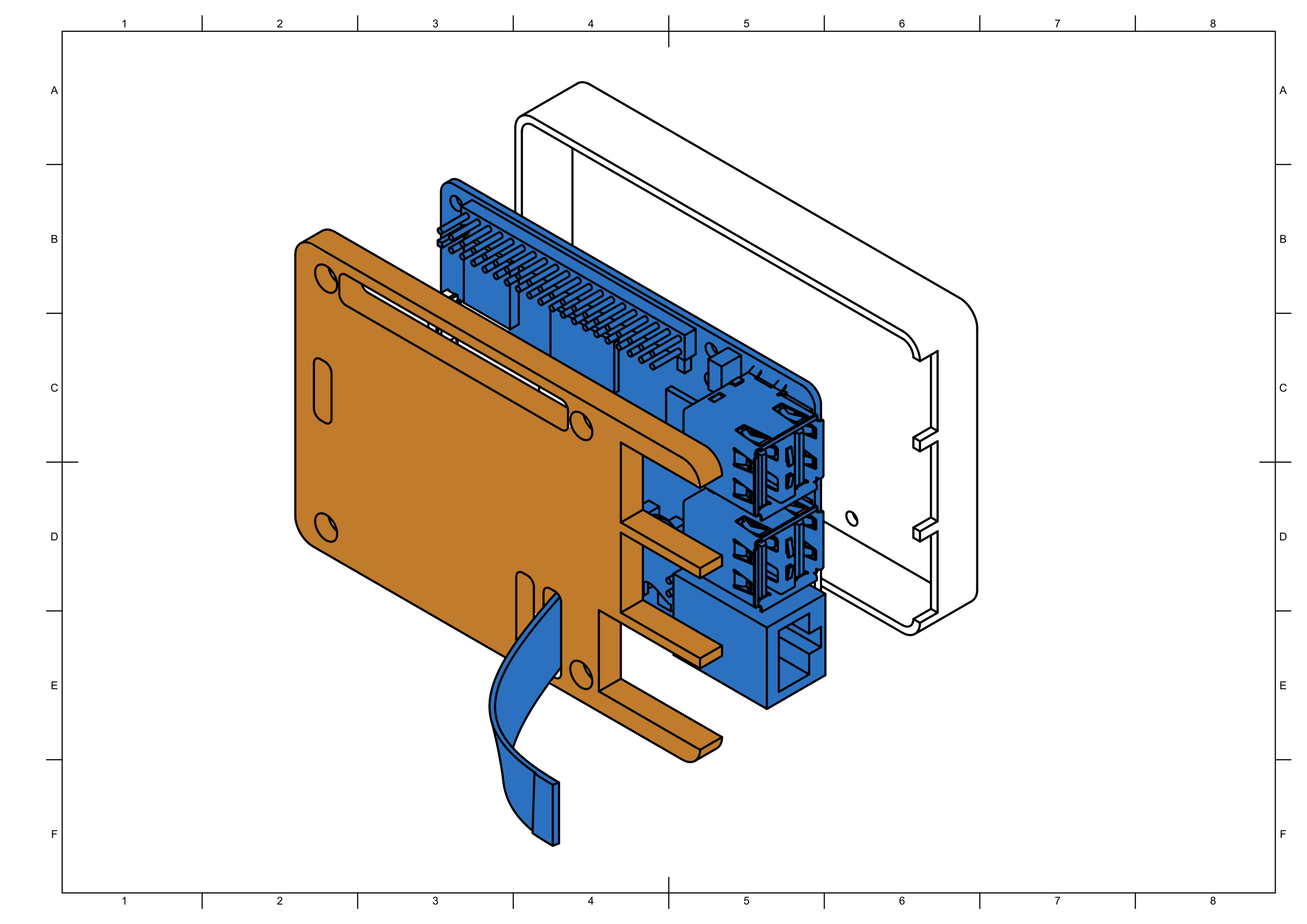

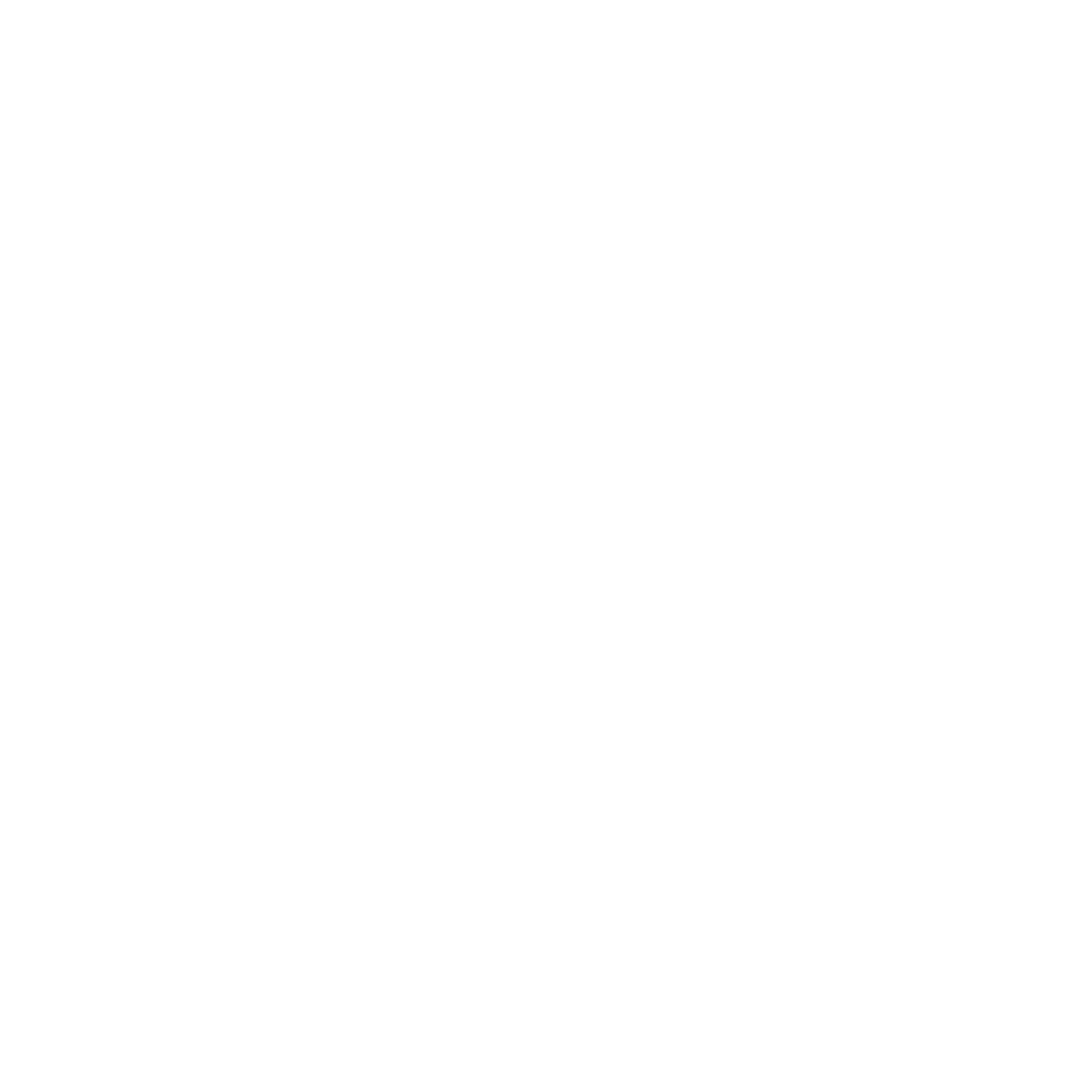

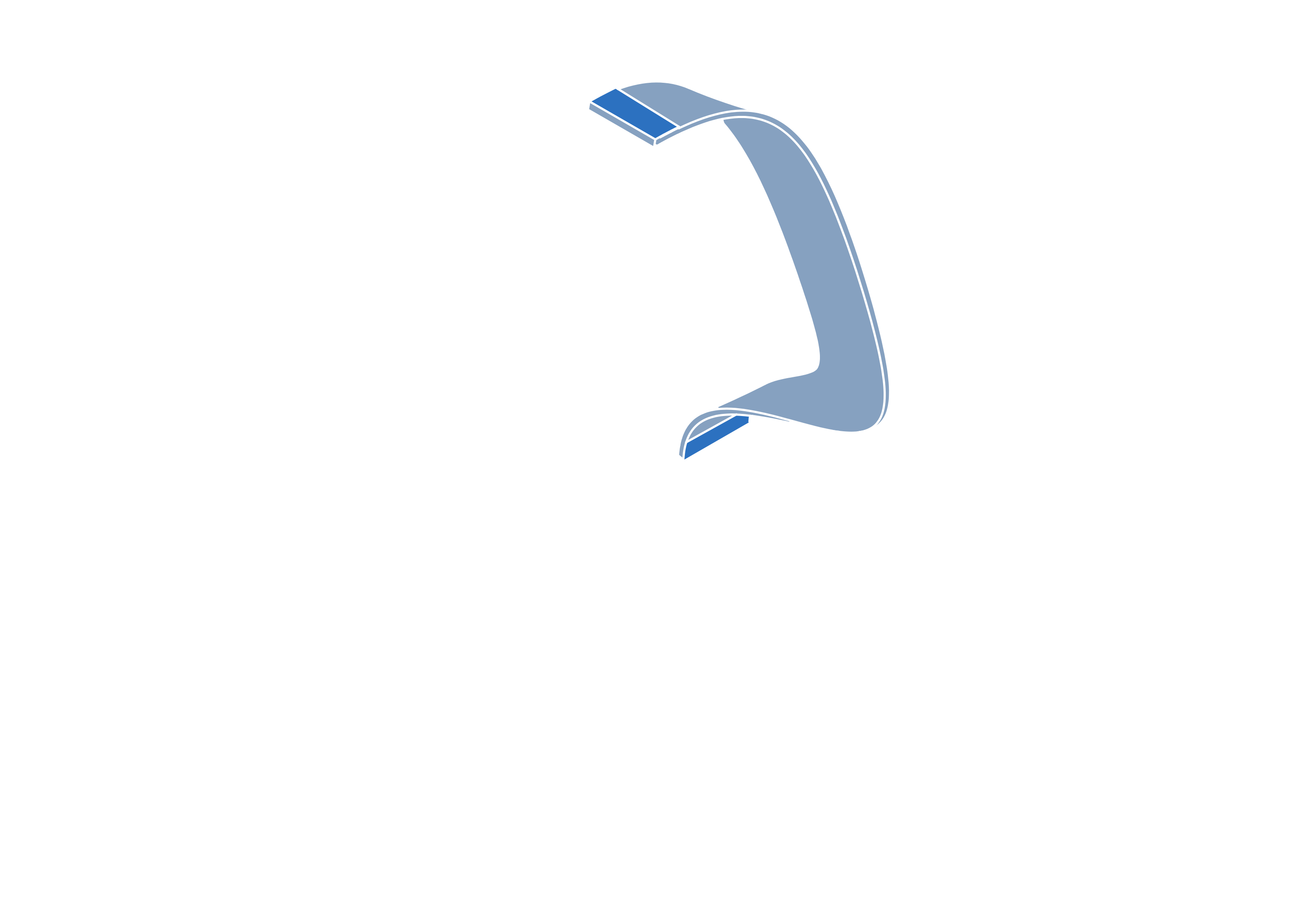

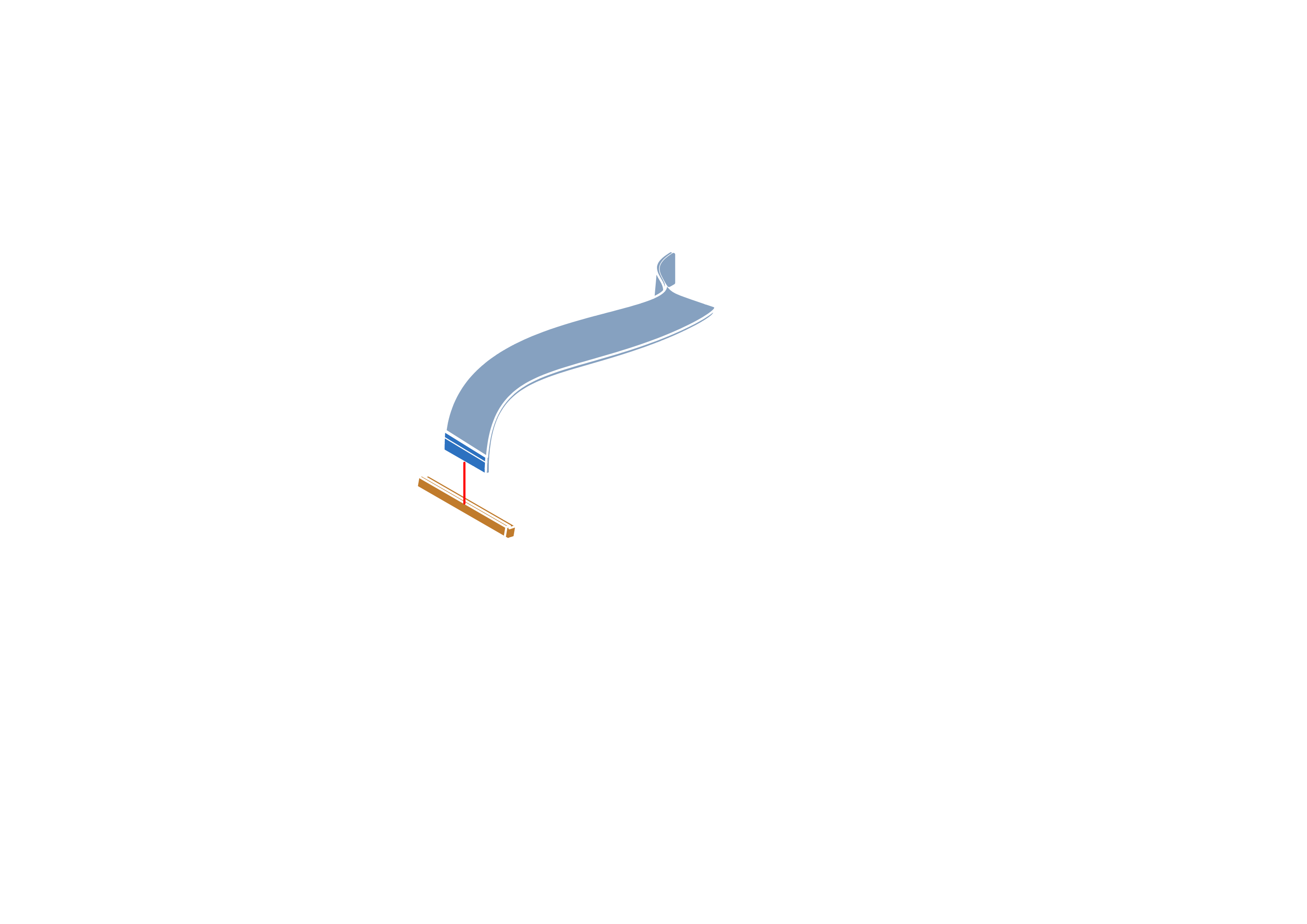

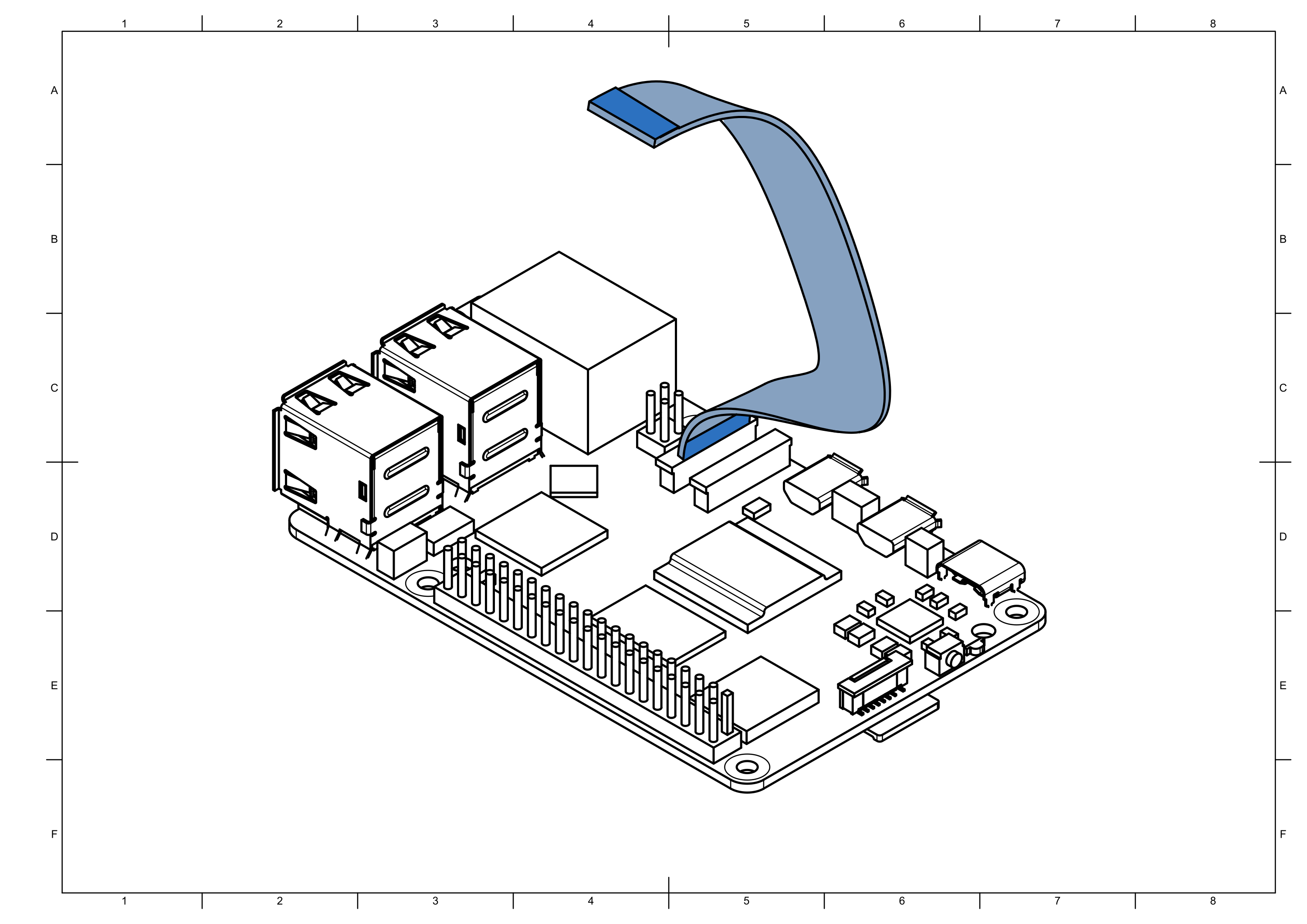

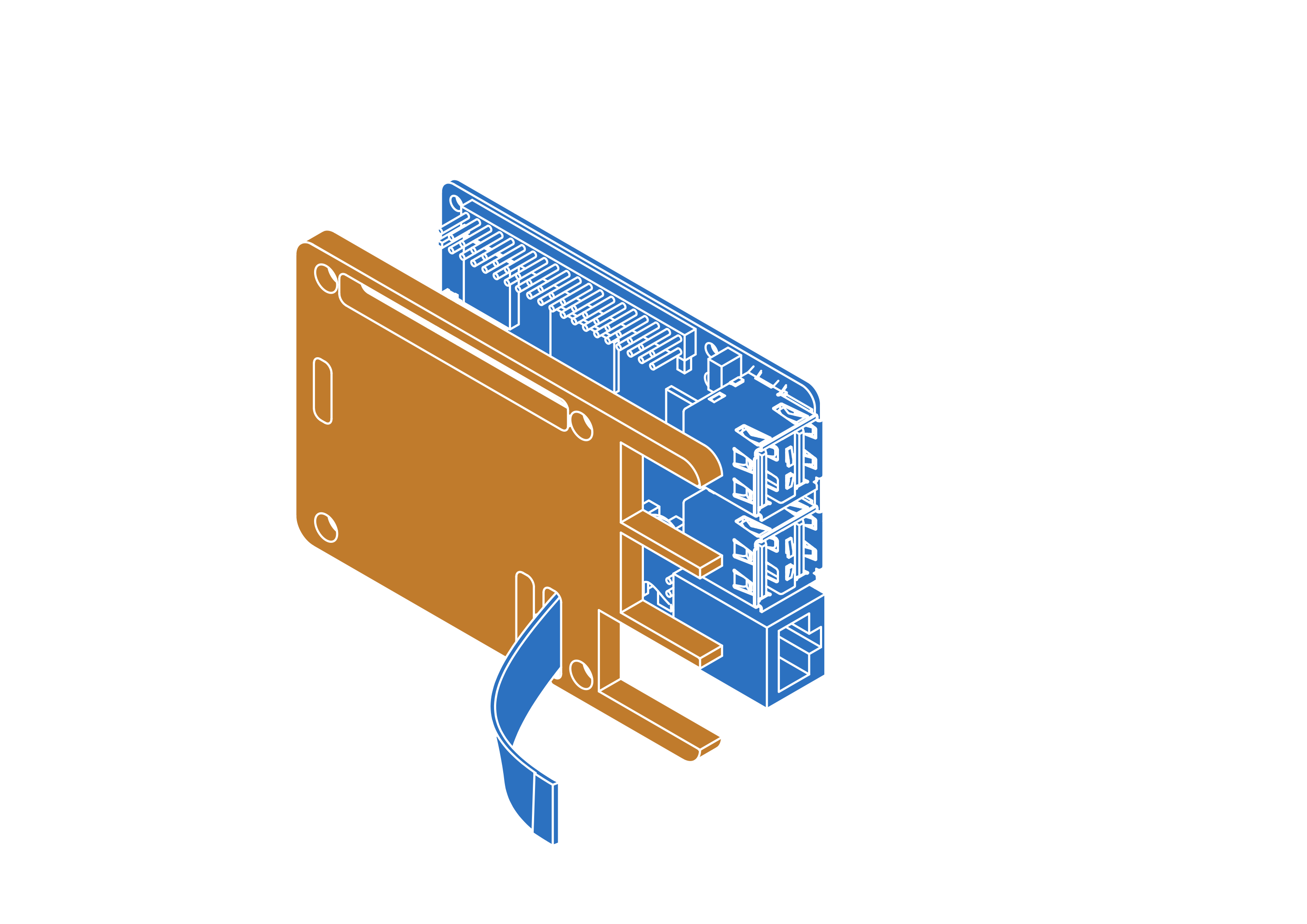

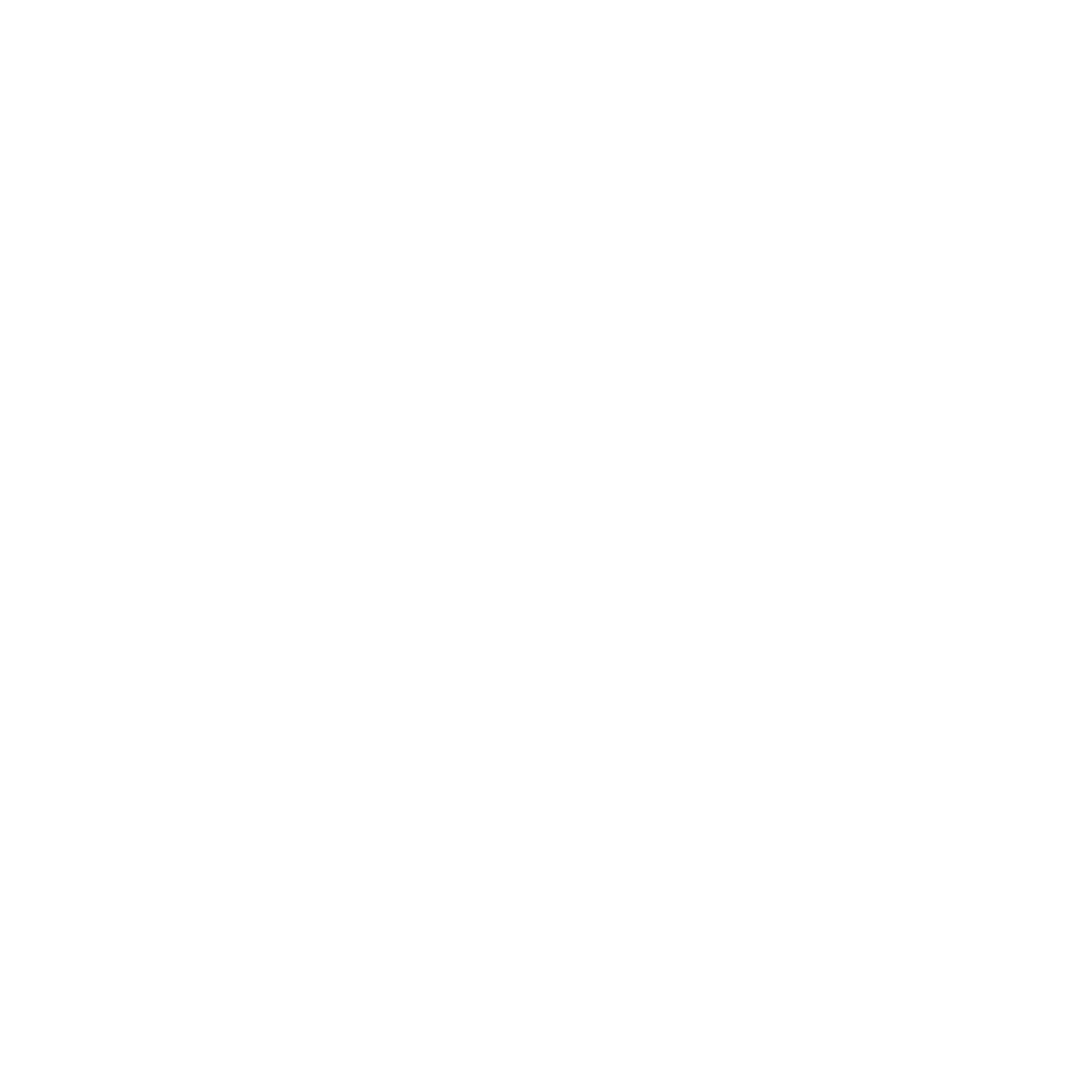

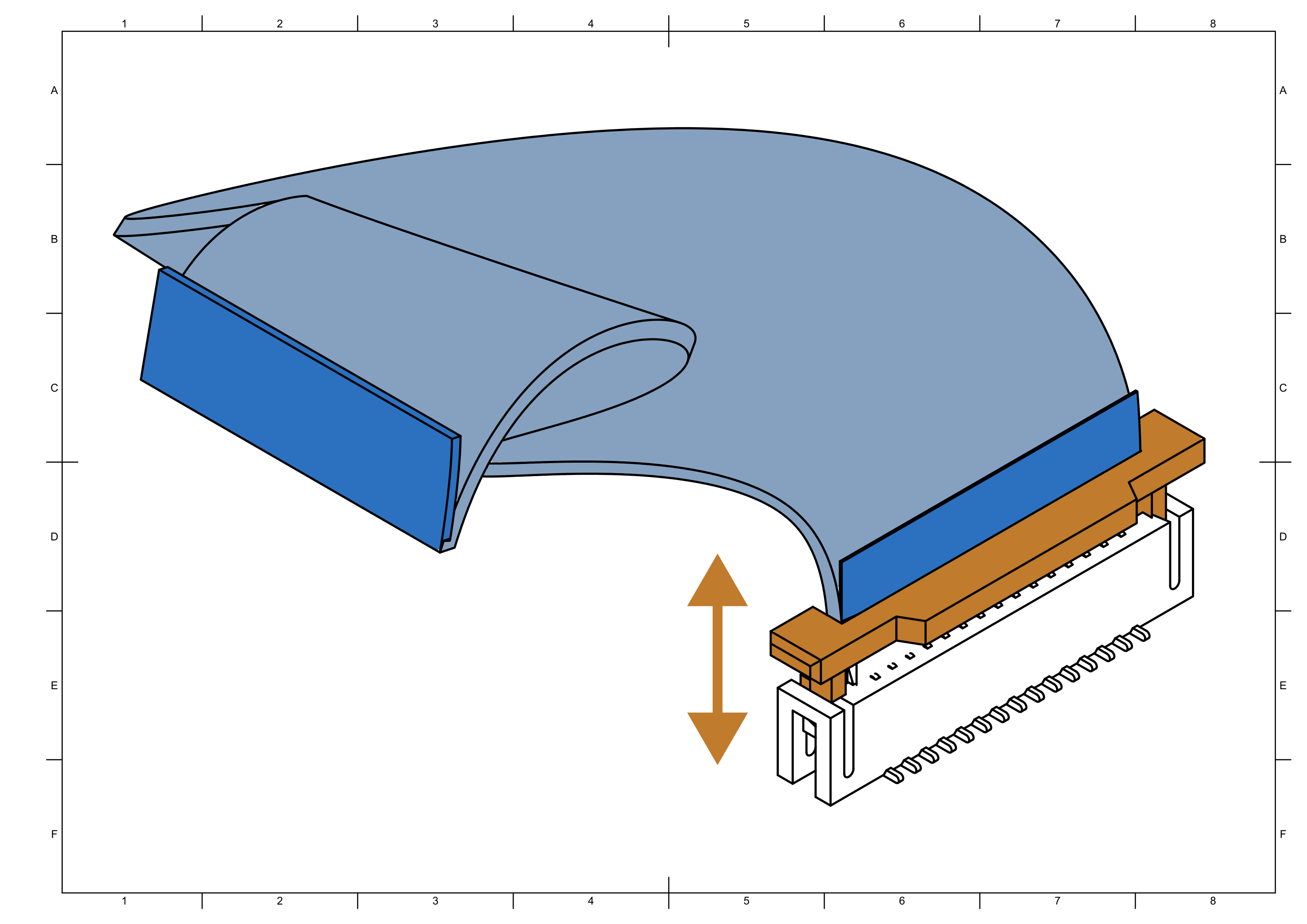

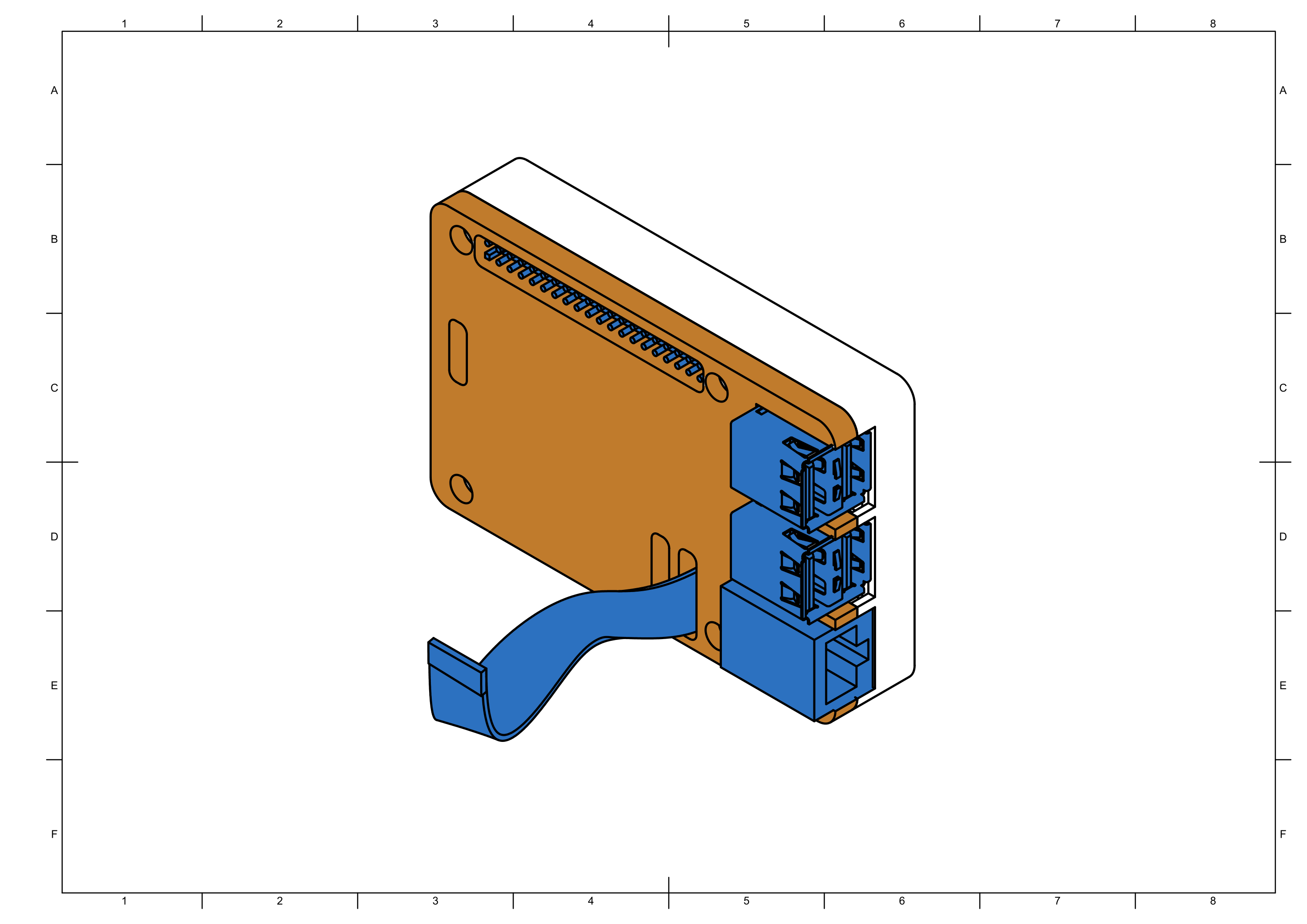

Make sure that camera ribbon is pushed all the way into the CAM0 connector. Lock the ribbon by pushing down on the connector handle.

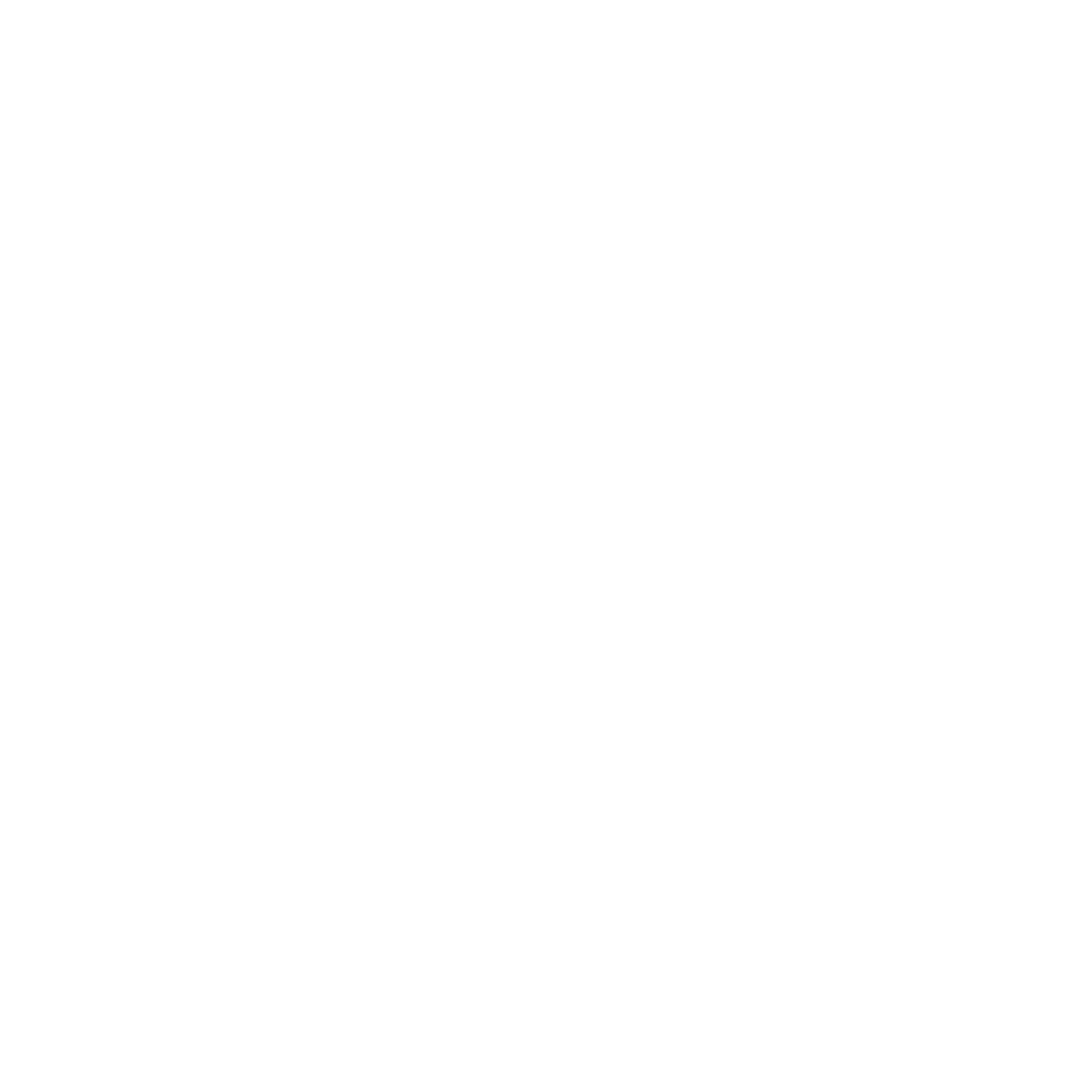

Step 3
note

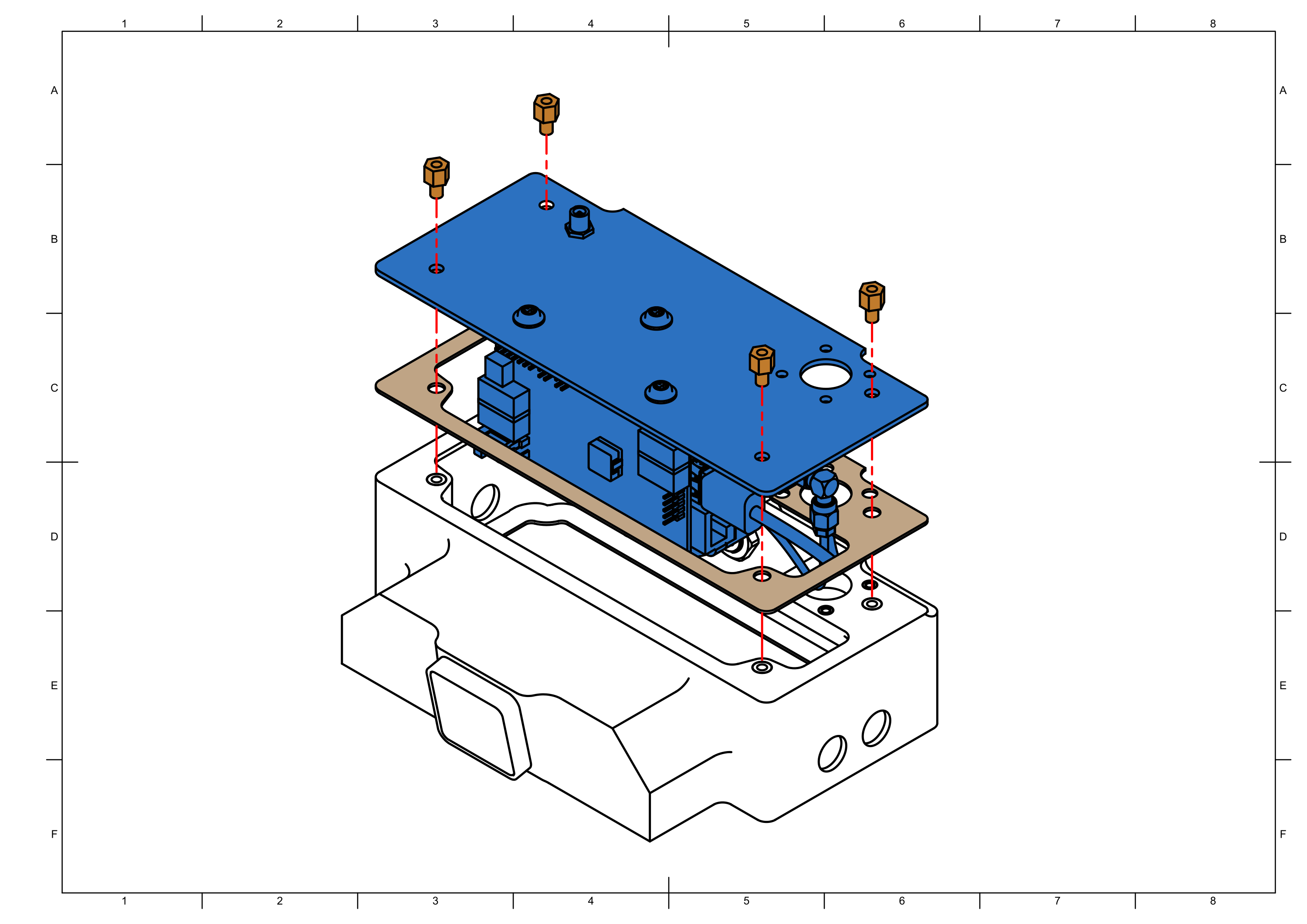

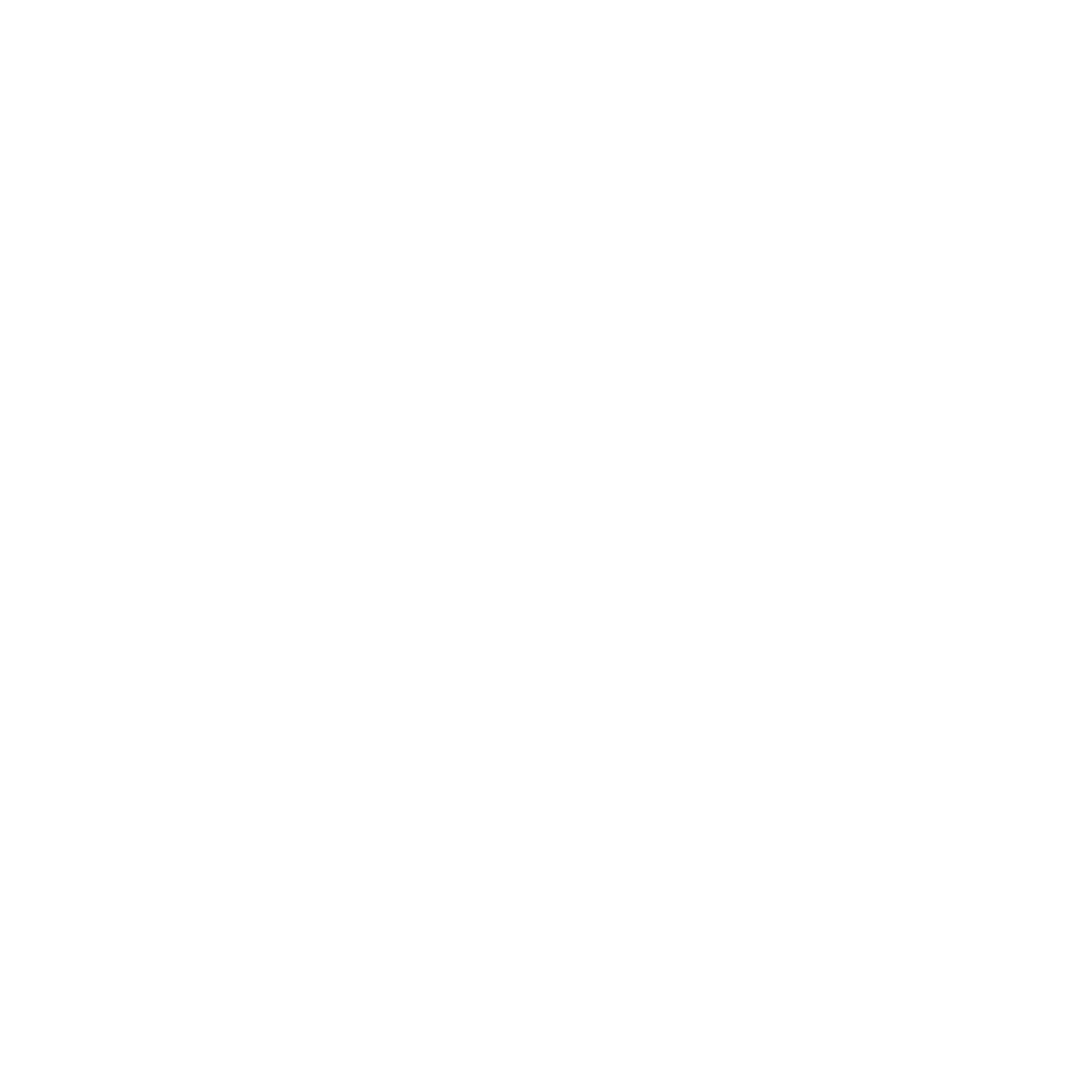

Remove tape from heatpads before closing the case.

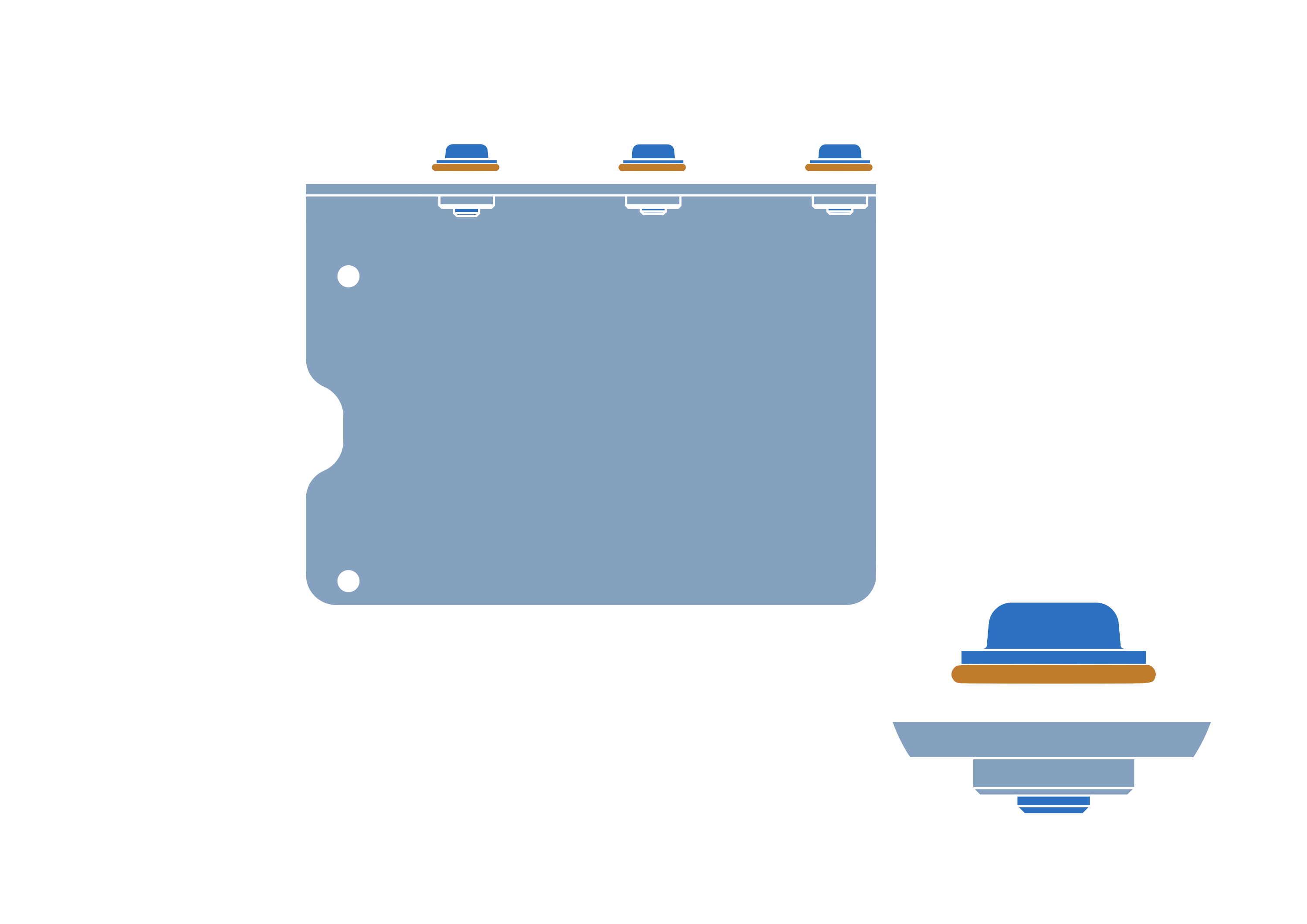

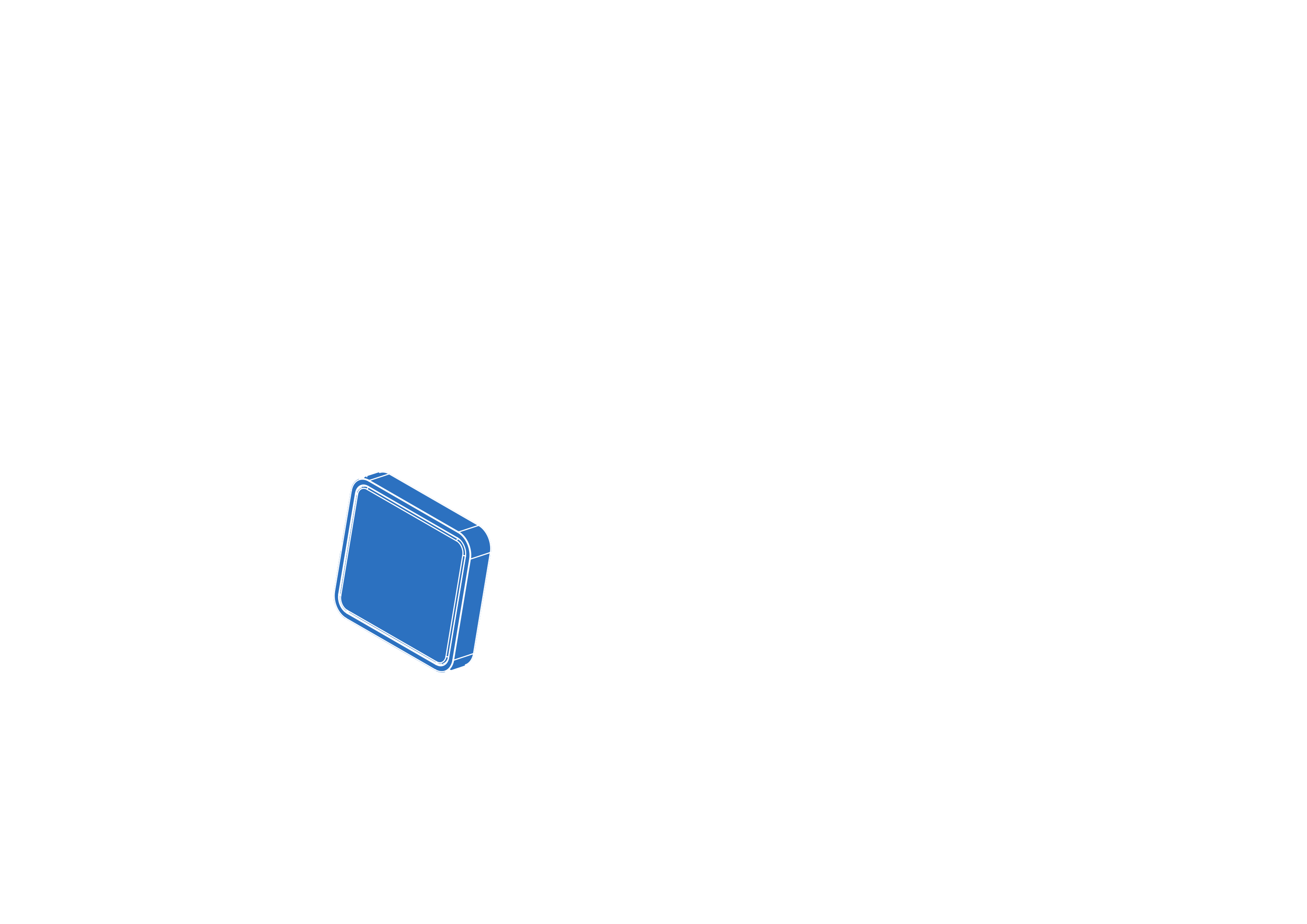

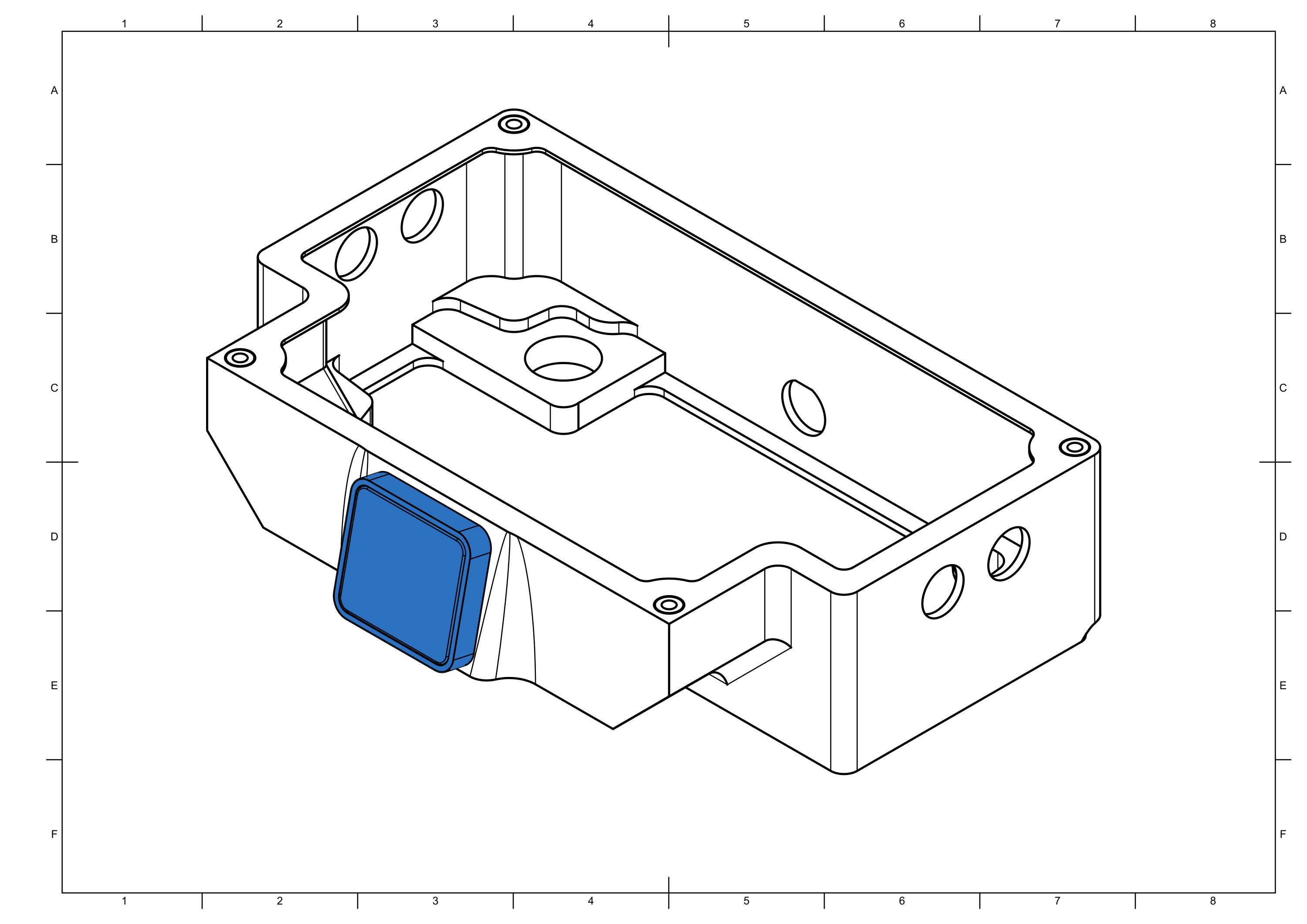

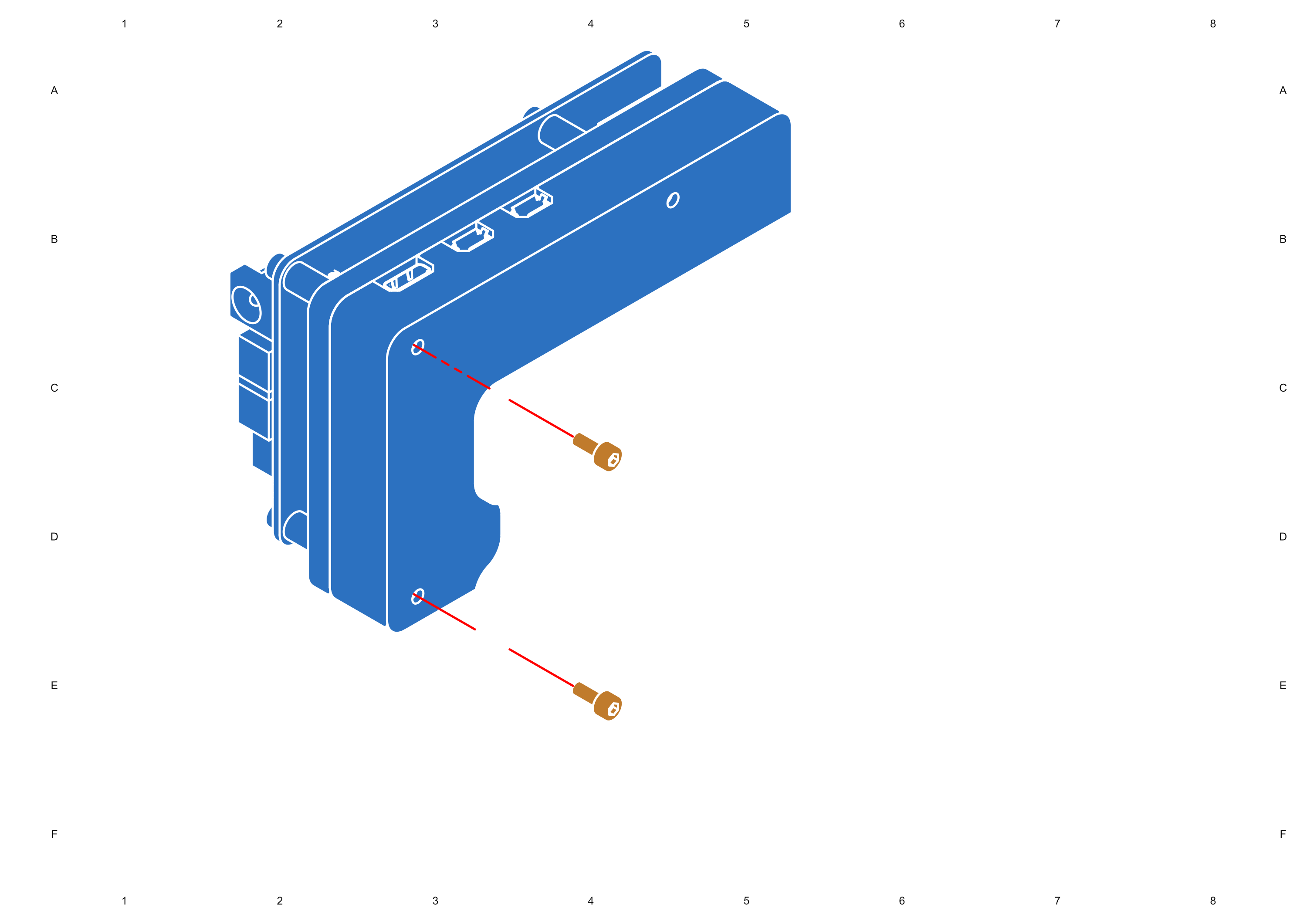

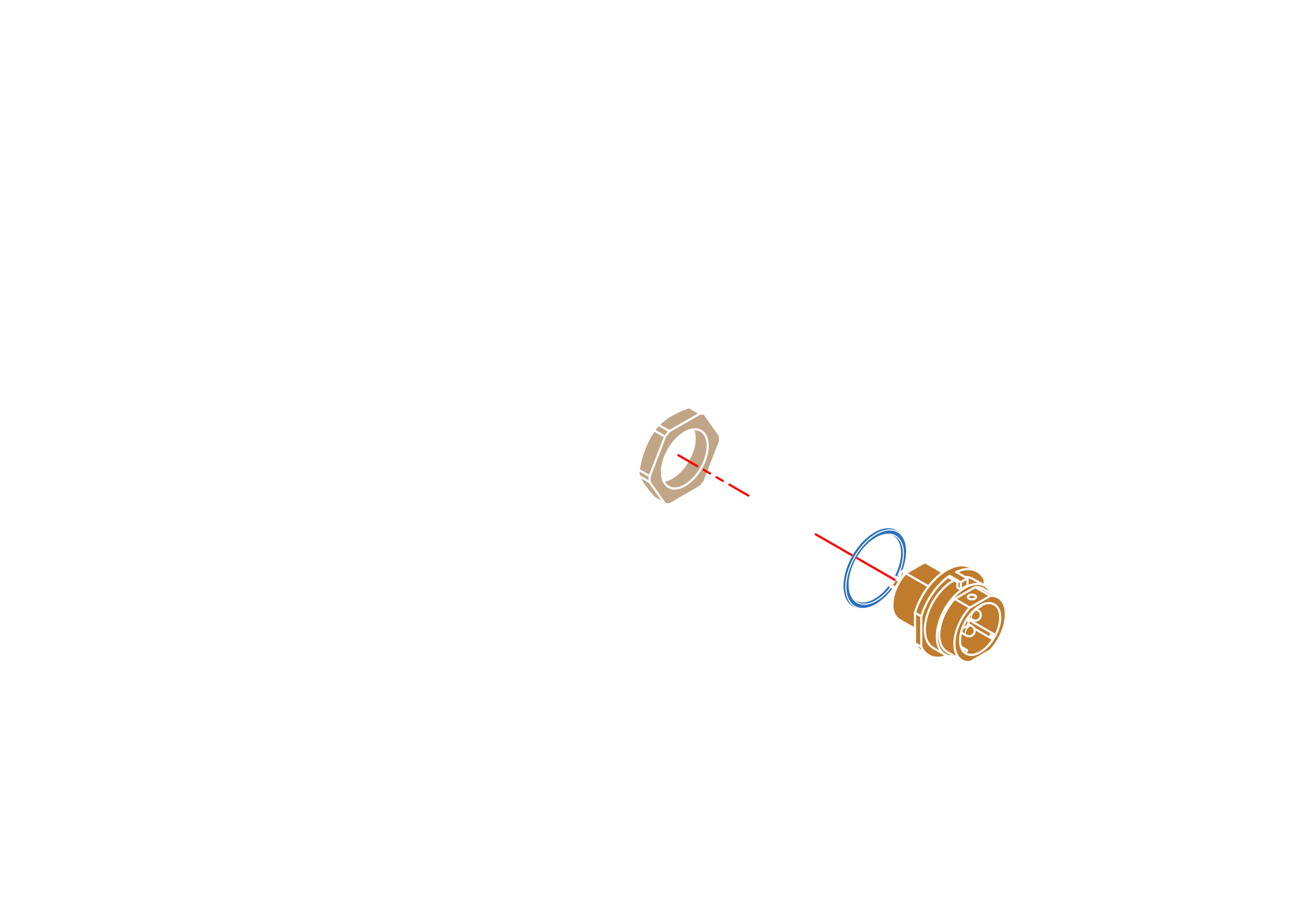

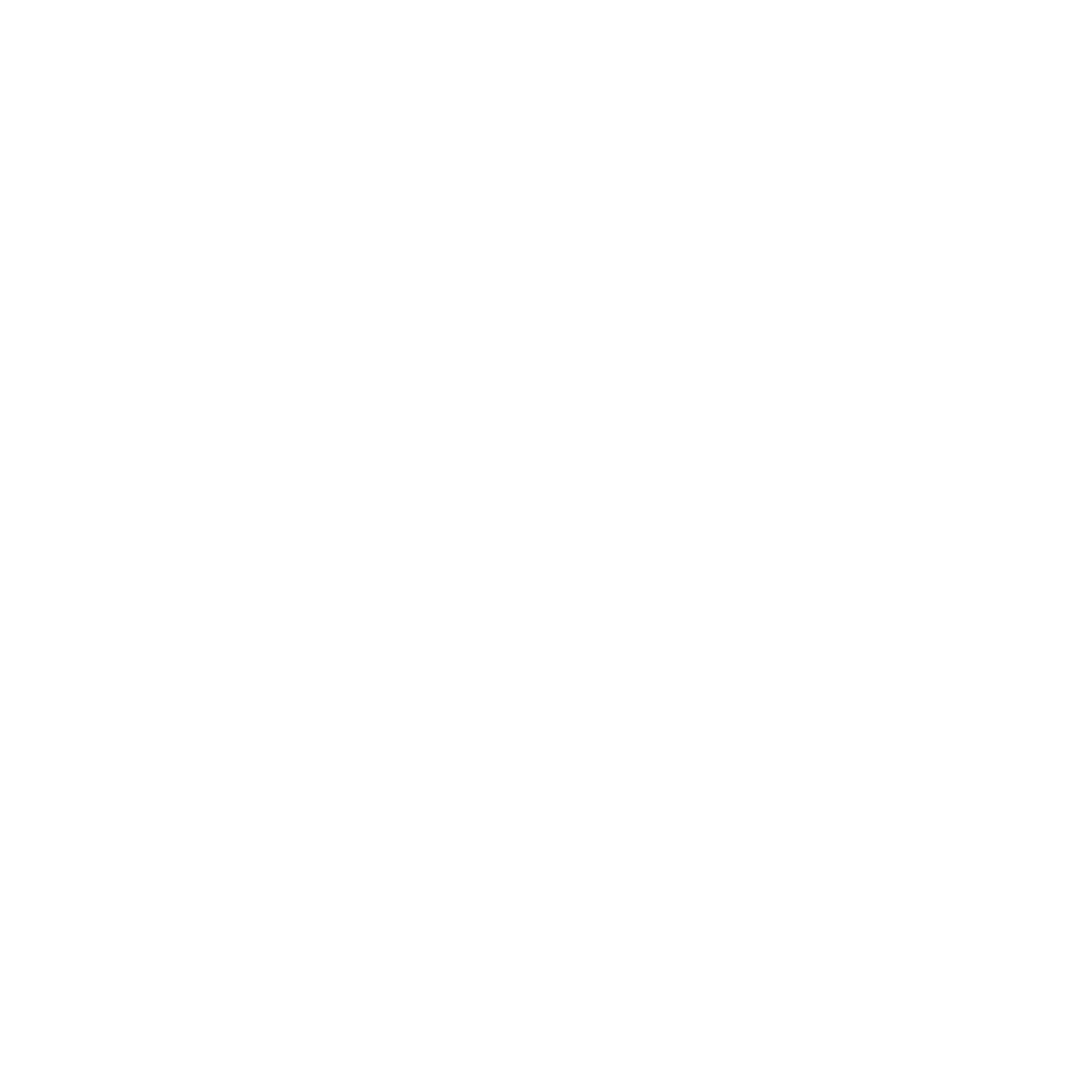

Step 4

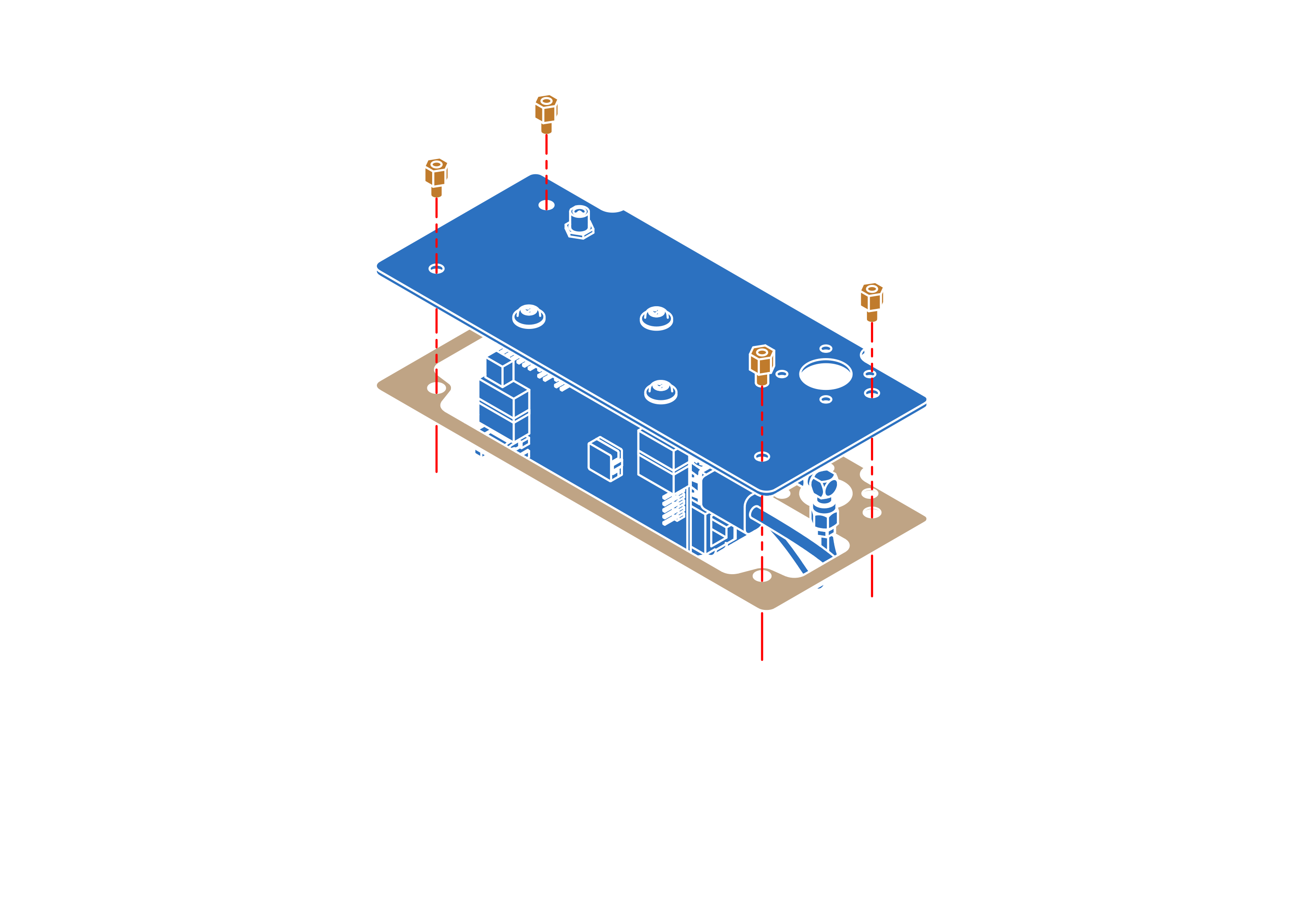

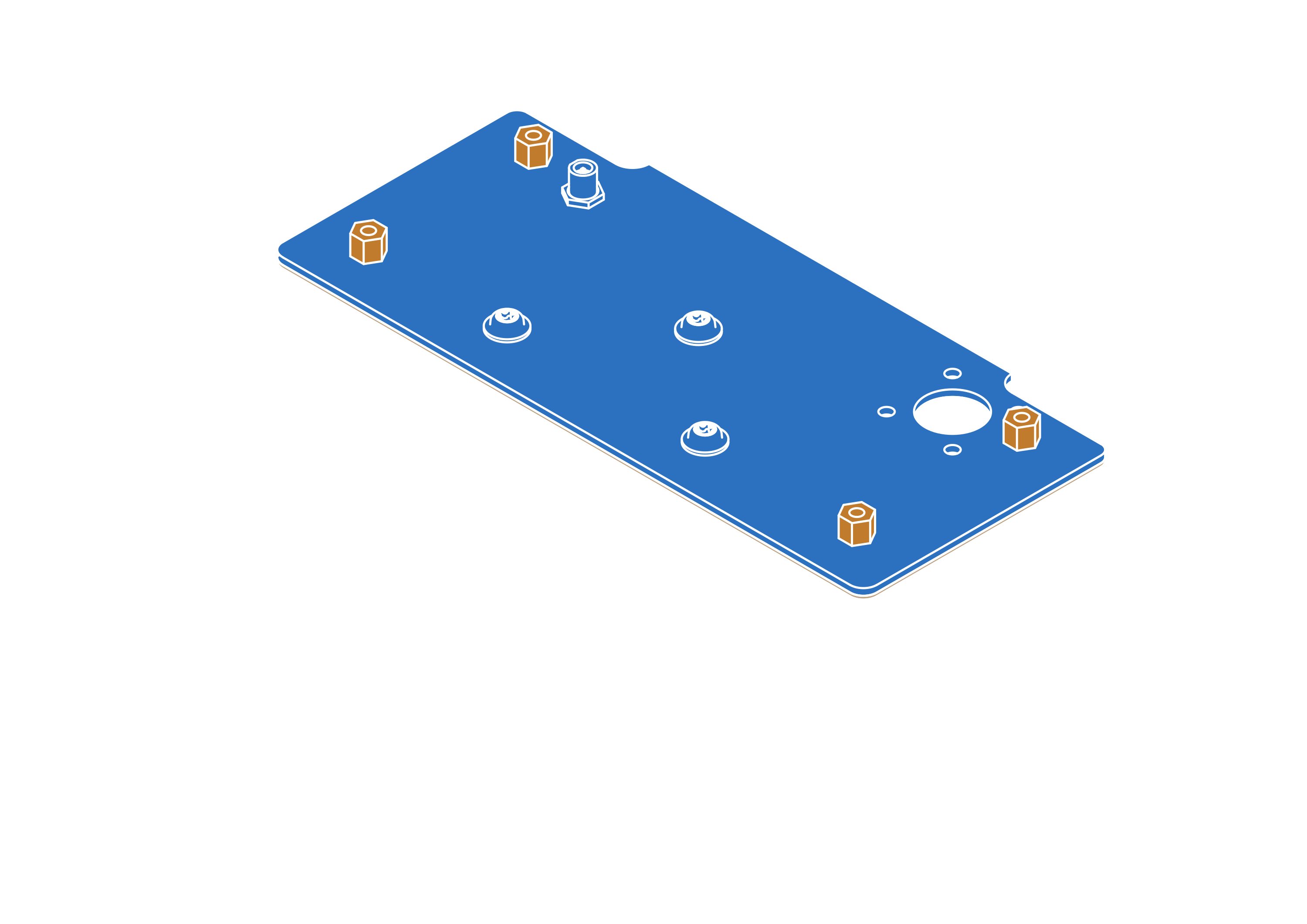

Step 5
note
Do not overtighten the screws it will destroy the seal.

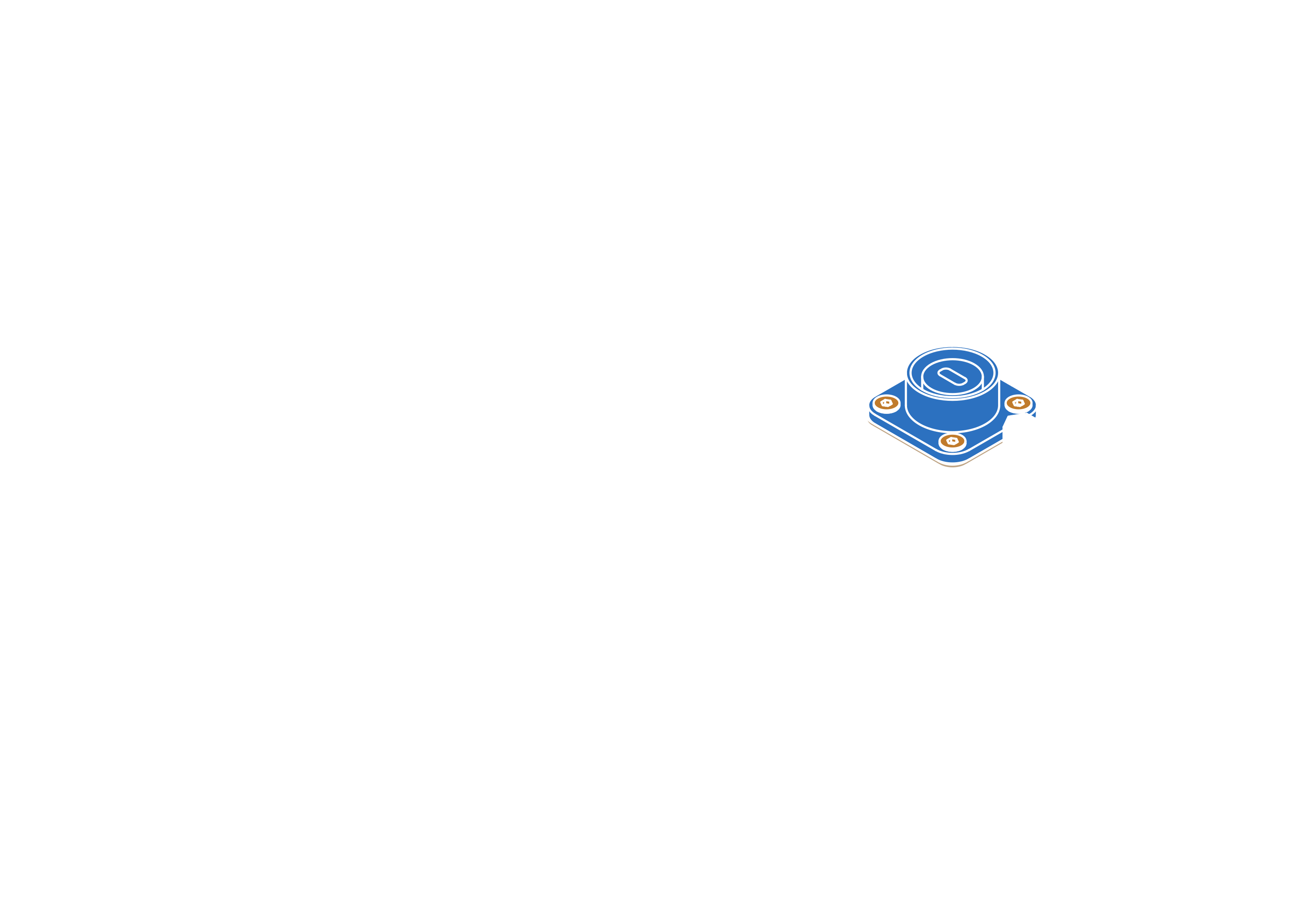

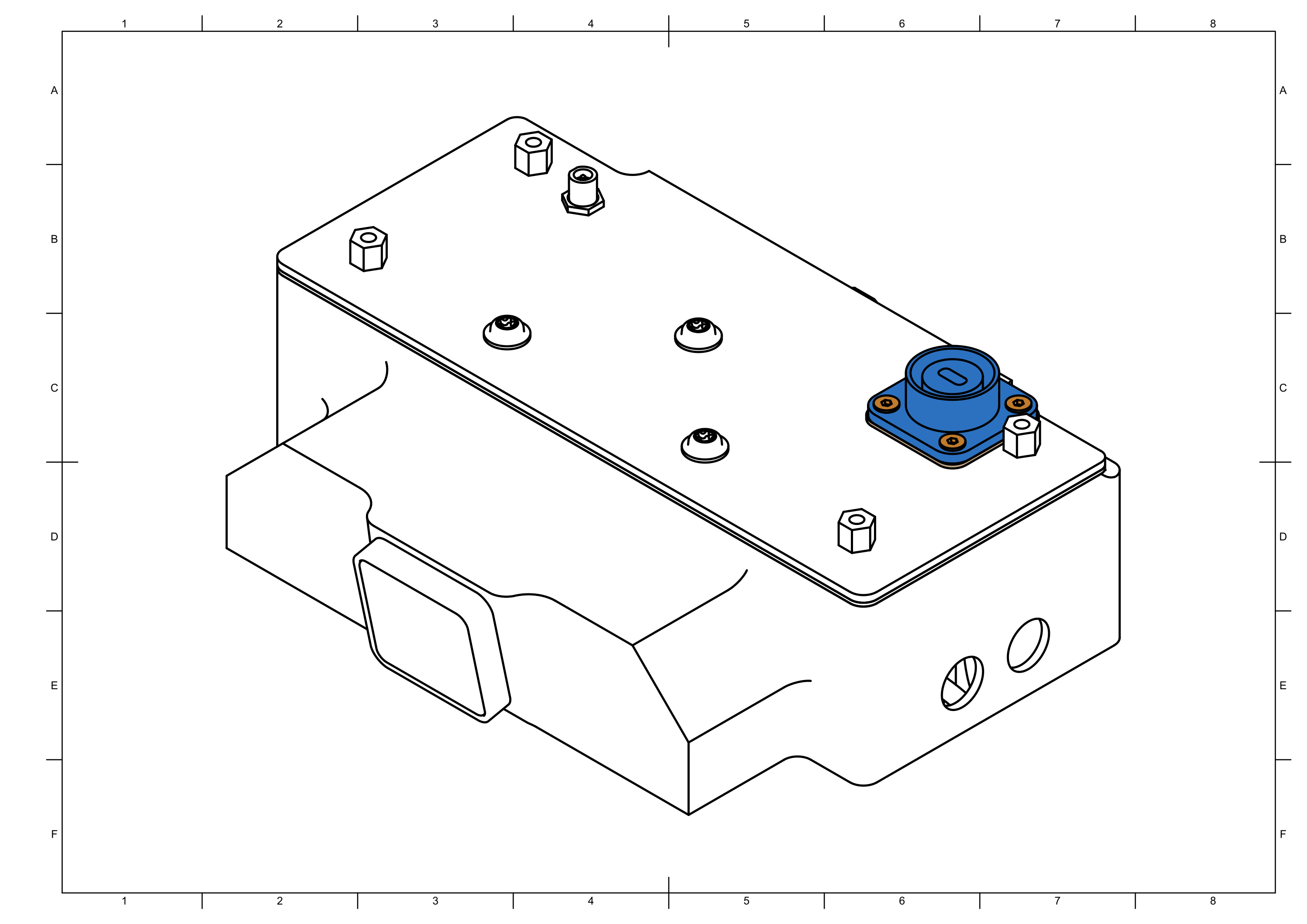

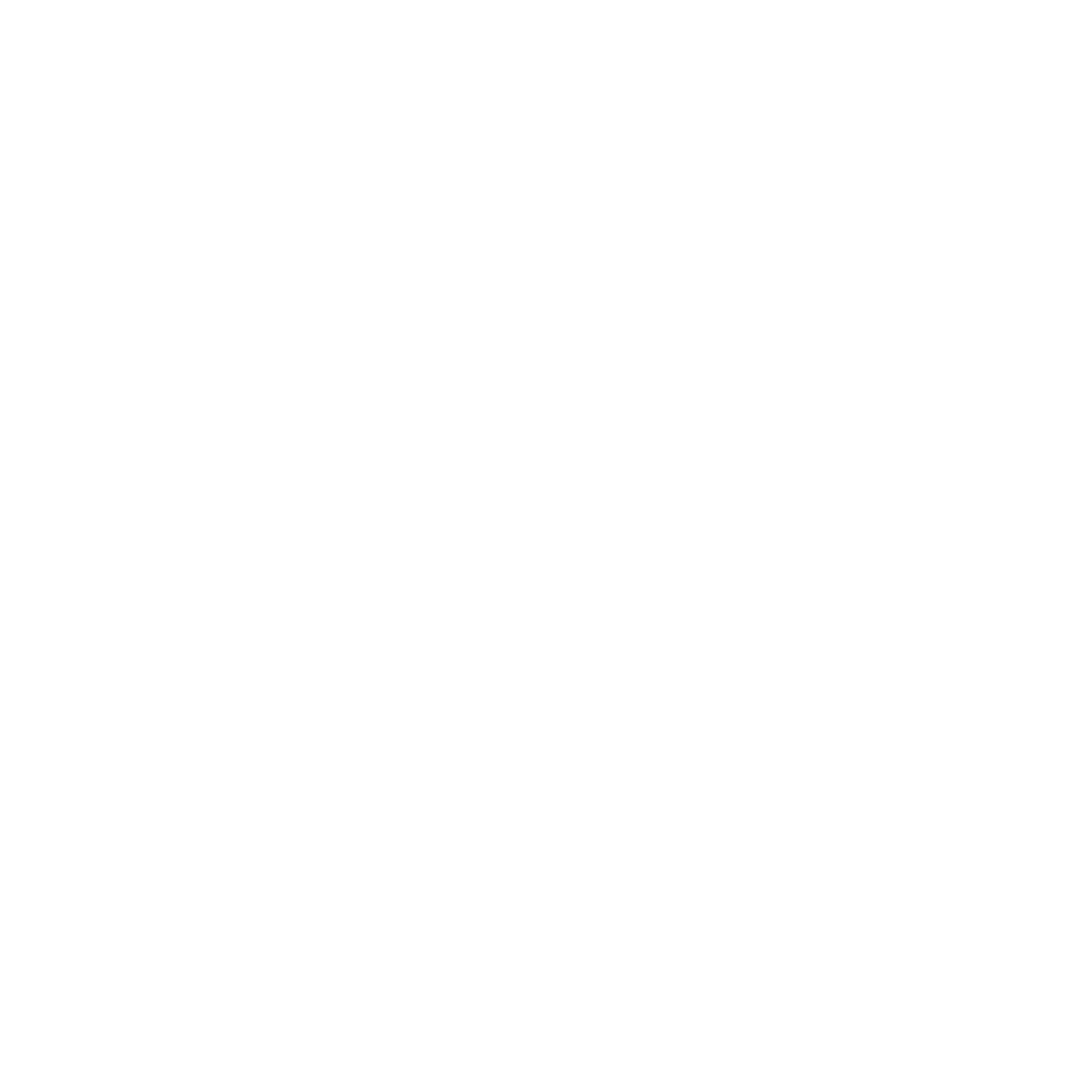

Step 6

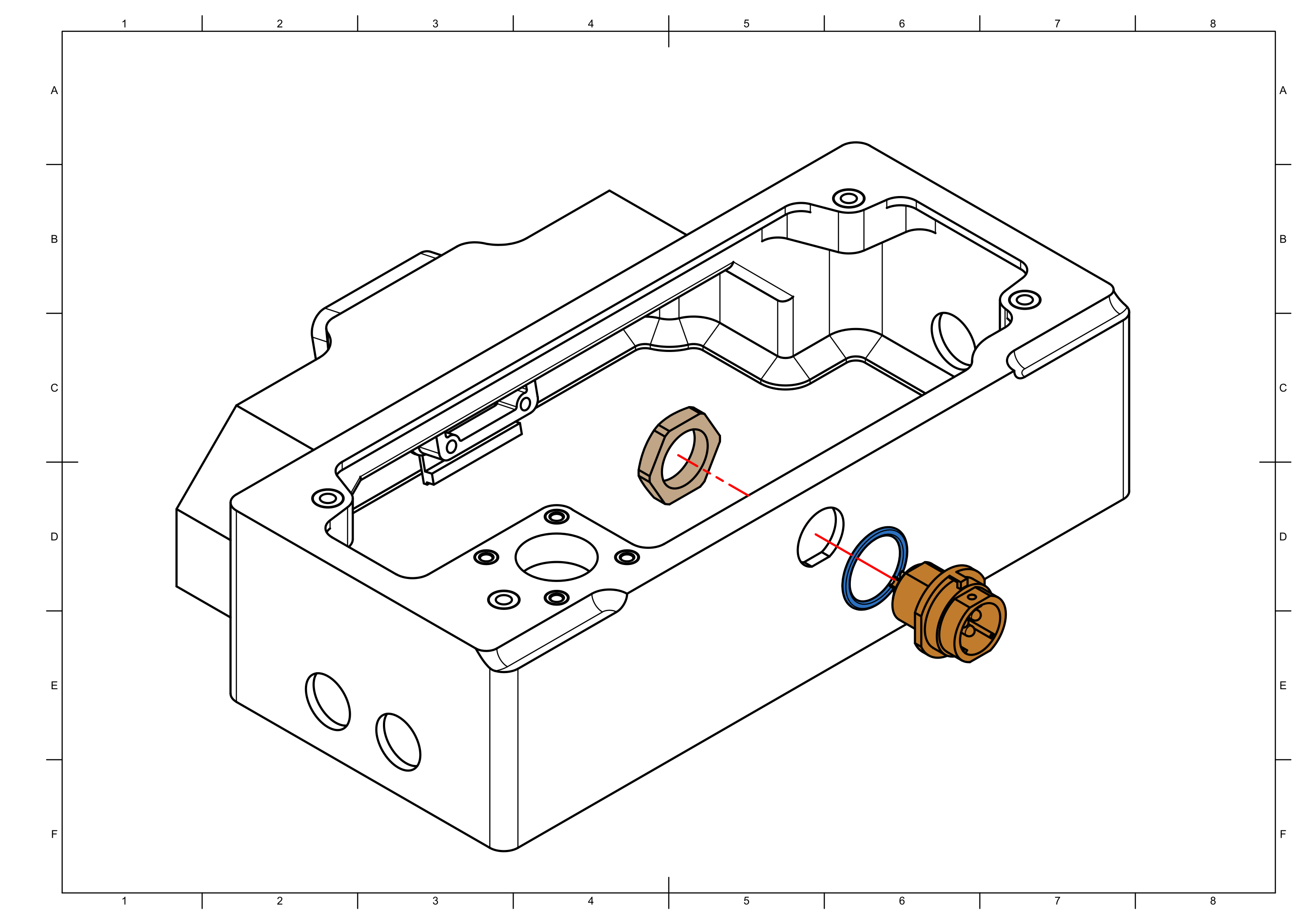

Step 7

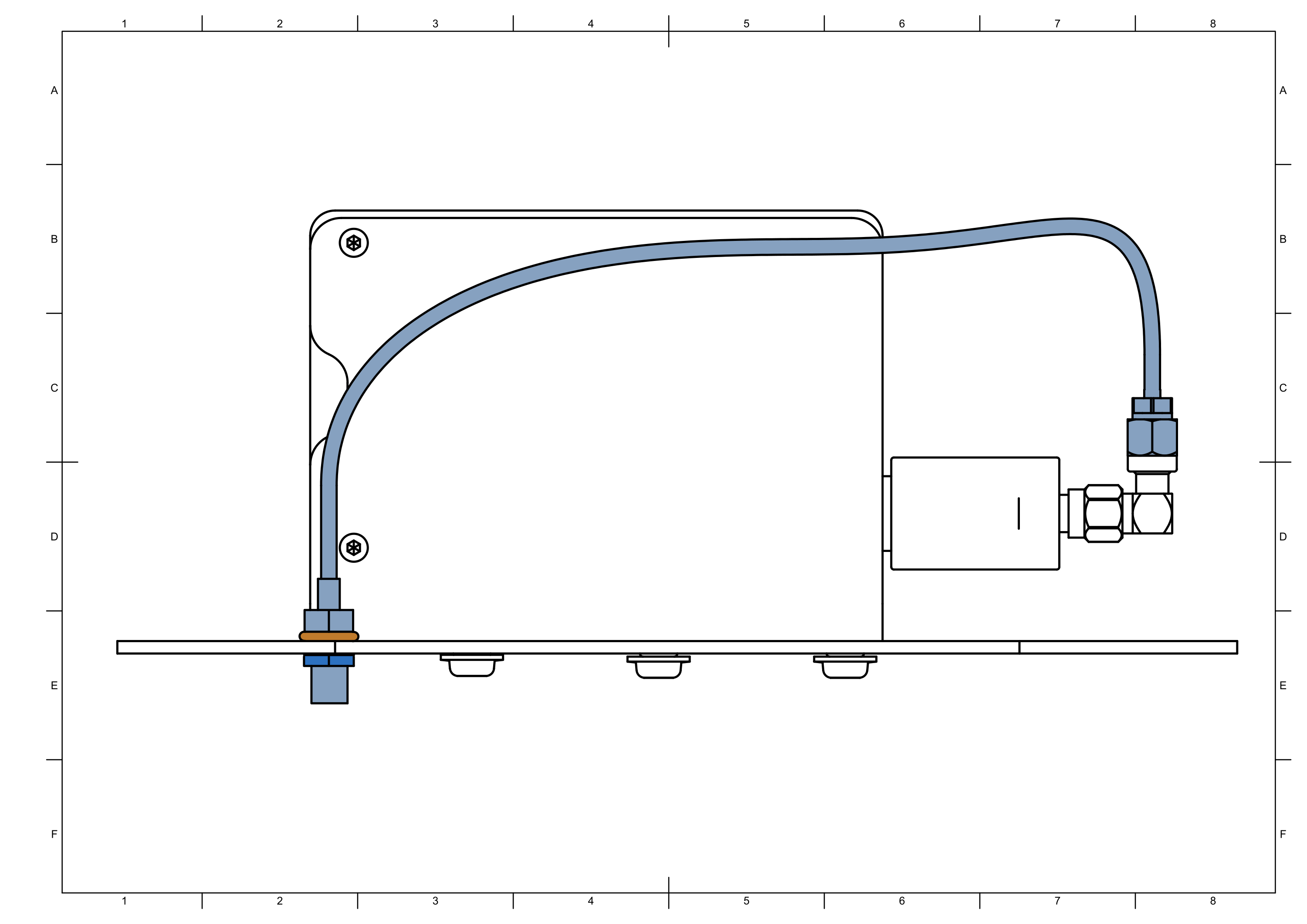

Step 8
note

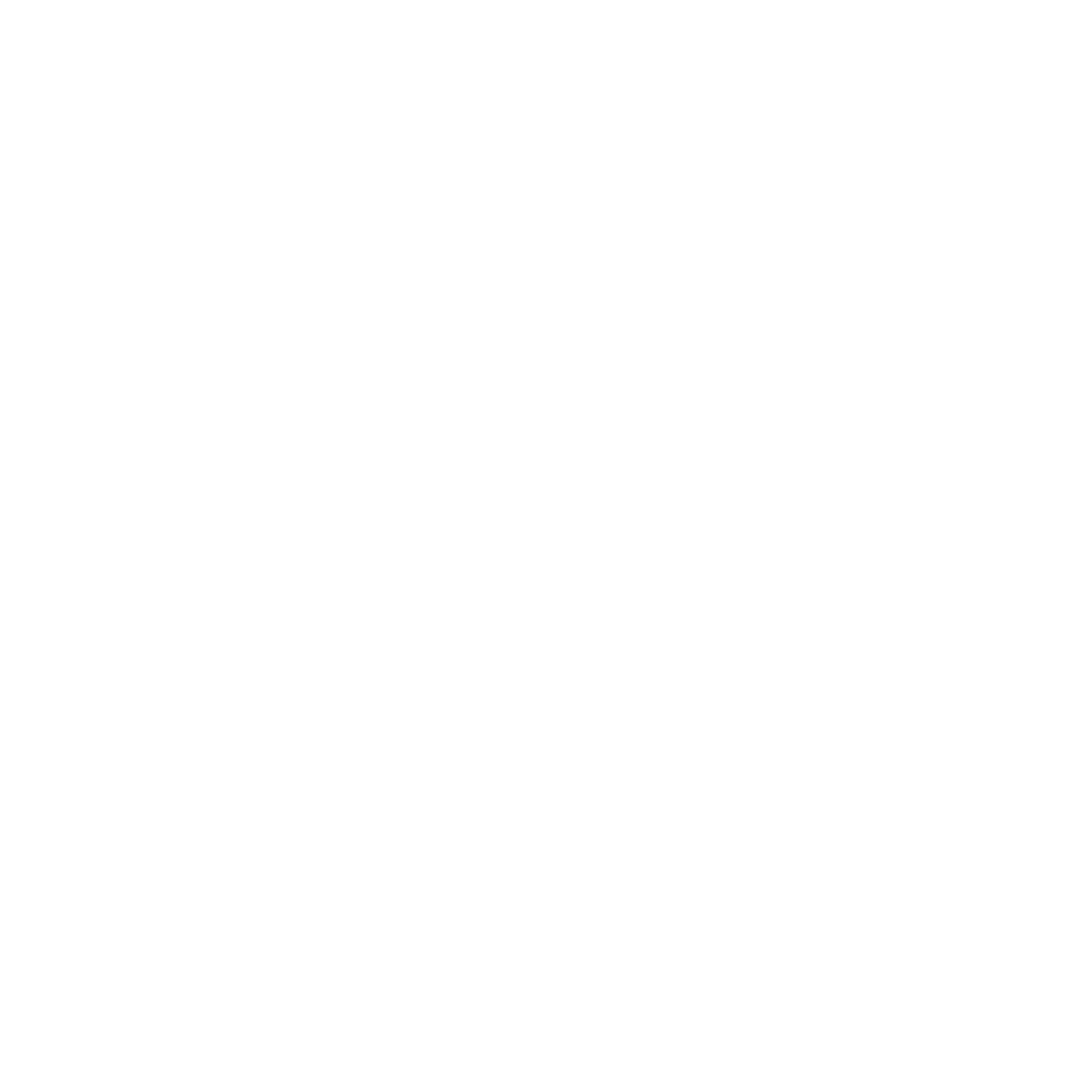

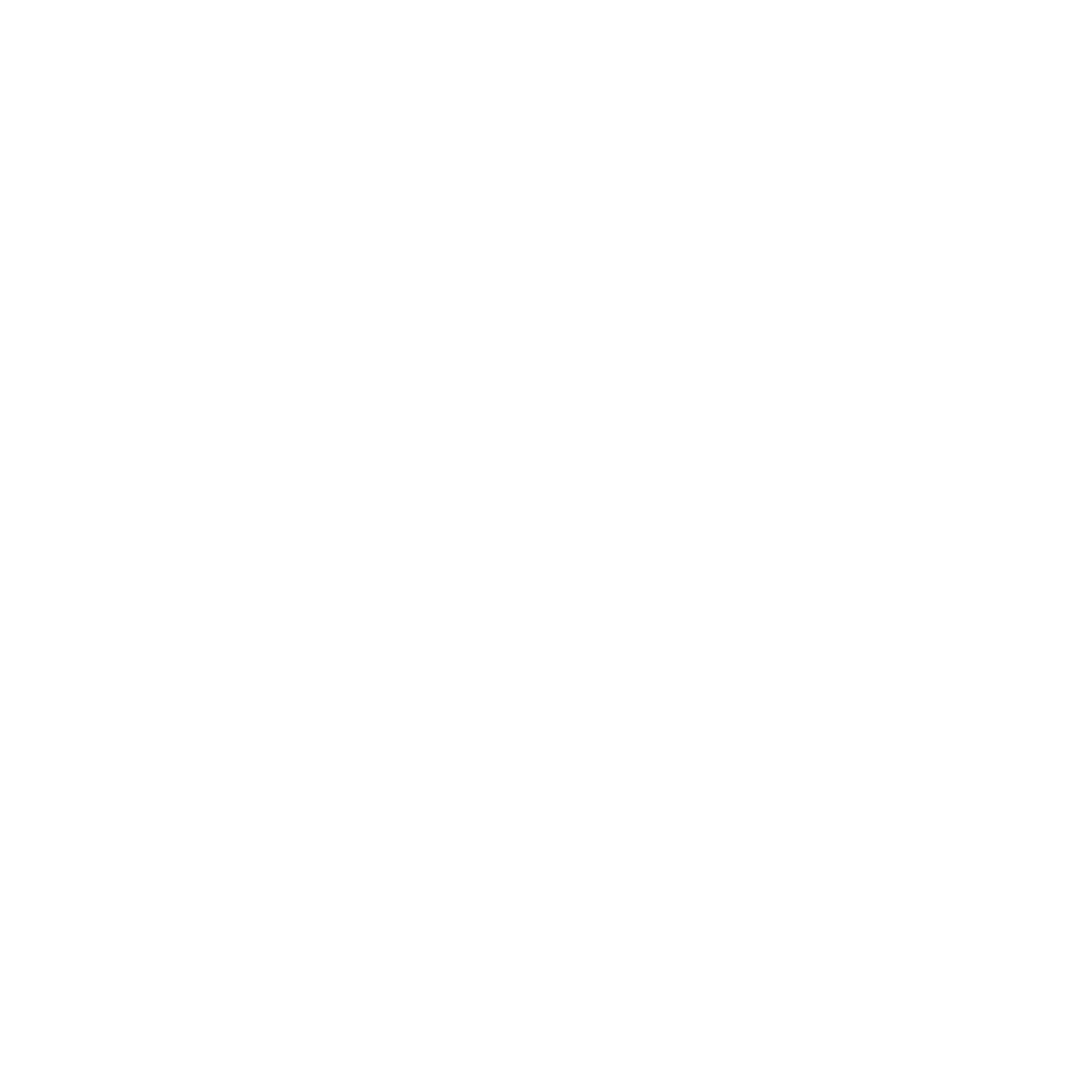

Do not overtighten as the seal can easily be crushed.

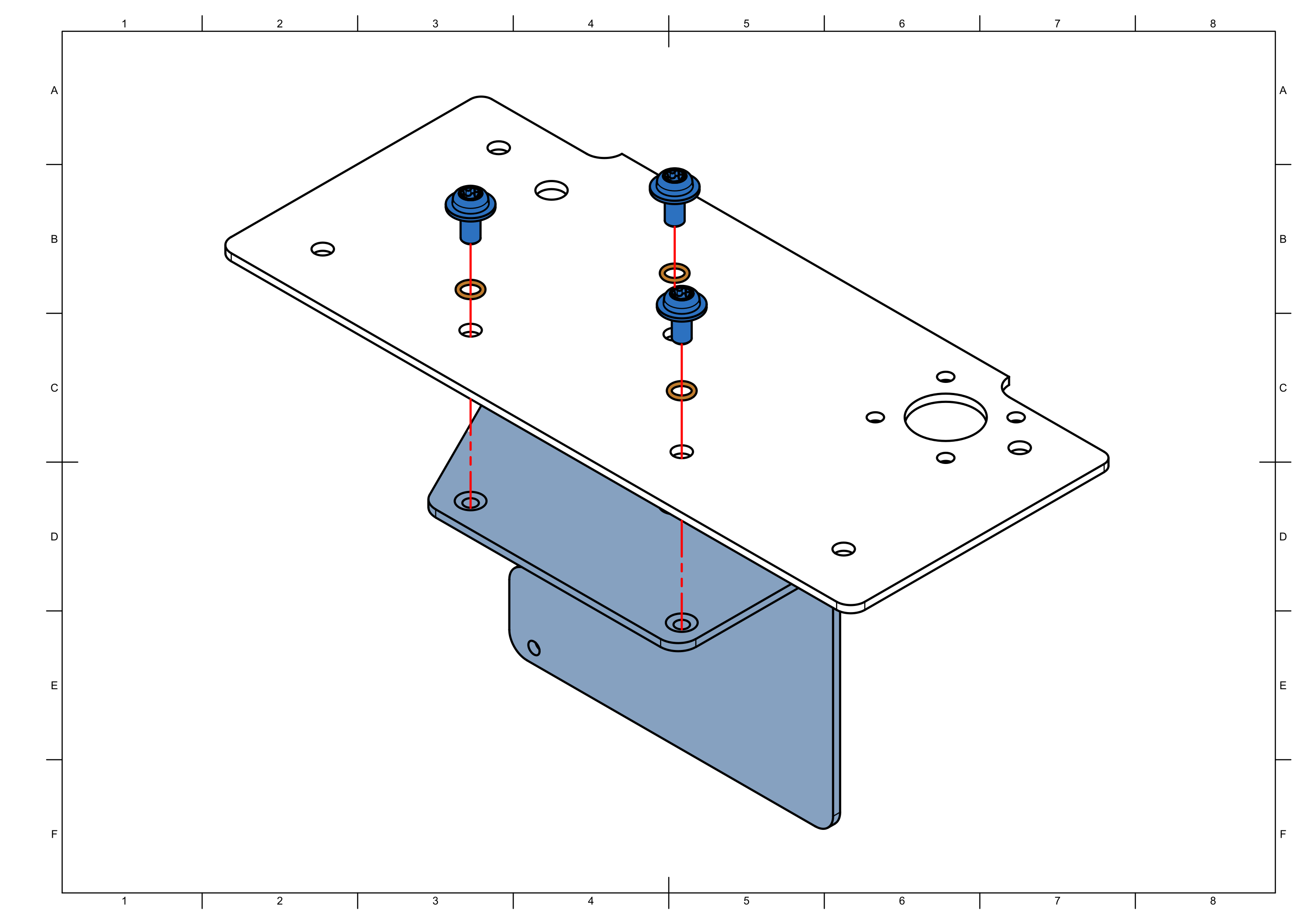

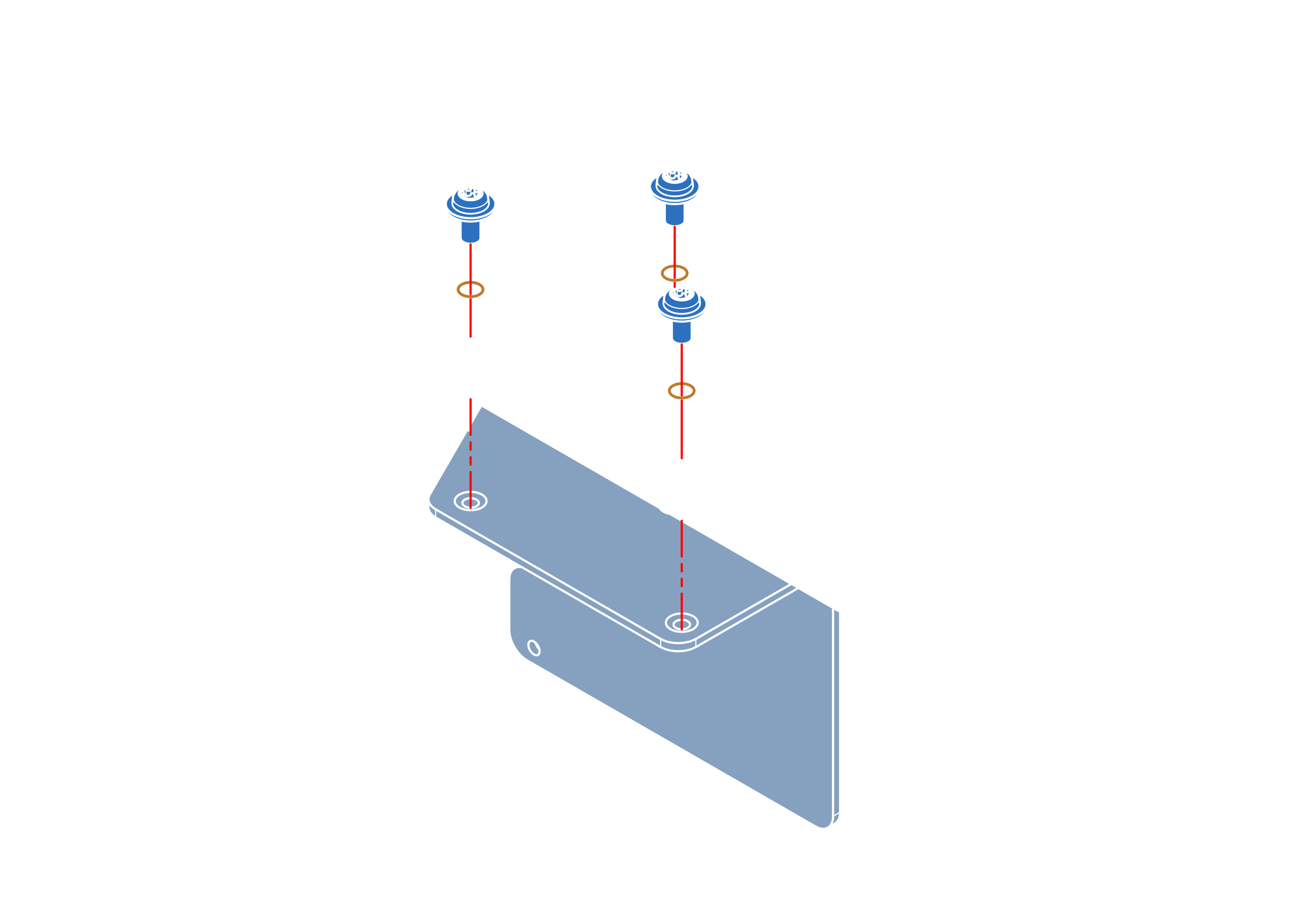

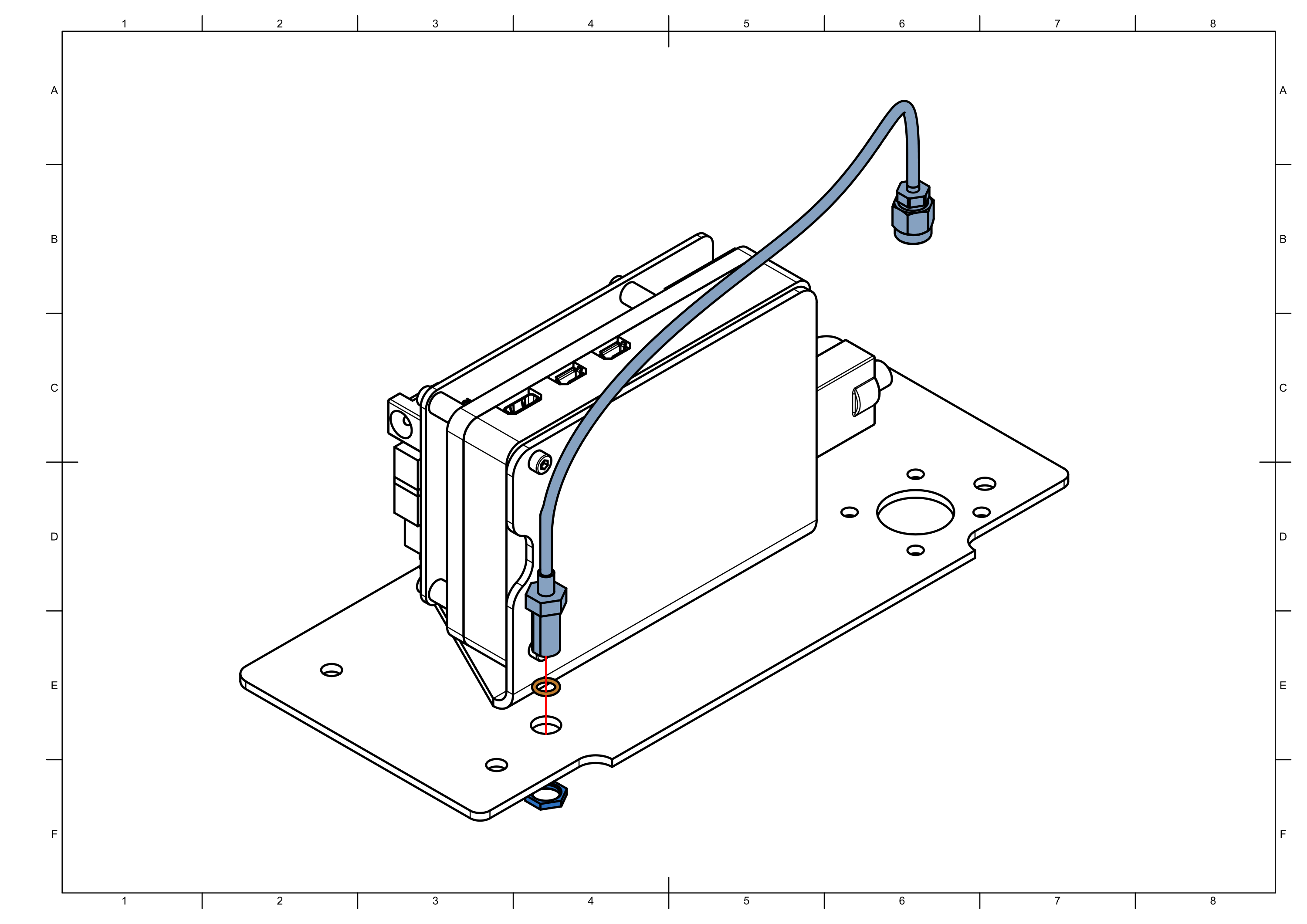

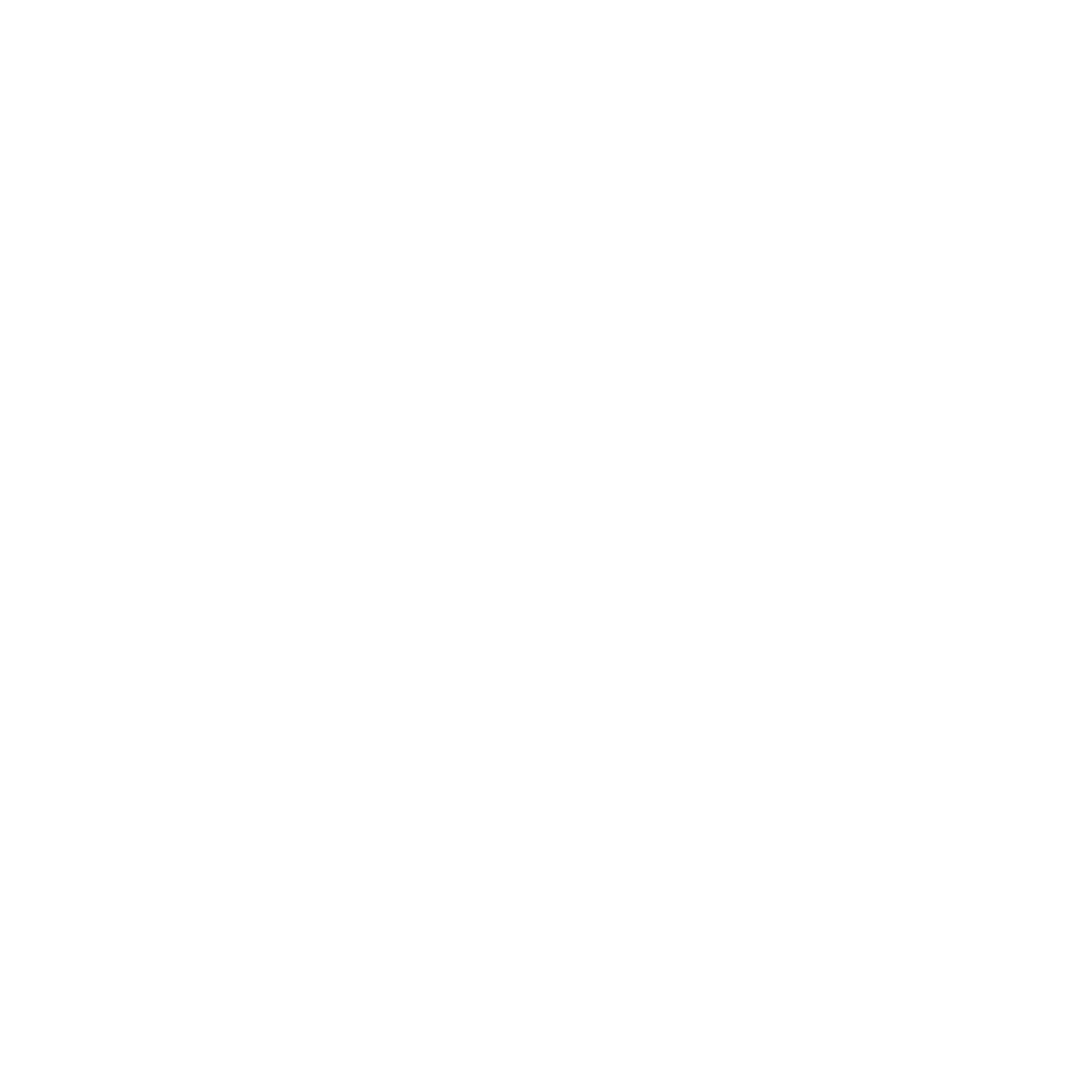

Step 9

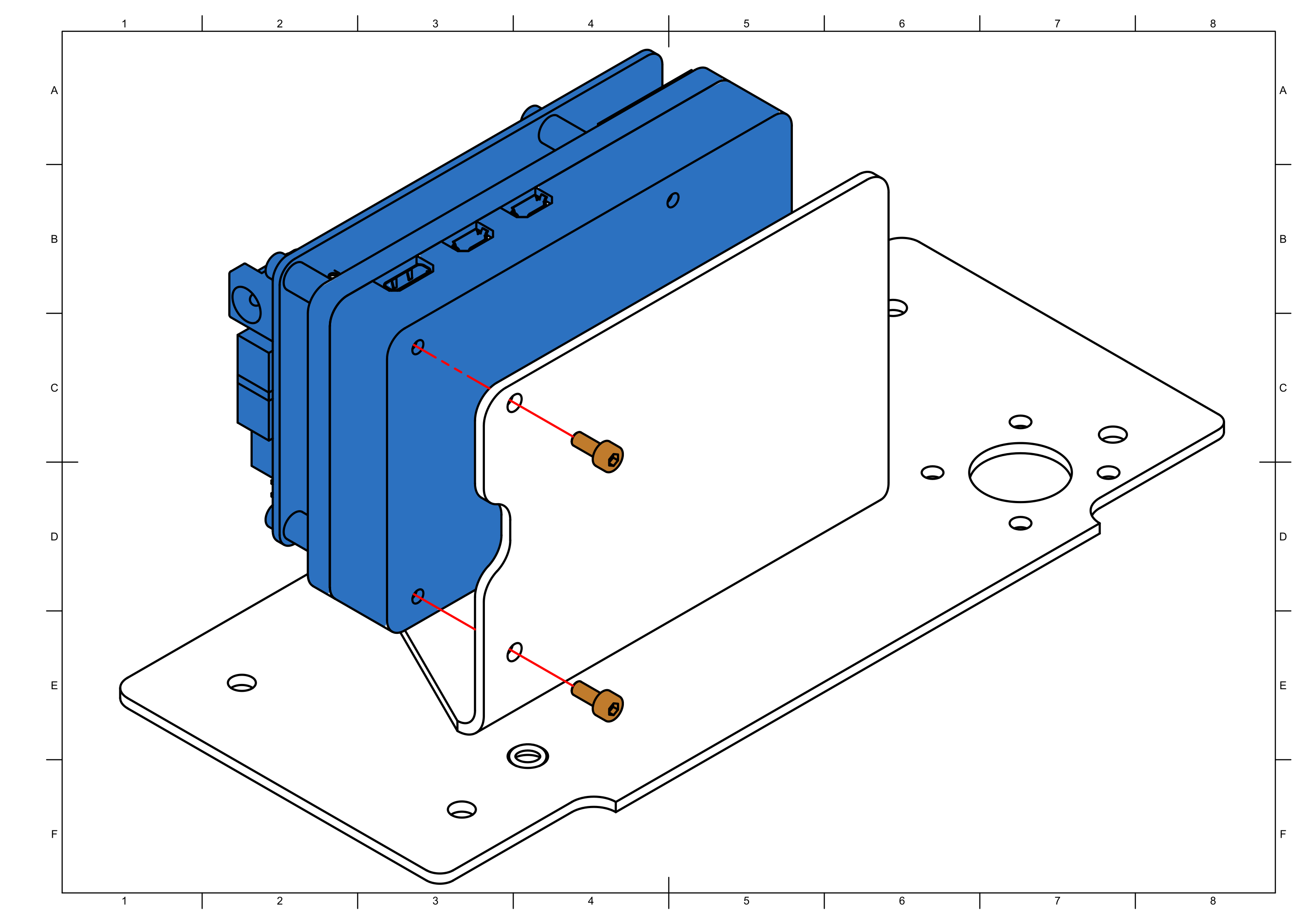

Step 10

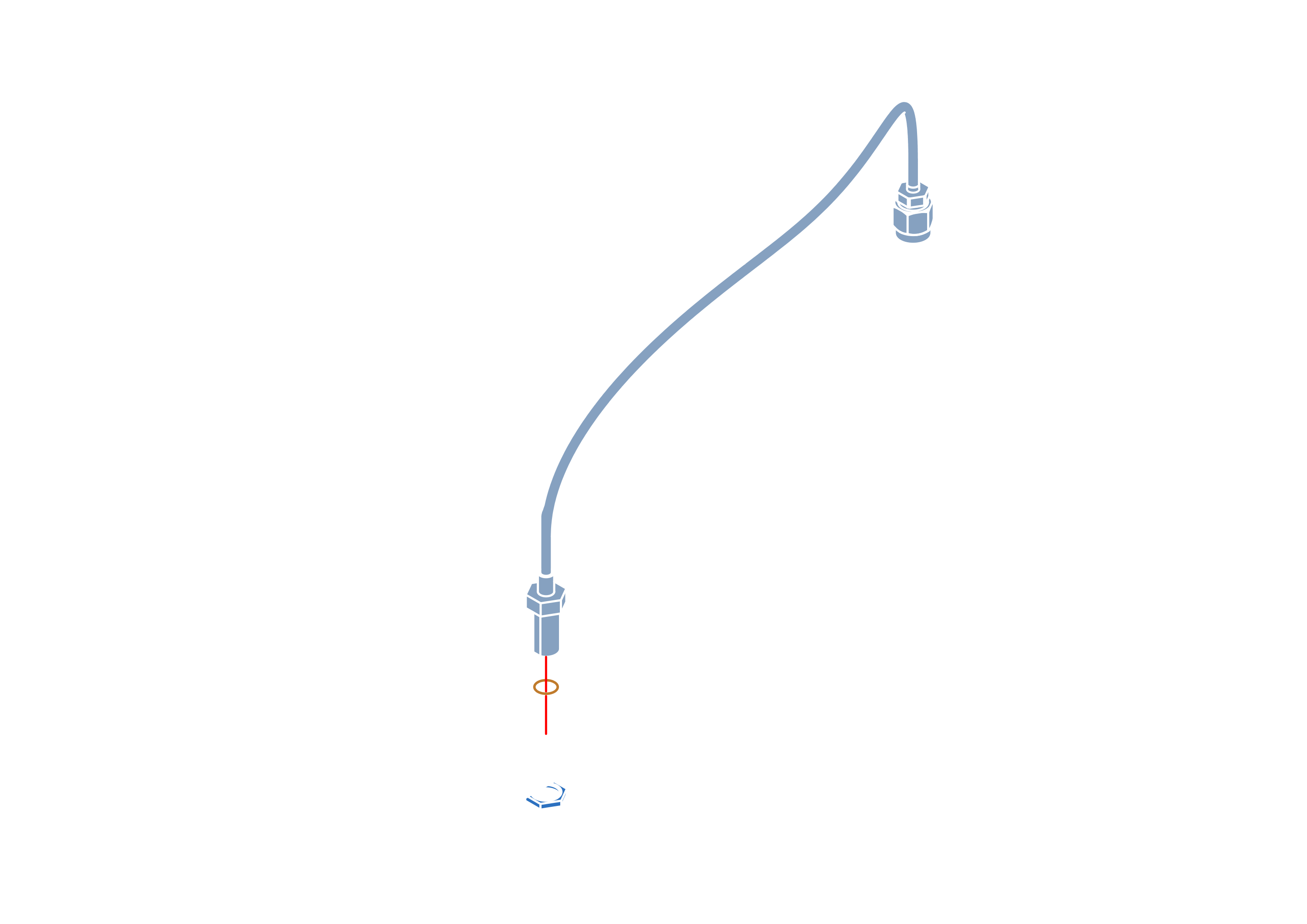

Step 11
Step 12

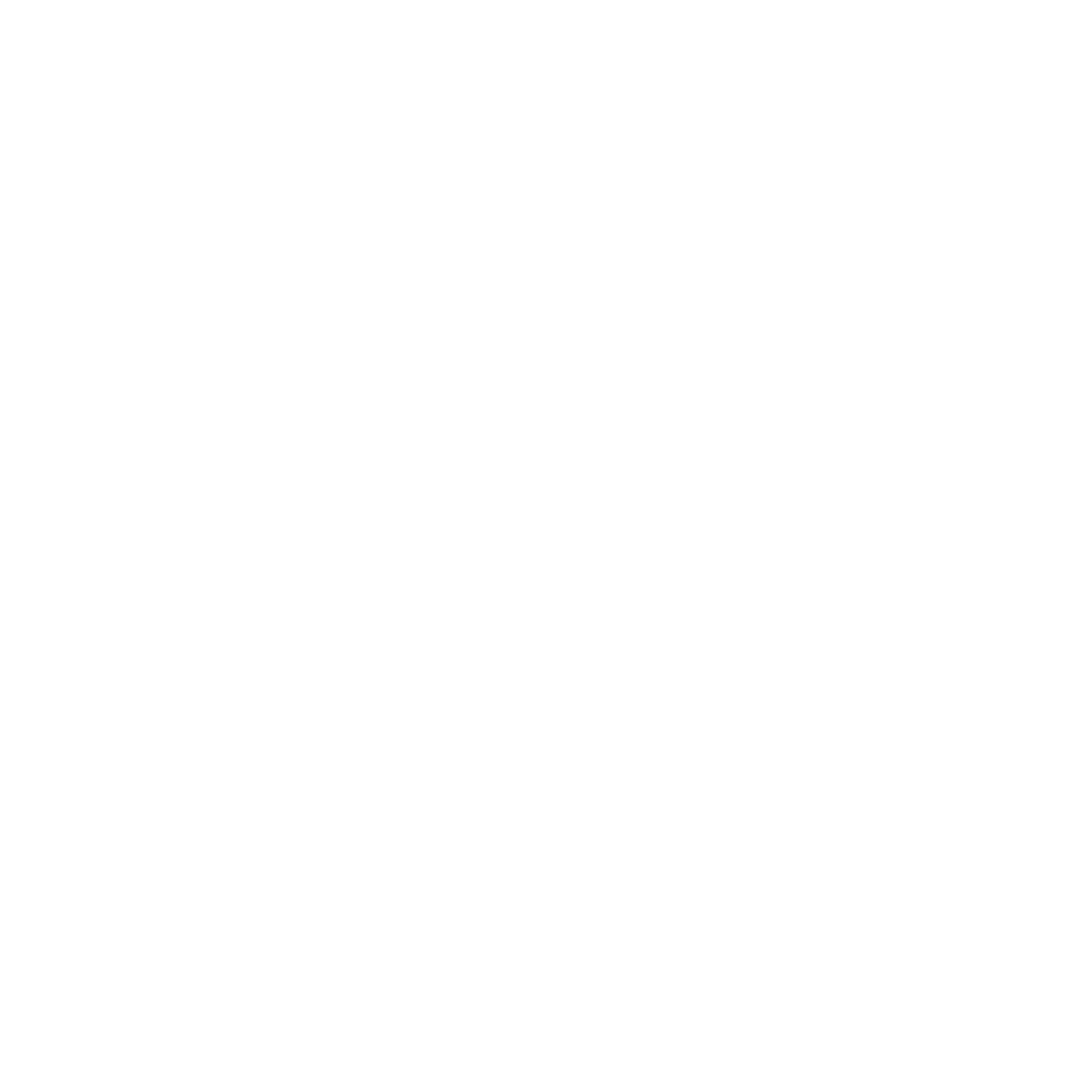

Step 13

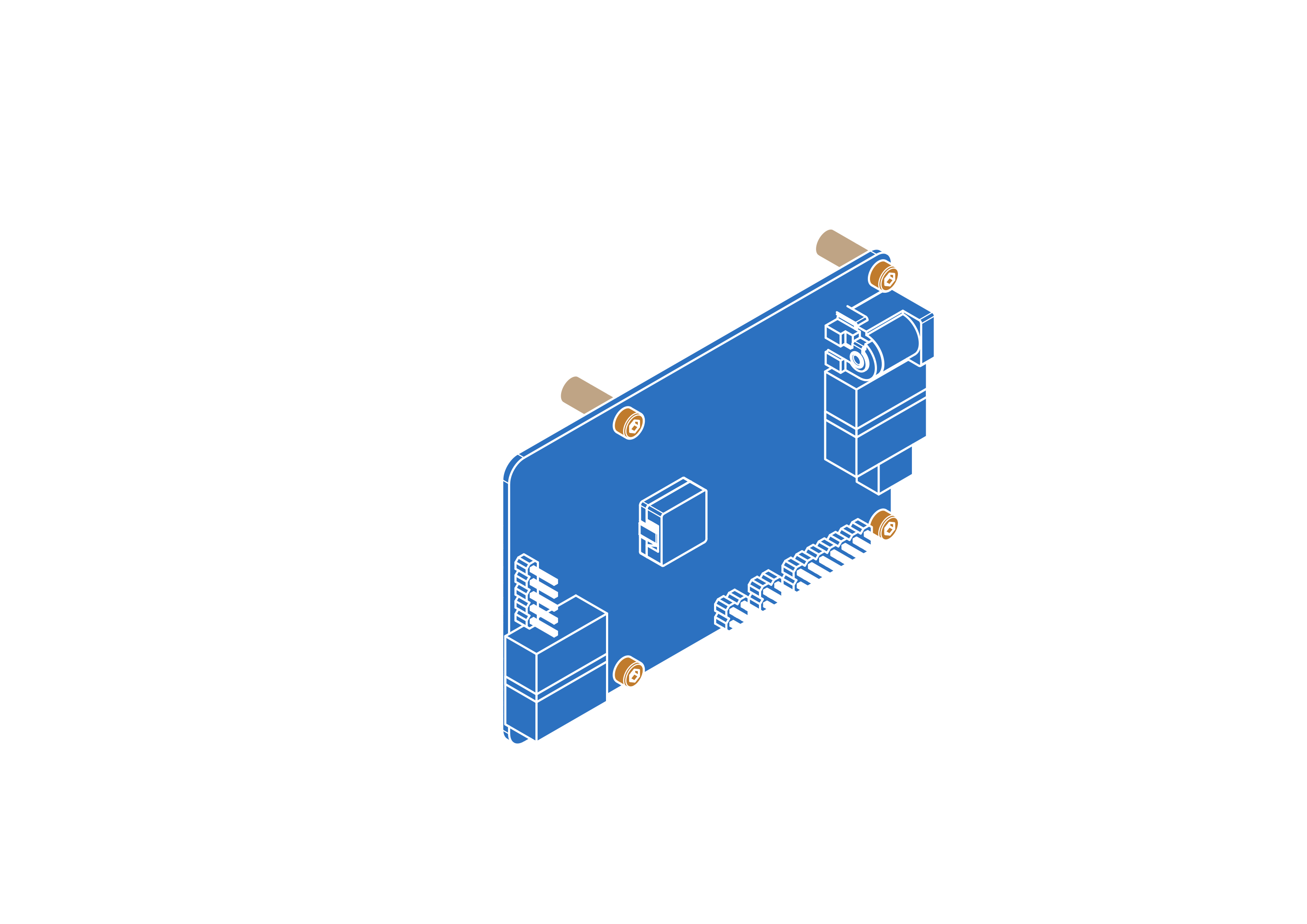

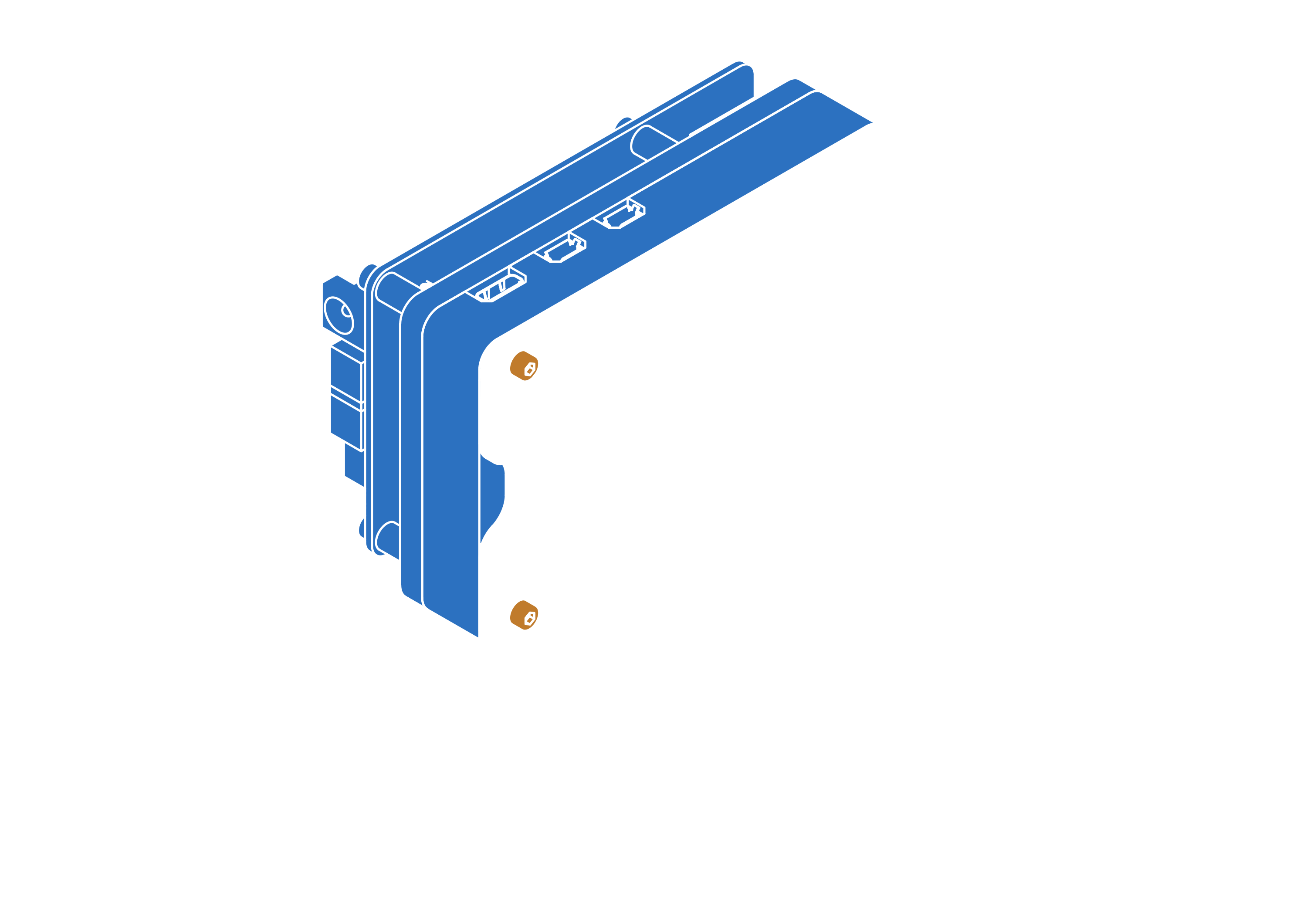

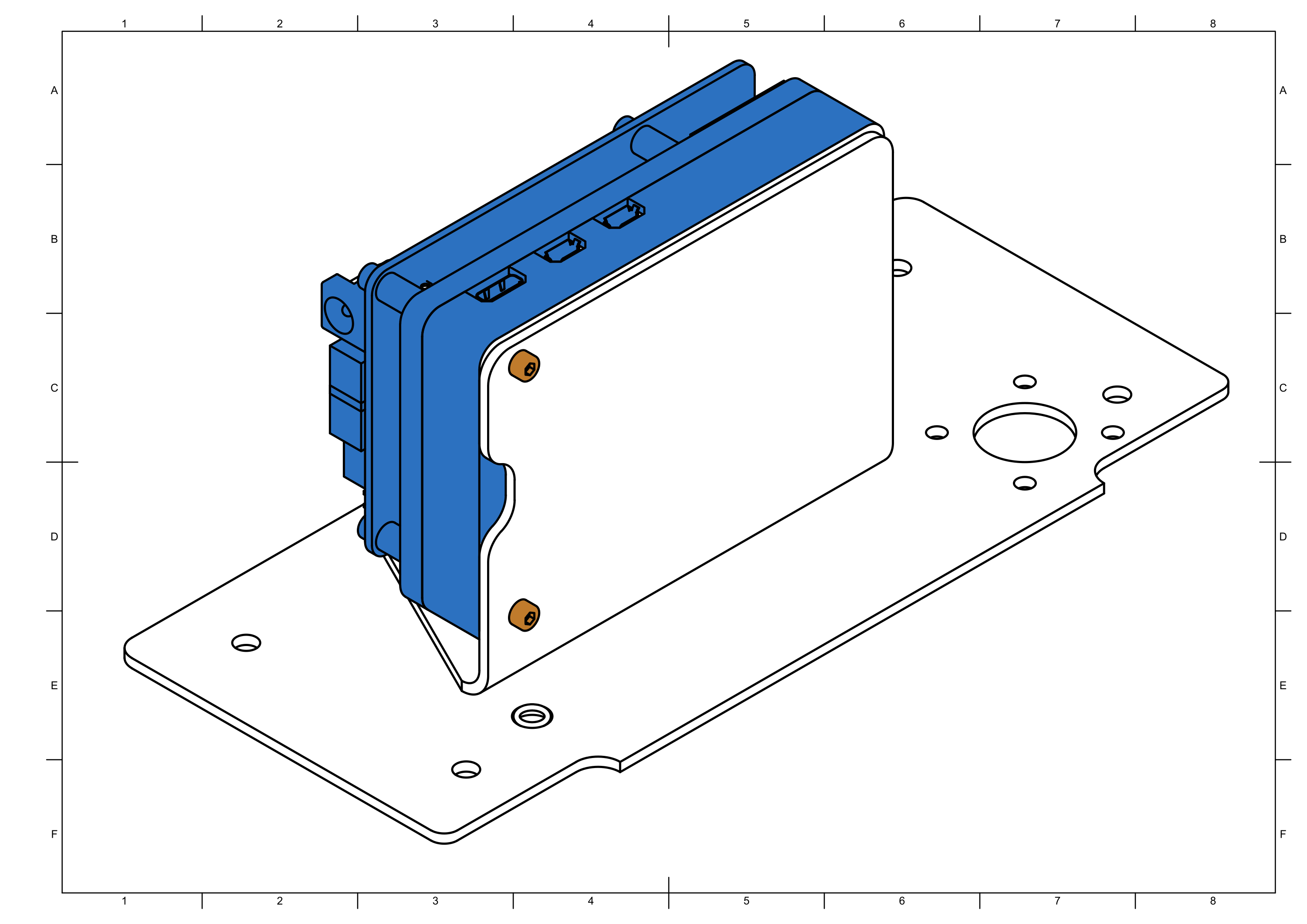

Step 14
note

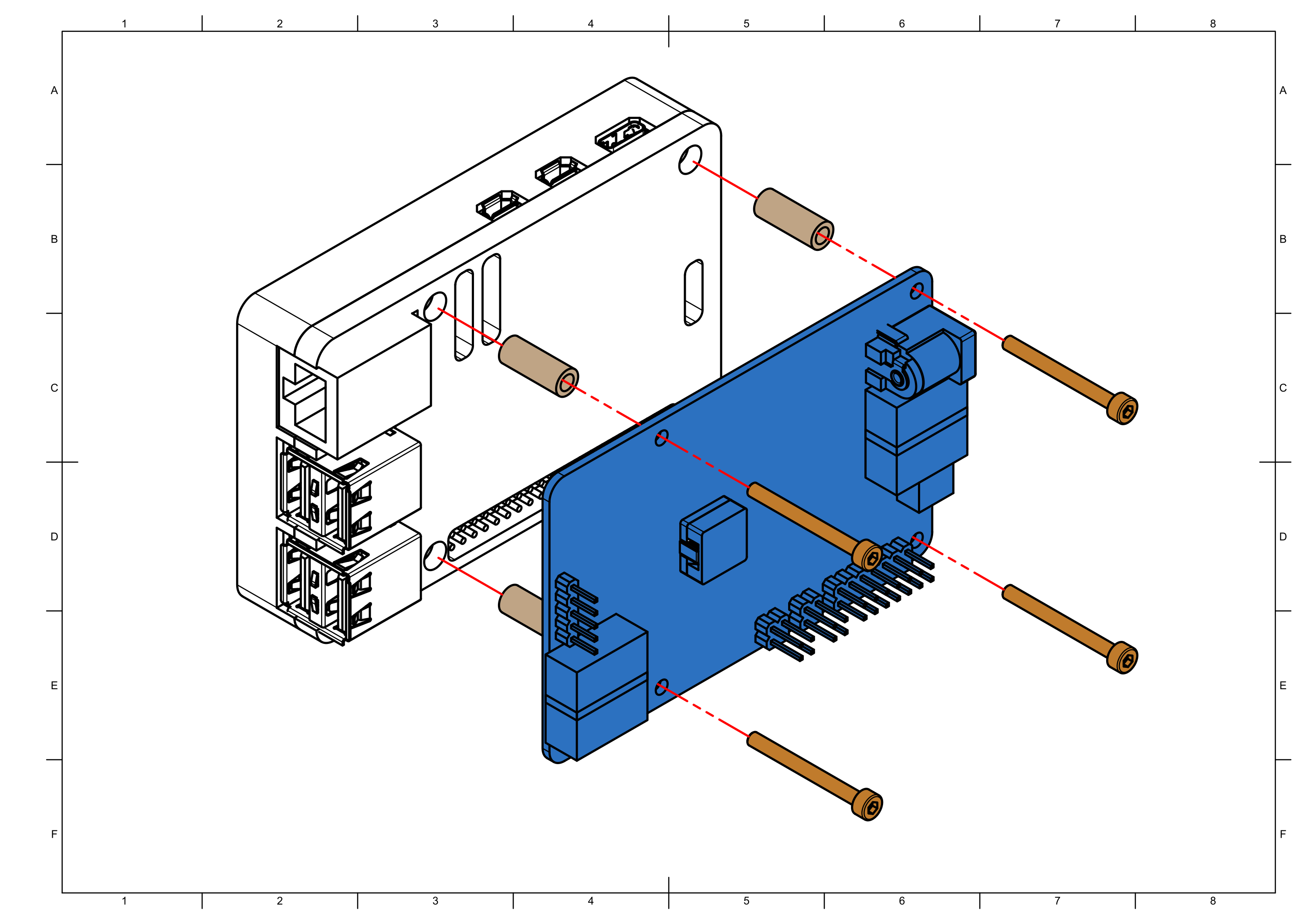

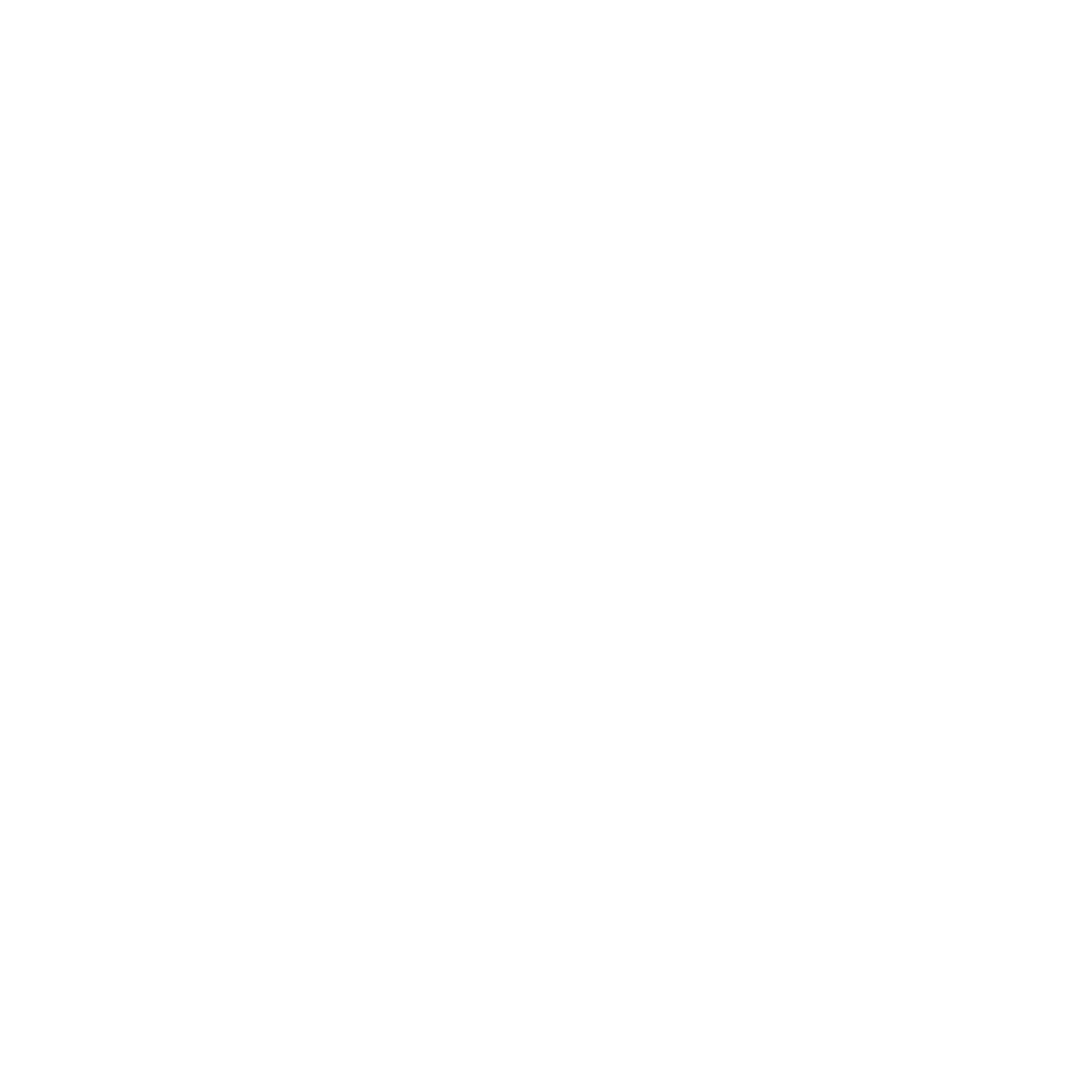

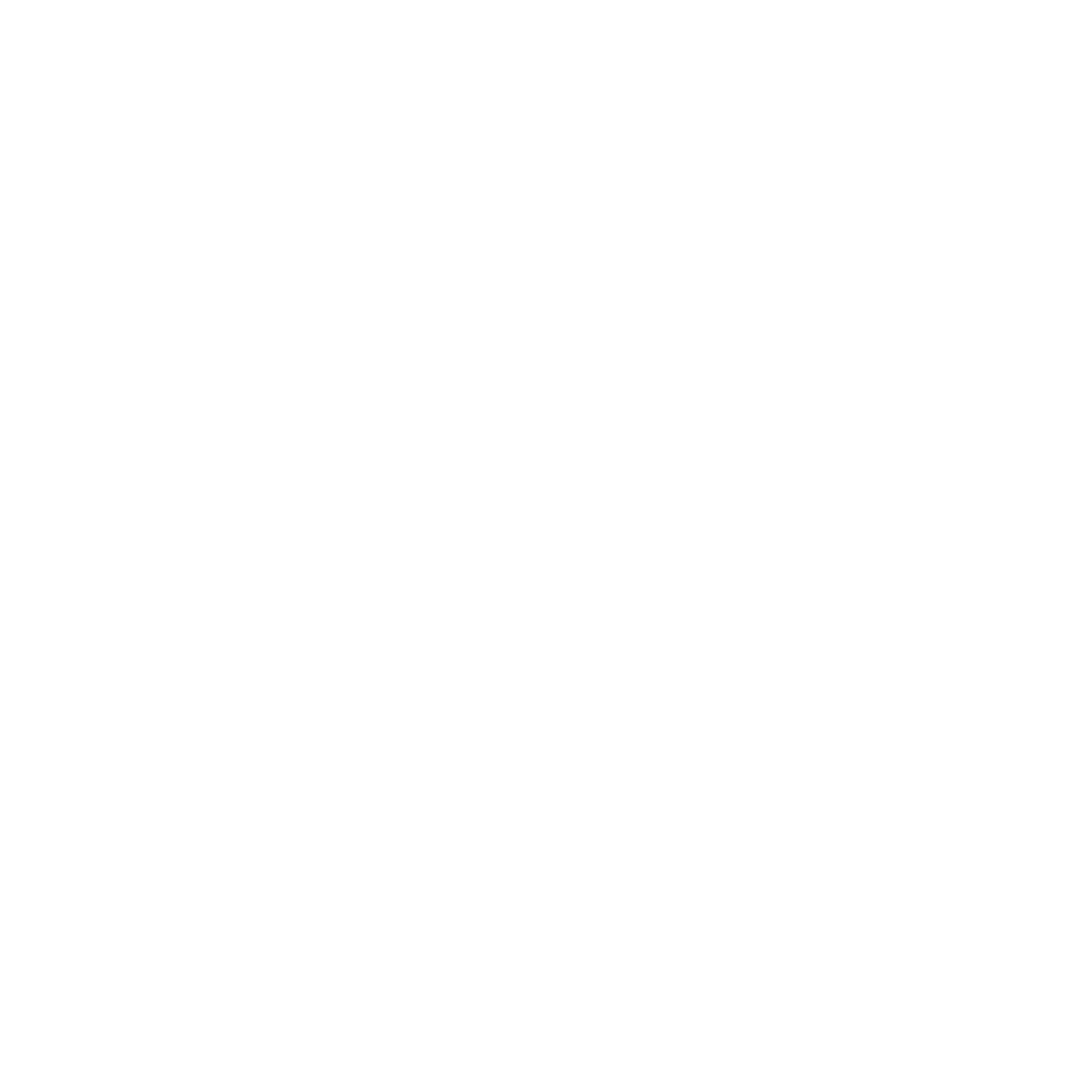

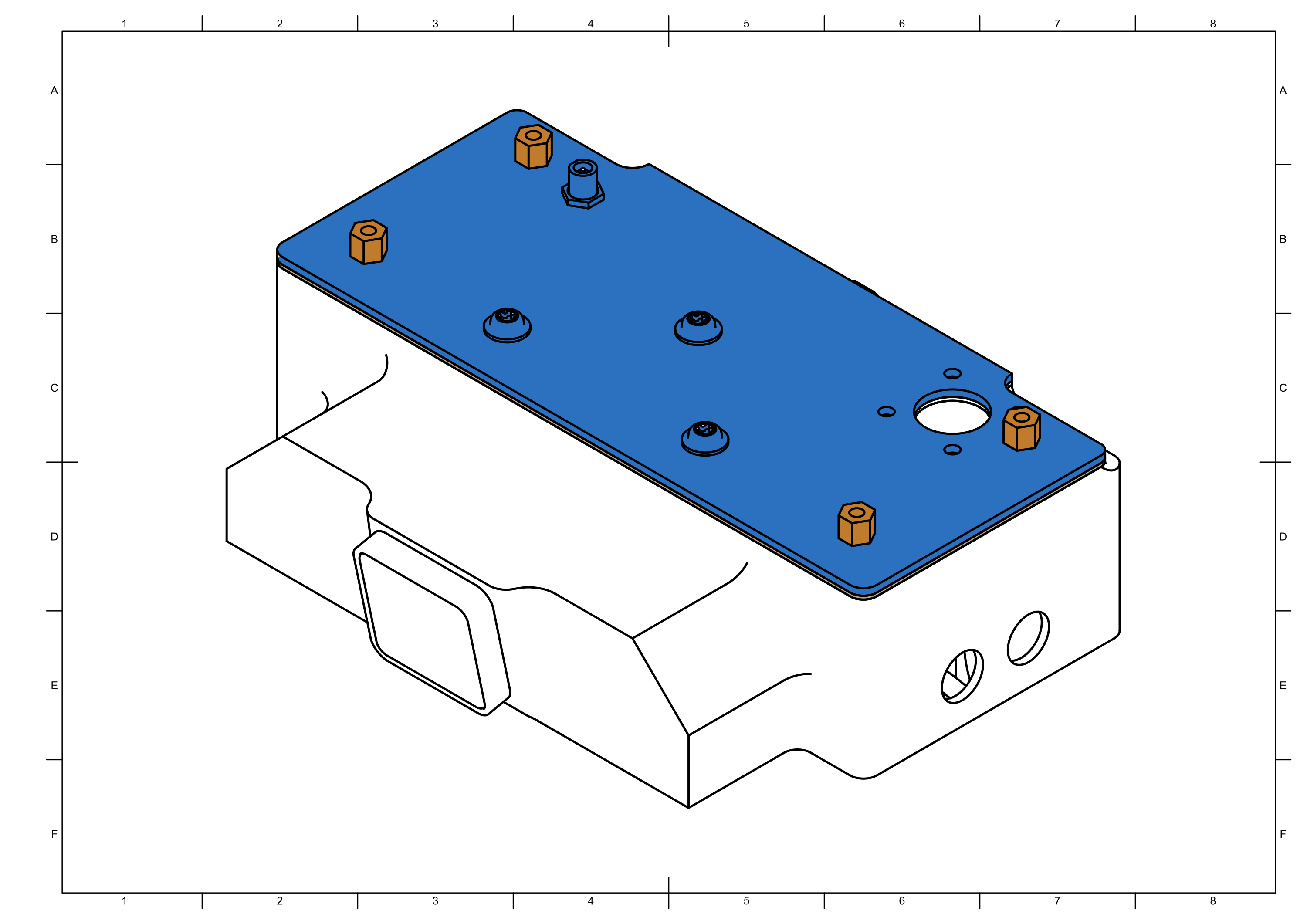

Use loctite on the standoffs to prevent them from loosening over time.

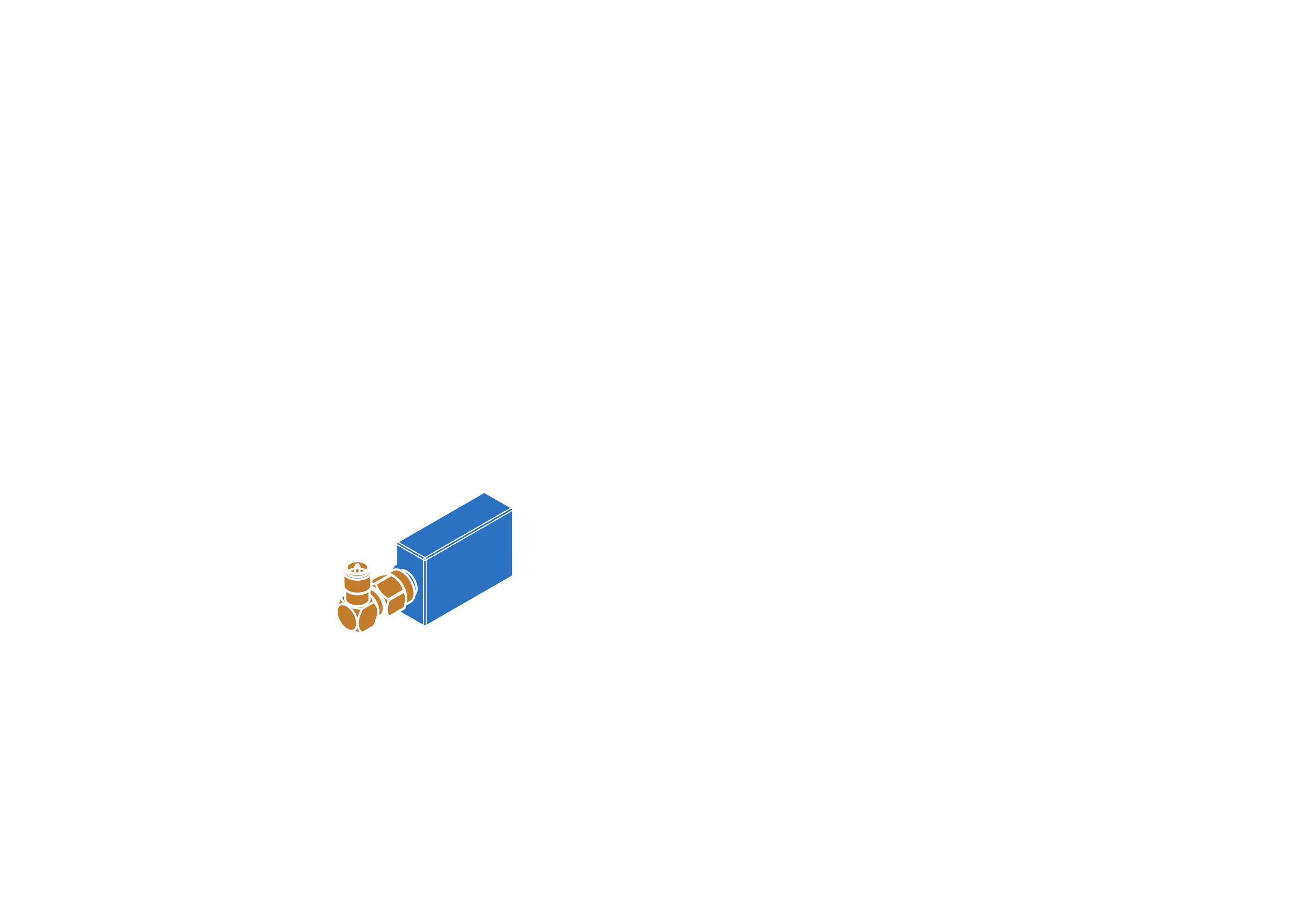

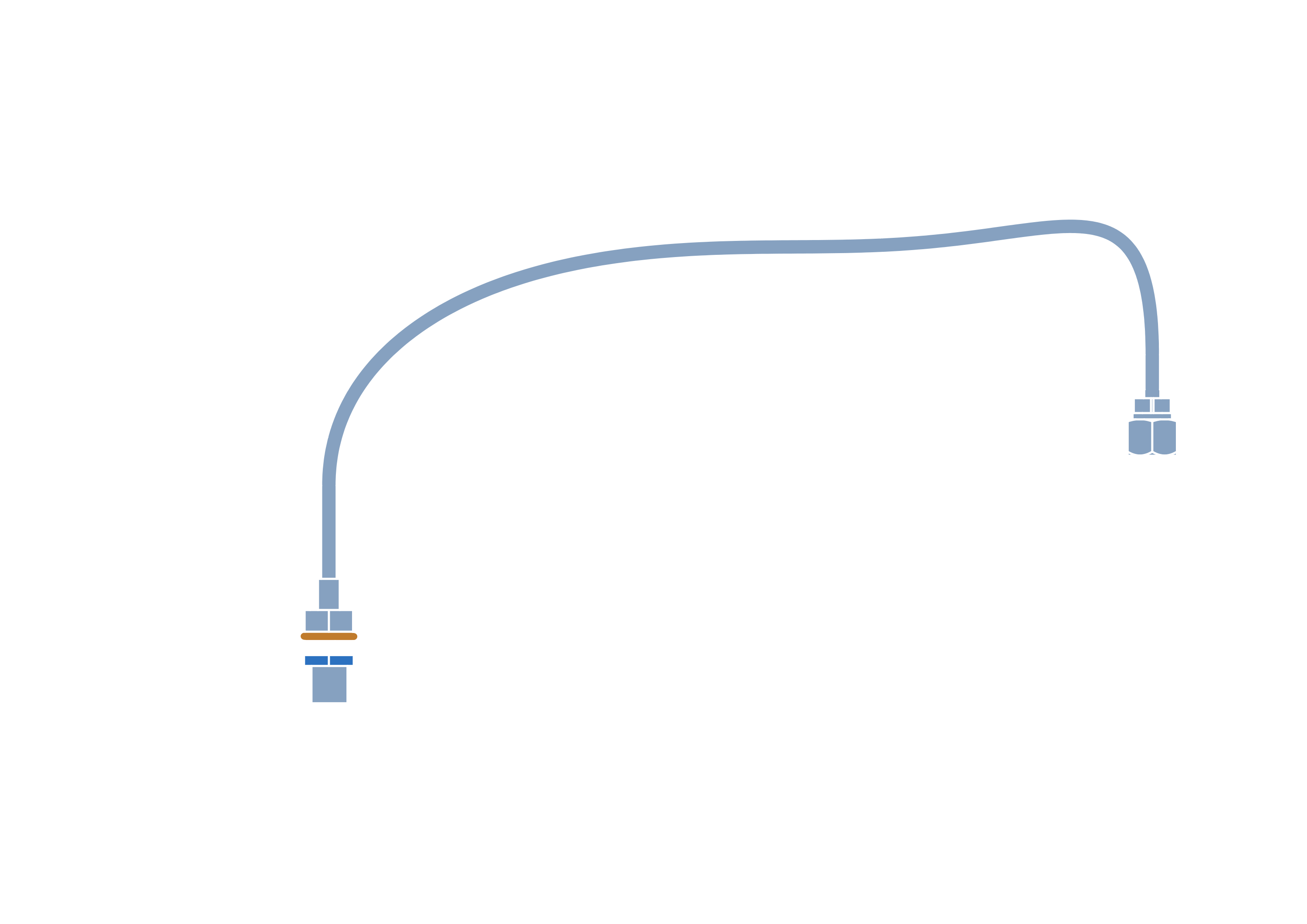

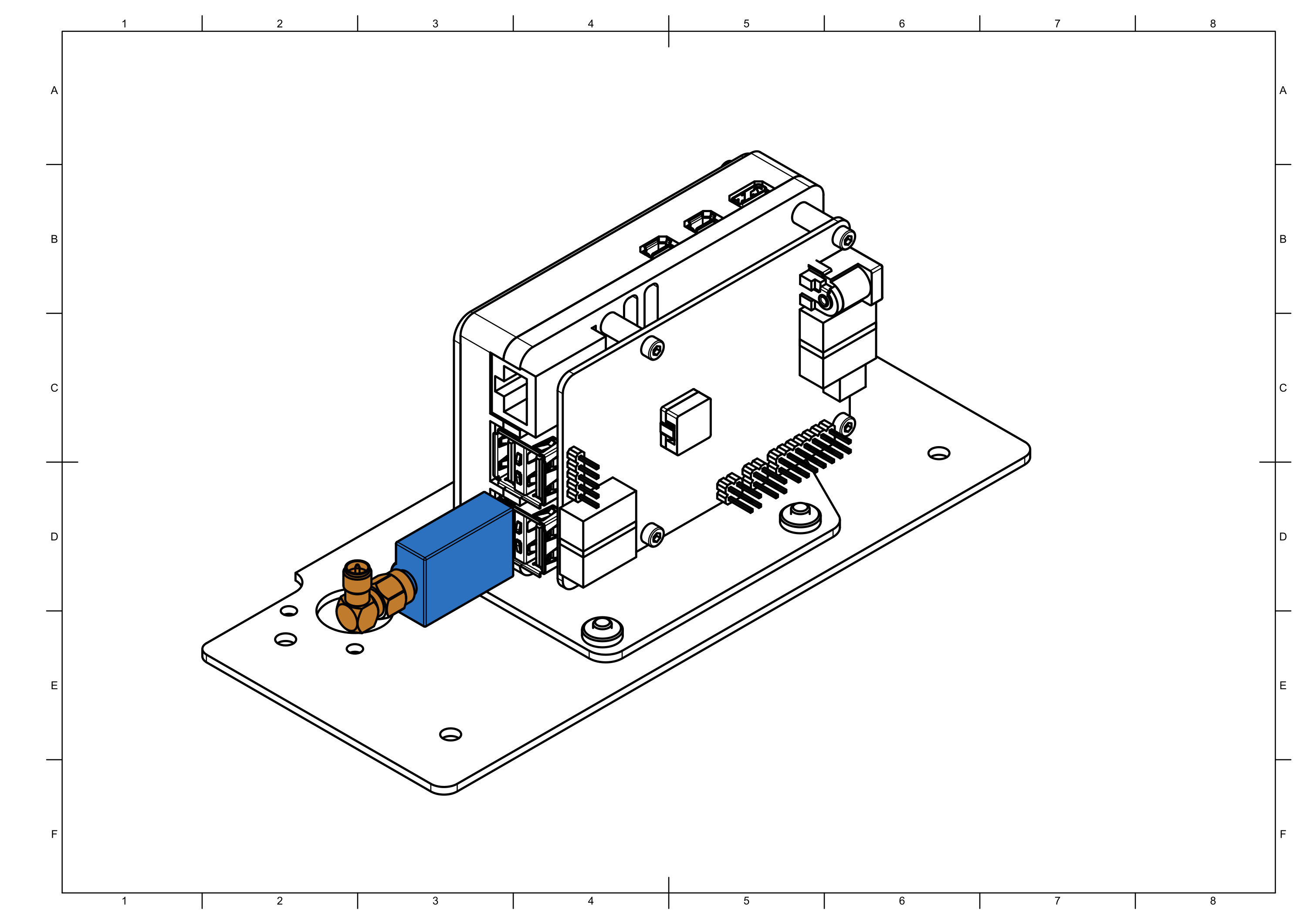

Step 15

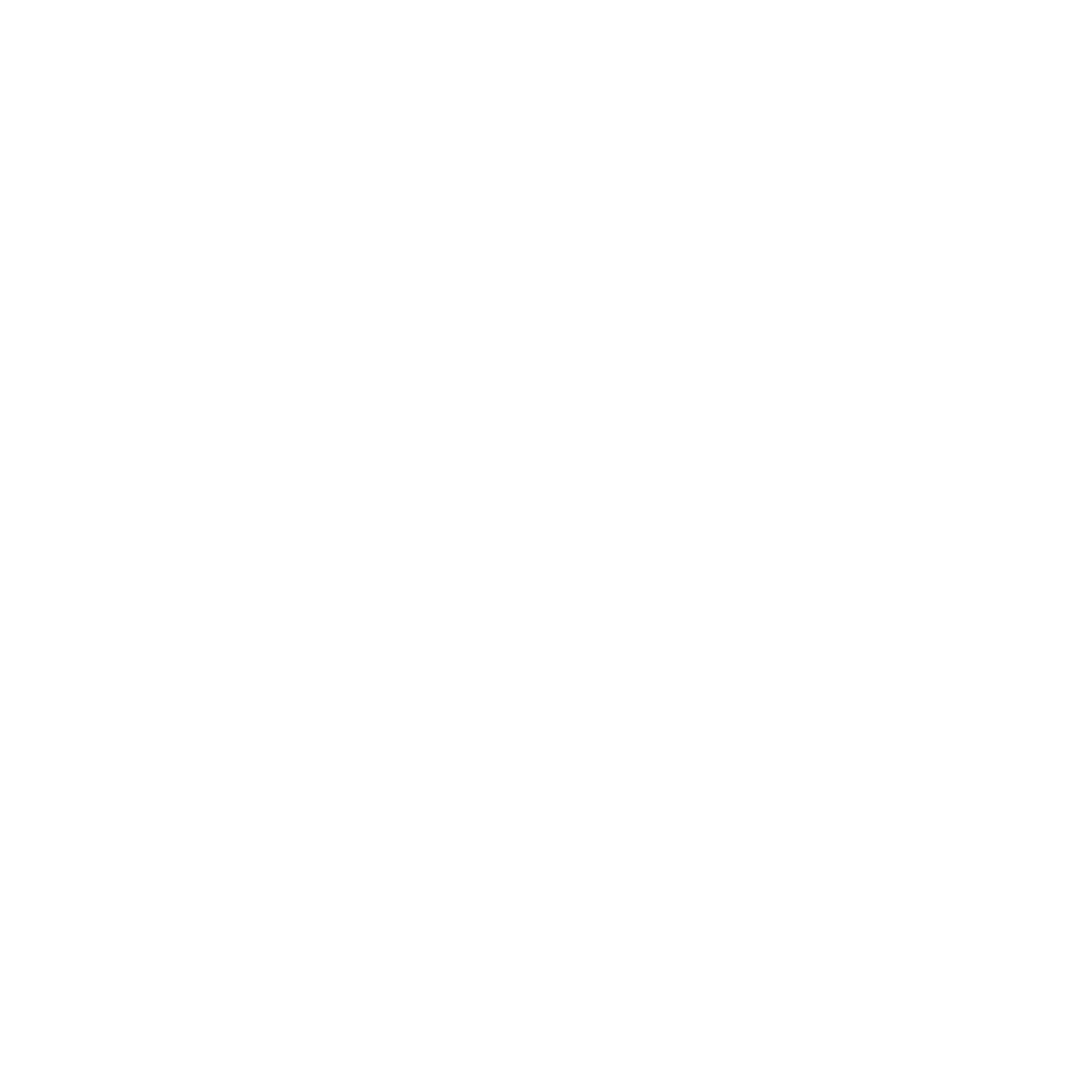

Step 16

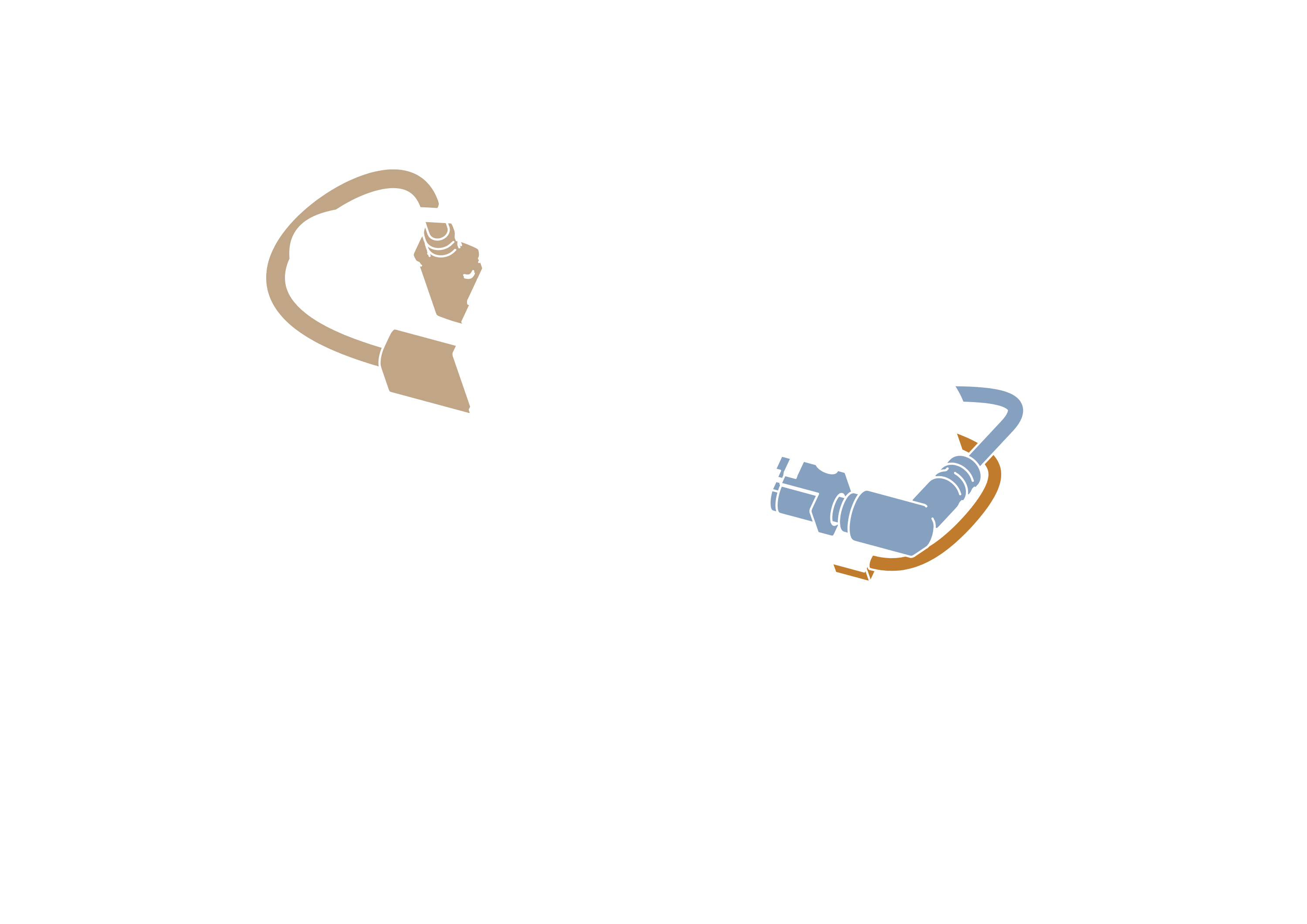

note

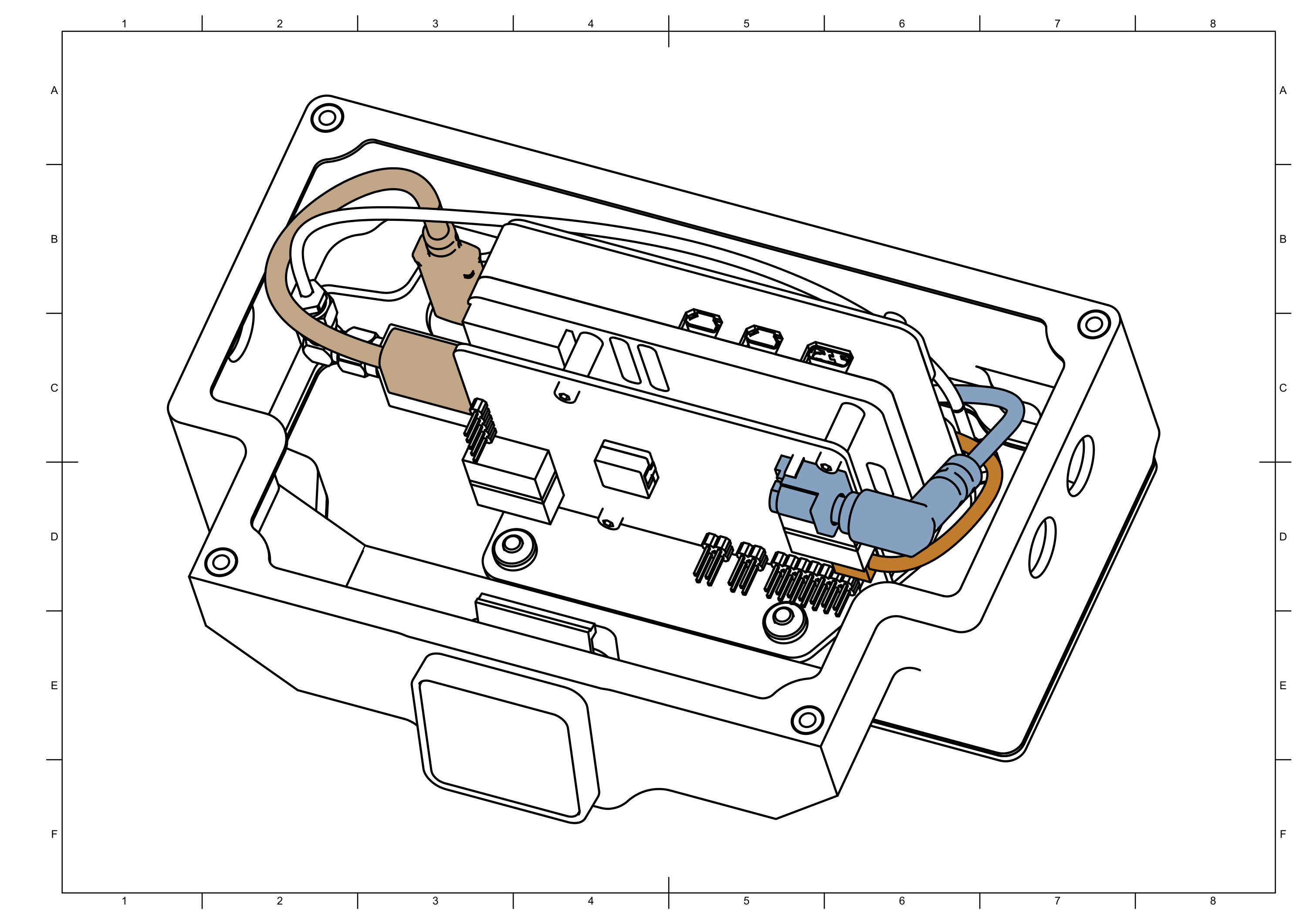

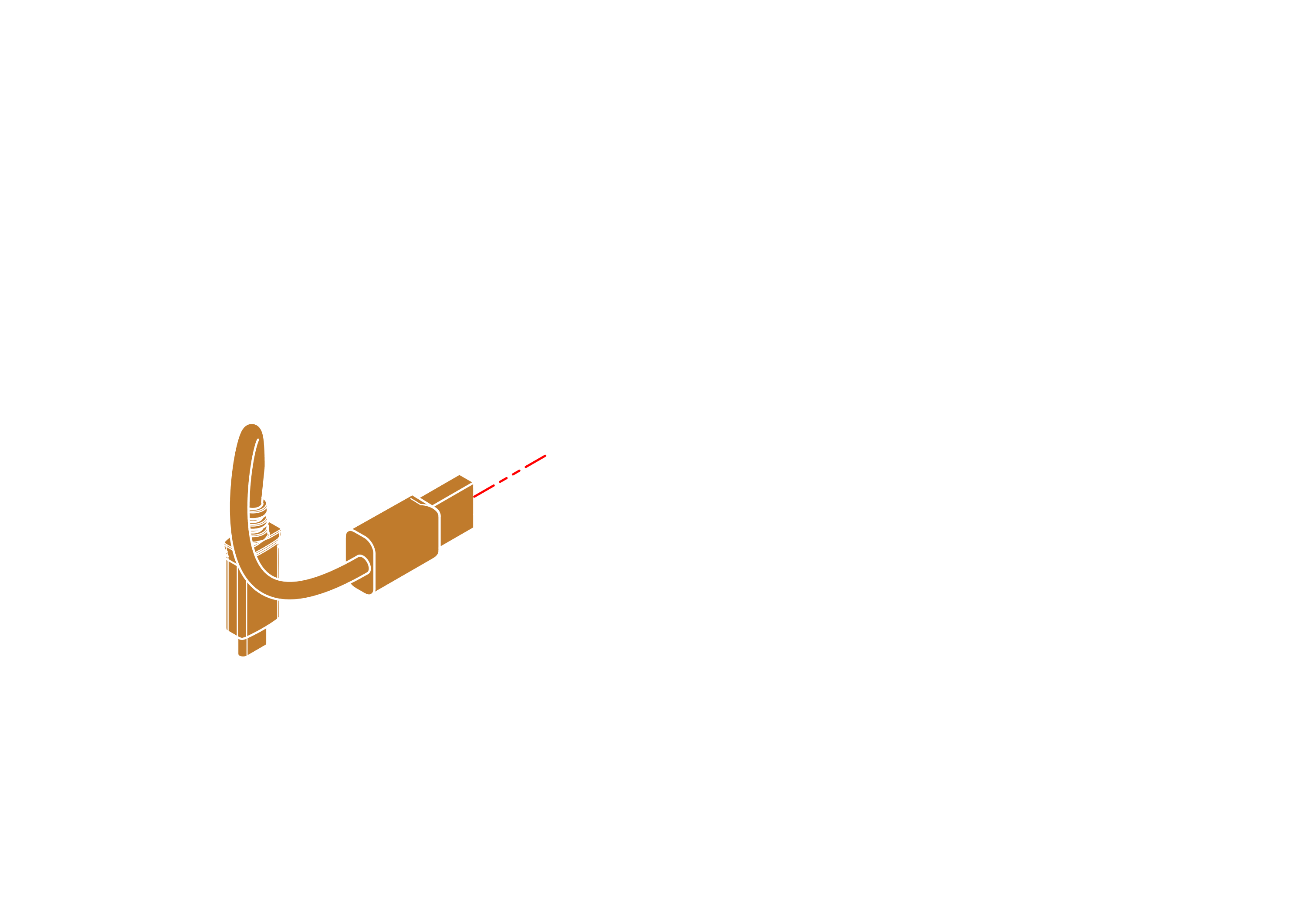

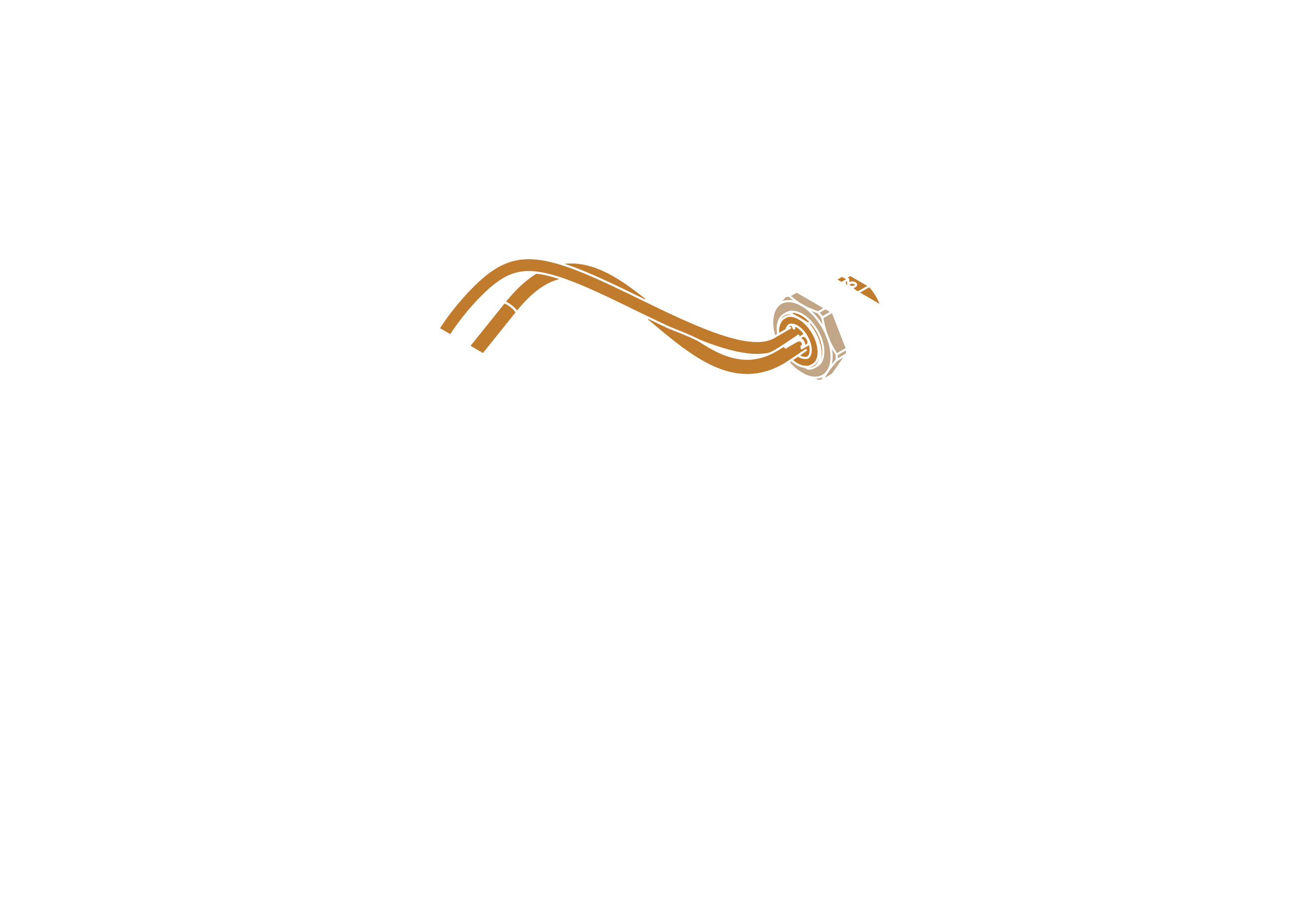

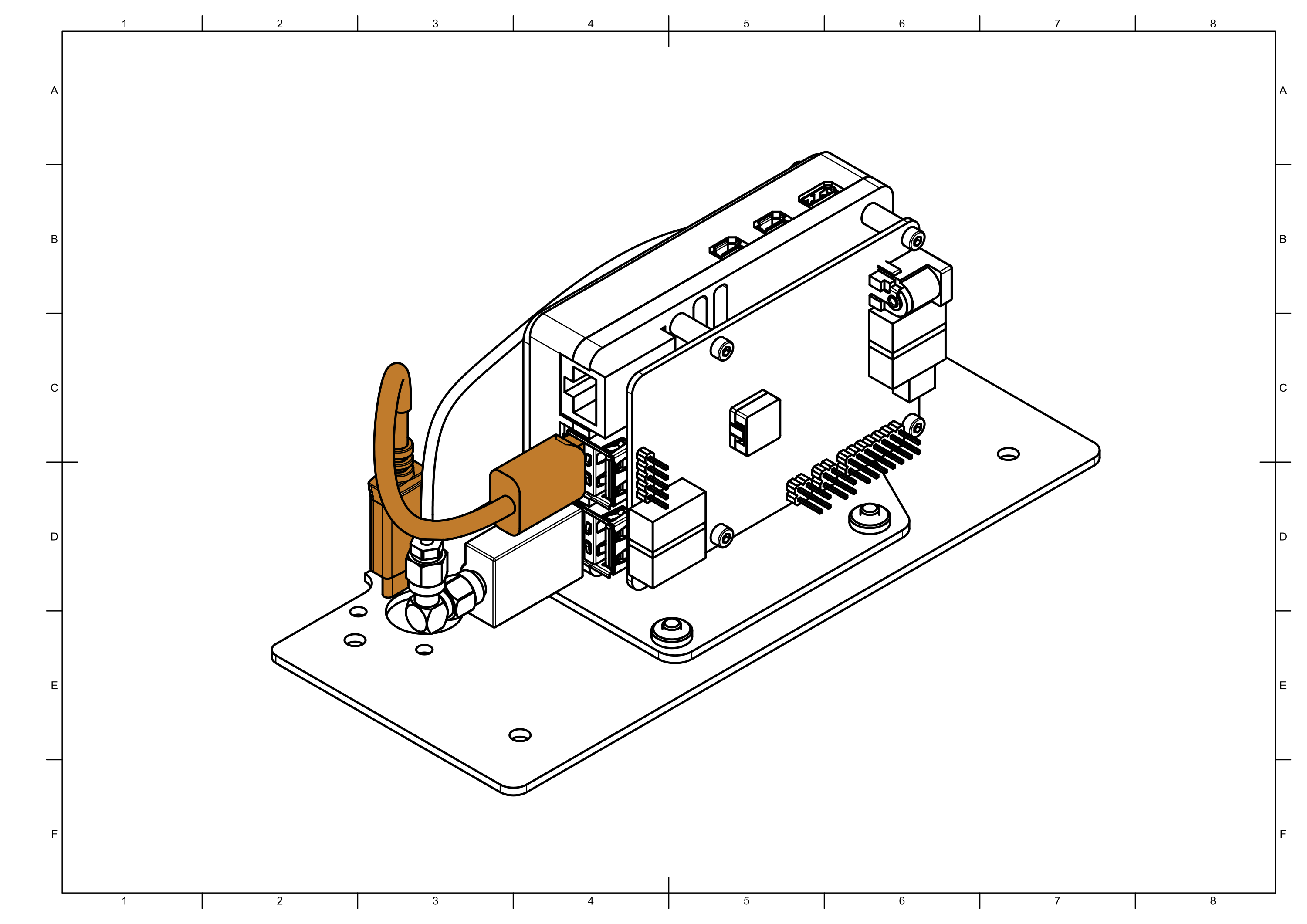

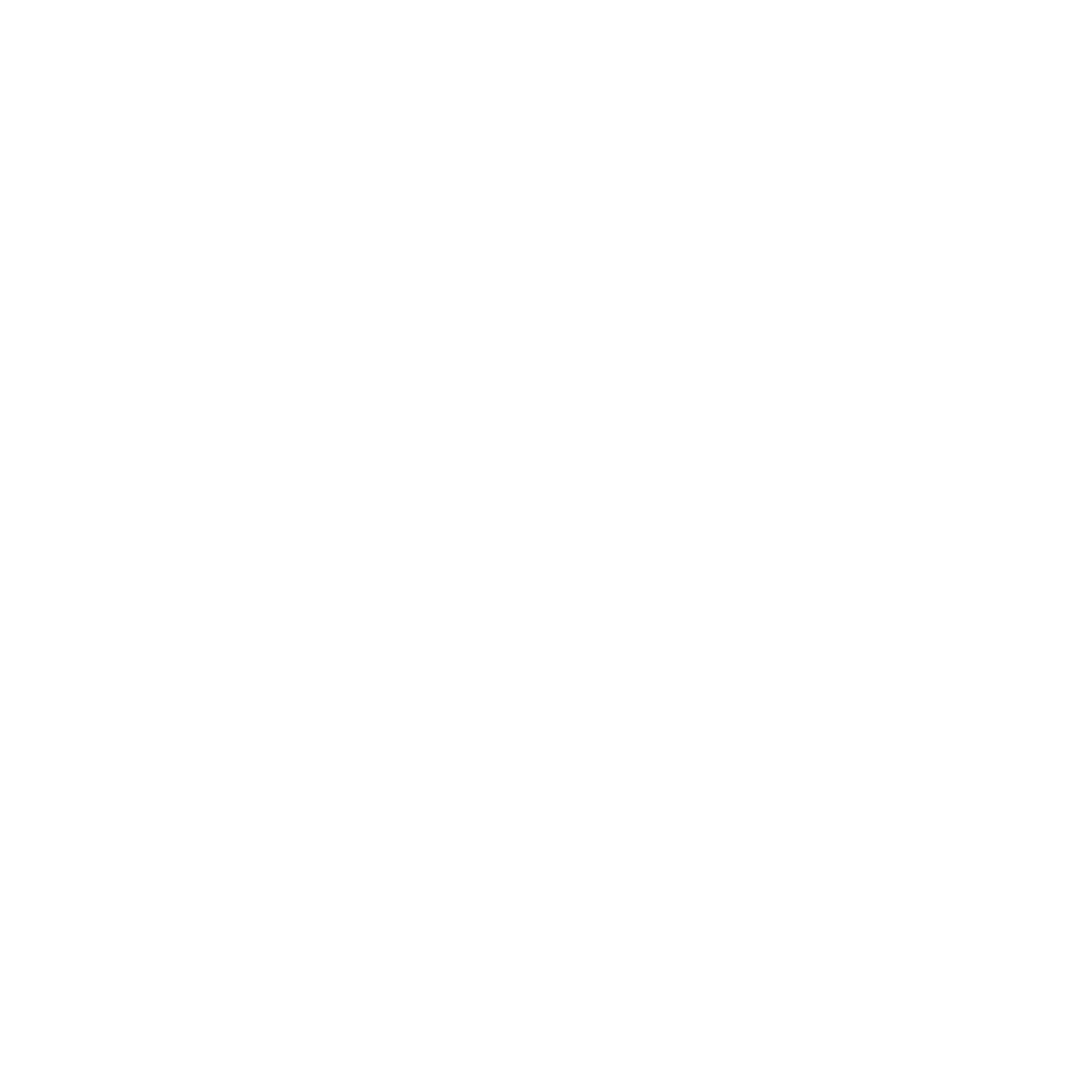

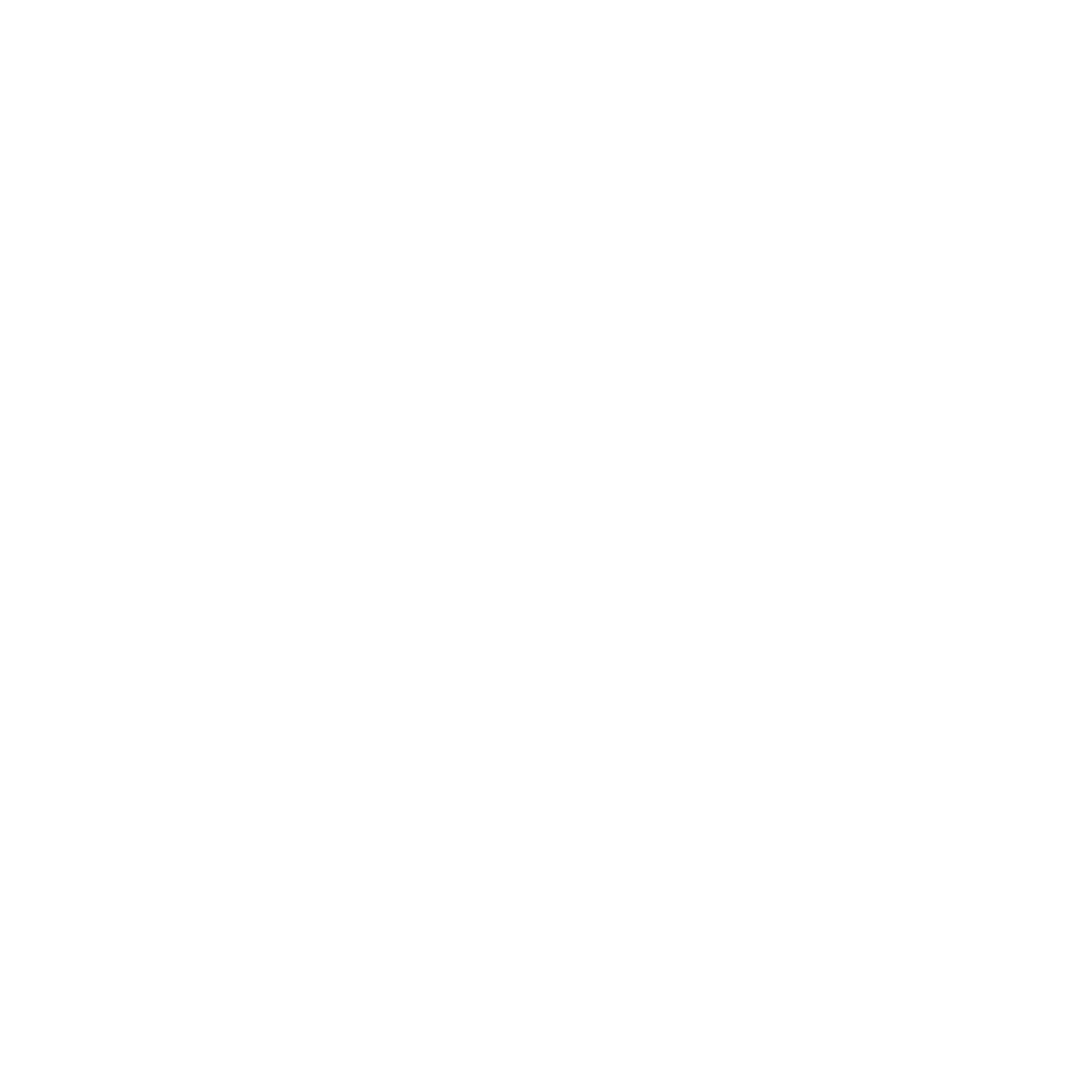

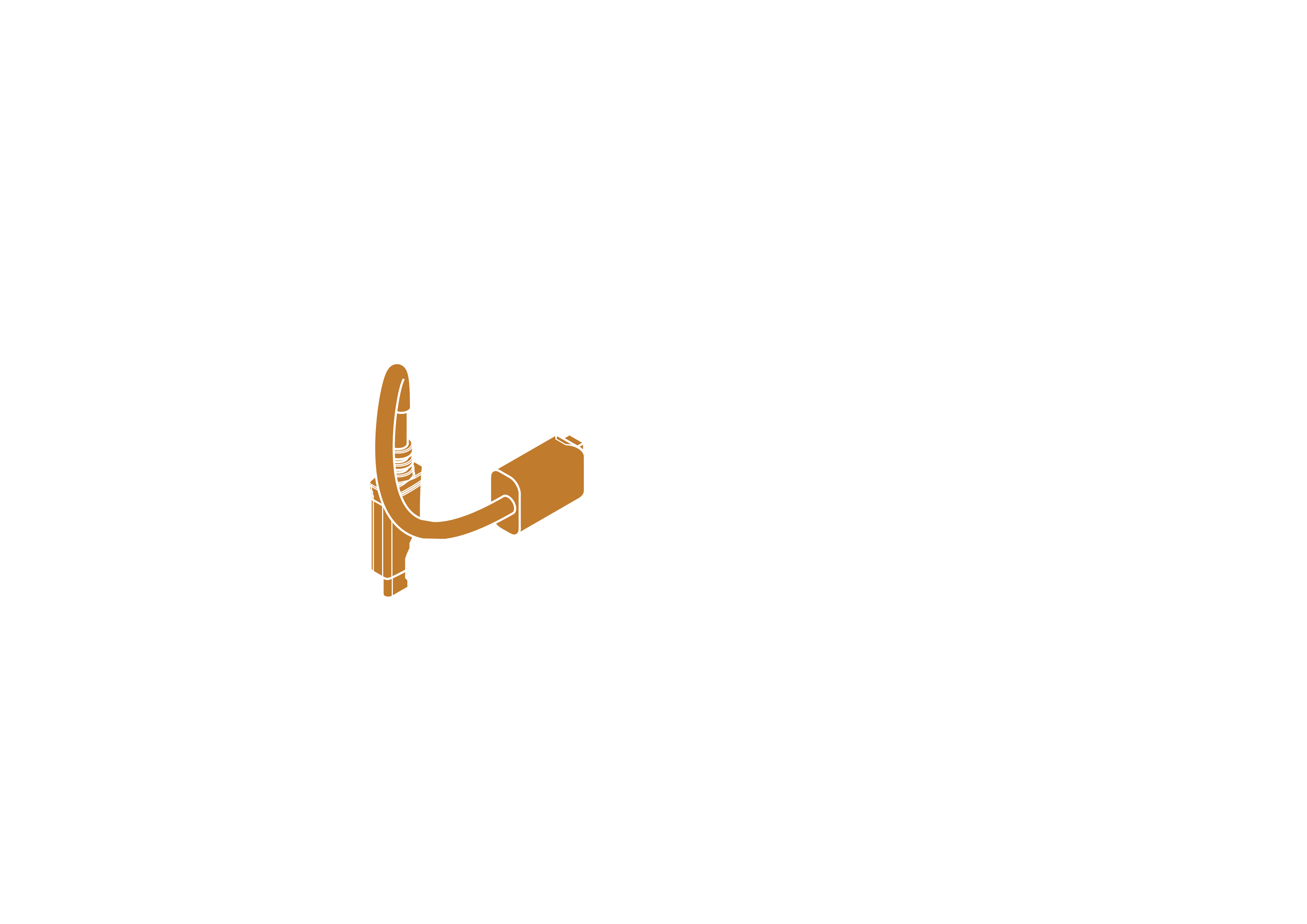

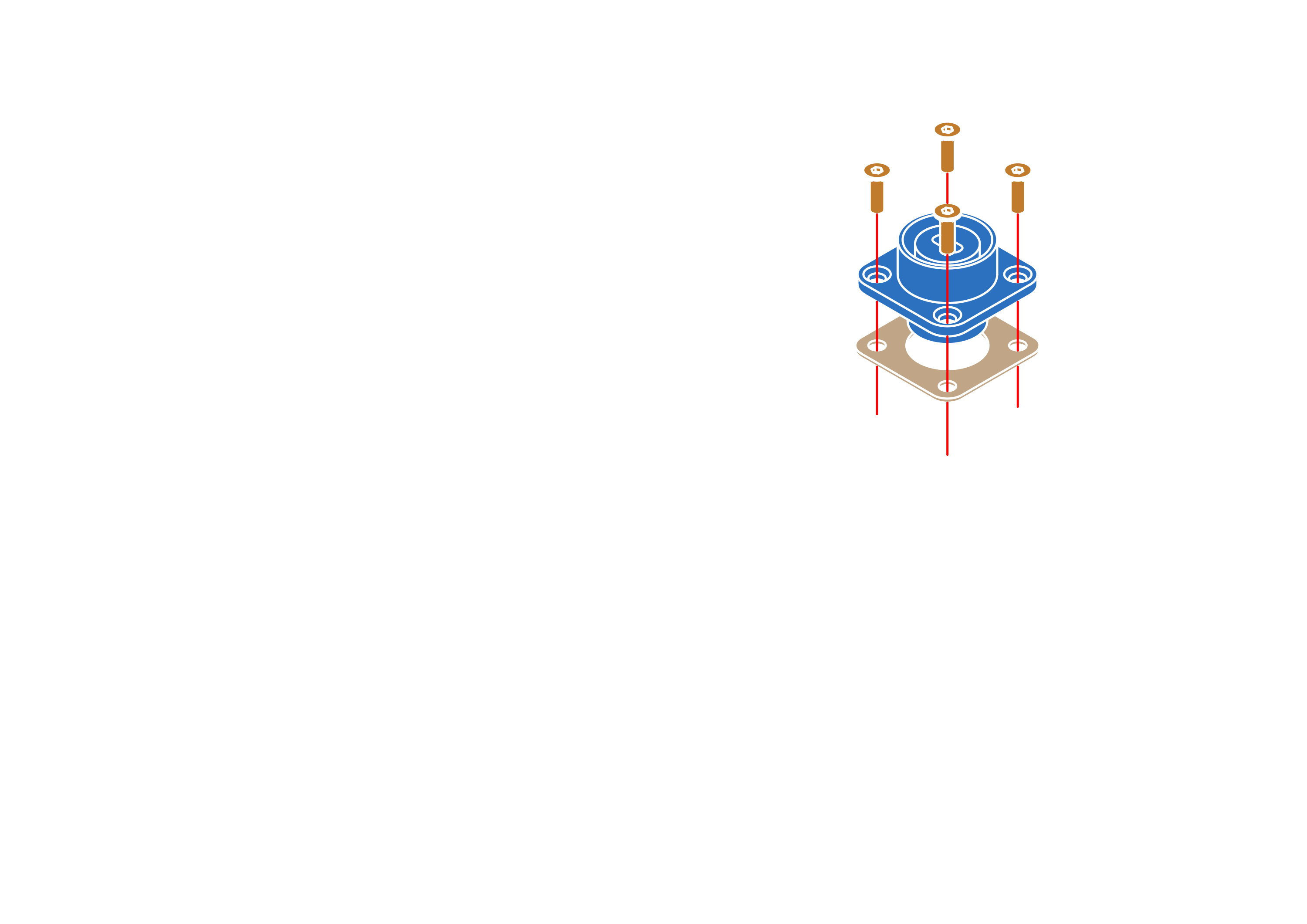

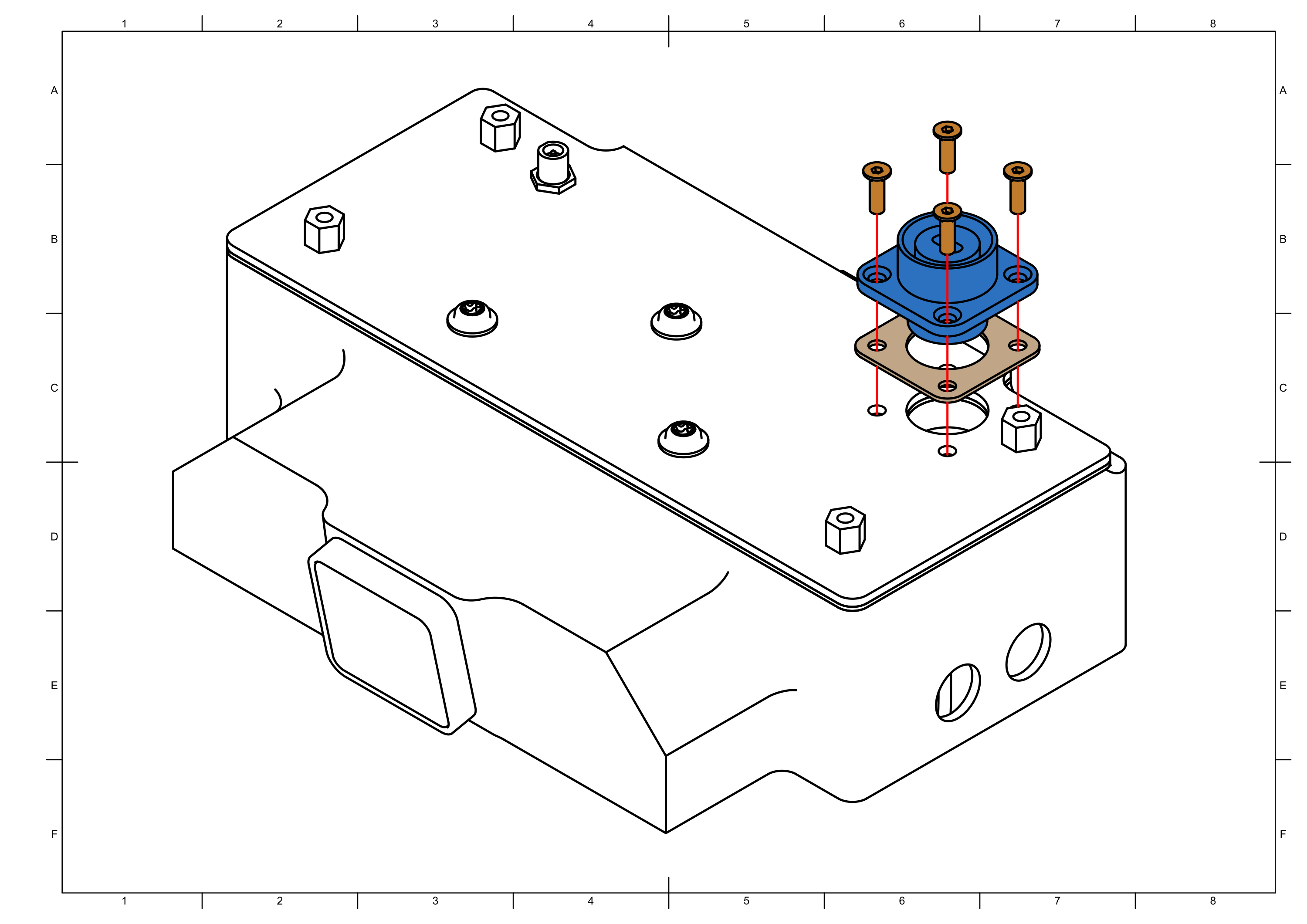

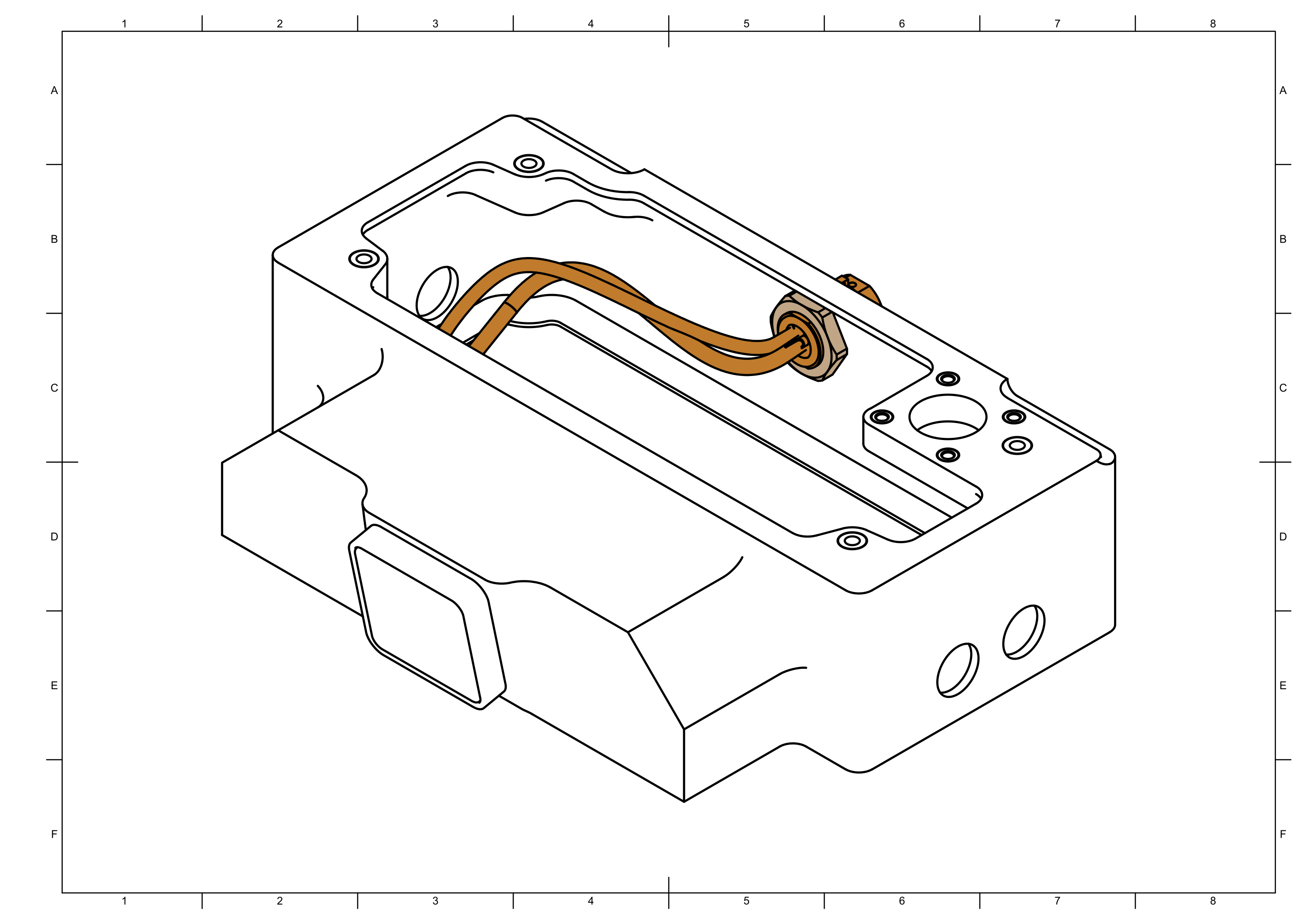

Connect power , LED and USB cables.
Make sure none of the cables are pinched between the box and its cover when box is closed in future step.
Step 17
note

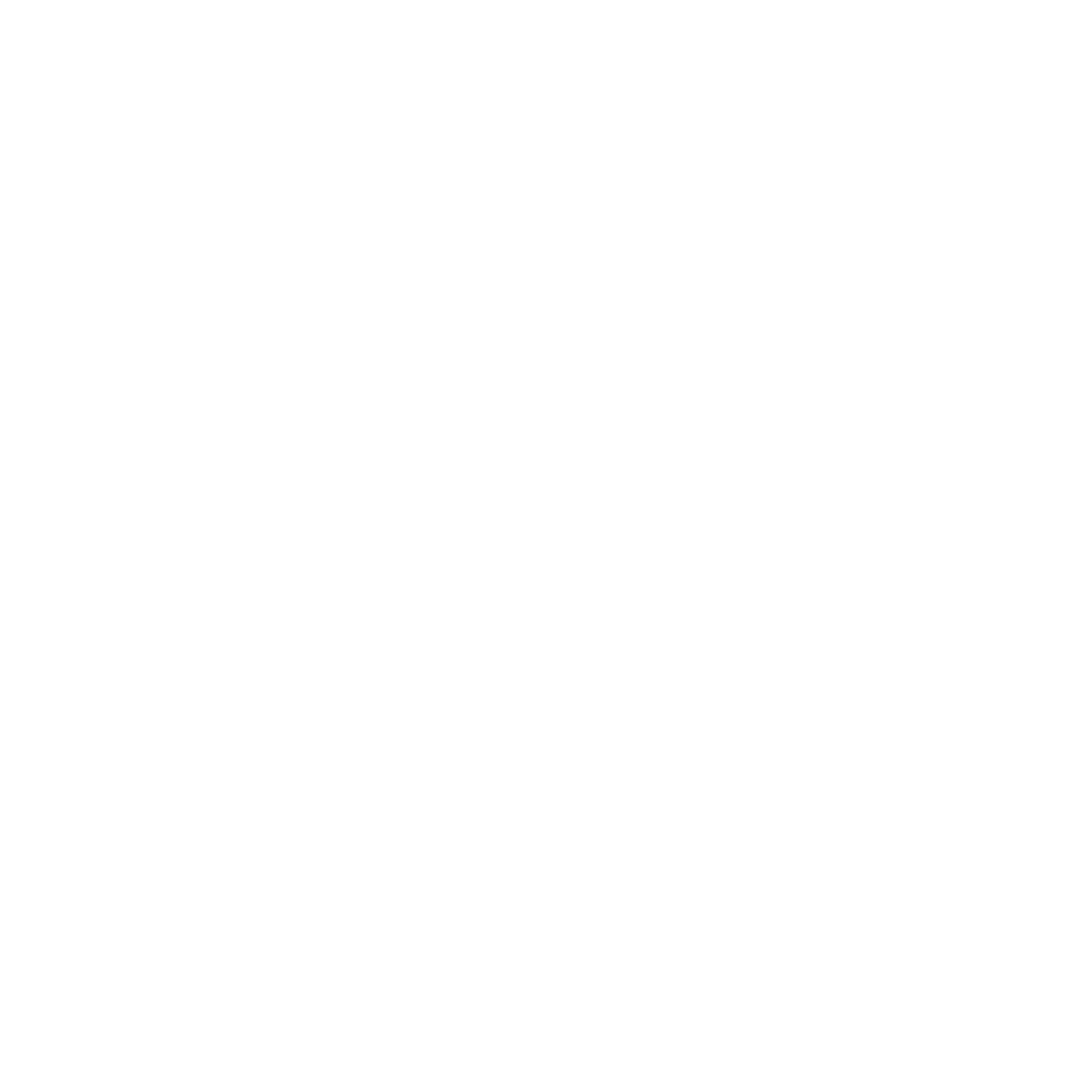

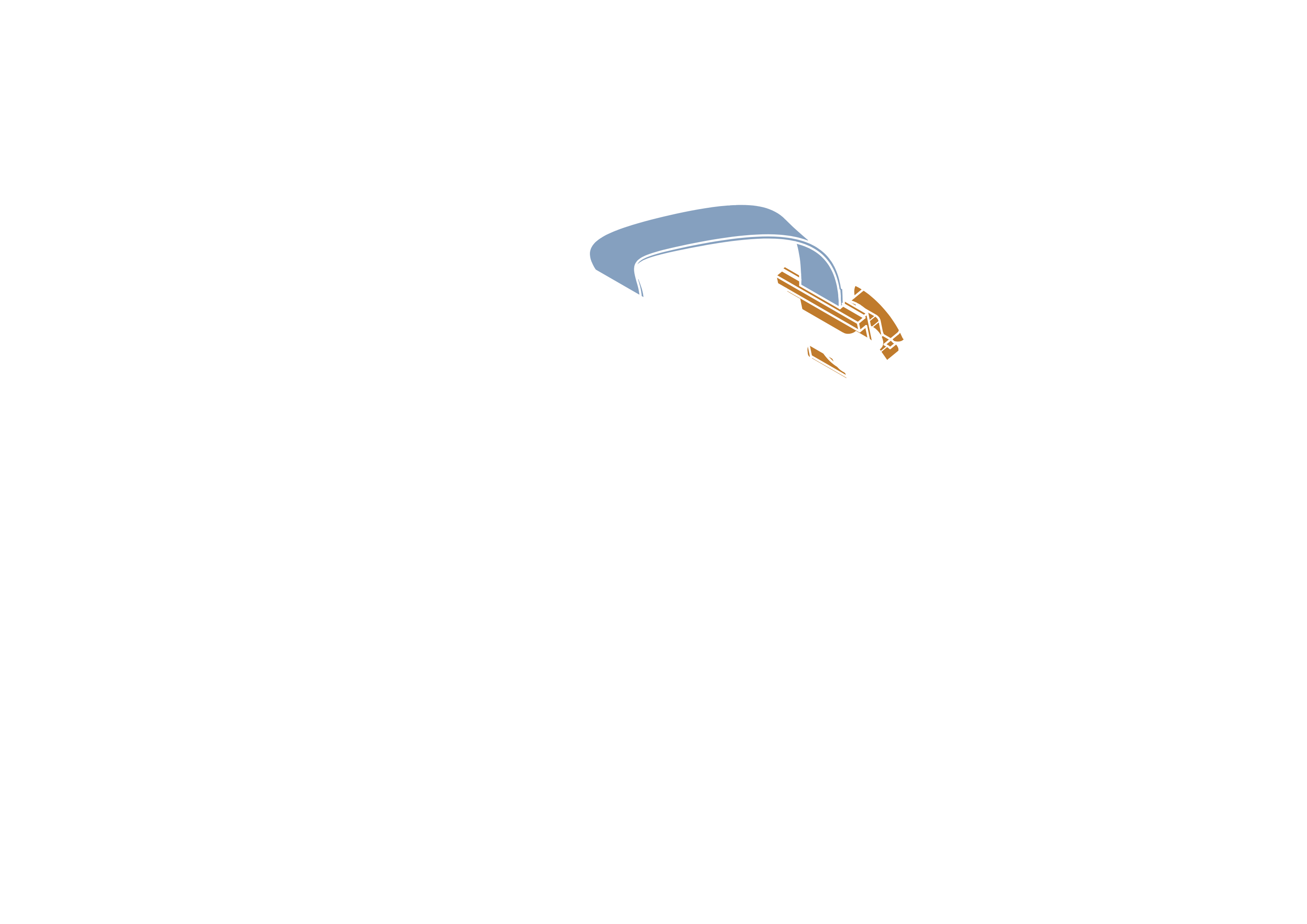

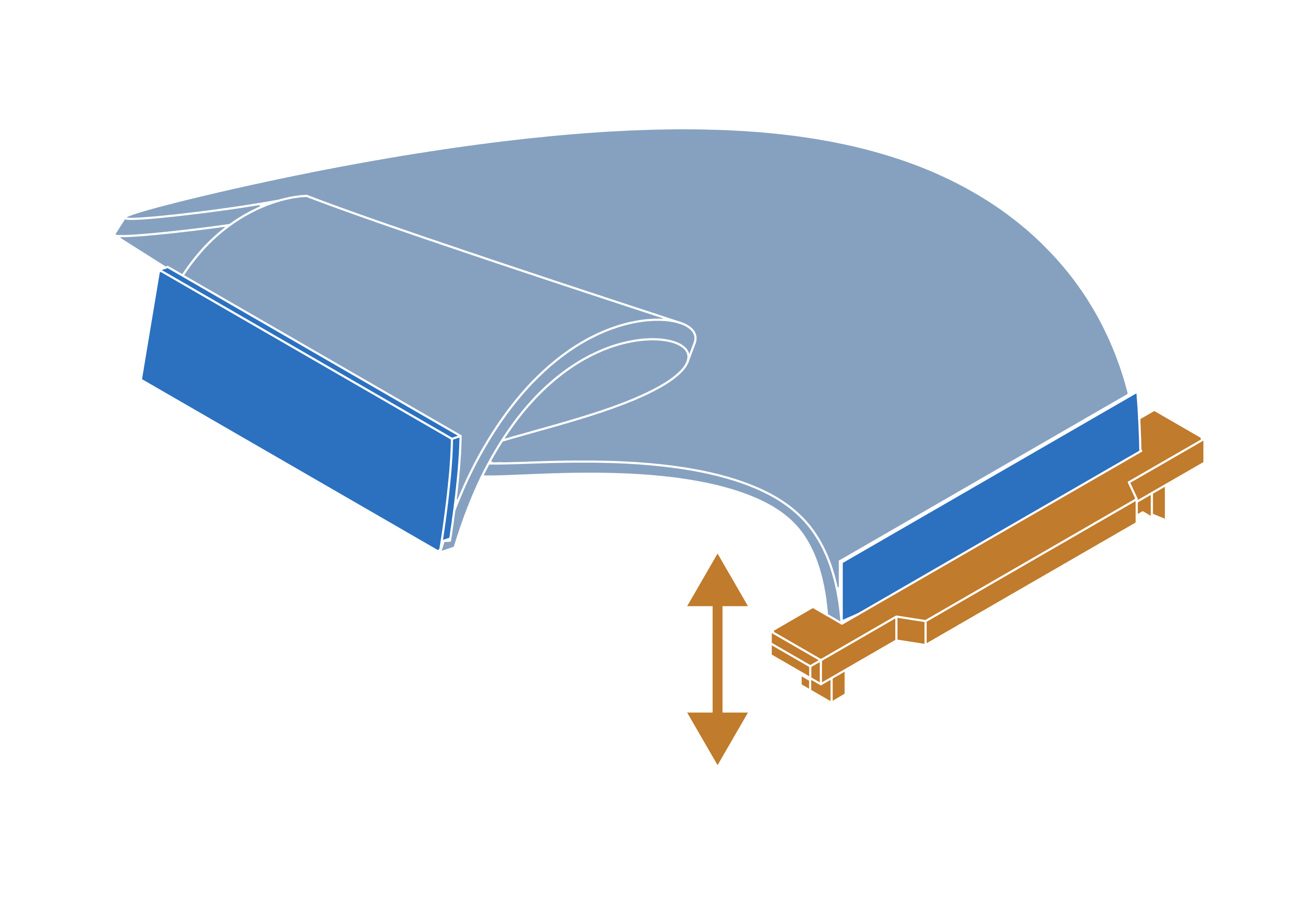

Make sure that camera ribbon is pushed all the way into the connector. Push down on connector handle to lock the ribbon in place.
